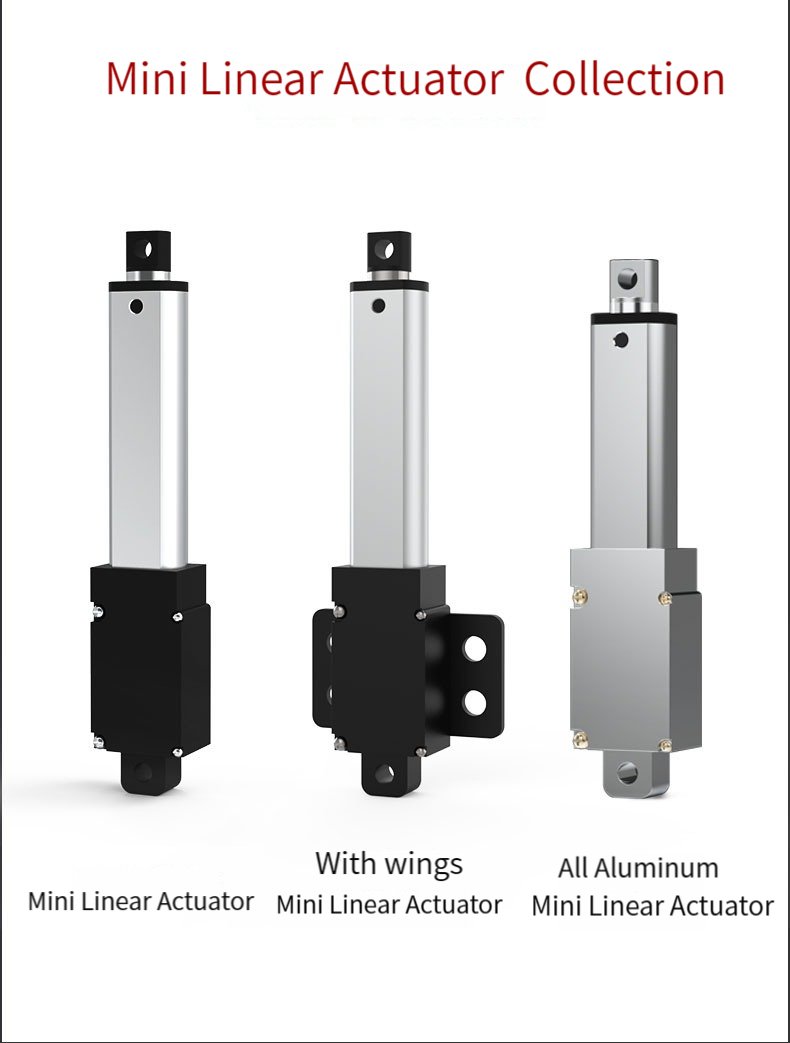

Compact SLA-T01 Linear Actuators
Compact SLA-T01 household miniature electric linear actuators with multiple stroke lengths for furniture, medical equipment, window openers and OEM motion systems.
View seriesElectric linear actuators for OEM equipment
12V and 24V electric linear actuators for OEM equipment — compact micro platforms, industrial heavy-duty cylinders, waterproof tubular units, and solar-tracker drives. Force, stroke, voltage and IP rating are published per model; request a factory quote for feedback, connectors and private-label options.
Start selection
Compact / mini
Tight retracted length for furniture, windows, robotics and light OEM mechanisms.

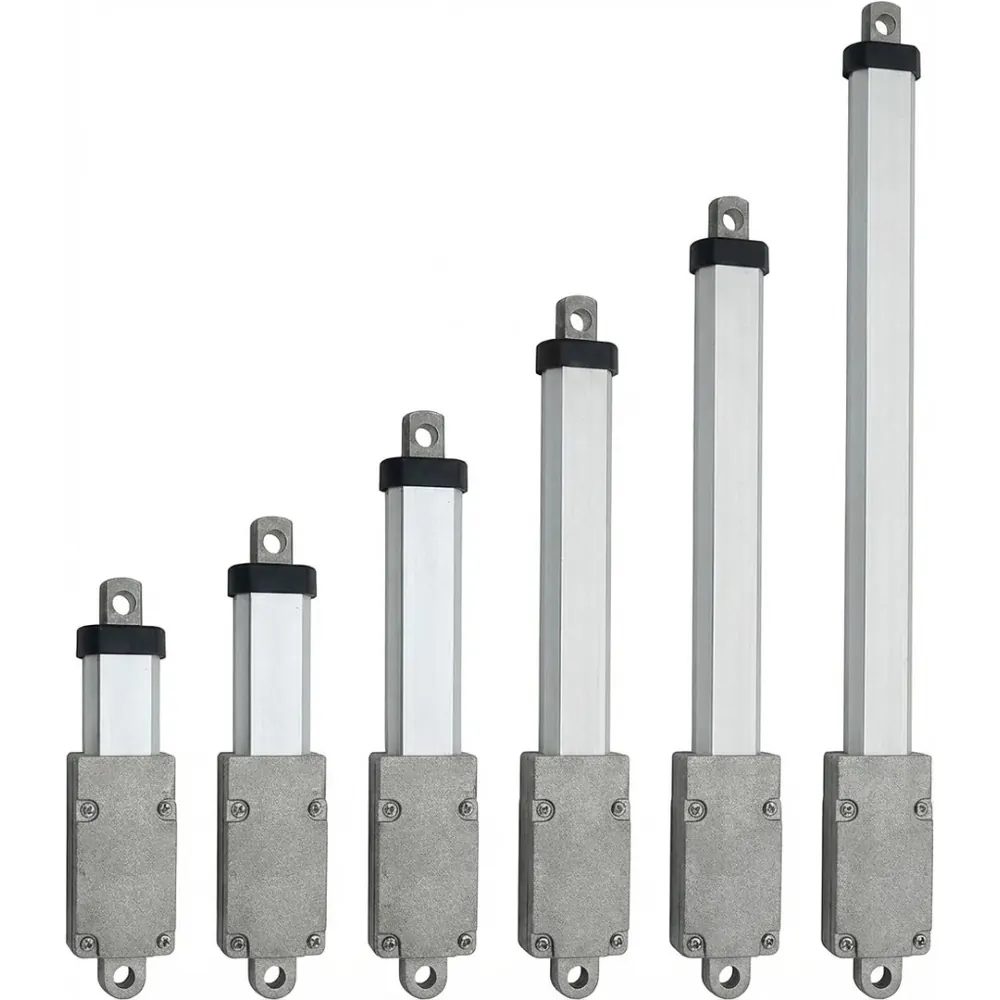

Micro SLA-T01-M Linear Actuators
Compact SLA-T01-M micro electric linear actuators with multiple stroke lengths for robotics, furniture, medical equipment and OEM motion systems.
View series
Flanged SLA-T01-W Linear Actuators
Compact SLA-T01-W flanged electric linear actuators with multiple stroke lengths for narrow spaces, medical equipment, solar tracking, smart home and OEM motion systems.
View series
Compact Linear Actuator — SLA01
- Force
- 900 N
- Stroke
- 10 – 1000 mm
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
- IP
- IP54

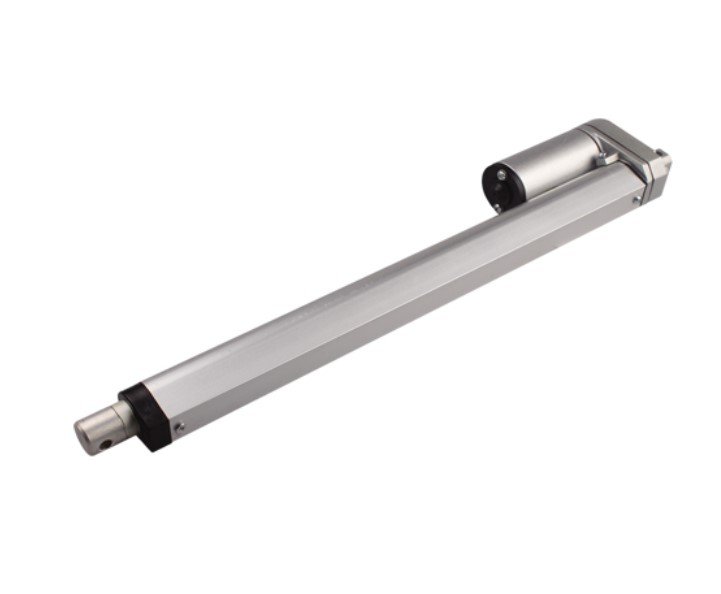

Compact Linear Actuator — SLA017
- Force
- 1,200 N
- Voltage
- 12 V / 24 V DC

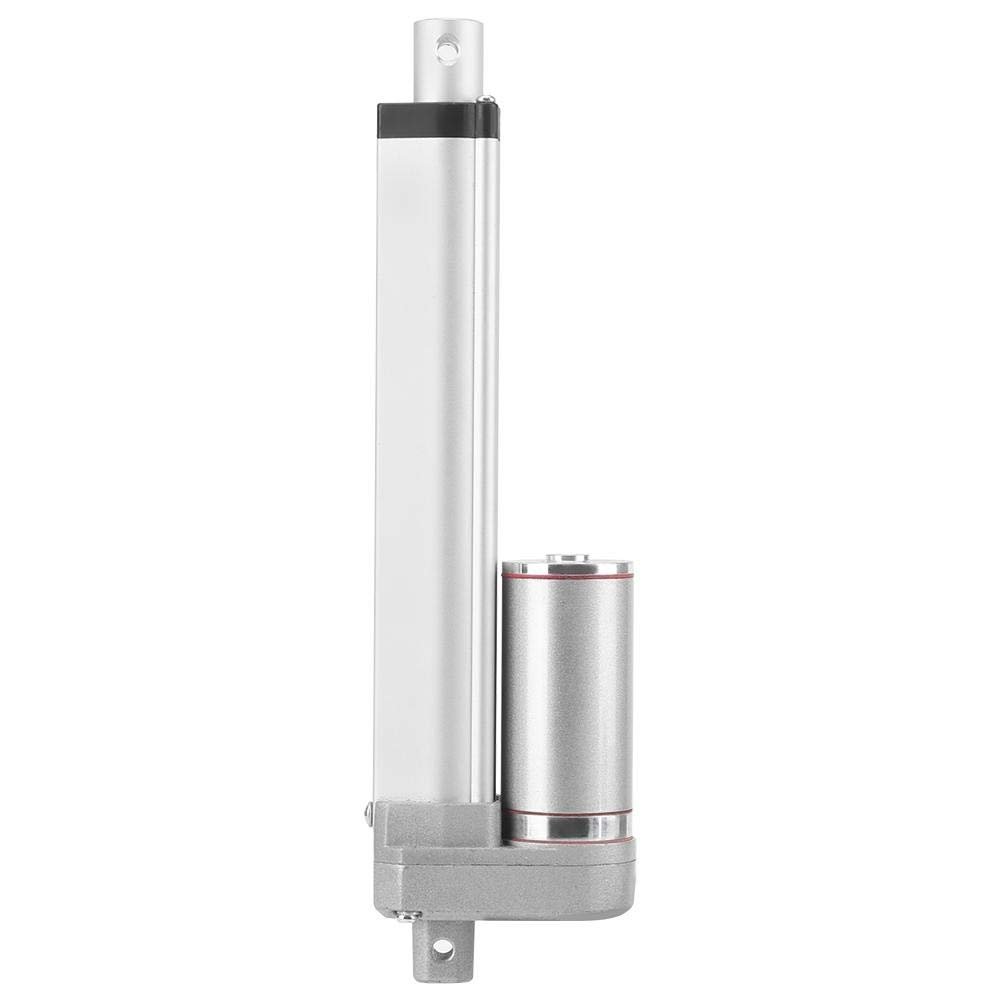

IP54 Linear Actuator — SLA02
- Stroke
- 50 – 300 mm
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP
- IP54
IP54 Linear Actuator — SLA02R
- Force
- 2,500 N
- Stroke
- Custom; retracted length…
- Voltage
- DC 12 V or DC 24 V
- IP
- IP54

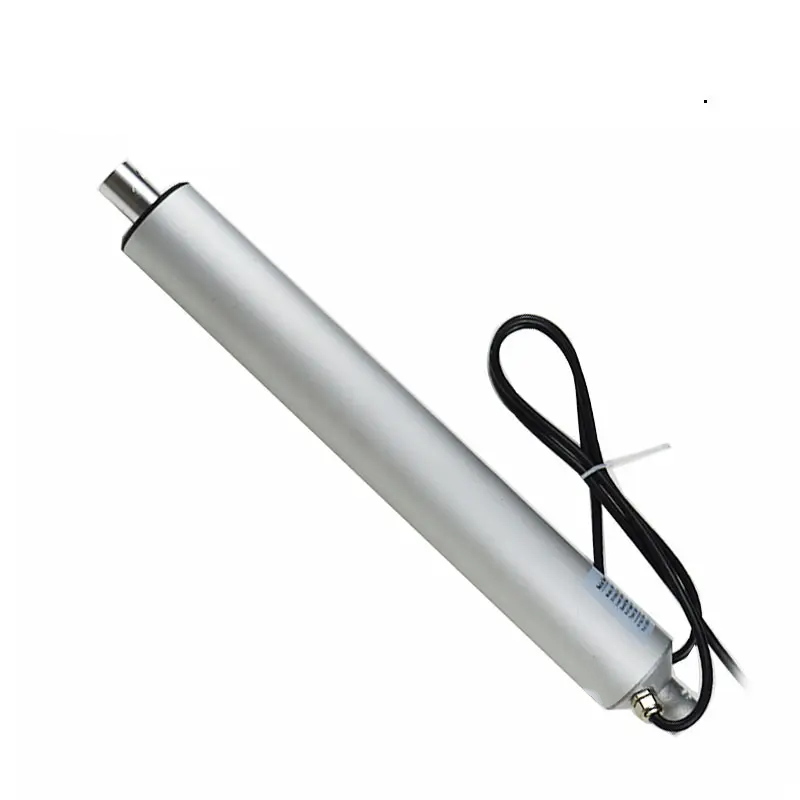

IP54 Linear Actuator — SLA05
- Force
- 1,500 N
- Voltage
- DC 12 V or DC 24 V
- IP
- IP54 / IP65

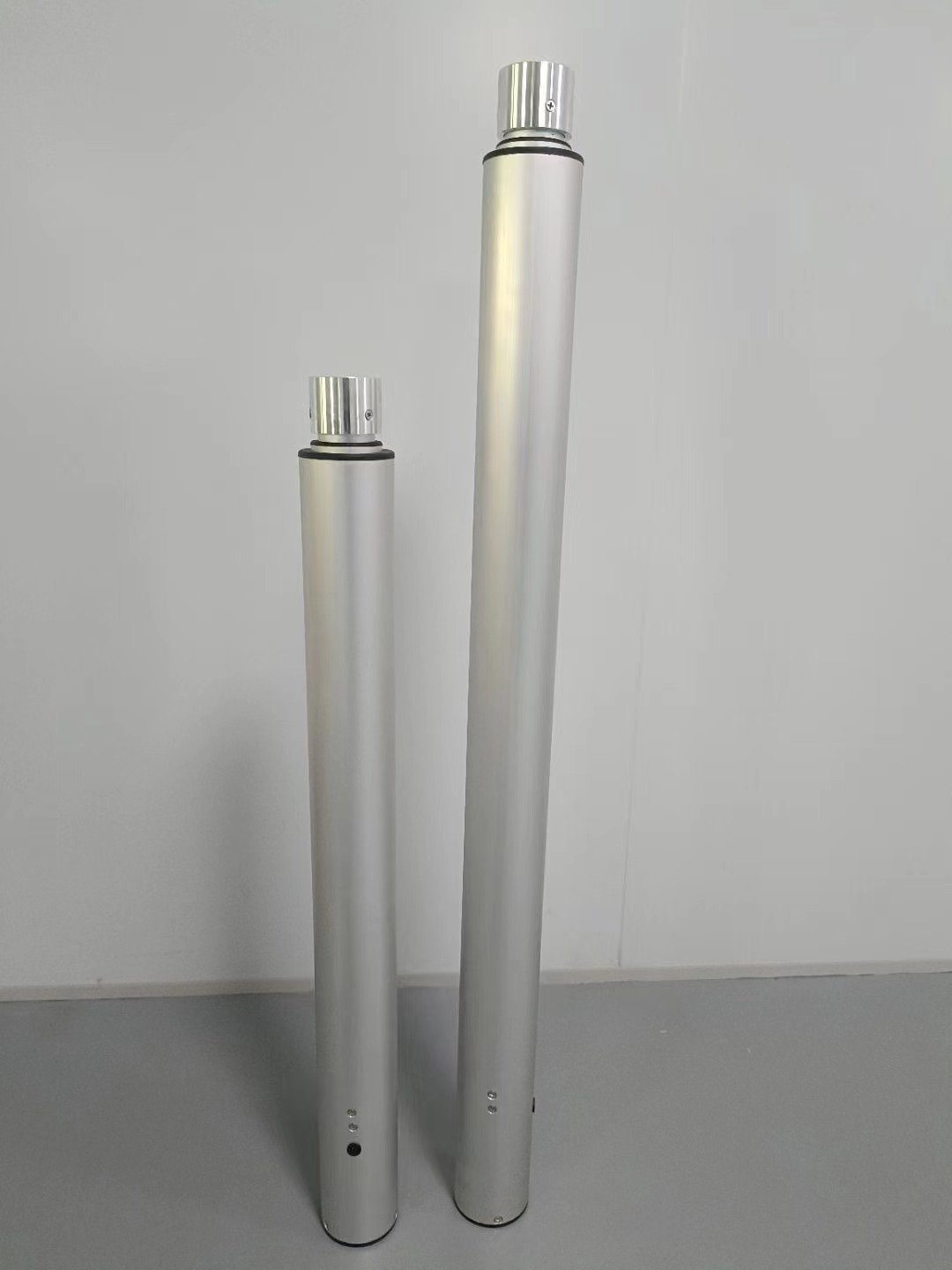

IP55 Tubular Linear Actuator — SLA-T3S
- Force
- 2,000 N
- Stroke
- 600 – 1400 mm total
- Voltage
- DC 12 V or DC 24 V
- IP
- IP55

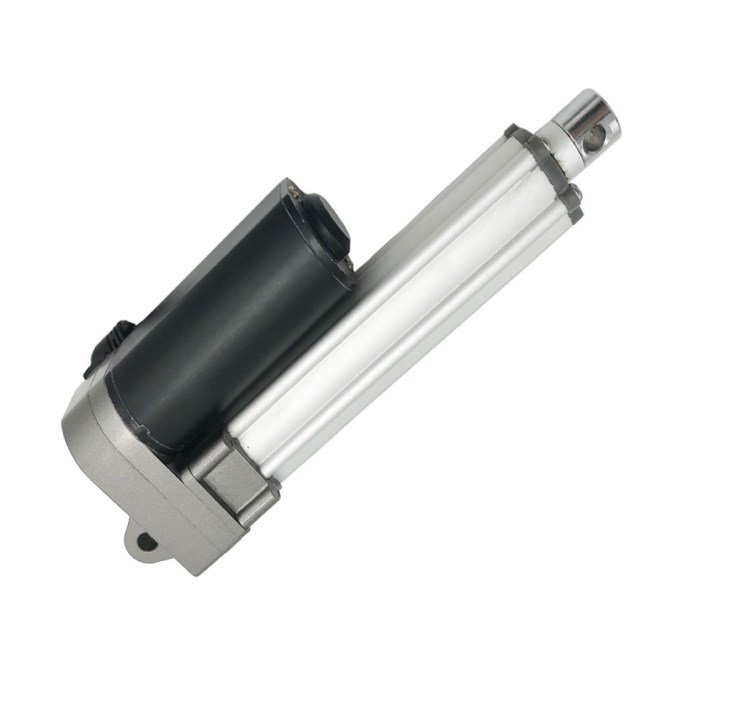

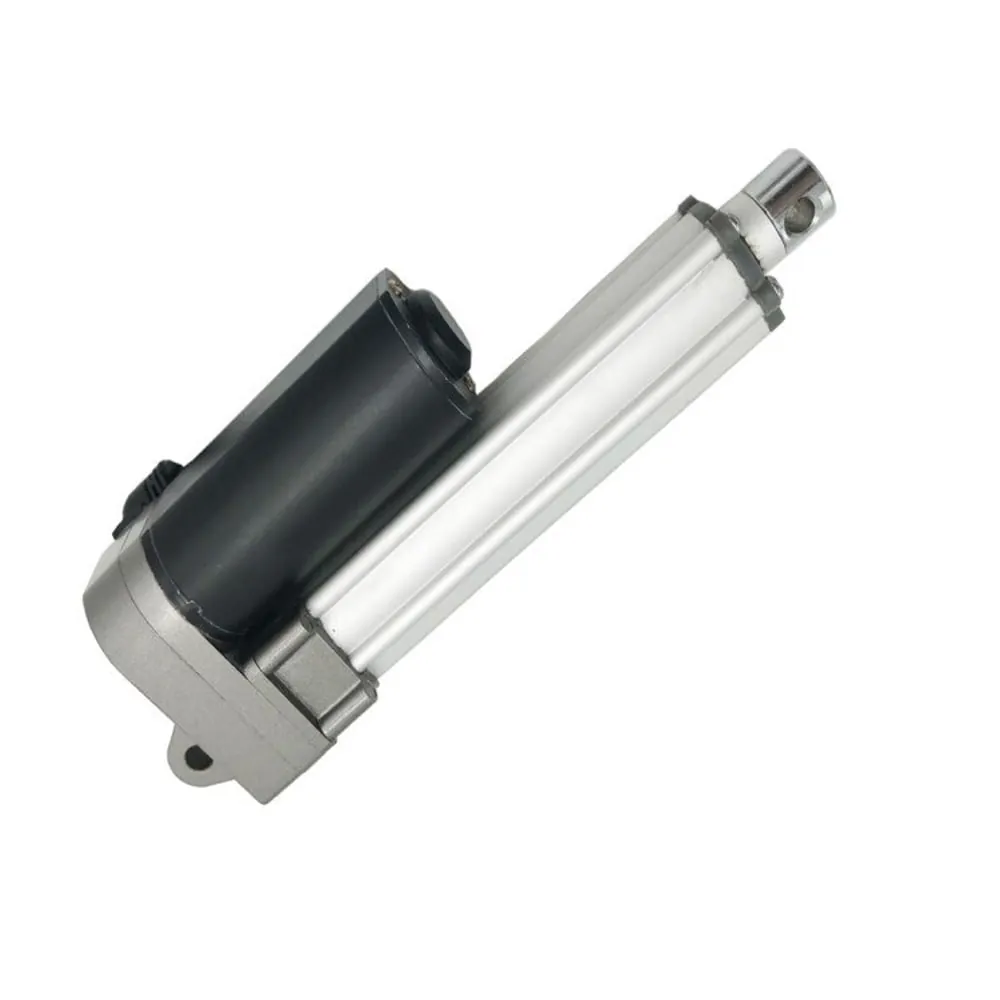

Compact Linear Actuator — SLA019
- Force
- 2,500 N
- Voltage
- 12 V / 24 V DC
Industrial / heavy-duty
6,000 N to 17,000 N dynamic force for hatches, lifts, vehicles and gates.
12,000 N Heavy-Duty Linear Actuators — SLA-12K
Heavy-duty SLA-12K 12000N (2700 lbs) electric linear actuators in 12V/24V with multiple stroke lengths for cellar doors, hatchways, solar tracking, agriculture, vehicles and OEM automation. IP66 rated with manual override.
View series
8,000 N Industrial Linear Actuators — SLA08
Heavy-duty SLA08 8000N (1800 lbs) electric linear actuators in 12V/24V with multiple stroke lengths for lifting platforms, construction machinery, agriculture, solar tracking and OEM automation. IP65 rated.
View series

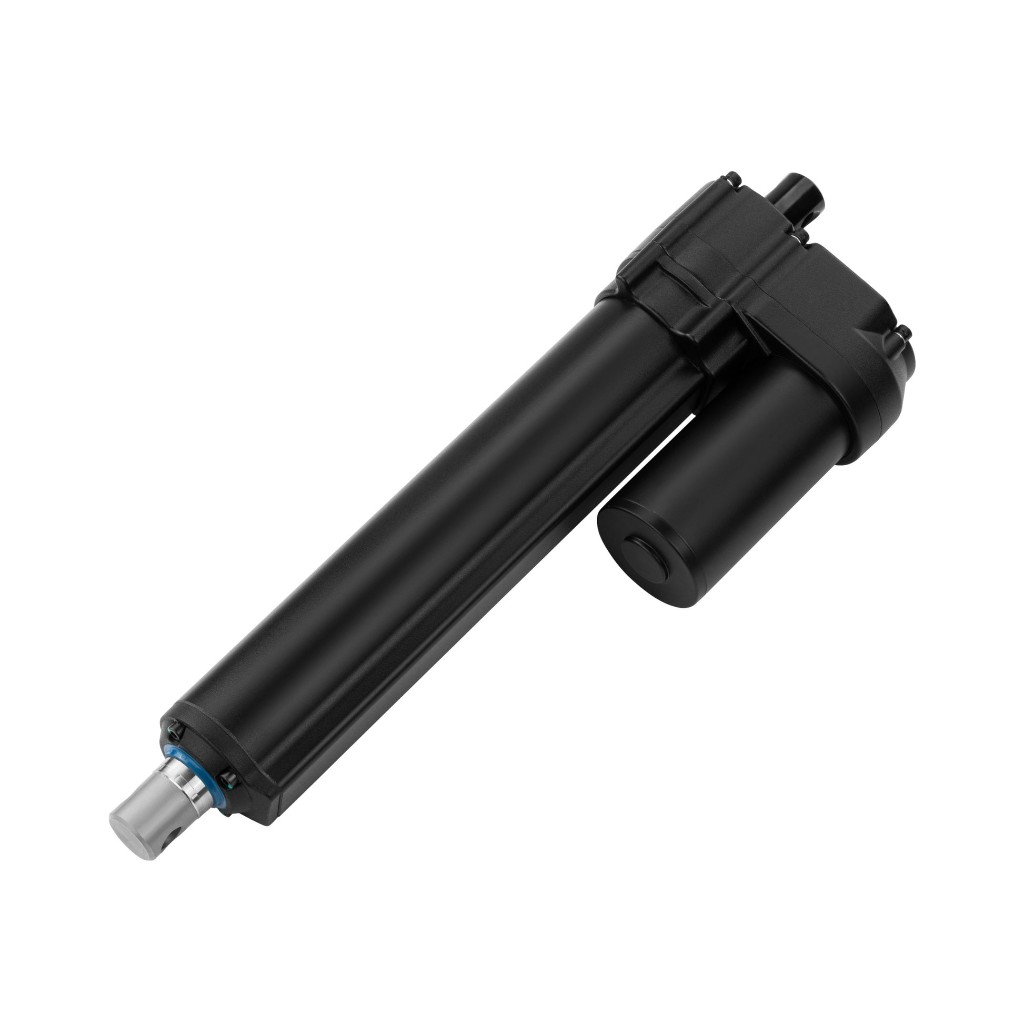

7,000 N IP65 Linear Actuators — SLA08B
IP65 waterproof SLA08B 7000N electric linear actuators in 12V–48V with multiple stroke lengths for AGVs, solar tracking, agriculture, boats, wheelchair lifts and OEM automation. Parallel motor design.
View series

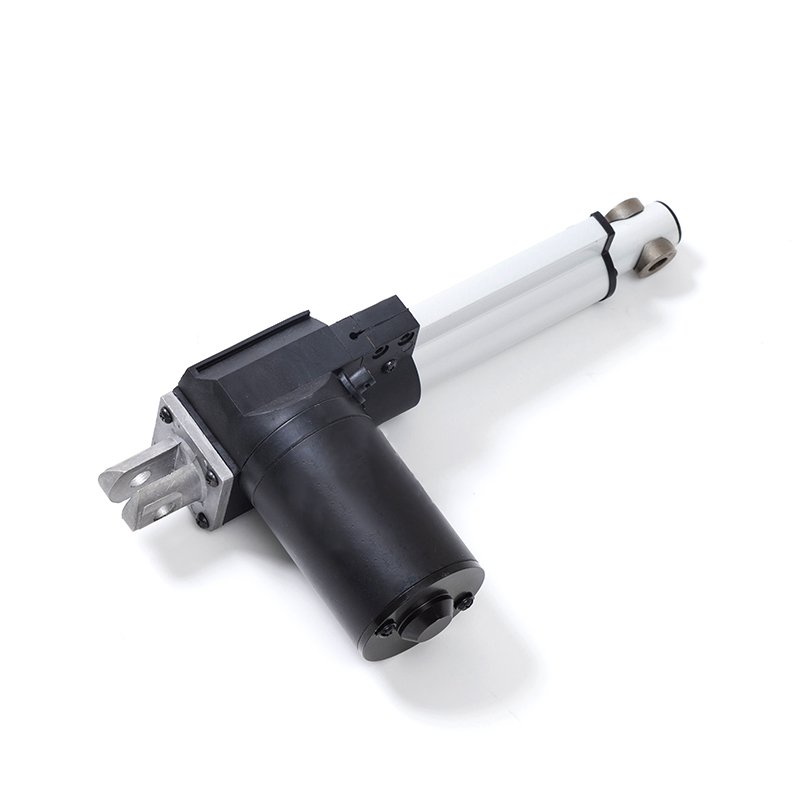

6,000 N Industrial Linear Actuators — SLA03
Industrial SLA03 6000N (1300 lbs) electric linear actuators in 12V/24V with multiple stroke lengths for hatches, gates, medical beds, solar tracking, agriculture and OEM automation.
View series

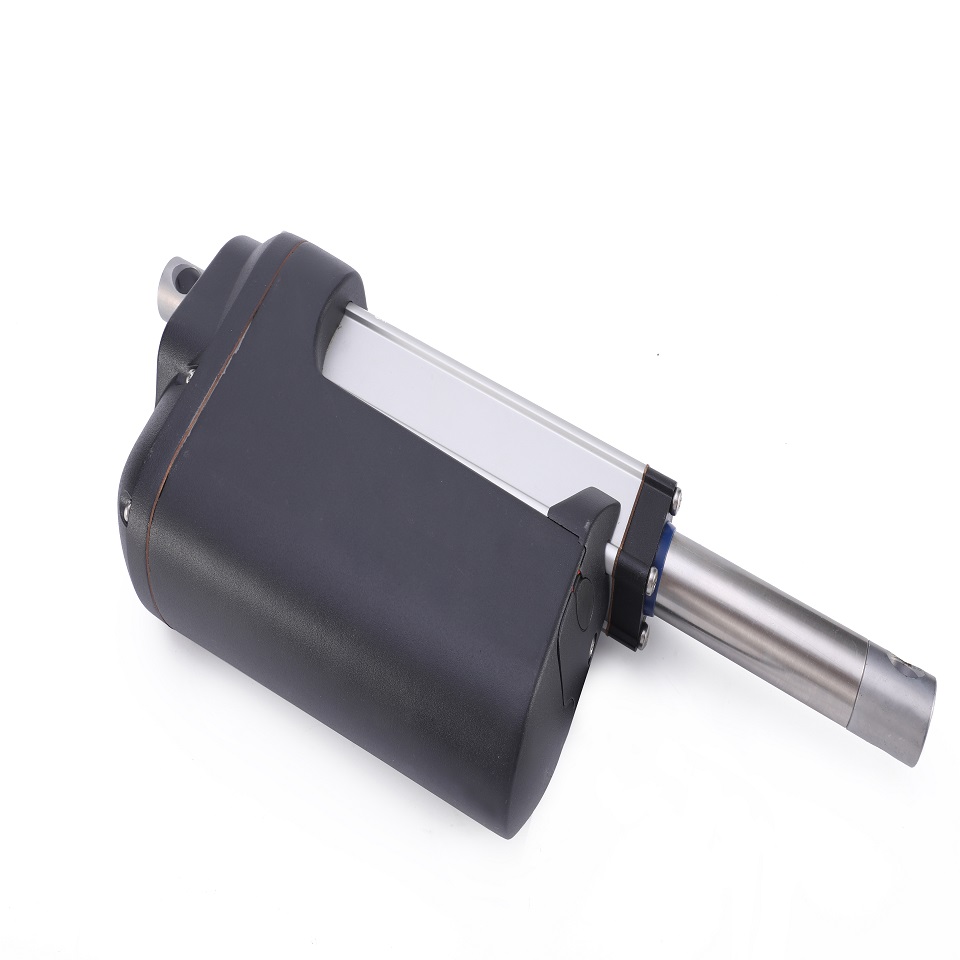

12,000 N Heavy-Duty Linear Actuator — SLA-12K
- Force
- 12,000 N
- Stroke
- 10 – 2000 mm (customizable)
- Voltage
- DC 12 V or DC 24 V
- IP
- IP66

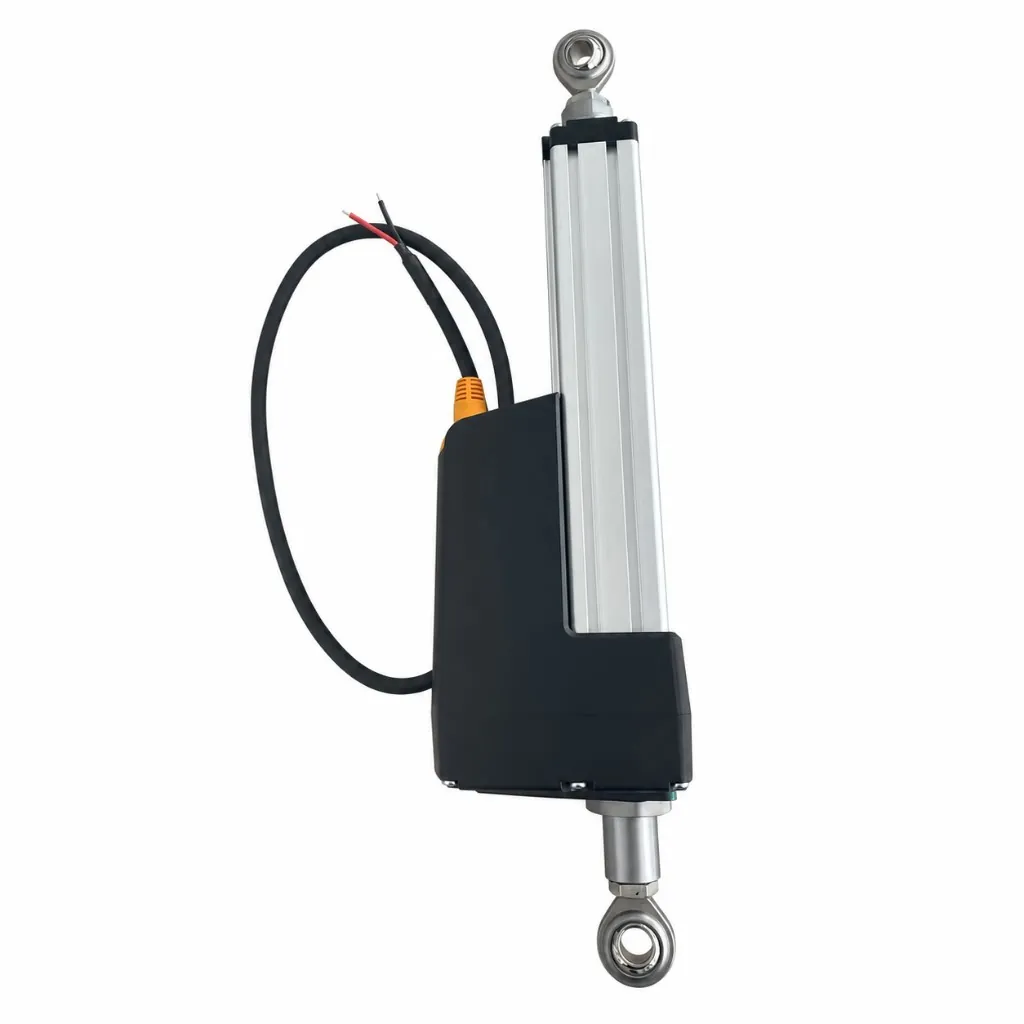

17,000 N Heavy-Duty Linear Actuator — SLA-17K
- Force
- 17,000 N
- Stroke
- 50 – 1000 mm (customizable)
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP
- IP67

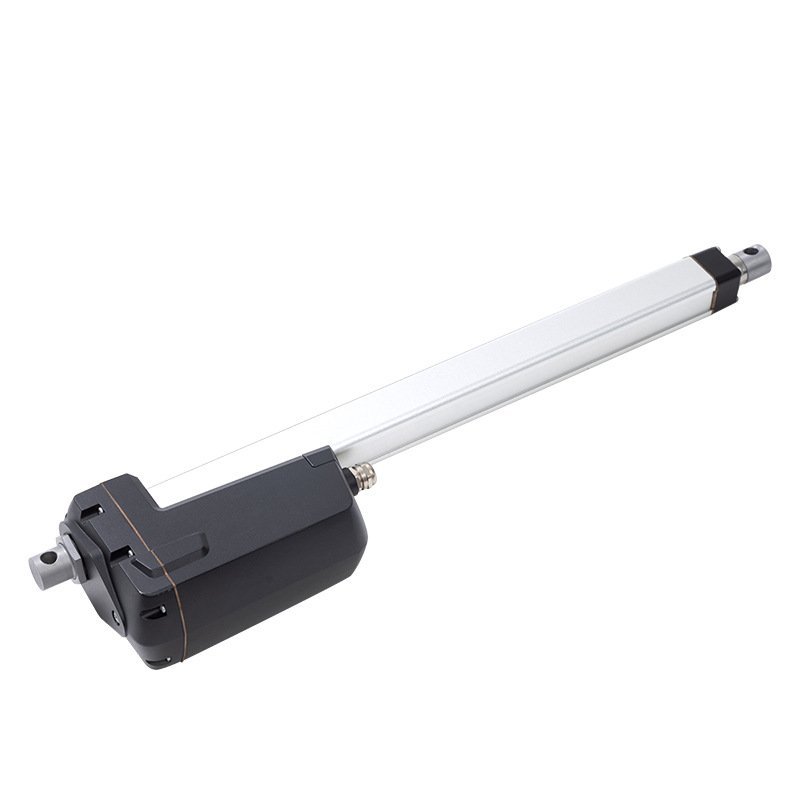

12,000 N Heavy-Duty Linear Actuator — SLA-12KB
- Force
- 12,000 N
- Stroke
- 50 – 1000 mm (customizable)
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP
- IP66

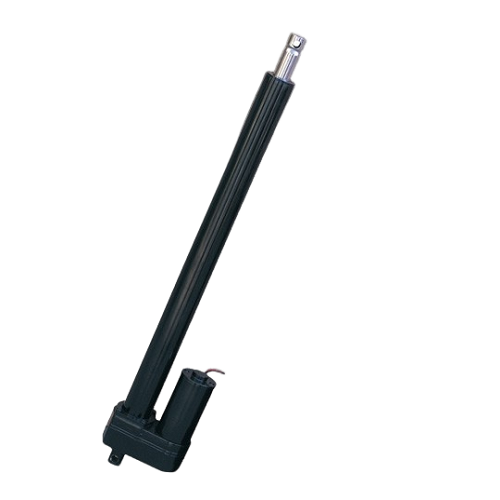

8,000 N Heavy-Duty Linear Actuator — SLA09
- Force
- 8,000 N
- Voltage
- 12 V / 24 V DC

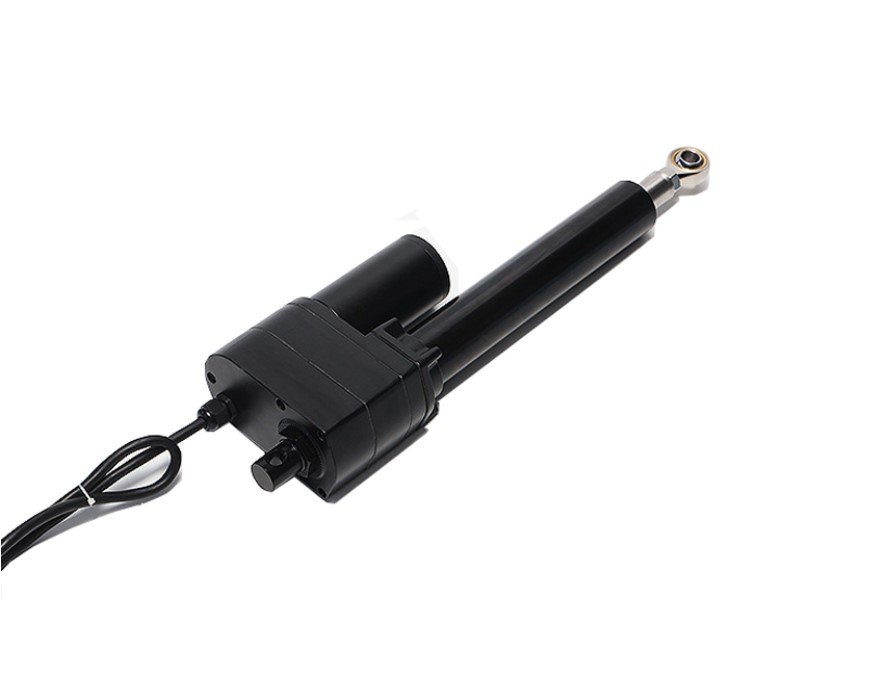

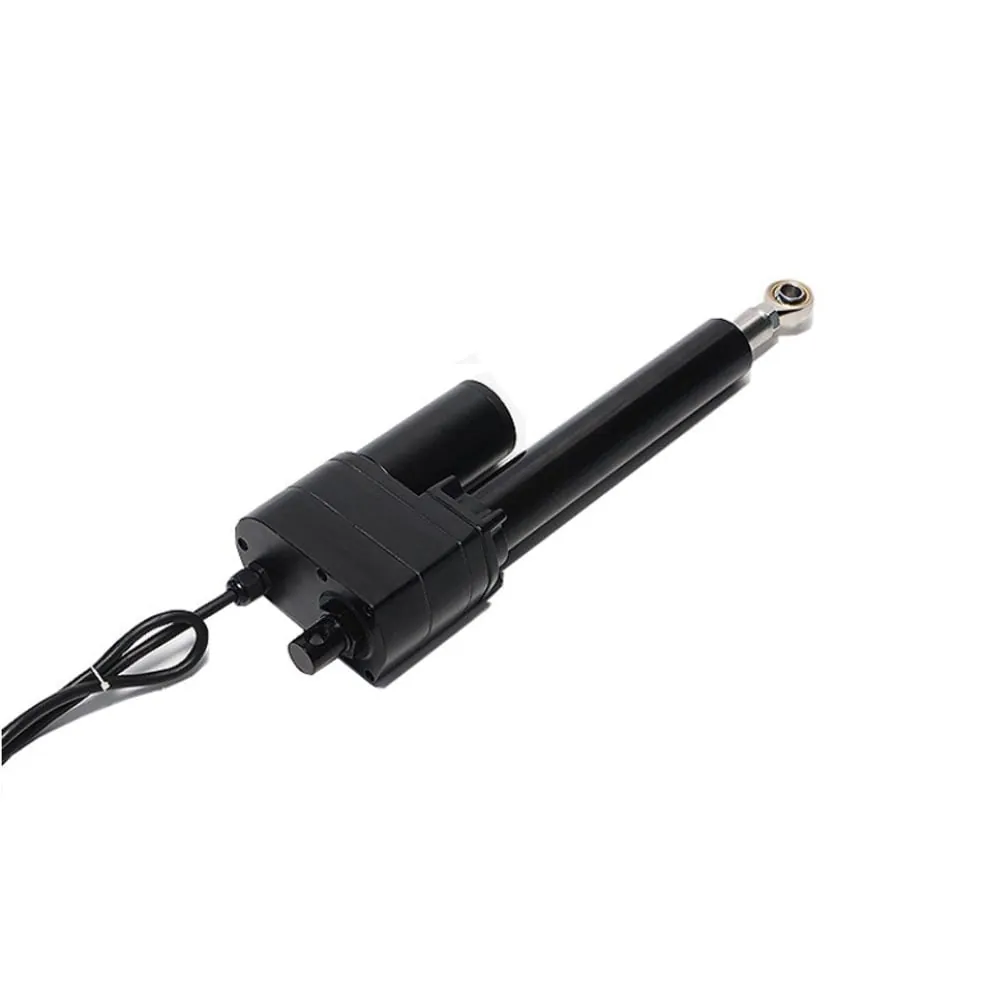

8,000 N Heavy-Duty Linear Actuator — SLA08
- Force
- 8,000 N
- Stroke
- 50 – 1000 mm; retracted…
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP
- IP54 / IP65
12,000 N Heavy-Duty Linear Actuator — SLA08G
- Force
- 12,000 N
- Stroke
- 50 – 1000 mm (customizable)
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP
- IP67

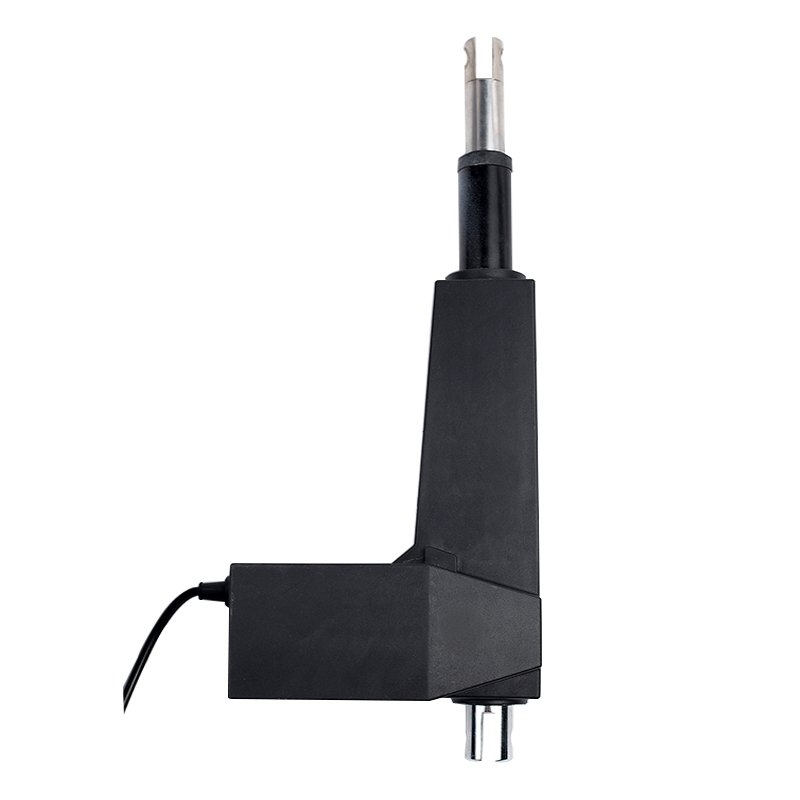

IP54 Linear Actuator — SLA07
- Force
- 8,000 N
- Stroke
- 50 – 800 mm (customizable)
- Voltage
- DC 12 V or DC 24 V
- IP
- IP54

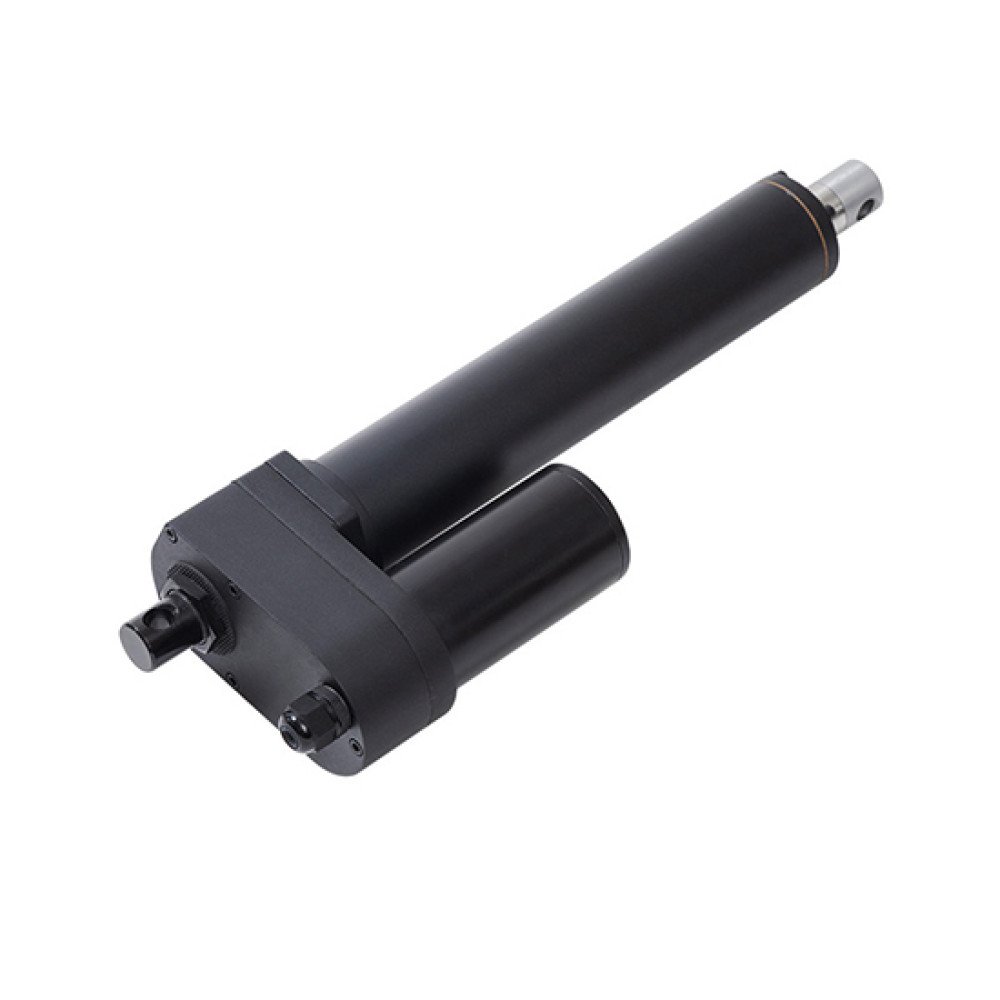

7,000 N Heavy-Duty Linear Actuator — SLA08B
- Force
- 7,000 N
- Stroke
- 50 – 600 mm (customizable)
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP
- IP65
Waterproof / tubular
Sealed tubular and industrial cylinders for outdoor, marine and wash-down duty.

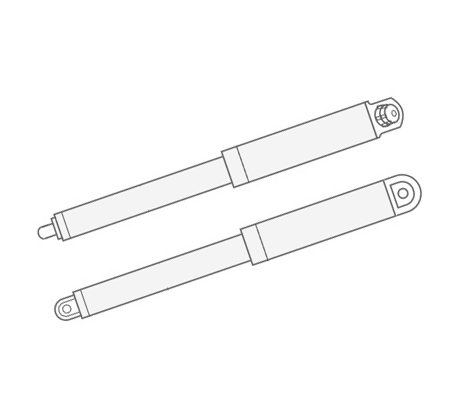

IP68 Tubular Linear Actuators
High-performance waterproof tubular / in-line electric linear actuators (SLA16M–SLA52M) for pergolas, louvres, skylights, yachts, facades, RV and outdoor OEM automation. Slim visible design, sealed housings, stainless piston rod options, and force options from 50N to 6000N.
View series
IP68 Tubular Linear Actuator — SLA-T52
- Stroke
- 20 – 500 mm
- Voltage
- DC 12 V or DC 24 V
- IP
- IP68
IP66 Tubular Linear Actuator — SLA-T50
- Force
- 5,000 N
- Stroke
- 30 – 1000 mm; retracted…
- Voltage
- DC 12 V or DC 24 V
- IP
- IP66

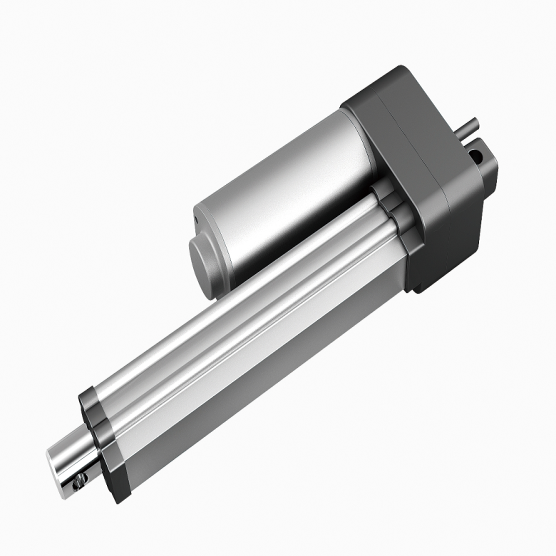

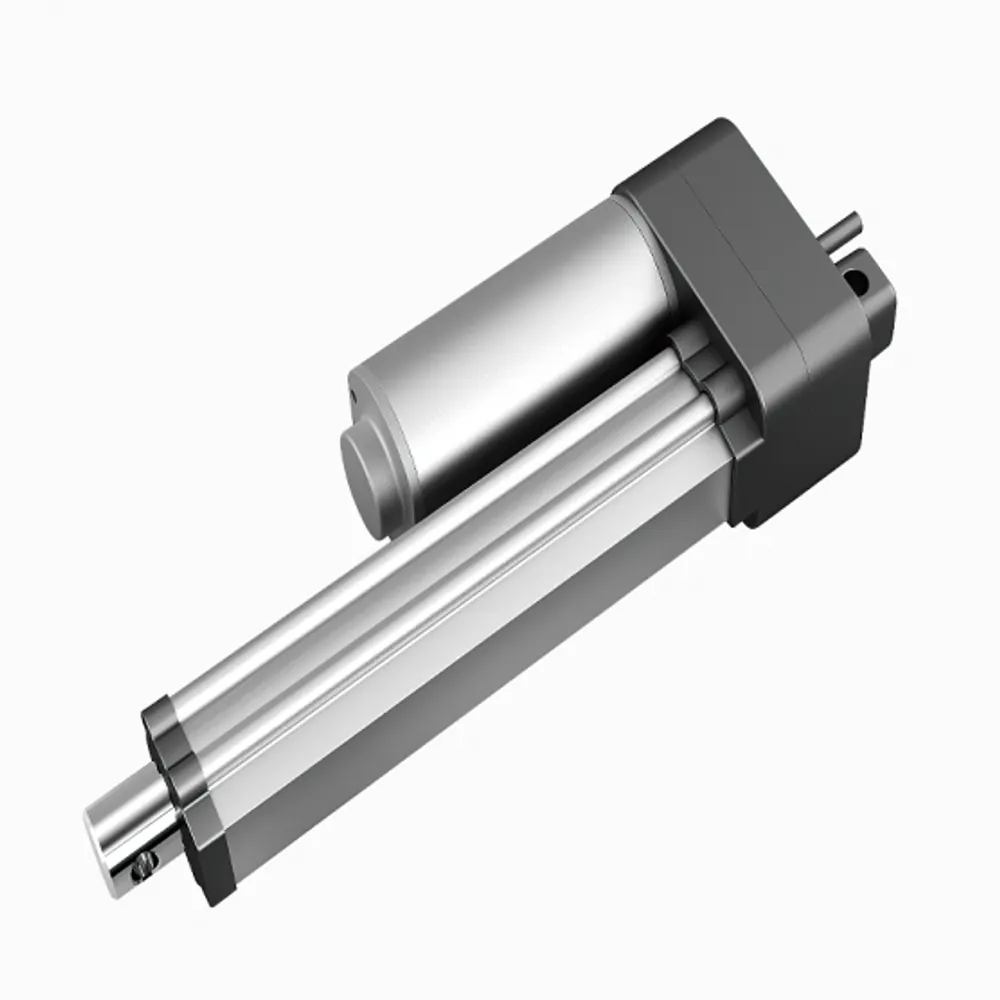

IP69 Linear Actuator — SLA023
- Force
- 3,000 N
- Voltage
- 12 V / 24 V DC
- IP
- IP69

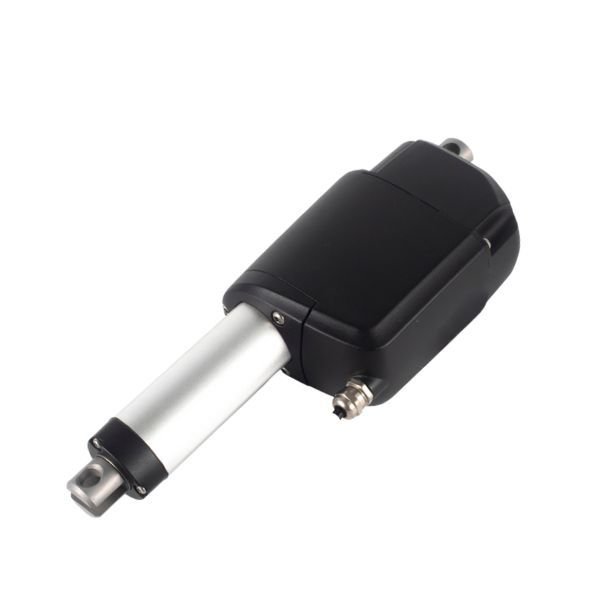

IP69K Linear Actuator — SLA026
- Force
- 2,500 N
- Voltage
- 12 V / 24 V DC
- IP
- IP69K

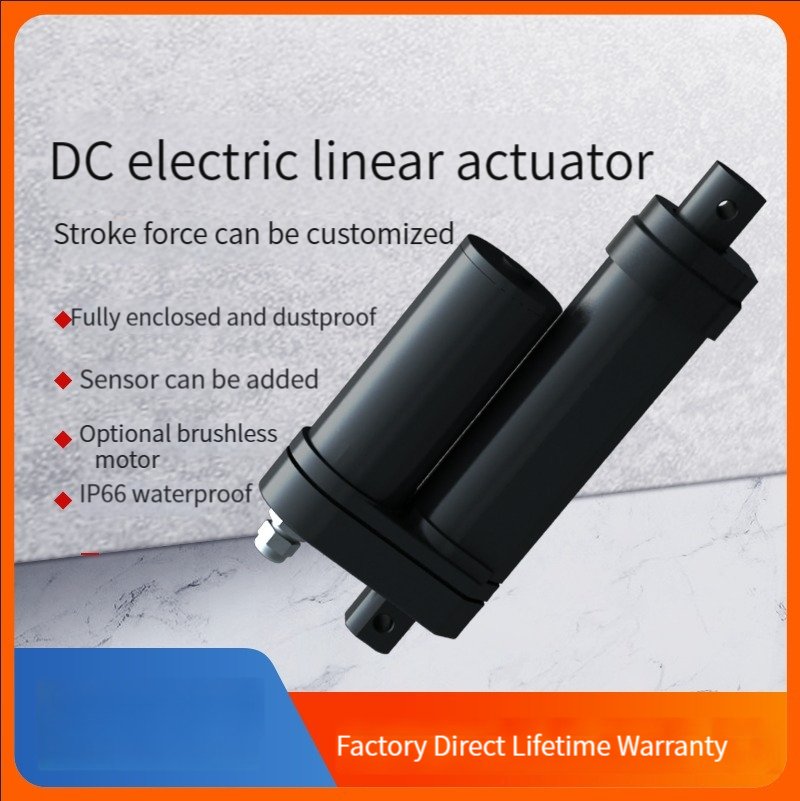

Compact Linear Actuator — SLA01-WP
- Force
- 1,200 N
- Stroke
- 10–1000 mm (custom)
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
- IP
- IP69

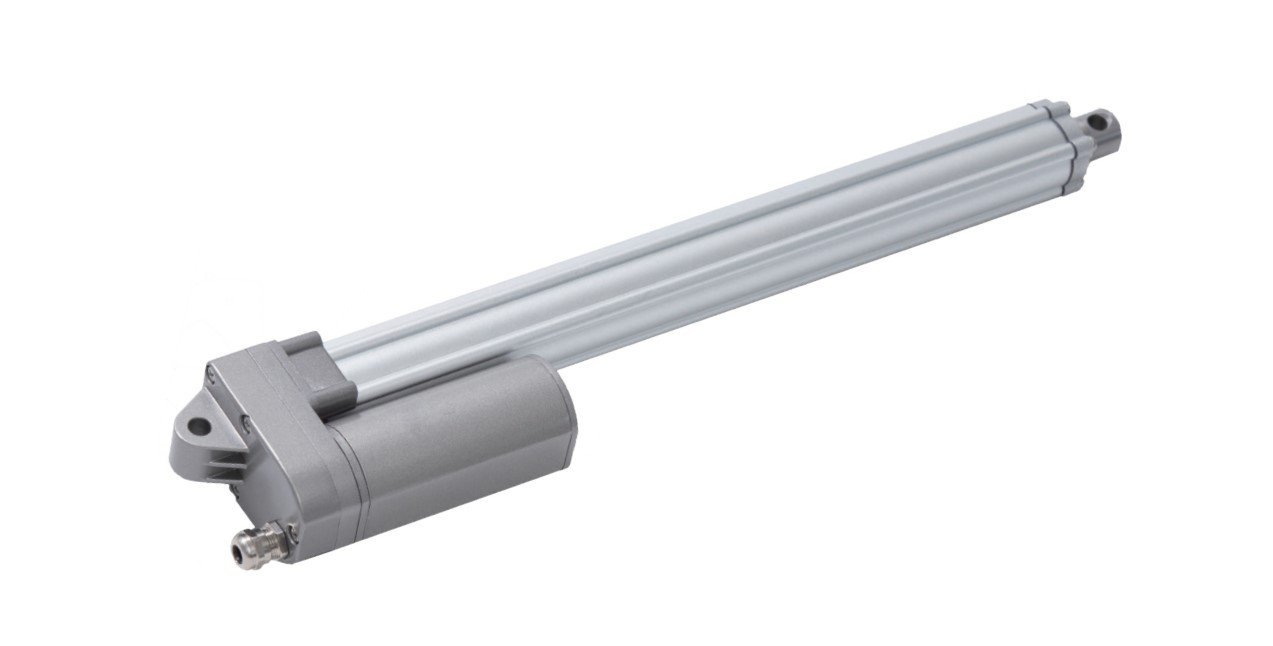

Compact Linear Actuator — SLA019-B
- Force
- 2,500 N
- Voltage
- 12 V / 24 V DC
- IP
- IP66
IP67 Linear Actuator — SLA06S-WP
- Force
- 3,500 N
- Stroke
- Custom; retracted length S…
- Voltage
- DC 12 V or DC 24 V
- IP
- IP67
Furniture / medical
Recliners, beds, TV lifts and quiet mobility mechanisms.

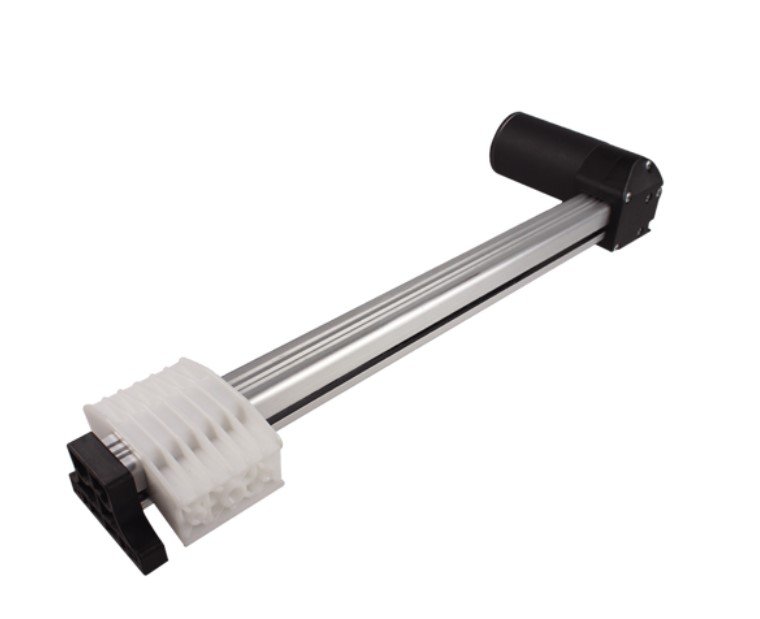

Compact Linear Actuator — SLA-PT01
- Force
- 1,000 N
- Stroke
- 230 ± 2 mm
- Voltage
- DC 12 V, 24 V or 29 V

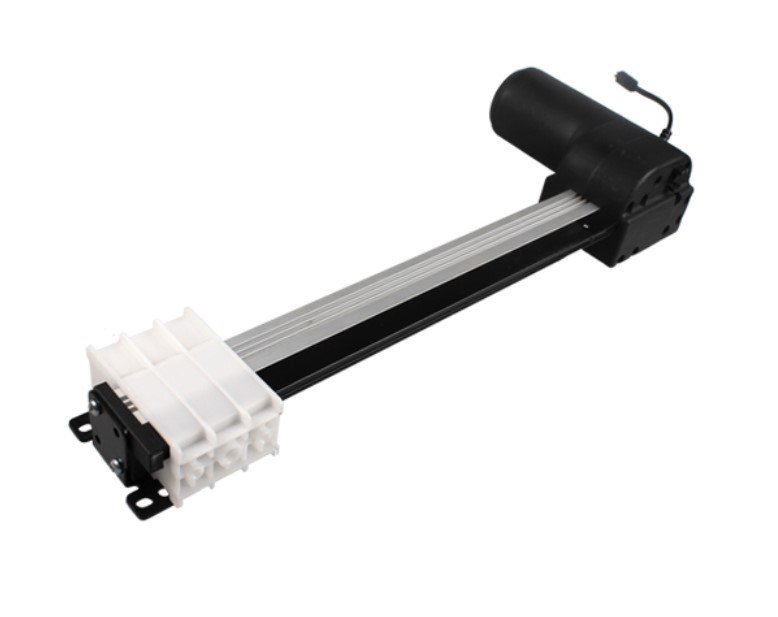

IP43 Linear Actuator — SLA-PT02
- Force
- 4,000 N
- Stroke
- 50 – 1000 mm
- Voltage
- DC 12 V or DC 24 V
- IP
- IP43

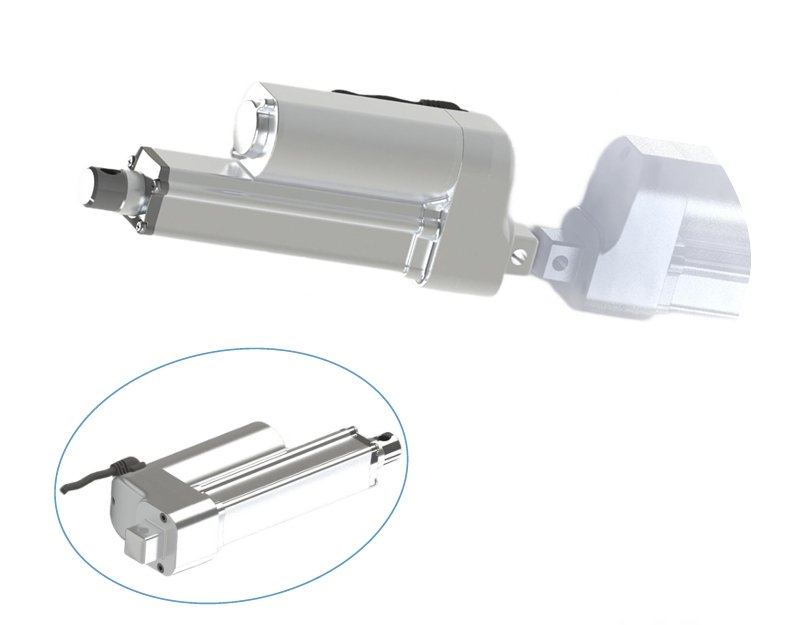

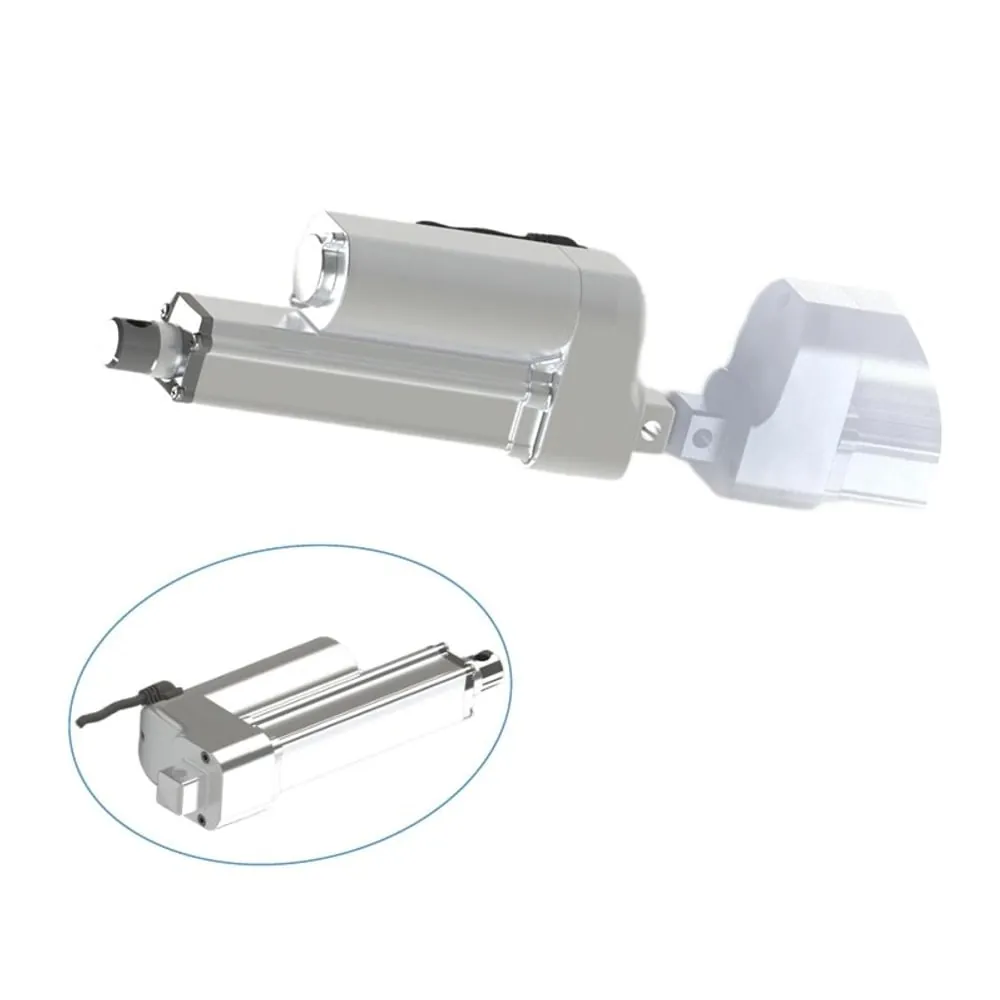

SLA025 Linear Actuator
- Force
- 3,000 N
- Voltage
- 12 V / 24 V DC
Compact Linear Actuator — SLA011C
- Force
- 6,000 N
- Stroke
- Custom; retracted length S…
- Voltage
- DC 12 V or DC 24 V
- IP
- IP65

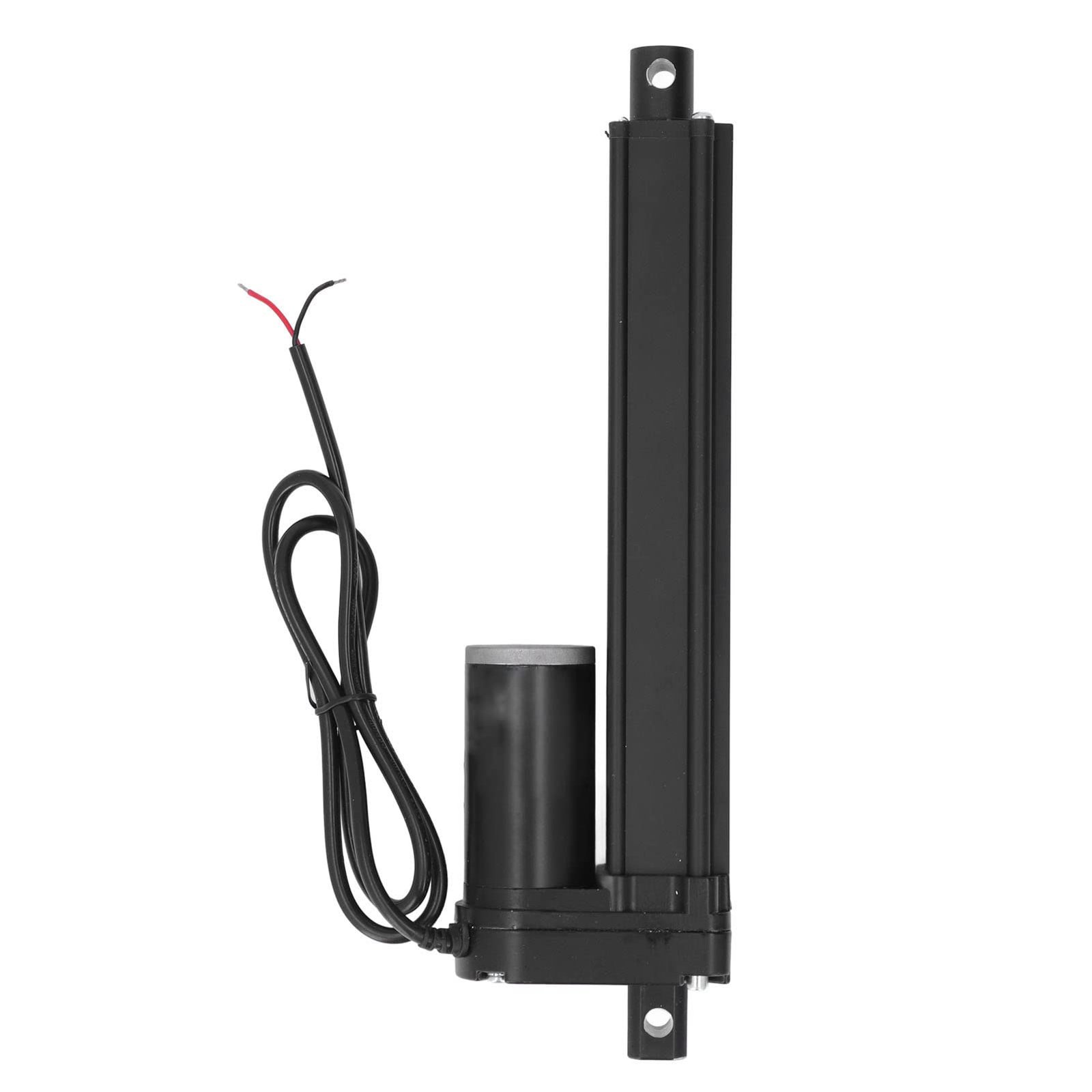

SLA06S Linear Actuator
- Force
- 3,500 N
- Stroke
- 50 – 1000 mm
- Voltage
- 24 V DC

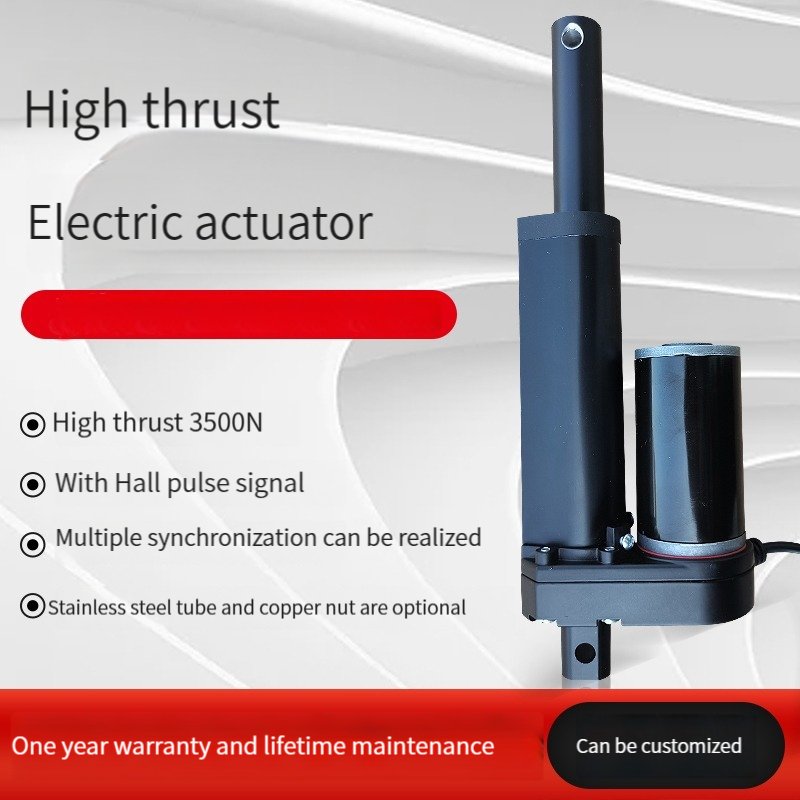

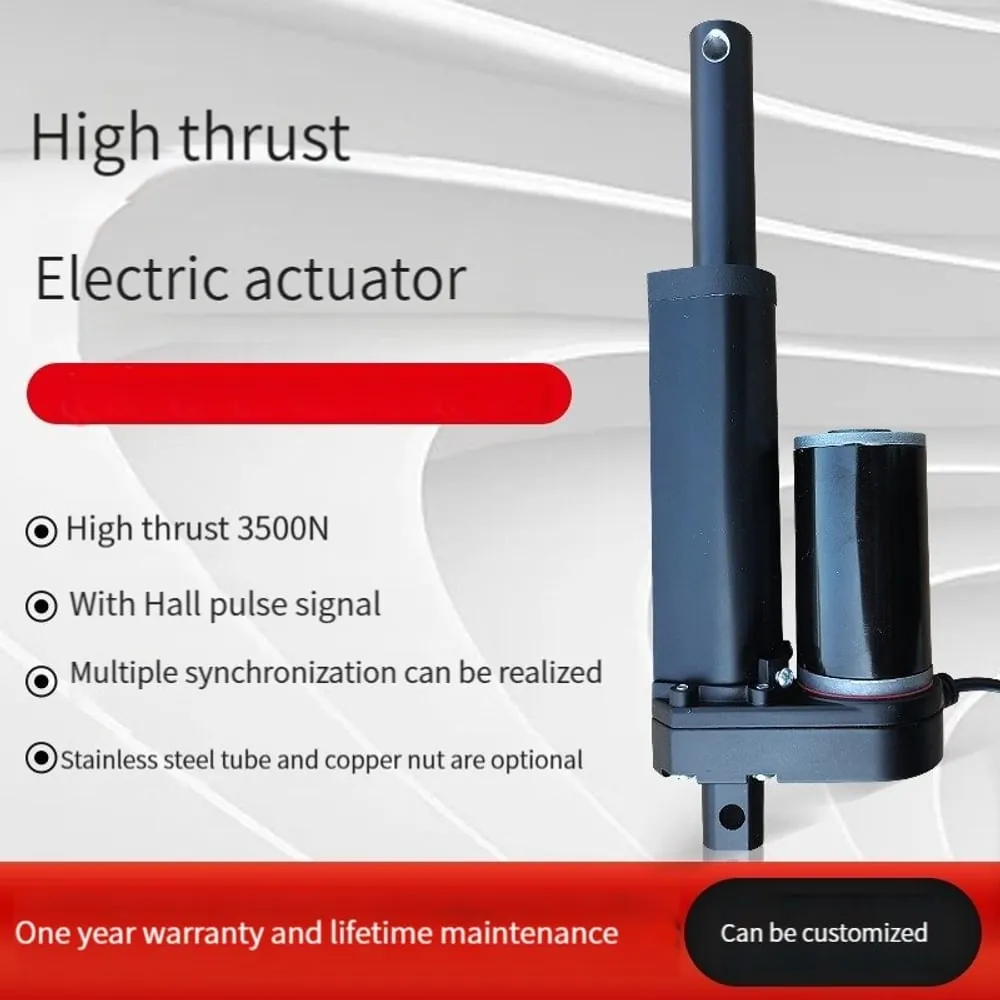

IP54 Linear Actuator — SLA06
- Force
- 3,500 N
- Stroke
- 50 – 1000 mm; retracted…
- Voltage
- DC 12 V or DC 24 V
- IP
- IP54

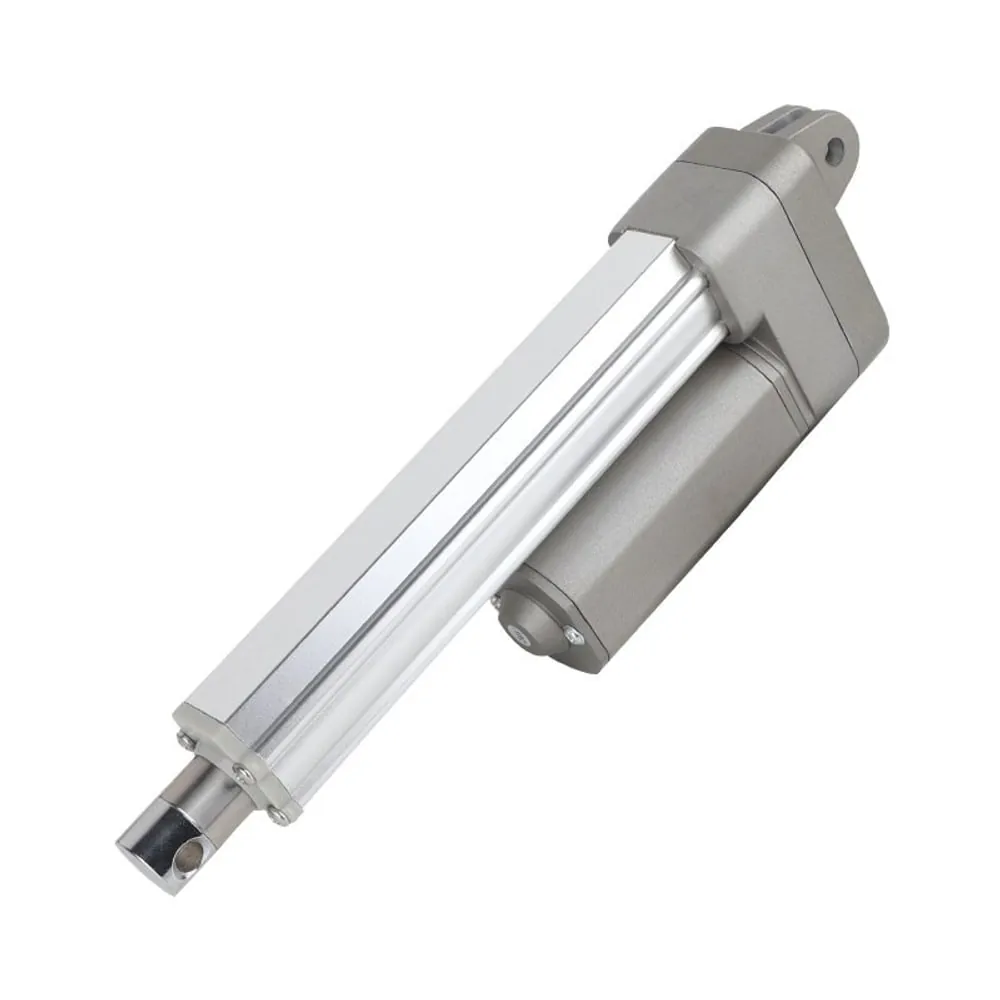

IP65 Linear Actuator — SLA022
- Force
- 2,000 N
- Stroke
- 200 mm standard
- Voltage
- DC 24 V
- IP
- IP65
Solar / outdoor equipment
Tracker drives and farm ventilation actuators with published IP and feedback options.

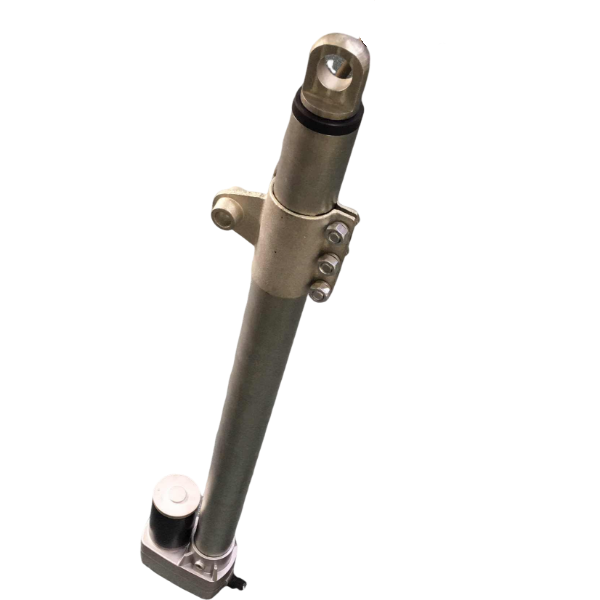

IP66 Linear Actuator — SLA-15K
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP
- IP66

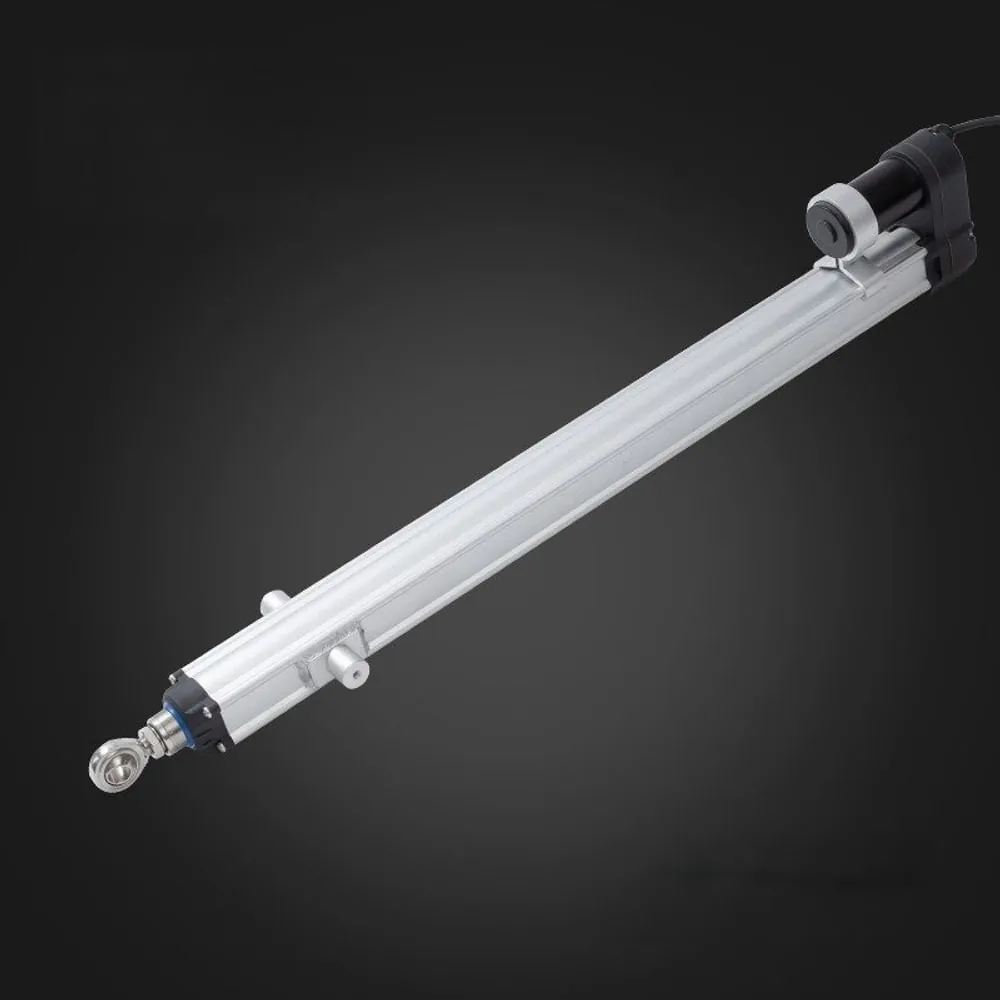

IP66 Linear Actuator — SLA-15KB
- Force
- 15,000 N
- Stroke
- 50 – 1200 mm (customizable)
- Voltage
- DC 12 V or DC 24 V
- IP
- IP66
IP65 Linear Actuator — SLA024
- Force
- 5,000 N
- Voltage
- DC 24 V, 36 V, 48 V; AC…
- IP
- IP65
High speed
Light-load, high-speed 12V/24V cylinders where travel time matters more than thrust.
Application notes
- Yacht toy-garage hatch — dual SLA-12K
Two 12,000 N actuators, feedback and a sync controller on a marine hatch.
- Camper trailer lid — SLA-12K
Outdoor lid automation with IP66 industrial stroke and manual override.
- Solar tracker — SLA-15KB with slewing drive
High static load, low speed and hall feedback for dual-axis tracking.
Typical control options
Synchronous travel needs hall or potentiometer feedback plus a matching controller. Confirm current rating against the actuator table before ordering.
SLA-SCN2-HC One-Control-Two Synchronous Controller
- Supported actuator count
- 2 linear actuators
- Voltage
- 12–48 V DC, for 12 V or 24 V
- Maximum current
- 25 A
SLA-SCN2-HC synchronous controller for two Hall-sensor linear actuators: 12–48 VDC, 25 A, touch handle and 2.4 GHz remote, 3 memory positions, LED stroke display.
View Details →
SLA-SCN4-HC One-Control-Four Synchronous Controller
- Supported actuator count
- 4 linear actuators
- Voltage
- 12–48 V DC, for 12 V or 24 V
- Maximum current
- 25 A
SLA-SCN4-HC synchronous controller for four Hall-sensor linear actuators: 12–48 VDC, 25 A, touch handle and 2.4 GHz remote, 3 memory positions, LED stroke display.
View Details →
SLA-SCN02 one control two Synchronous Controller
- Supported actuator count
- 2
- Voltage
- 12 – 48 V DC
- Maximum current
- 10 A per motor
- Synchronization
- Within 3 pulses (< 1 mm)
SCN02 synchronous controller for two Hall-feedback linear actuators: 12–48 VDC, 10 A per motor, sync within 3 pulses (< 1 mm), wired and wireless control, RS485 ModBus-RTU.
View Details →
SLA-SCN04 one control four synchronized controller
- Supported actuator count
- 4
- Voltage
- 12 – 48 V DC
- Maximum current
- 10 A per motor
- Synchronization
- Within 3 pulses (< 1 mm)
SCN04 synchronous controller for four Hall-feedback linear actuators: 12–48 VDC, 10 A per motor, sync within 3 pulses (< 1 mm), wired and wireless control, RS485 ModBus-RTU.
View Details →Engineering resources
Need a replacement?
Send voltage, dynamic force, stroke, retracted length and end-mounting (or a nameplate photo). Engineering will match a published series — we do not list unverified competitor equivalents.
Request a cross-checkOEM / ODM capability
OEM programs on supported platforms can adjust stroke, working voltage, hall-sensor or potentiometer feedback, cables/connectors, mounting ends and marking. Share load, duty cycle, IP requirement, mounting constraints and annual quantity for an engineering recommendation.
FAQ
How do I choose force, stroke, voltage and IP rating?
Fix dynamic force (with a safety margin), then stroke, working voltage and Protection Class for the environment. Mounting geometry, duty cycle and feedback come next. The OEM selection guide walks through the order.
Can I replace an existing actuator with an Elerover model?
Usually, if voltage, force, stroke, retracted length and end-mounting match. Send the old model number plus those five dimensions — or a photo of the nameplate — for an engineering cross-check. We do not publish an unverified competitor substitution chart.
Can I use my own power supply?
Yes, if it can supply the rated voltage and full-load current of the selected SKU. Undersized supplies cause stalled motion and overheating.
How do I run two or more actuators together?
Synchronous travel needs position feedback (hall sensor or potentiometer) plus a matching controller such as SCN2-HC or SCN4-HC. Limit-switch-only actuators will not stay mechanically aligned under uneven load.
Are mounting brackets included?
Standard actuators ship with the published end fittings on the product drawing. Application-specific brackets, clevises and trunnions are quoted with the OEM package — they are not a separate retail kit on this site.
What is the typical OEM lead time?
Standard catalog configurations are quoted from factory stock or a short production slot. Custom stroke, voltage, feedback or connectors add engineering and production time — the quote states the lead time for that configuration. Share annual quantity if you need a standing program.
Where are datasheets and CAD files?
Each product page lists verified documents when they are on file. If a drawing is not published, request it on the quote form and engineering will send the current 2D/3D package.
