item
|

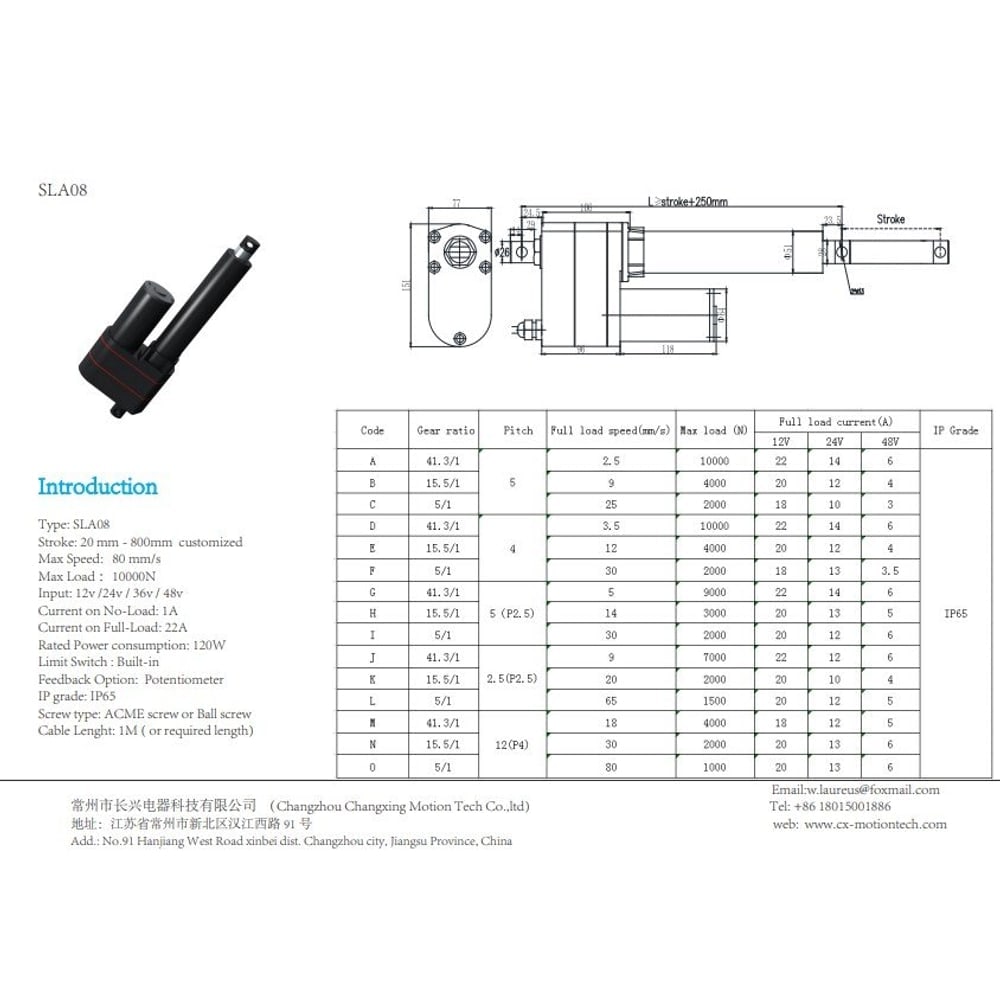

SLA08 linear actuator
|
||
|
Maximum push/pull force
|
800kg/8000N
|
||
|
voltage
|
12V/24V/36V/48VDC
|
||
|
Standard stroke
|
S = (50, 100, 150,200,300,400, 600,800,1000) mm, can be customized according to customer requirements.
|
||
|
The shortest installation distance (the distance between the centers of the front and rear holes when the inner tube is fully retracted)
|
L=S (stroke) + 250mm
|
||
|
the center distance between the front and rear holes when the inner tube is fully extended
|
2*S (stroke) + 250mm
|
||
|
No-load speed
|
maximum 80mm/s
|
||
|
Rated load rate
|
5mm/s (800KG) -80mm/s (50KG)
|
||
|
Ambient temperature
|
-26℃~65℃
|
||
|
Standard protection level
|
IP54/IP65
|
||
|

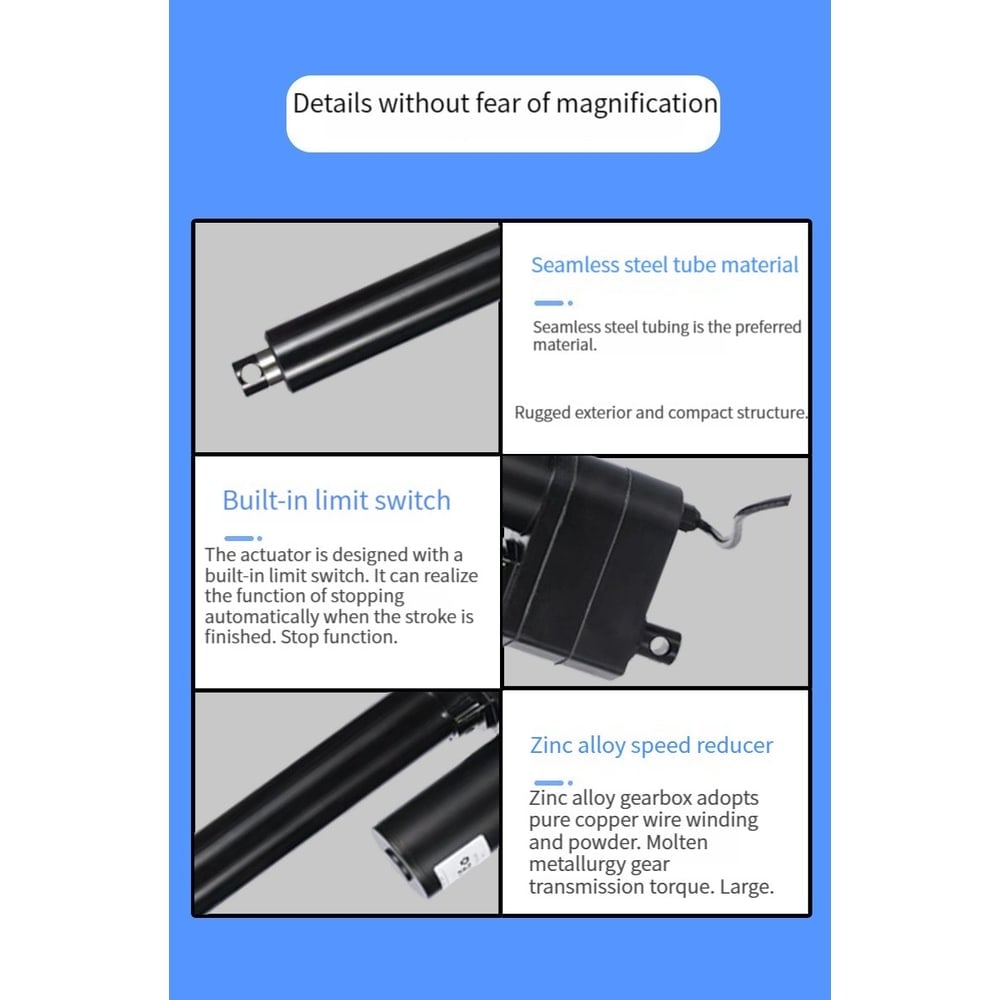

limit switch
|
Built-in
|
||
|
Low noise design
|
the noise level is 60dB
|
||
|
controller
|
Can be equipped with wire or wireless remote control
|
||
|
Certifications
|
CE
|
