Linear Actuator

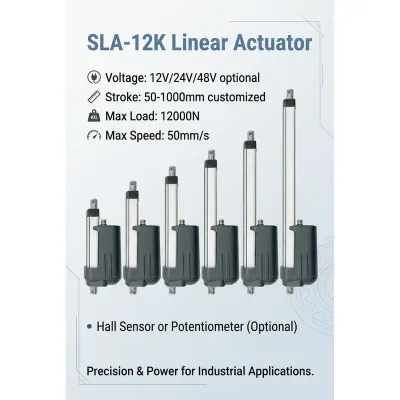

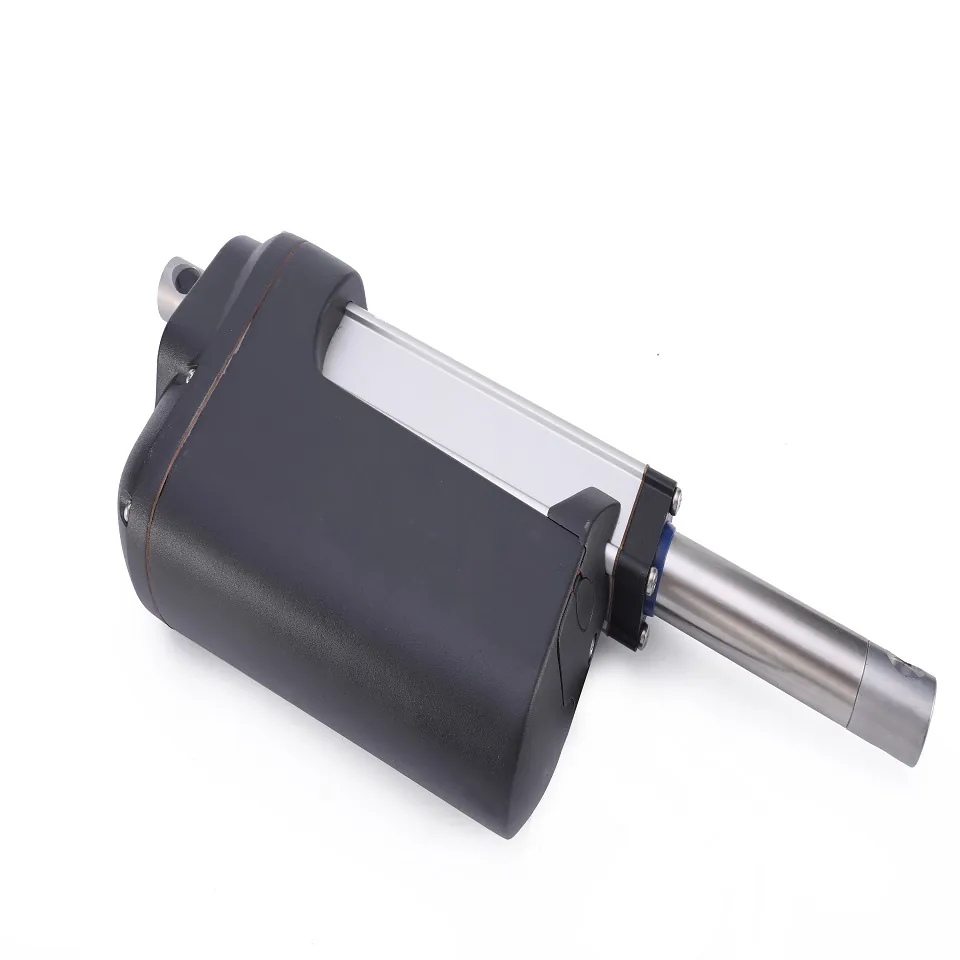

SLA-12K Heavy-Duty Linear Actuator
The SLA-12K is a heavy-duty DC linear actuator rated to 12,000 N maximum thrust for industrial OEM motion.
Key specifications
- Maximum load
- 12000 N
- Stroke
- 10 – 2000 mm (customizable)
- Speed
- 6 mm/s – 60 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP66
- Duty cycle
- 10%, max 2 min continuous
Product overview

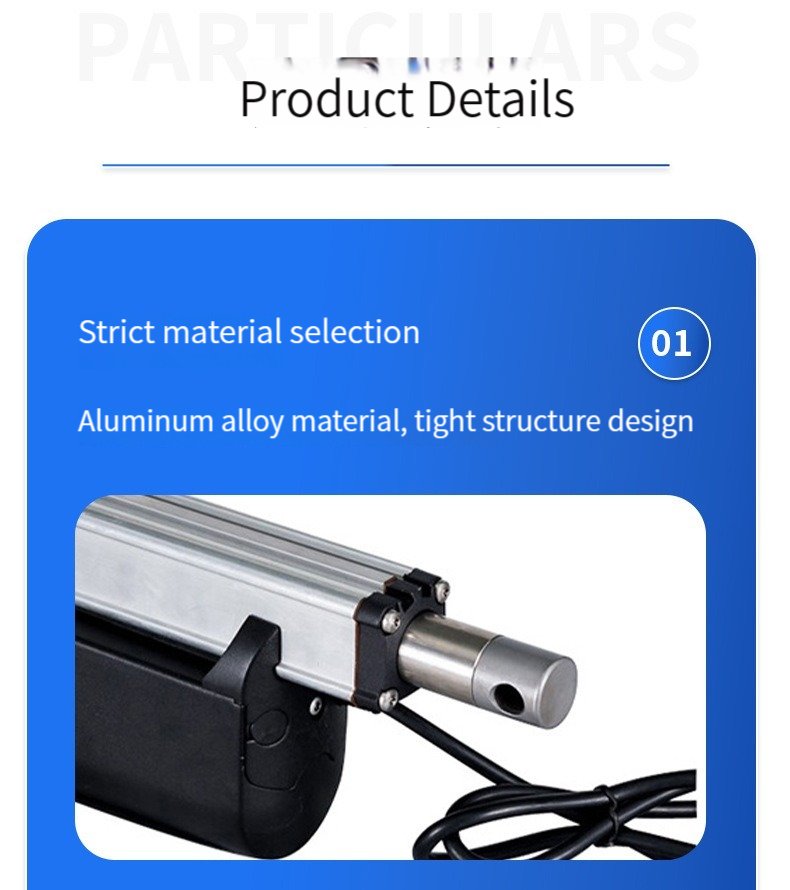

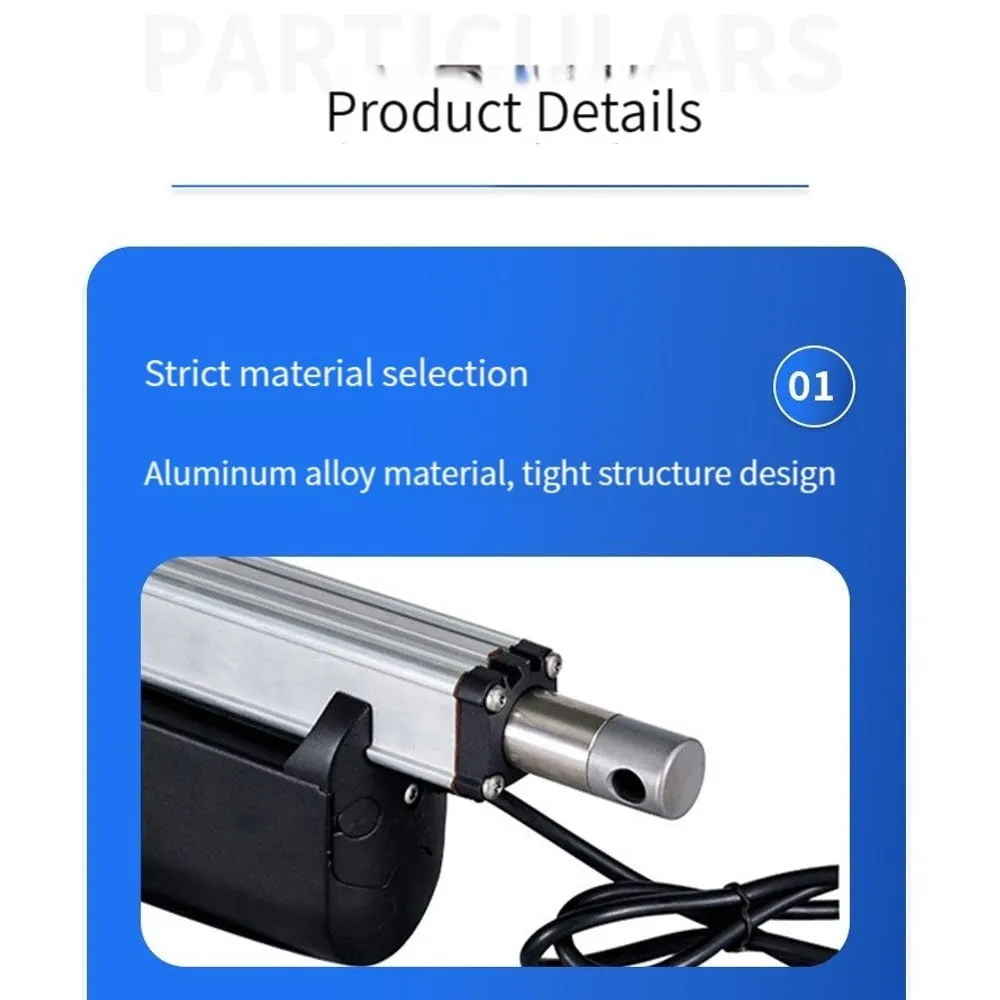

The SLA-12K is a heavy-duty DC linear actuator rated to 12,000 N maximum thrust for industrial OEM motion. It combines a metal housing and metal gearbox with a stainless-steel telescopic tube and aluminum outer tube for harsh environments.
- Maximum load
- 12000 N
- Stroke
- 10 – 2000 mm (customizable)
- Speed
- 6 mm/s – 60 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP66
- Feedback
- Optional potentiometer, Hall sensor or limit-switch signal
Applications
- Solar Tracking
- Agricultural
- Construction
- Lifting
Benefits
- Up to 12000N (1200 kg / 2700 lbs) at 6 mm/s
- Eight speed options from 6 to 60 mm/s
- 12V or 24V DC; 24V most common
- IP66 with cast aluminum housing and stainless steel rod
- Built-in limit switches; motor overload and overheat protection
- Self-locking and manual override for power failure
- Optional potentiometer, Hall sensor or limit-switch signal output
- Custom stroke 10 – 2000 mm

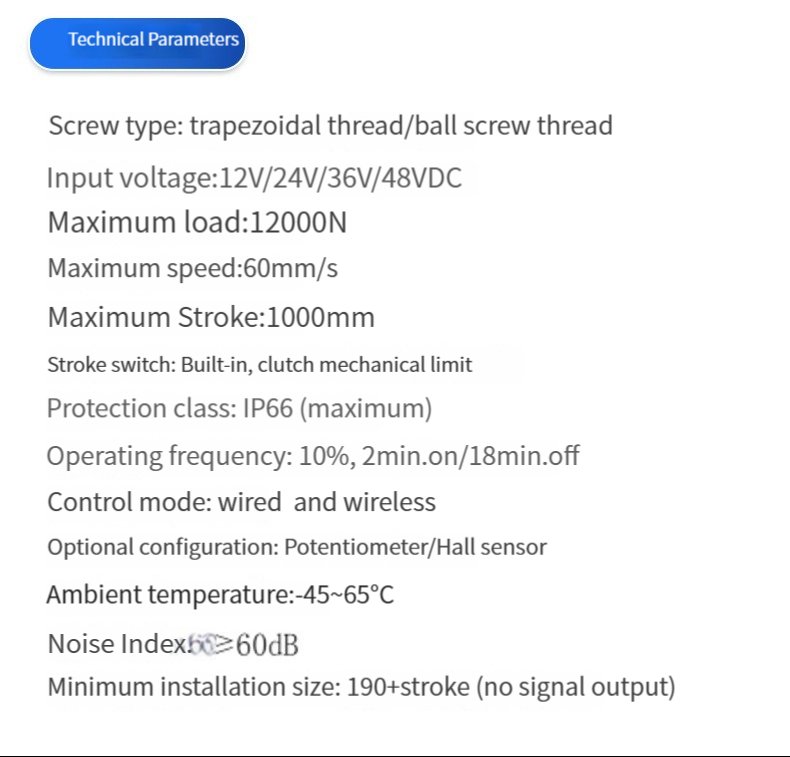

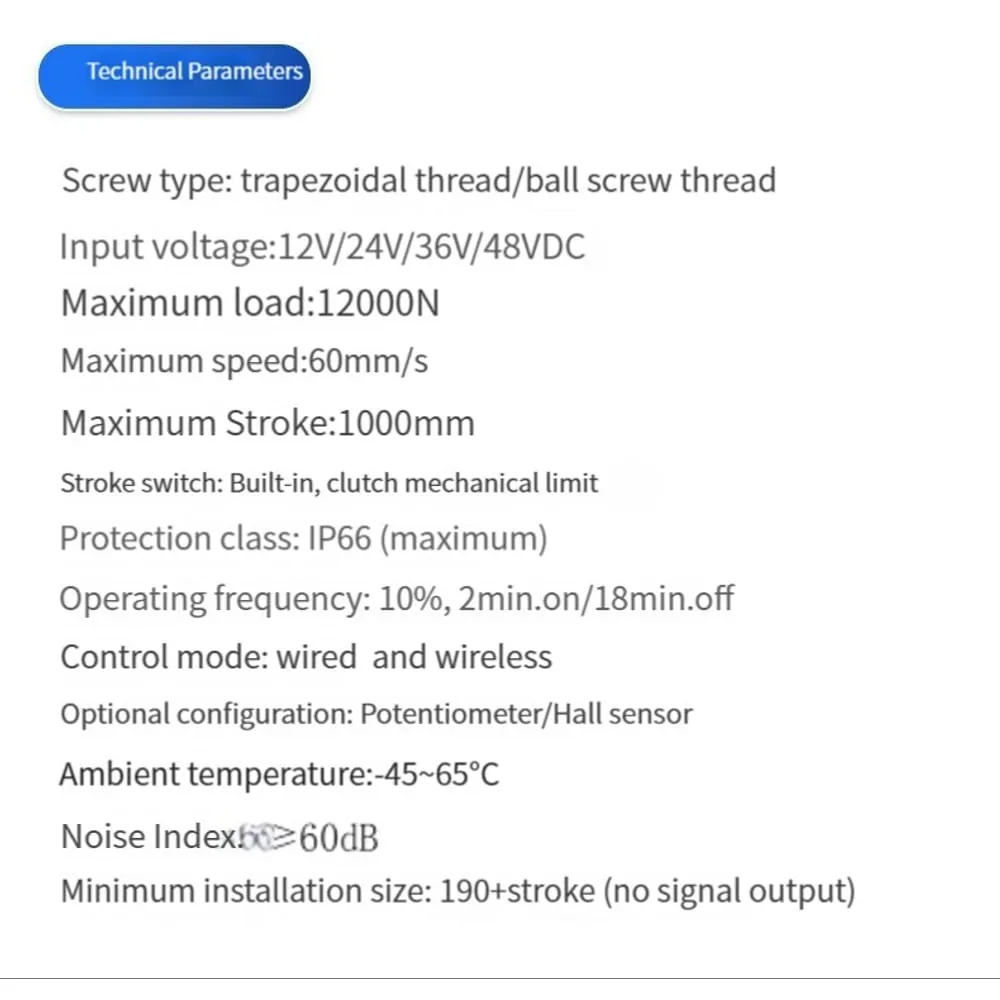

Technical specifications
| Maximum load | 12000 N |
|---|---|
| Stroke | 10 – 2000 mm (customizable) |
| Speed | 6 mm/s – 60 mm/s |
| Speed options | 6, 8, 12, 16, 20, 25, 38, 60 mm/s |
| Voltage | DC 12 V or DC 24 V |
| IP rating | IP66 |
| Duty cycle | 10%, max 2 min continuous |
| Feedback | Optional potentiometer, Hall sensor or limit-switch signal |
| Limit switch | Yes, both ends |
| Current | Full load 15 – 22 A at 12V, 8 – 12 A at 24V |
Show 7 more specifications Show fewer specifications
| Motor type | Brushed DC |
|---|---|
| Housing material | Cast aluminum alloy |
| Rod material | Stainless steel |
| Operating temperature | -26°C to +85°C |
| Service life | About 25,000 cycles |
| Cable length | 1500 mm ±10% |
| Certifications | CE |
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 6 mm/s | 5 mm/s | 12000 N | 15000 N |
| 8 mm/s | 6 mm/s | 11000 N | 12000 N |
| 12 mm/s | 9 mm/s | 10000 N | 12000 N |
| 16 mm/s | 10 mm/s | 7000 N | 8000 N |
| 20 mm/s | 11 mm/s | 6500 N | 8000 N |
| 25 mm/s | 14 mm/s | 5000 N | 6000 N |
| 38 mm/s | 24 mm/s | 3200 N | 4000 N |
| 60 mm/s | 30 mm/s | 2000 N | 3000 N |
Installation, electrical and use information

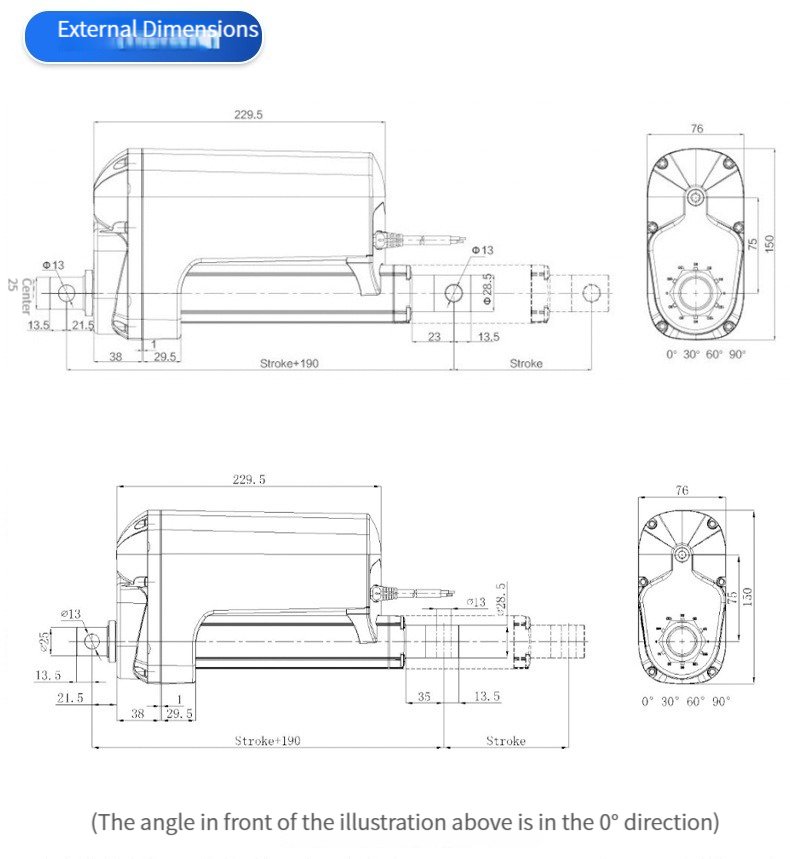

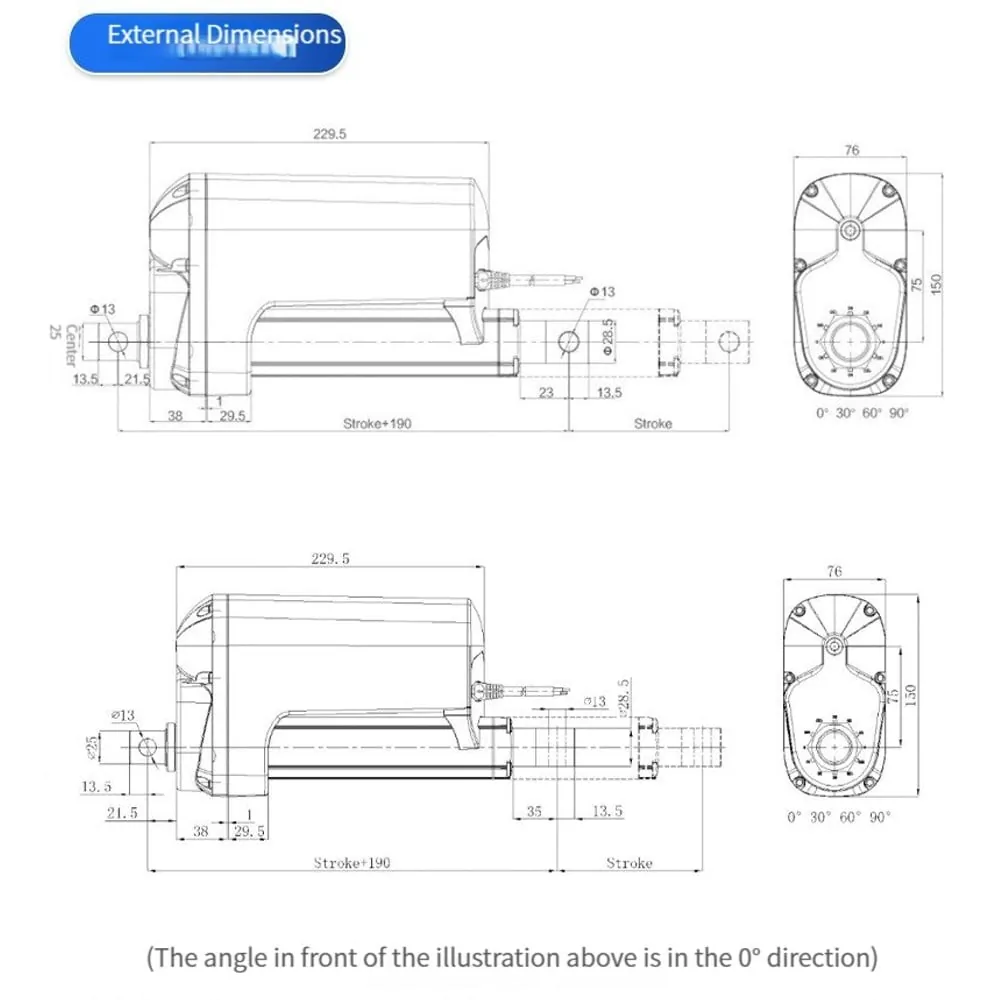

Dimensions
Dimensions
- Shaft diameter: 30 mm
- Front and rear mounting holes: Φ13 mm
- Connector orientation can be rotated 90° in production
Request technical documents
FAQ
What is the SLA-12K?
The SLA-12K is an Elerover linear actuator rated IP66.
Does Elerover manufacture the SLA-12K?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-12K?
Key ratings from the product specifications include voltage 12V / 24V DC, load 12000 N, stroke 10 – 2000 mm (customizable), protection IP66. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-12K?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
