Linear Actuator
SLA01 Linear Actuator
The SLA01 is a compact DC linear actuator for OEM equipment that needs reliable push/pull motion at moderate loads — up to 900 N, 10–1000 mm stroke, IP54,…
Key specifications
- Maximum load
- 900 N
- Stroke
- 10 – 1000 mm
- Speed
- 5 mm/s – 80 mm/s
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
- IP rating
- IP54
- Duty cycle
- 20%
Product overview
The SLA01 is a compact DC linear actuator for OEM equipment that needs reliable push/pull motion at moderate loads — up to 900 N, 10–1000 mm stroke, IP54, 20% duty cycle and 50,000-cycle service life.
- Maximum load
- 900 N
- Stroke
- 10 – 1000 mm
- Speed
- 5 mm/s – 80 mm/s
- Voltage
- 12 V / 24 V / 36 V / 48 V DC
- IP rating
- IP54
- Feedback
- Potentiometer (10K / 5K) or encoder
Applications
- Automatic chicken coop doors
- Doors and windows
- Trapdoors
- Light solar tracking
- OEM automation
Benefits
- Up to 900 N at the 5 mm/s gear option
- Stroke 10 – 1000 mm (custom within range)
- 12 / 24 / 36 / 48 V DC input

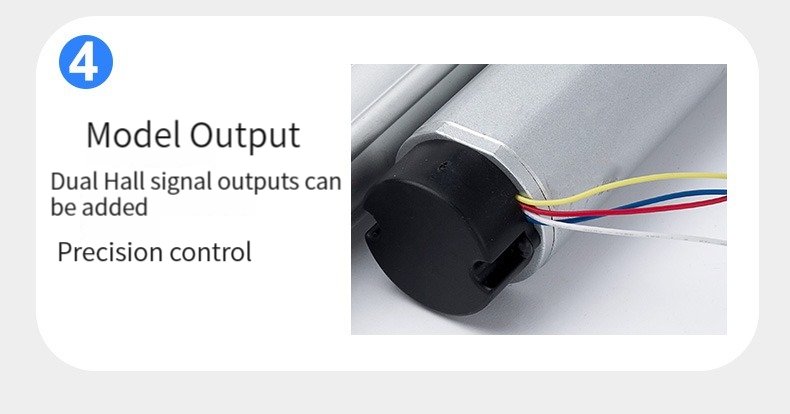

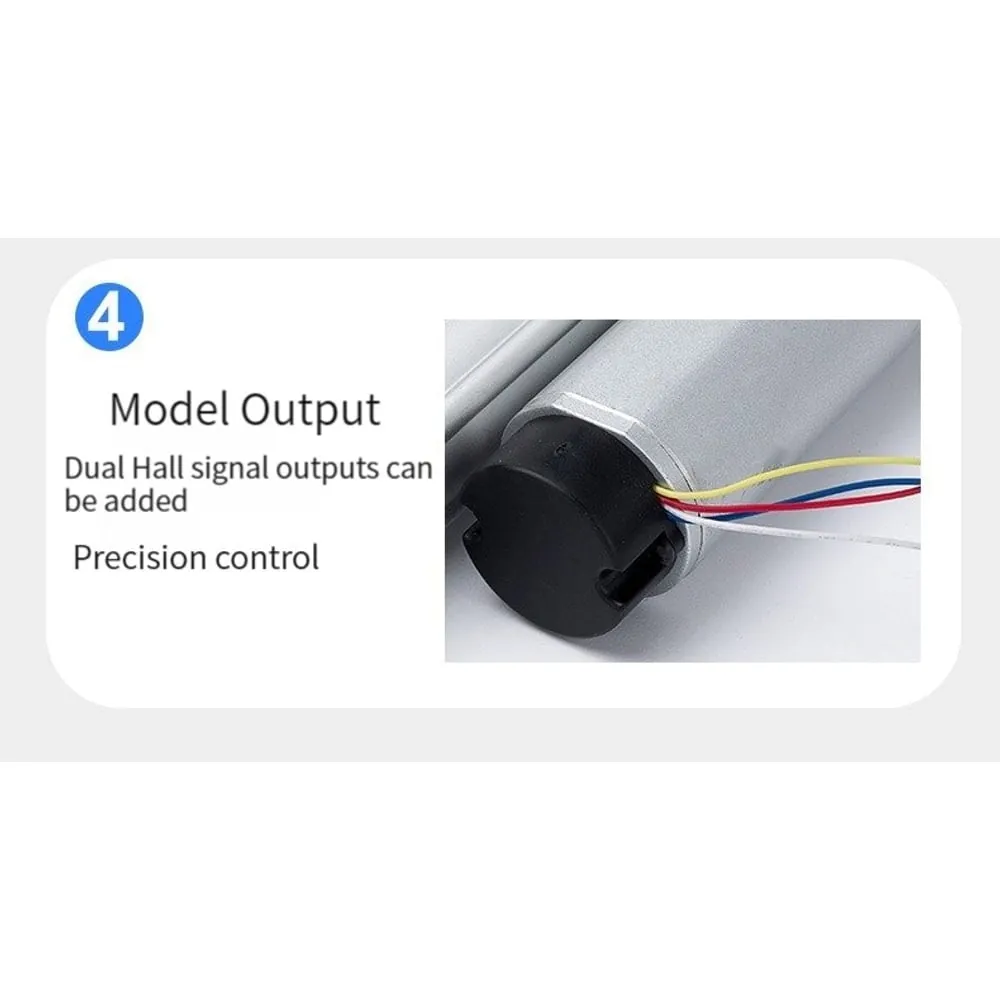

- Built-in limit switches; optional potentiometer or encoder
- IP54 sealing with optional rubber cover
- 20% duty cycle, 50,000-cycle service life
Technical specifications
| Maximum load | 900 N |
|---|---|
| Stroke | 10 – 1000 mm |
| Speed | 5 mm/s – 80 mm/s |
| Voltage | 12 V / 24 V / 36 V / 48 V DC |
| IP rating | IP54 |
| Duty cycle | 20% |
| Retracted length | Stroke + 105 mm (retracted); stroke + 155 mm with potentiometer |
| Extended length | Stroke × 2 + 105 mm |
| Feedback | Potentiometer (10K / 5K) or encoder |
| Limit switch | Built-in |
| Service life | 50,000 cycles |
| Cable length | 1 m |
Dimensions & installation drawing
Performance matrix
| Speed | Thrust |
|---|---|
| 5 mm/s | 900 N |
| 13 mm/s | 700 N |
| 15 mm/s | 600 N |
| 20 mm/s | 400 N |
| 26 mm/s | 300 N |
| 40 mm/s | 100 N |
| 80 mm/s | 50 N |
Configuration options
| Parameter | Code | Gear ratio | Speed / load | Full-load current 12/24/36/48 V (A) | IP |
|---|---|---|---|---|---|
| A | 30:1 | 5 mm/s / 900 N | 2.3 / 2.1 / 1.6 / 1.2 | IP54 | |
| B | 30:1 | 13 mm/s / 700 N | 2.3 / 2.1 / 1.5 / 1.2 | IP54 | |
| C | 30:1 | 15 mm/s / 600 N | 2.1 / 1.7 / 1.5 / 1 | IP54 | |
| D | 20:1 | 20 mm/s / 400 N | 1.8 / 1.6 / 1.4 / 1 | IP54 | |
| E | 20:1 | 26 mm/s / 300 N | 1.8 / 1.6 / 1.3 / 1 | IP54 | |
| F | 10:1 | 40 mm/s / 100 N | 1.5 / 1.4 / 1.3 / 1 | IP54 | |
| G | 10:1 | 80 mm/s / 50 N | 1.5 / 1.4 / 1.2 / 1 | IP54 |
Installation, electrical and use information

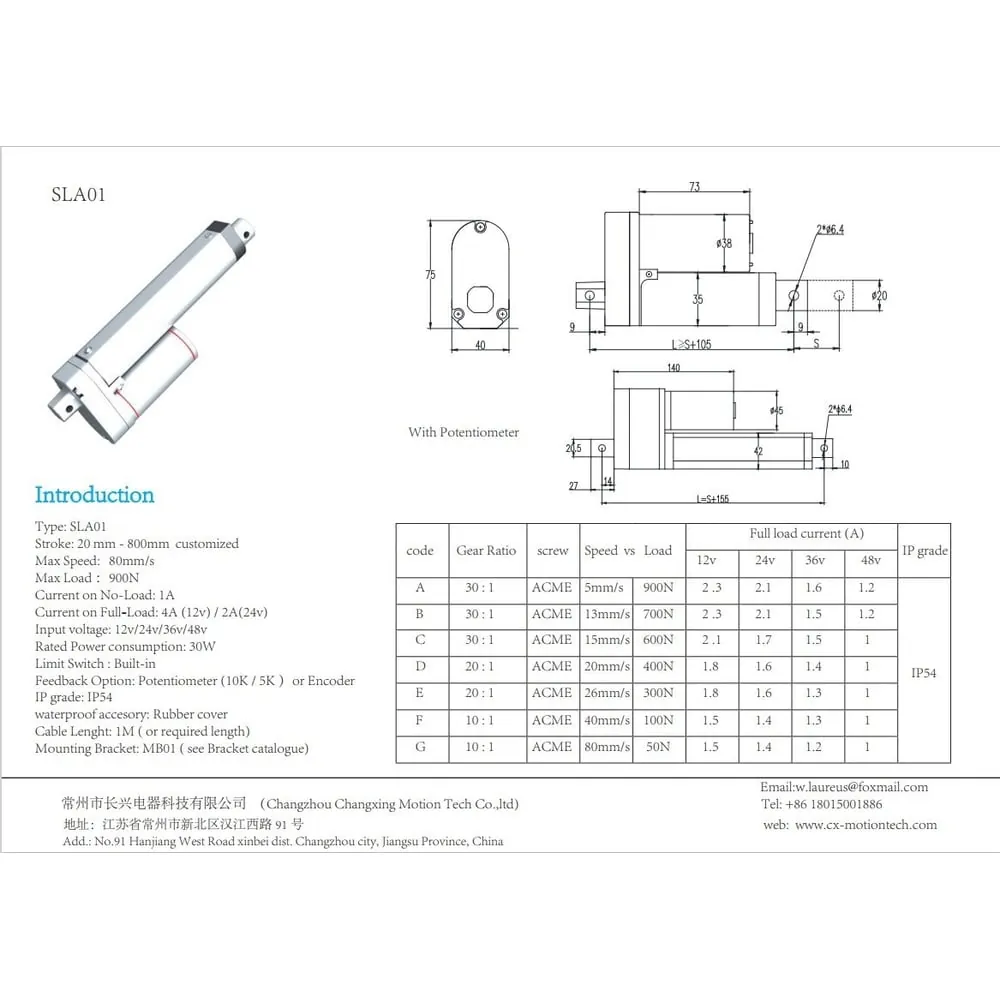

SLA01 Dimensions & Installation Drawing
SLA01 Dimensions & Installation Drawing
All dimensions in mm. Retracted hole-to-hole length A = stroke + 105 mm; extended length B = stroke × 2 + 105 mm. Front and rear clevis holes are Ø6 mm, the outer tube is Ø36 mm with a Ø20 mm extension rod, and the parallel motor is Ø38 mm. The gearbox end cover measures 40 × 75 mm.
Request technical documents
FAQ
What is the SLA01?
The SLA01 is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA01?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA01?
Key ratings from the product specifications include voltage 12 V / 24 V / 36 V / 48 V DC, load 900 N, stroke 10 – 1000 mm, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA01?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
