Linear Actuator

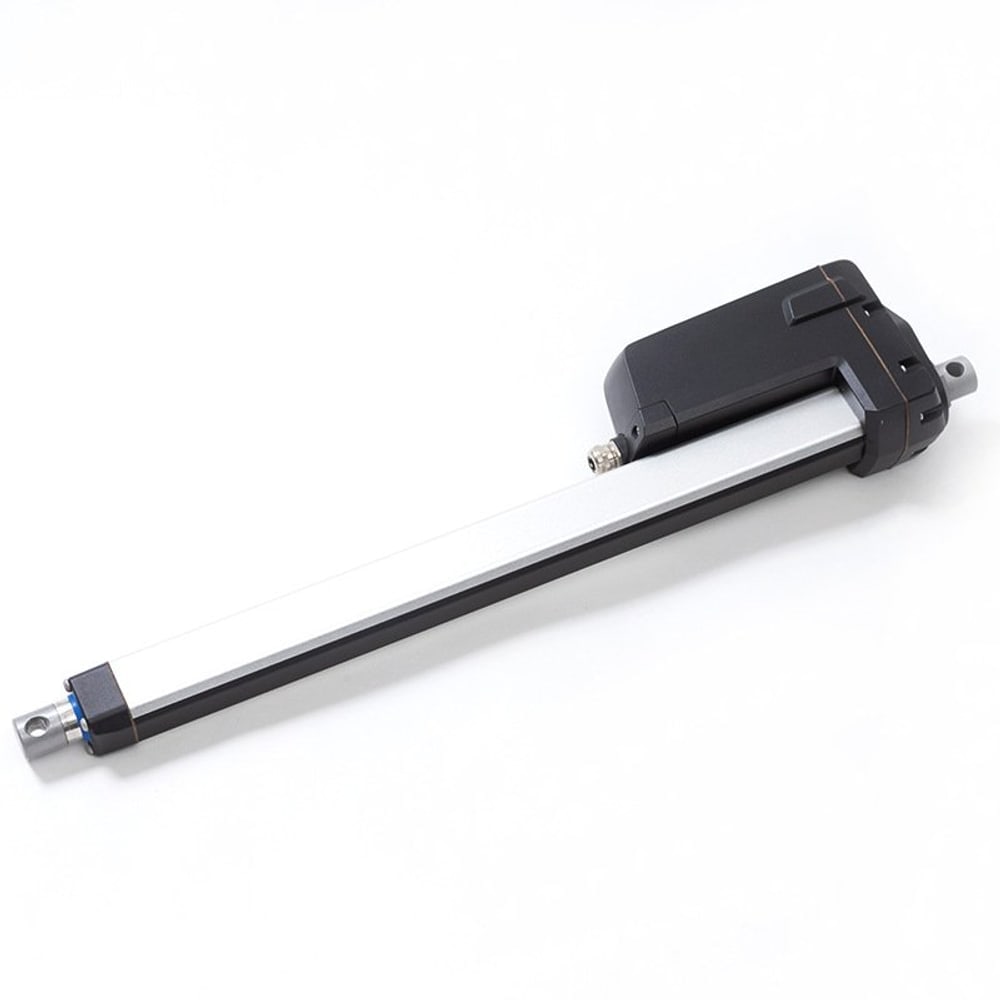

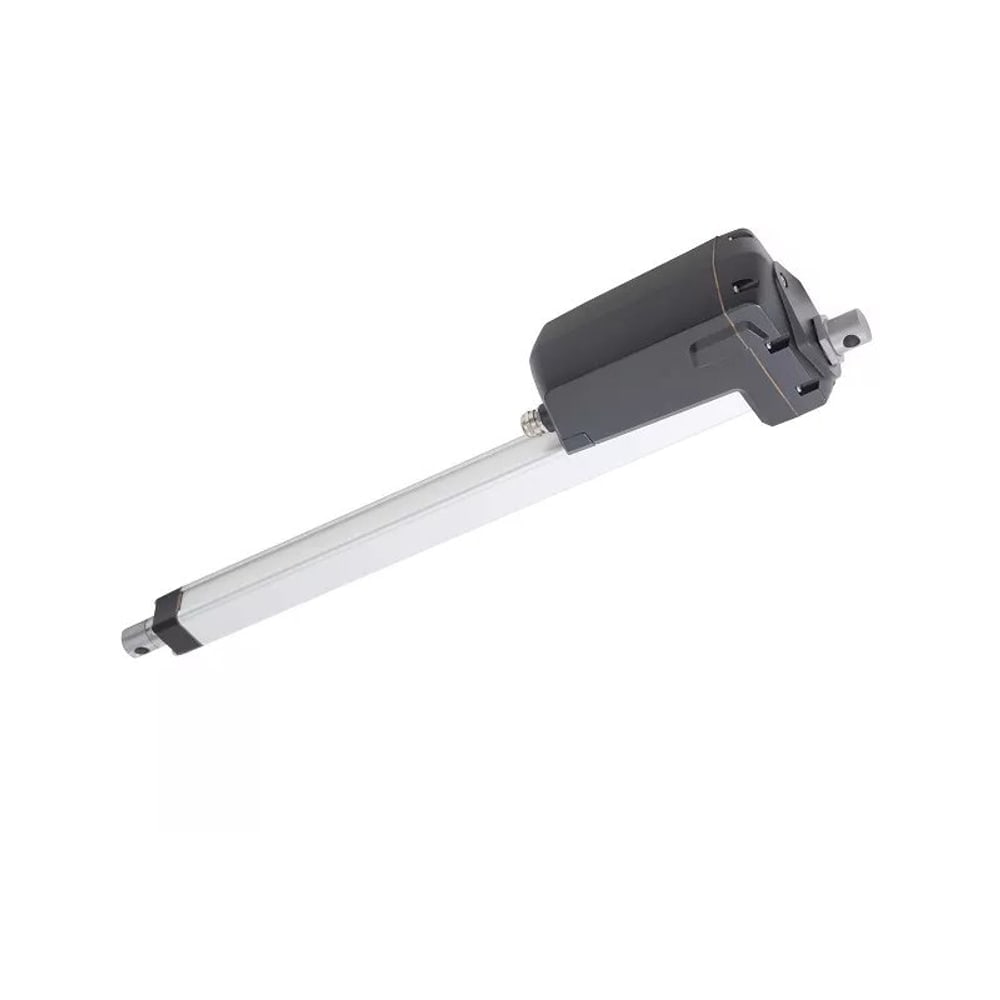

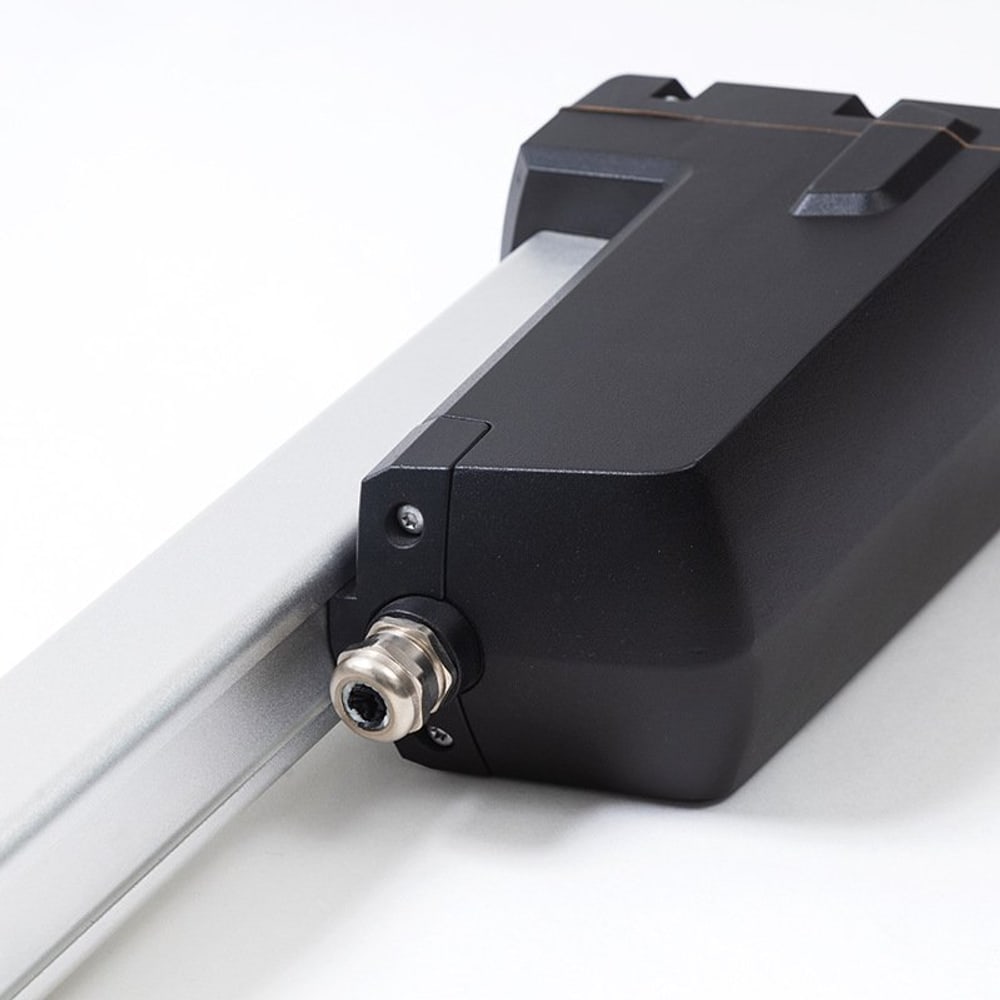

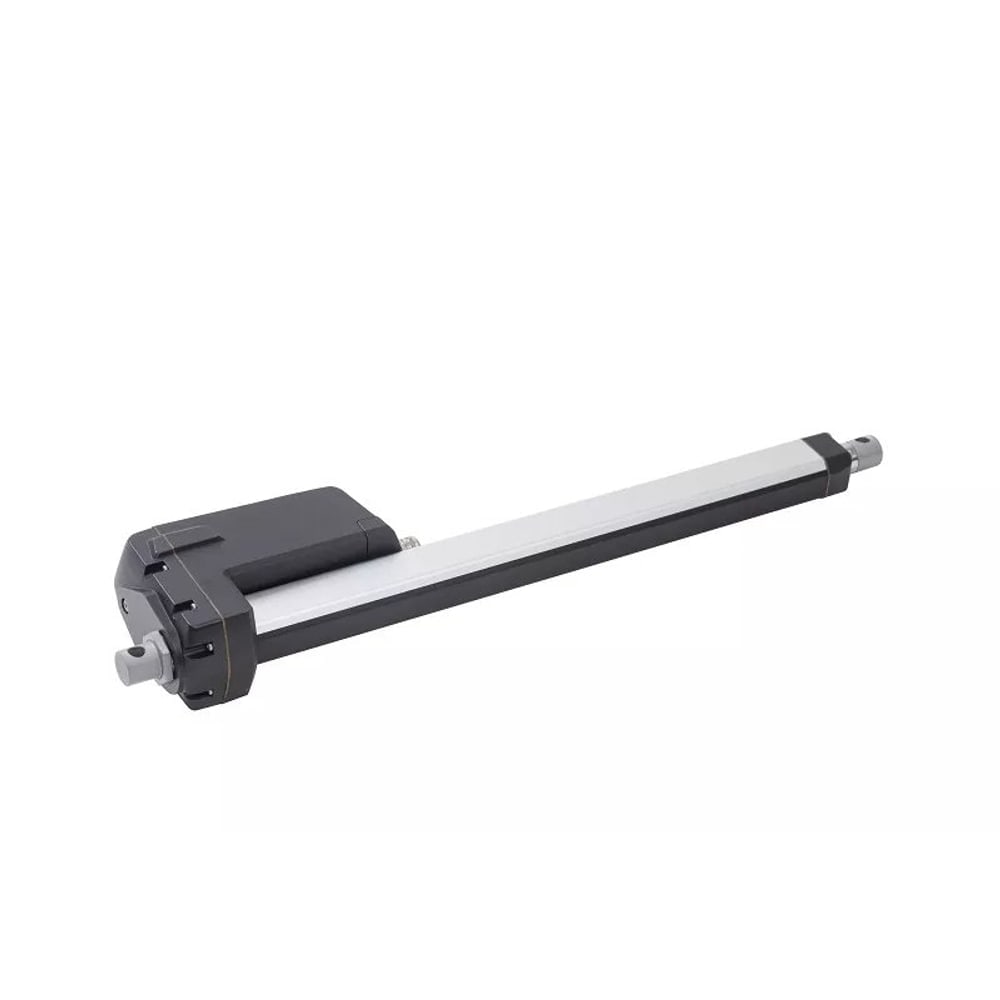

SLA-12KB Linear Actuator
IP66 industrial linear actuator, 3200–12000N load options, 12–48V DC, clutch overload protection, potentiometer or Hall feedback, stainless shaft, 50–1000…
Key specifications
- Maximum load
- 12000 N
- Stroke
- 50 – 1000 mm (customizable)
- Speed
- 6 mm/s – 38 mm/s
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP rating
- IP66
- Duty cycle
- 25% (4 min continuous)
Product overview
IP66 industrial linear actuator, 3200–12000N load options, 12–48V DC, clutch overload protection, potentiometer or Hall feedback, stainless shaft, 50–1000 mm stroke.
- Maximum load
- 12000 N
- Stroke
- 50 – 1000 mm (customizable)
- Speed
- 6 mm/s – 38 mm/s
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP rating
- IP66
- Feedback
- Potentiometer or Hall sensor
Applications
- Solar tracking
- Industrial automation
Benefits
- Load options from 3200N to 12000N
- 12V, 24V, 36V or 48V DC
- IP66 for harsh outdoor use, -40°C to +65°C
- Clutch with overload protection
- Adjustable external limit switches
- Potentiometer or Hall sensor feedback
- Stainless steel shaft; anti-corrosion build
- Stroke 50 – 1000 mm, customizable
Technical specifications
| Maximum load | 12000 N |
|---|---|
| Stroke | 50 – 1000 mm (customizable) |
| Speed | 6 mm/s – 38 mm/s |
| Speed options | 6 – 38 mm/s depending on load version |
| Voltage | DC 12 V, 24 V, 36 V or 48 V |
| IP rating | IP66 |
| Duty cycle | 25% (4 min continuous) |
| Feedback | Potentiometer or Hall sensor |
| Rod material | Stainless steel |
| Operating temperature | -40°C to +65°C |
| Cable length | 600 mm |
| Certifications | CE |
Request technical documents
FAQ
What is the SLA-12KB?
The SLA-12KB is an Elerover linear actuator rated IP66.
Does Elerover manufacture the SLA-12KB?
Yes. Elerover is a linear actuator manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-12KB?
Key ratings from the product specifications include voltage 12V / 24V / 36V / 48V DC, load 12000 N, stroke 50 – 1000 mm (customizable), protection IP66. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-12KB?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
