Linear Actuator

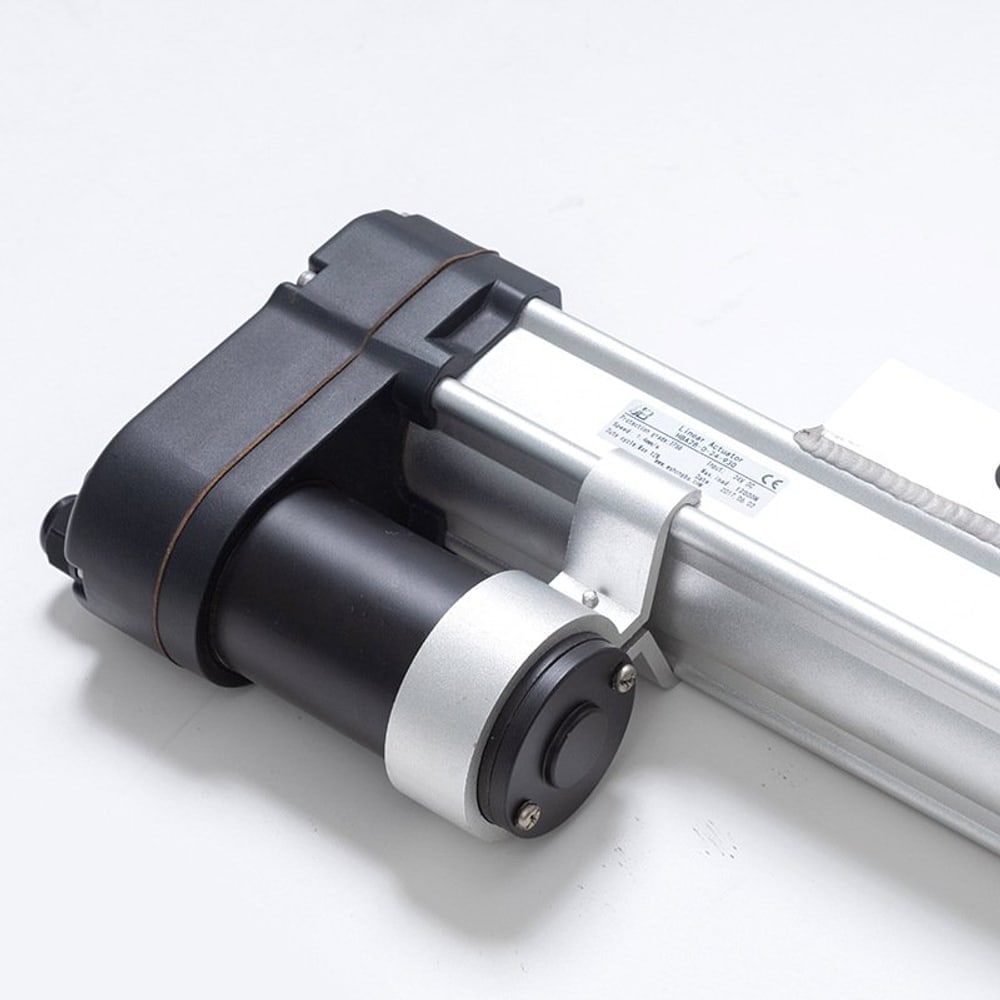

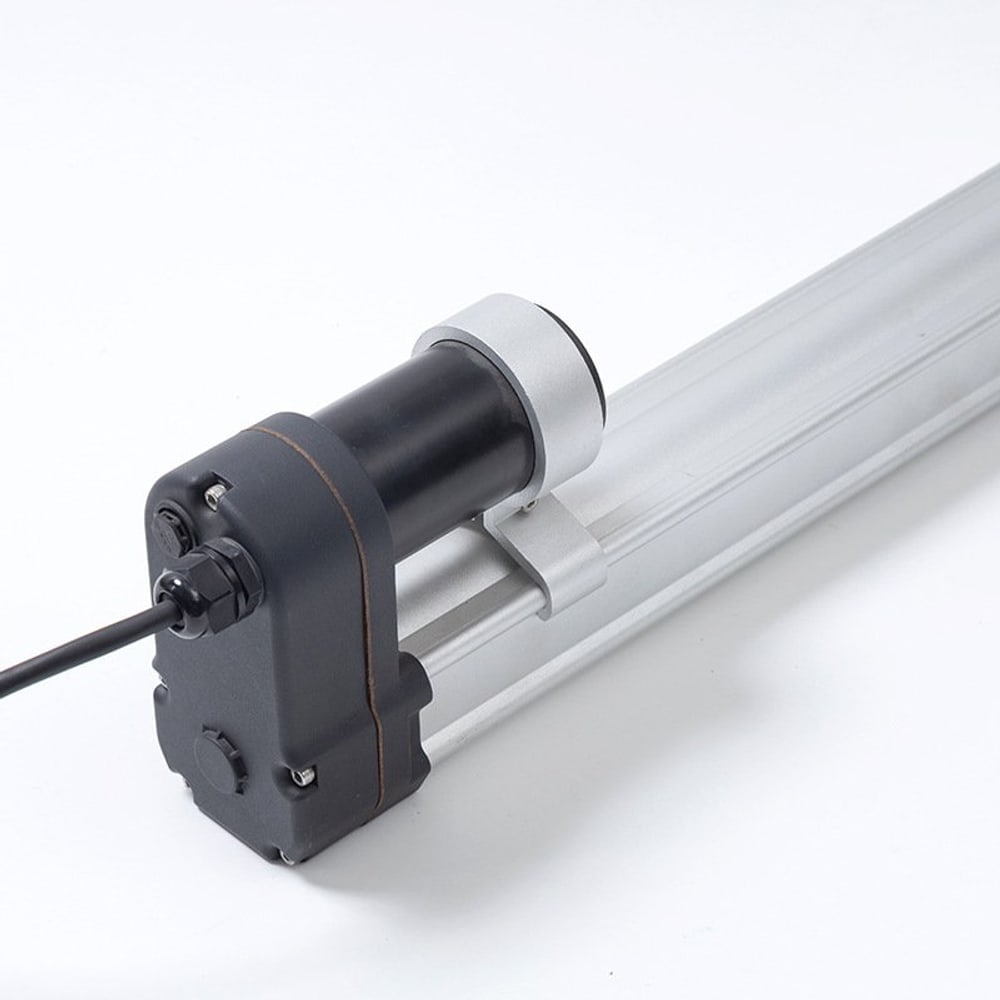

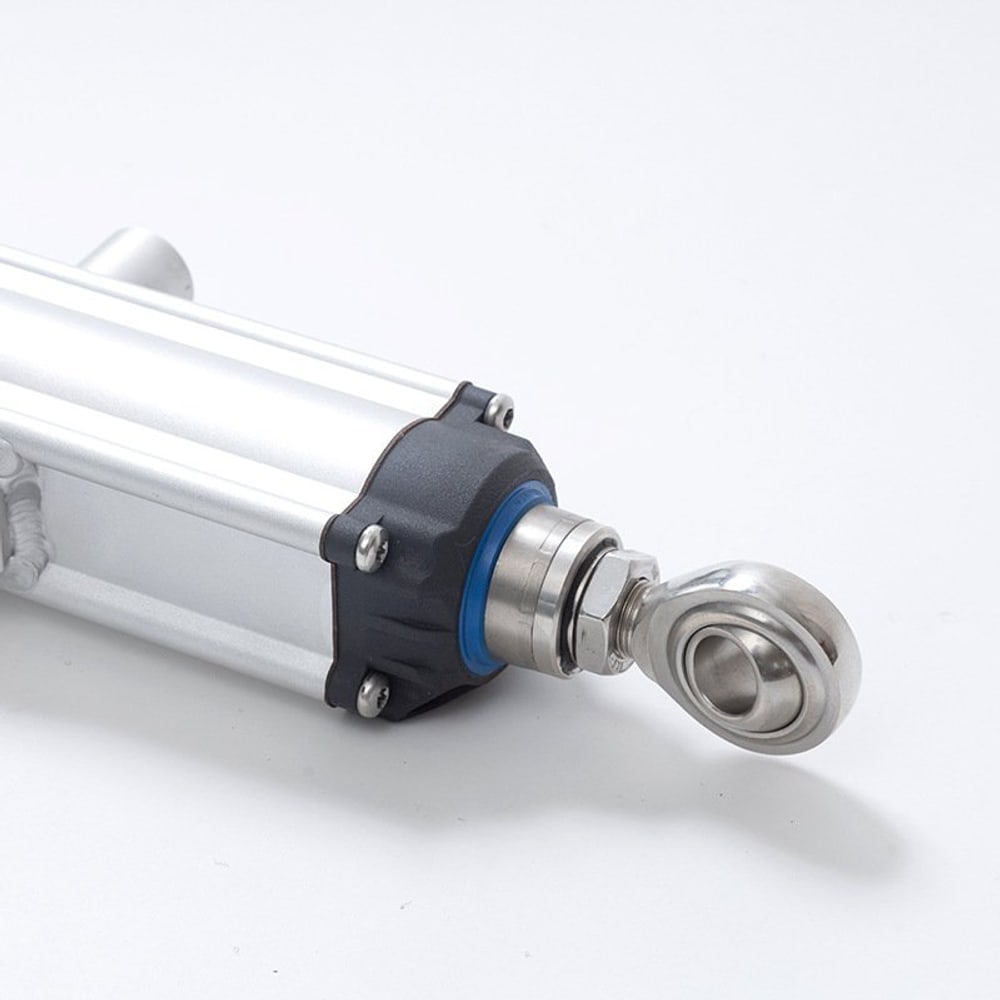

SLA-15KB Linear Actuator
IP66 solar tracker linear actuator, 10/12/15kN load options, 45000N static load, 12V/24V DC, 1.4–3.0 mm/s, Hall feedback option, 25-year design life.
Key specifications
- Maximum load
- 15000 N
- Stroke
- 50 – 1200 mm (customizable)
- Speed
- 1.4 mm/s – 3.0 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP66
- Duty cycle
- 12% at maximum load
Product overview
IP66 solar tracker linear actuator, 10/12/15kN load options, 45000N static load, 12V/24V DC, 1.4–3.0 mm/s, Hall feedback option, 25-year design life.
- Maximum load
- 15000 N
- Stroke
- 50 – 1200 mm (customizable)
- Speed
- 1.4 mm/s – 3.0 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP66
- Feedback
- Hall sensor (optional)
Applications
- Solar trackers
- Renewable energy systems
- Outdoor equipment
Benefits
- 10kN, 12kN or 15kN load options; other loads on request
- 45000N static load; 15000N dynamic wind load for 80,000 push/pull cycles
- Strong self-locking and braking with non-rotating rod eye
- High-strength aluminum housing and trapezoidal screw
- Hall sensor feedback option
- Built-in or external magnetic limit switch
- IP66 outdoor rating; tested over 500 hours of salt spray, UV and temperature cycling
- 25-year design life
Technical specifications
| Maximum load | 15000 N |
|---|---|
| Stroke | 50 – 1200 mm (customizable) |
| Speed | 1.4 mm/s – 3.0 mm/s |
| Speed options | 1.4, 2.0, 3.0 mm/s |
| Voltage | DC 12 V or DC 24 V |
| IP rating | IP66 |
| Duty cycle | 12% at maximum load |
| Feedback | Hall sensor (optional) |
| Limit switch | Built-in or external magnetic |
| Operating temperature | -30°C to +70°C (at 15kN) |
Show 3 more specifications Show fewer specifications
| Service life | 25-year design life |
|---|---|
| Cable length | 500 – 800 mm (customizable) |
| Certifications | CE |
Request technical documents
FAQ
What is the SLA-15KB?
The SLA-15KB is an Elerover linear actuator rated IP66.
Does Elerover manufacture the SLA-15KB?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-15KB?
Key ratings from the product specifications include voltage 12V / 24V DC, load 15000 N, stroke 50 – 1200 mm (customizable), protection IP66. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-15KB?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
