Linear Actuator Controllers

Q: What information is needed to select this product category?

Provide the required operating ratings, installation constraints, duty, control method, environment and quantity. Use the selection fields above where reliable data is available.

Q: What if an online specification is missing?

Missing, invalid or conflicting values are not used as defaults. Send the requirement to engineering for confirmation.

Synchronous controllers and remotes for one or more linear actuators—wired or wireless options for furniture, medical and industrial systems.

Typical applications

Capability highlights

Online selection is limited for this category. Send your requirements for engineering confirmation.

Open Product Selector

Product series and models

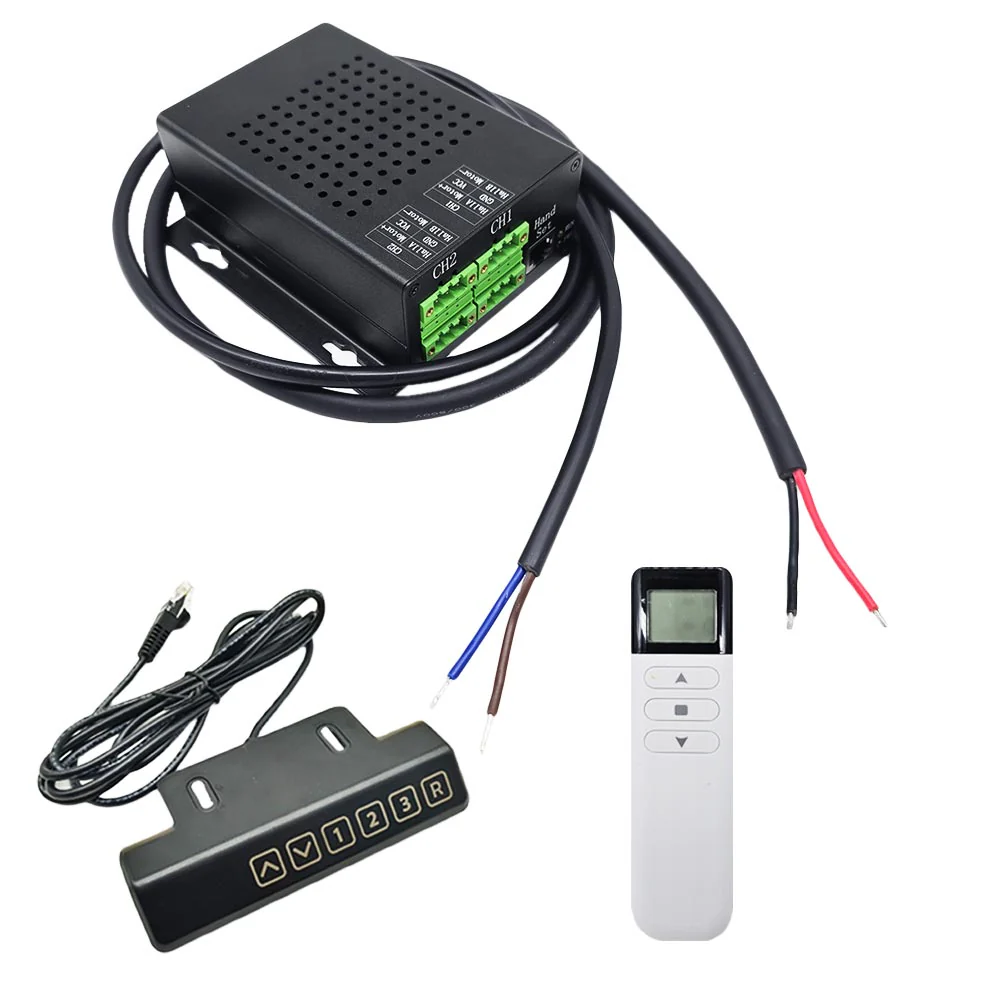

SLA-SCN2-HC One-Control-Two Synchronous Controller for heavy duty Linear Actuators

Supported actuator count: 2 linear actuators
Voltage: 12–48 V DC, for 12 V or 24 V
Maximum current: 25 A

SLA-SCN2-HC synchronous controller for two Hall-sensor linear actuators: 12–48 VDC, 25 A, touch handle and 2.4 GHz remote, 3 memory positions, LED stroke display.

View Details →

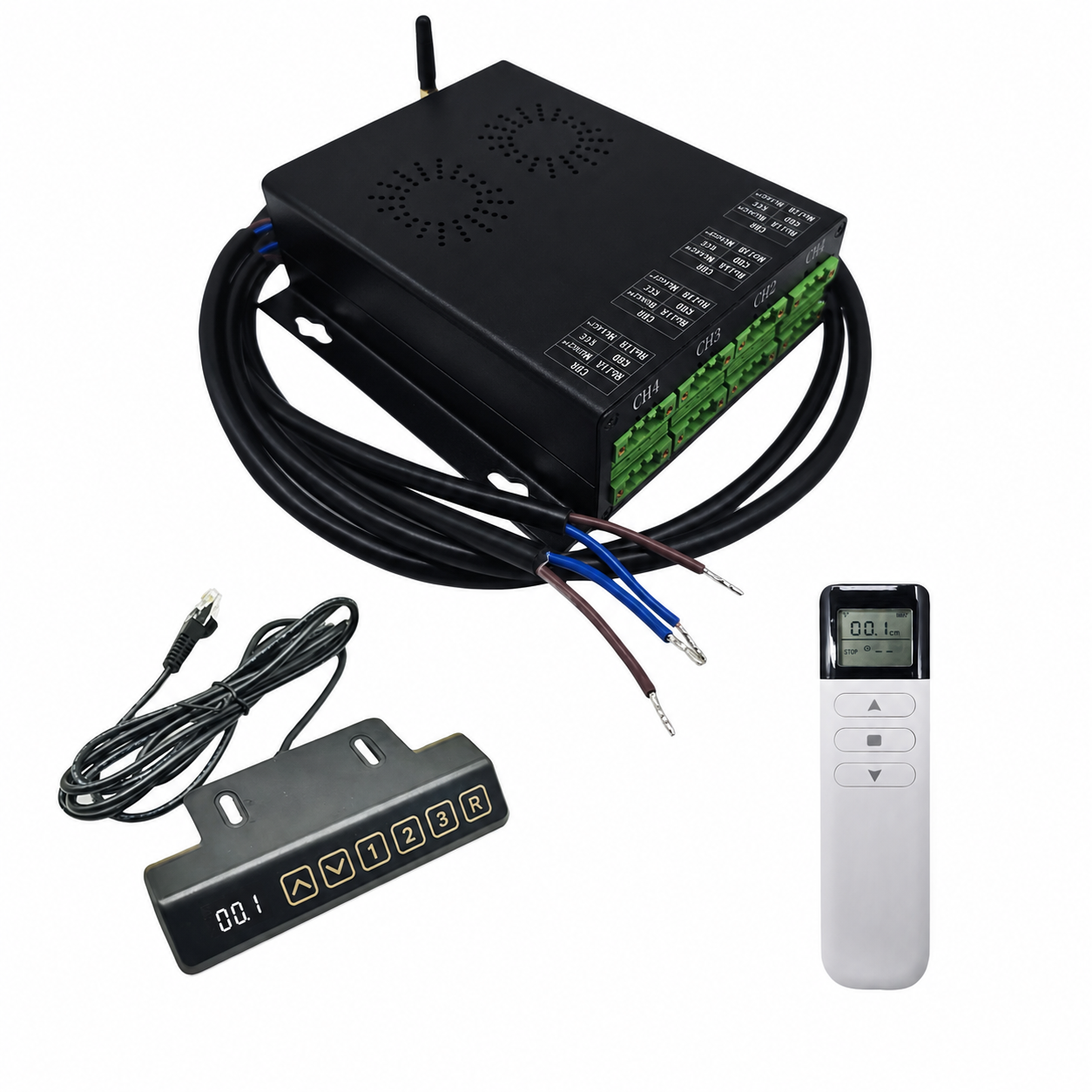

SLA-SCN4-HC One-Control-Four Synchronous Controller for heavy duty Linear Actuators

Supported actuator count: 4 linear actuators
Voltage: 12–48 V DC, for 12 V or 24 V
Maximum current: 25 A

SLA-SCN4-HC synchronous controller for four Hall-sensor linear actuators: 12–48 VDC, 25 A, touch handle and 2.4 GHz remote, 3 memory positions, LED stroke display.

View Details →

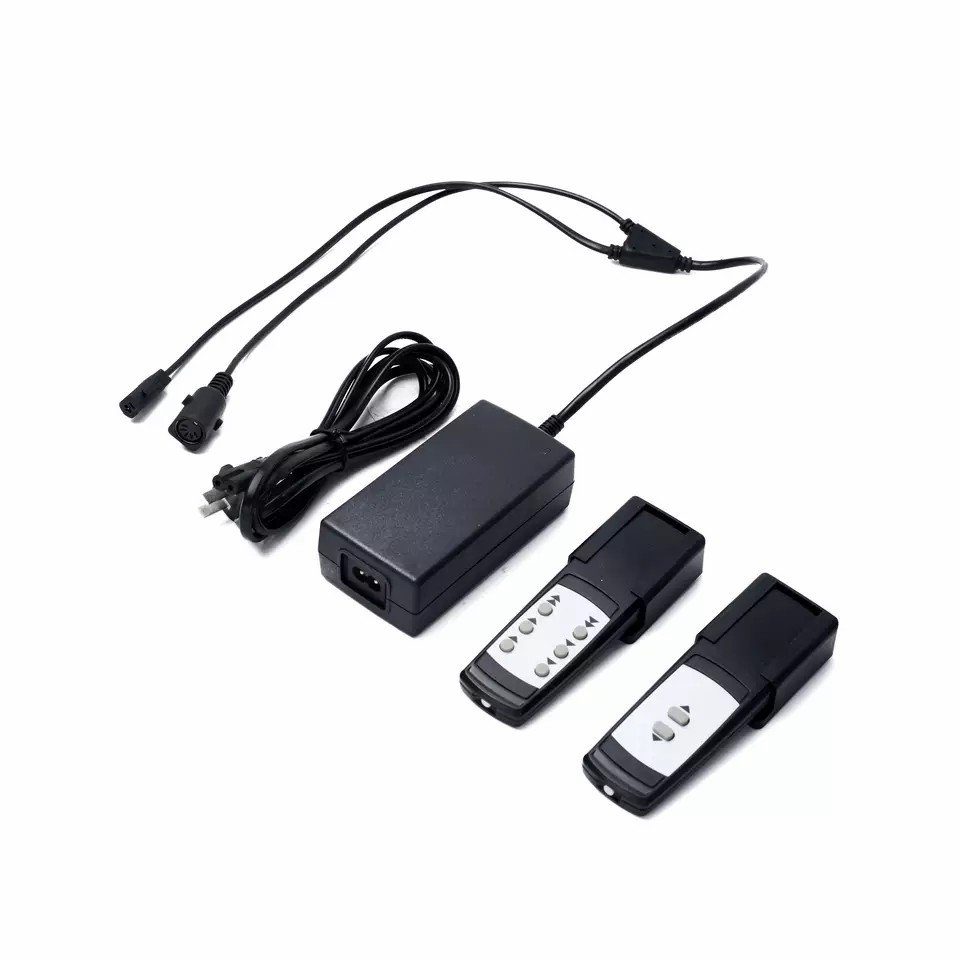

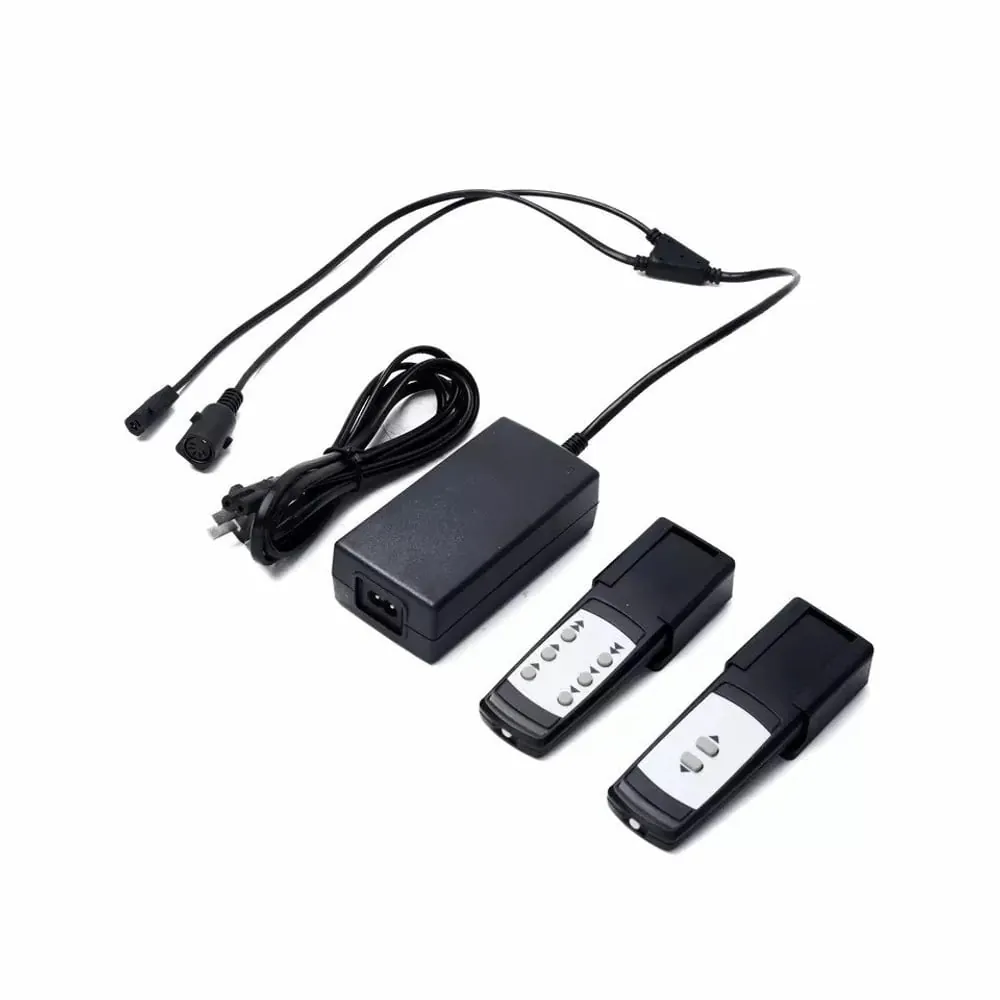

SLA-CX04 remote controller

Supported actuator count: 2 (synchronized)
Voltage: AC 110 V / 220 V, 50 / 60 Hz
Maximum current: 5 A

SLA-CX04 control box for two synchronized Hall linear actuators: AC 110/220 V input, 12/24/29 V DC output, 5 A / 120 W, wired handle and wireless remote, 10% duty cycle.

View Details →

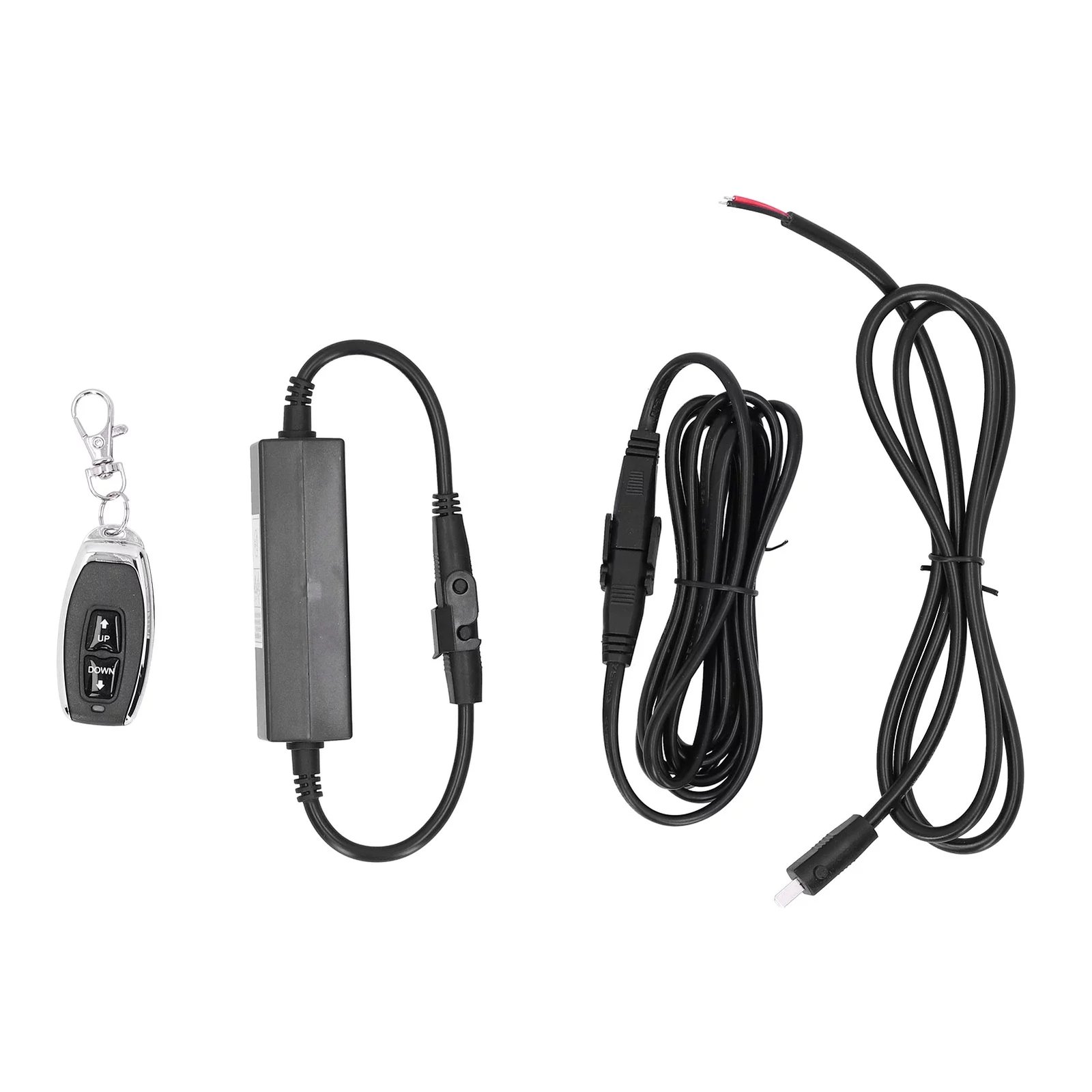

SLA-CX03 remote controller

Voltage: 12 V DC

SLA-CX03 wireless remote receiver for DC linear actuators and motors: 433.92 MHz, up to 30 m range, 12 VDC, extend/retract/stop, overcurrent and overheat protection.

View Details →

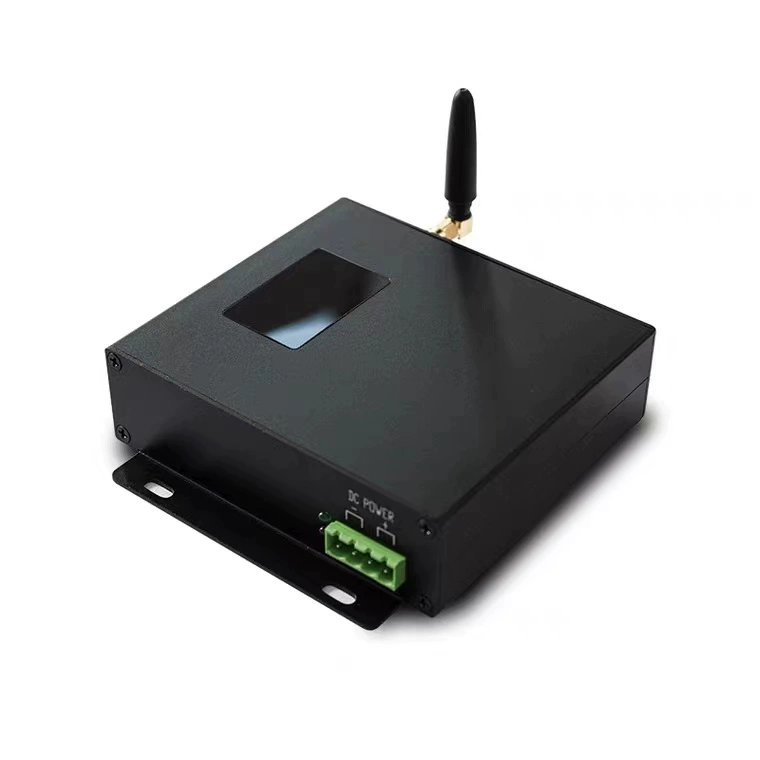

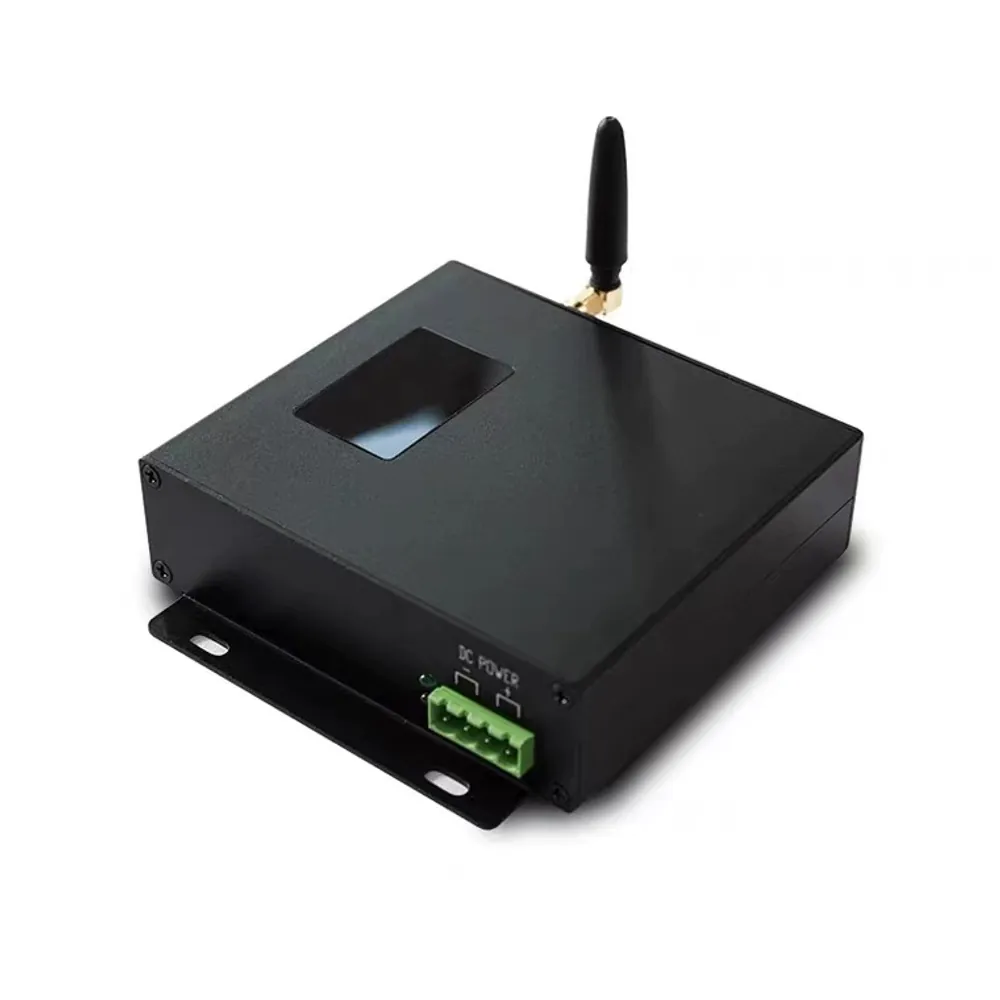

SLA-SCN02 one control two Synchronous Controller

Supported actuator count: 2
Voltage: 12 – 48 V DC
Maximum current: 10 A per motor
Synchronization: Within 3 pulses (< 1 mm)

SCN02 synchronous controller for two Hall-feedback linear actuators: 12–48 VDC, 10 A per motor, sync within 3 pulses (< 1 mm), wired and wireless control, RS485 ModBus-RTU.

View Details →

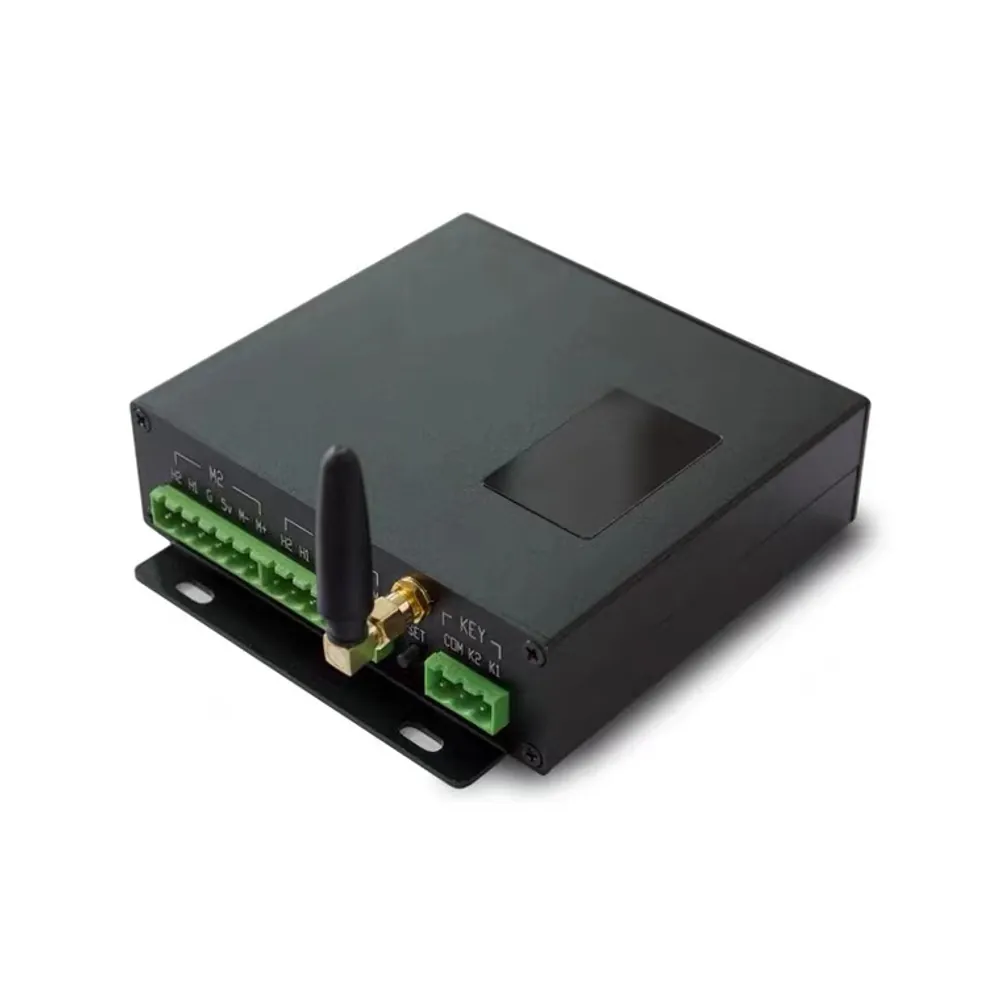

SLA-SCN04 one control four synchronized controller

Supported actuator count: 4
Voltage: 12 – 48 V DC
Maximum current: 10 A per motor
Synchronization: Within 3 pulses (< 1 mm)

SCN04 synchronous controller for four Hall-feedback linear actuators: 12–48 VDC, 10 A per motor, sync within 3 pulses (< 1 mm), wired and wireless control, RS485 ModBus-RTU.

View Details →

Category comparison

Confirmed catalog capabilities. Model/configuration dependent — verify the SKU specification table.

Open category comparison

Engineering guide

Requirements to provide for engineering review

Actuator count
Input voltage
Output voltage
Maximum current

Companion product categories

Confirm product-level compatibility with engineering before ordering.

OEM / ODM capability

Share the application, required ratings, mounting constraints, control requirements and annual quantity. Elerover will review the published configuration and identify items that require engineering confirmation.

FAQ

What information is needed to select this product category?

Provide the required operating ratings, installation constraints, duty, control method, environment and quantity. Use the selection fields above where reliable data is available.

What if an online specification is missing?

Missing, invalid or conflicting values are not used as defaults. Send the requirement to engineering for confirmation.
