Controller

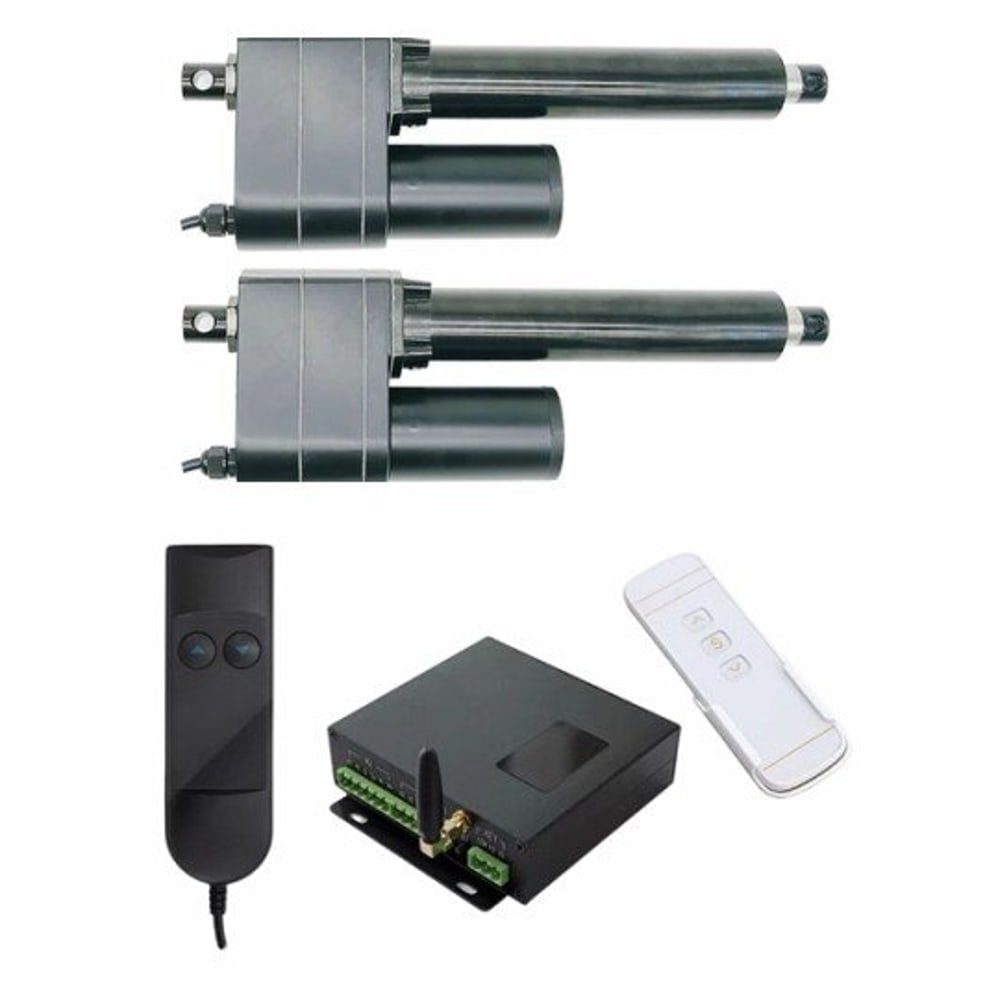

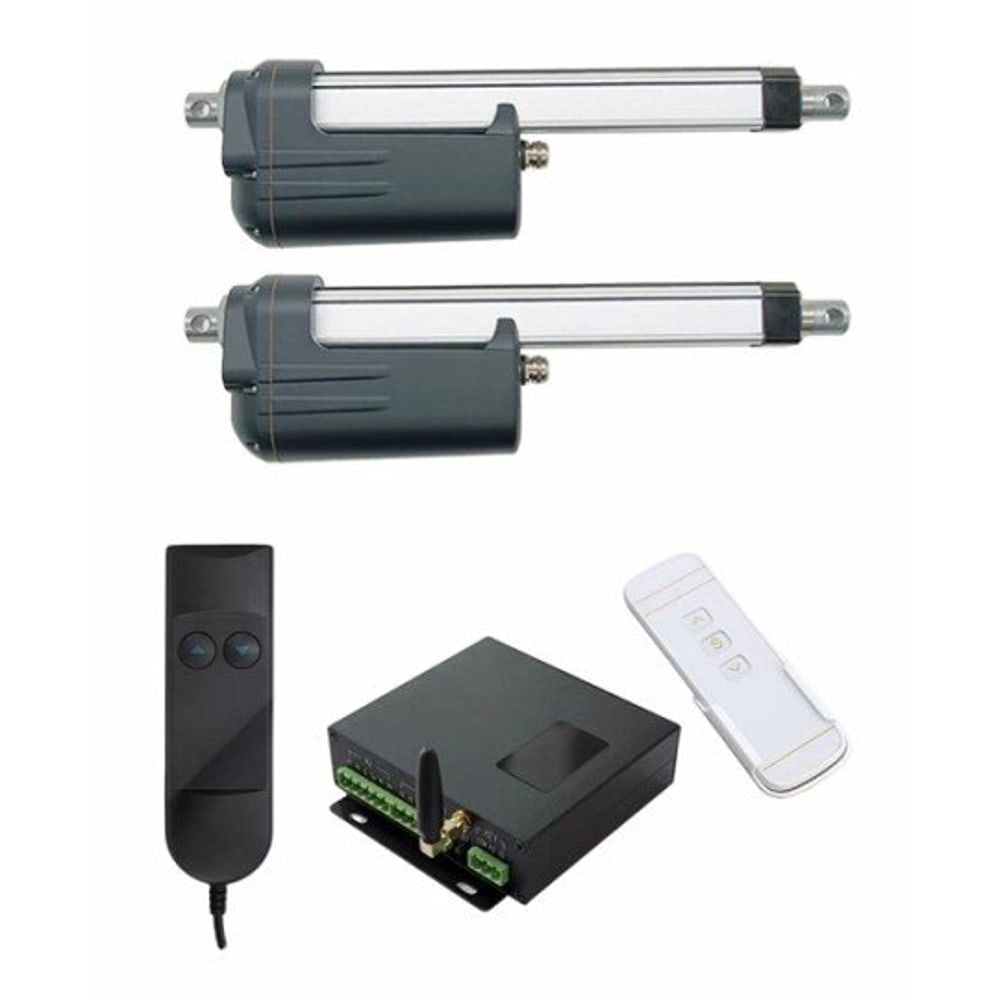

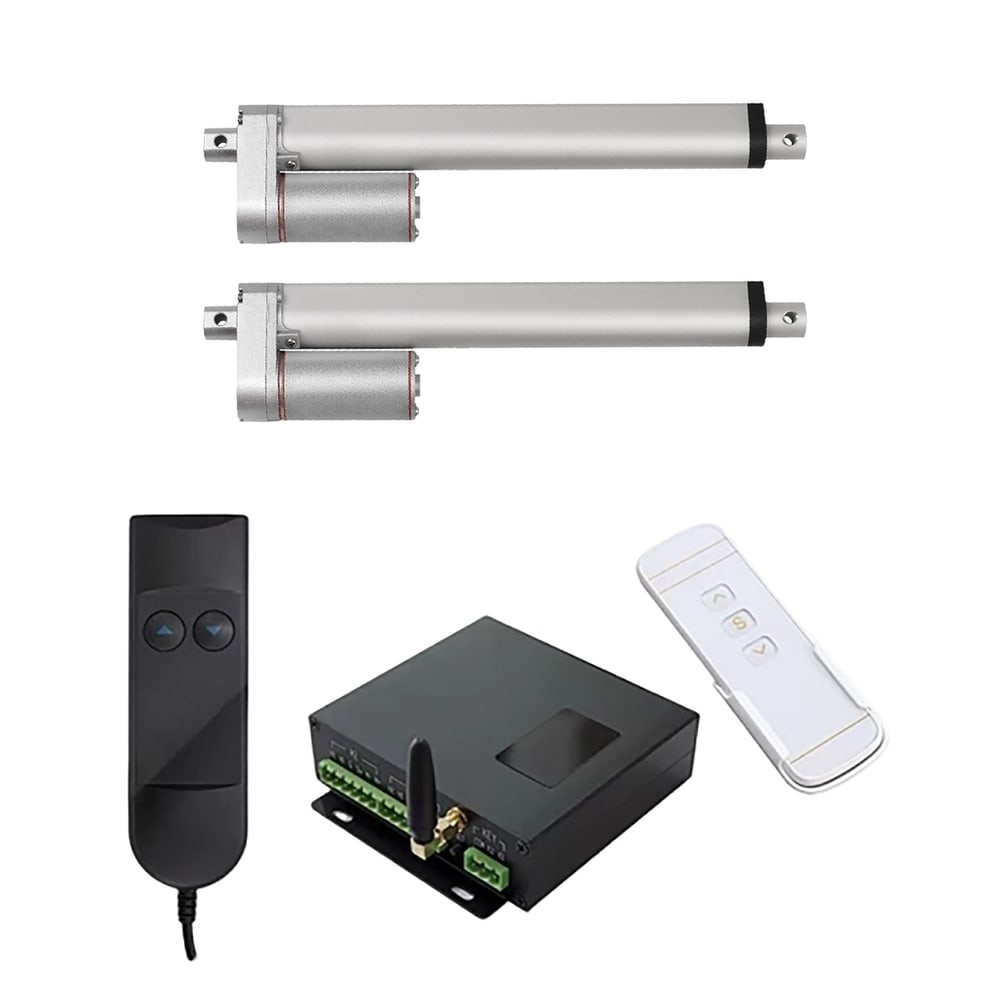

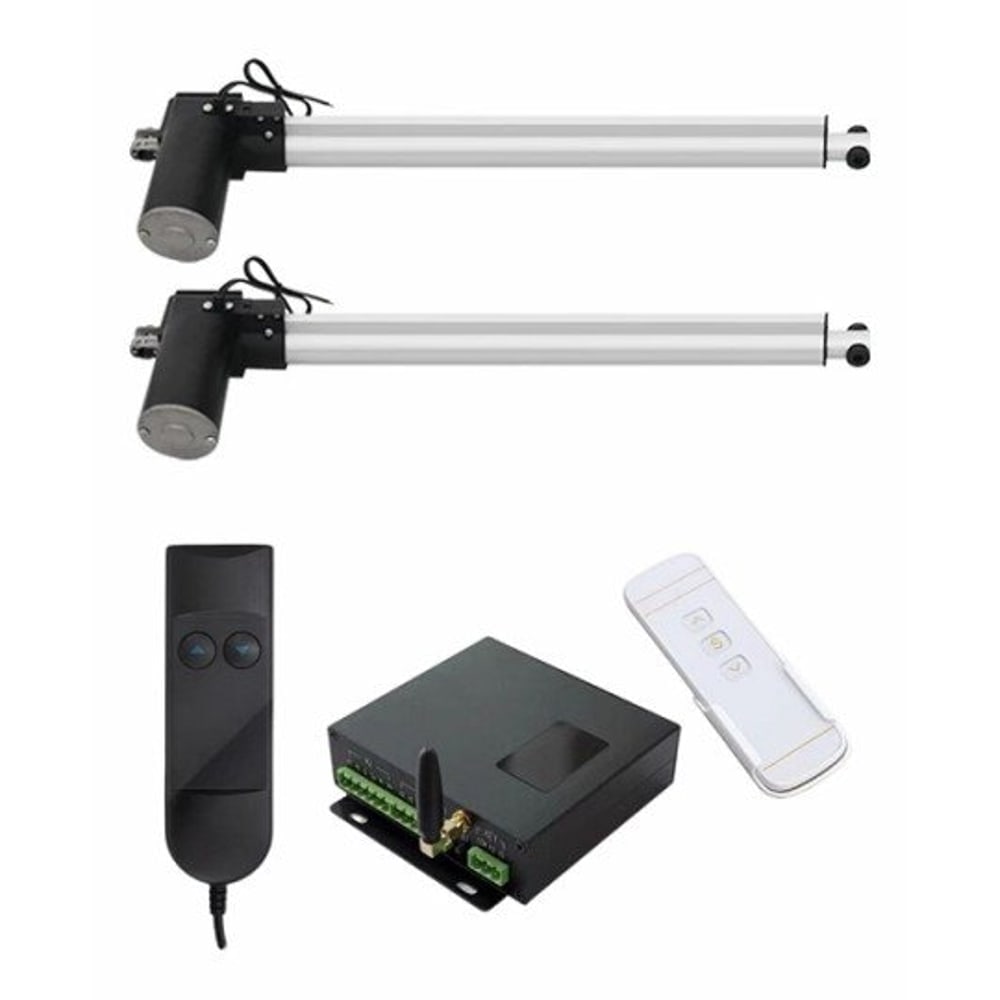

SCN02 Controller
SCN02 synchronous controller for two Hall-feedback linear actuators: 12–48 VDC, 10 A per motor, sync within 3 pulses (< 1 mm), wired and wireless control,…
Key specifications
- Actuator count
- 2
- Input voltage
- 12 – 48 V DC
- Output voltage
- 12 – 48 V DC
- Maximum current
- 10 A per motor
- Control method
- Momentary / self-locking, switchable
- Hall sensor support
- Required on each actuator
Product overview
SCN02 synchronous controller for two Hall-feedback linear actuators: 12–48 VDC, 10 A per motor, sync within 3 pulses (< 1 mm), wired and wireless control, RS485 ModBus-RTU.
- Actuator count
- 2
- Input voltage
- 12 – 48 V DC
- Output voltage
- 12 – 48 V DC
- Maximum current
- 10 A per motor
- Control method
- Momentary / self-locking, switchable
- Hall sensor support
- Required on each actuator
Applications
- Lifting platforms
- Adjustable workbenches
- Medical beds
- Industrial automation
Benefits
- Keeps two Hall-feedback actuators synchronized within 3 pulses (< 1 mm)
- 12 – 48 VDC input; output follows input voltage
- 10 A maximum output per motor
- Wired handle (Up / Down / Reset) and wireless remote control
- Momentary or self-locking operation, switchable
- Signal cables over 10 m supported
- RS485 ModBus-RTU communication
Technical specifications
| Actuator count | 2 |
|---|---|
| Input voltage | 12 – 48 V DC |
| Output voltage | 12 – 48 V DC |
| Maximum current | 10 A per motor |
| Synchronization | Within 3 pulses (< 1 mm) |
| Control method | Momentary / self-locking, switchable |
| Remote control | Wired handle and wireless remote |
| Hall sensor support | Required on each actuator |
| Overload protection | 8 A default, adjustable |
Installation, electrical and use information
Wiring
Wiring
| Connection | Instruction |
|---|---|
| Power | DC supply + to controller +, DC supply – to controller – |
| Actuator power | Red and black motor leads of each actuator to the actuator terminals (CH1 – CH2) |
| Hall signal | Hall cable of each actuator to the matching Hall terminal |
| Handle | Plug the control handle into the controller |
Request technical documents
FAQ
What is the SLA-SCN02?
The SLA-SCN02 is an Elerover controller for industrial and OEM motion projects.
Does Elerover manufacture the SLA-SCN02?
Yes. Elerover is a controller manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-SCN02?
Key ratings from the product specifications include voltage 12 – 48 VDC. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-SCN02?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
