Linear Actuator

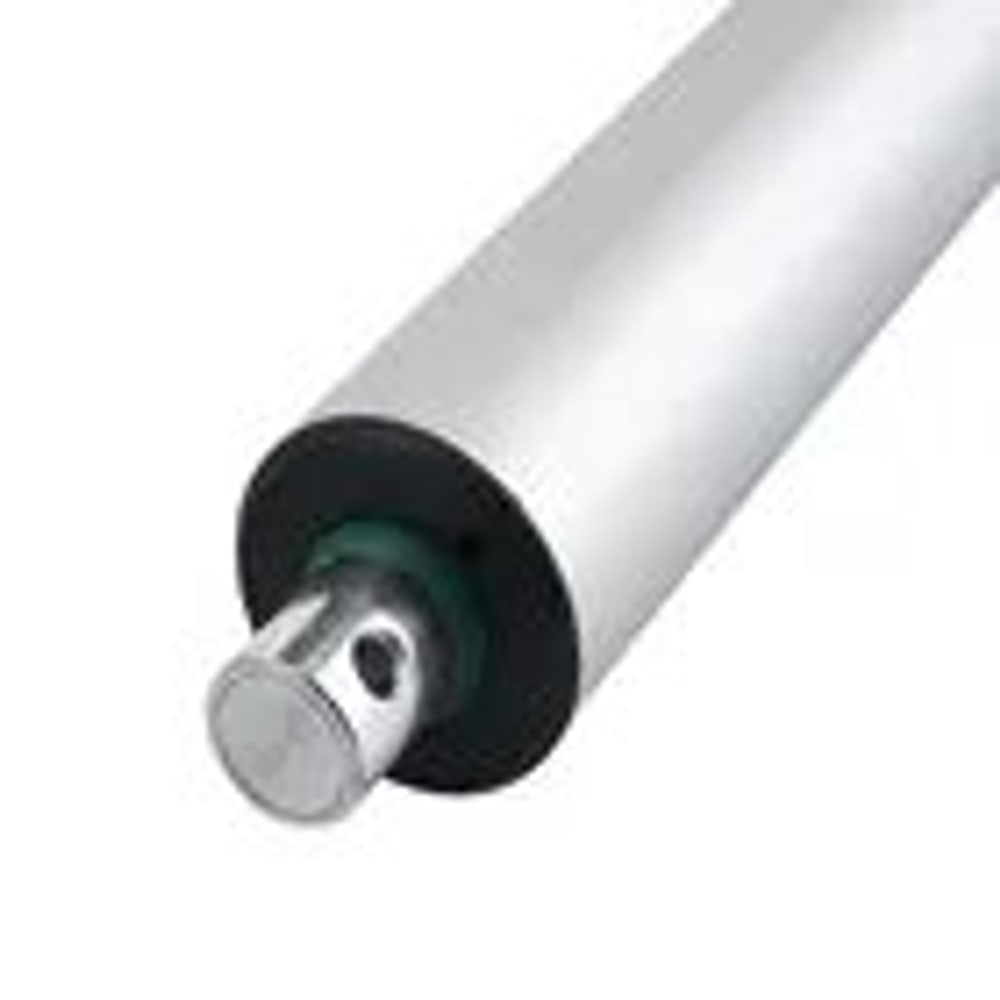

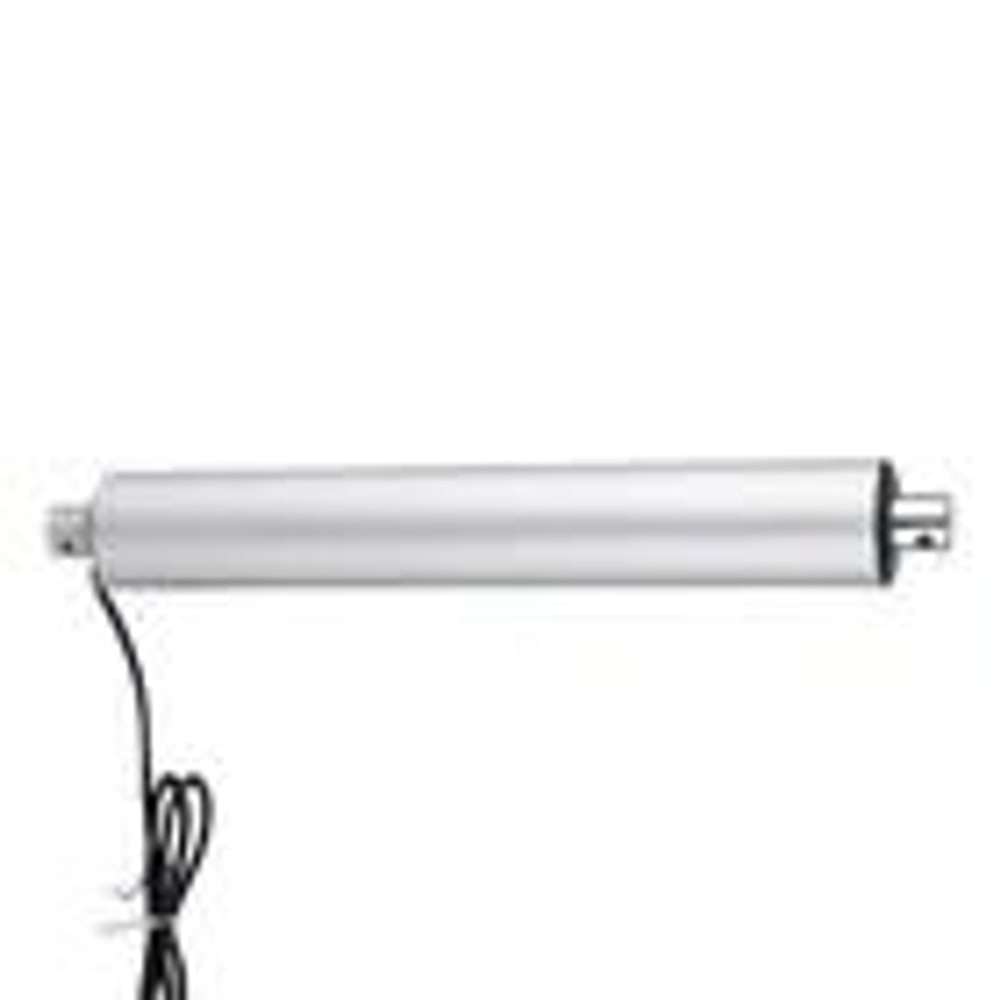

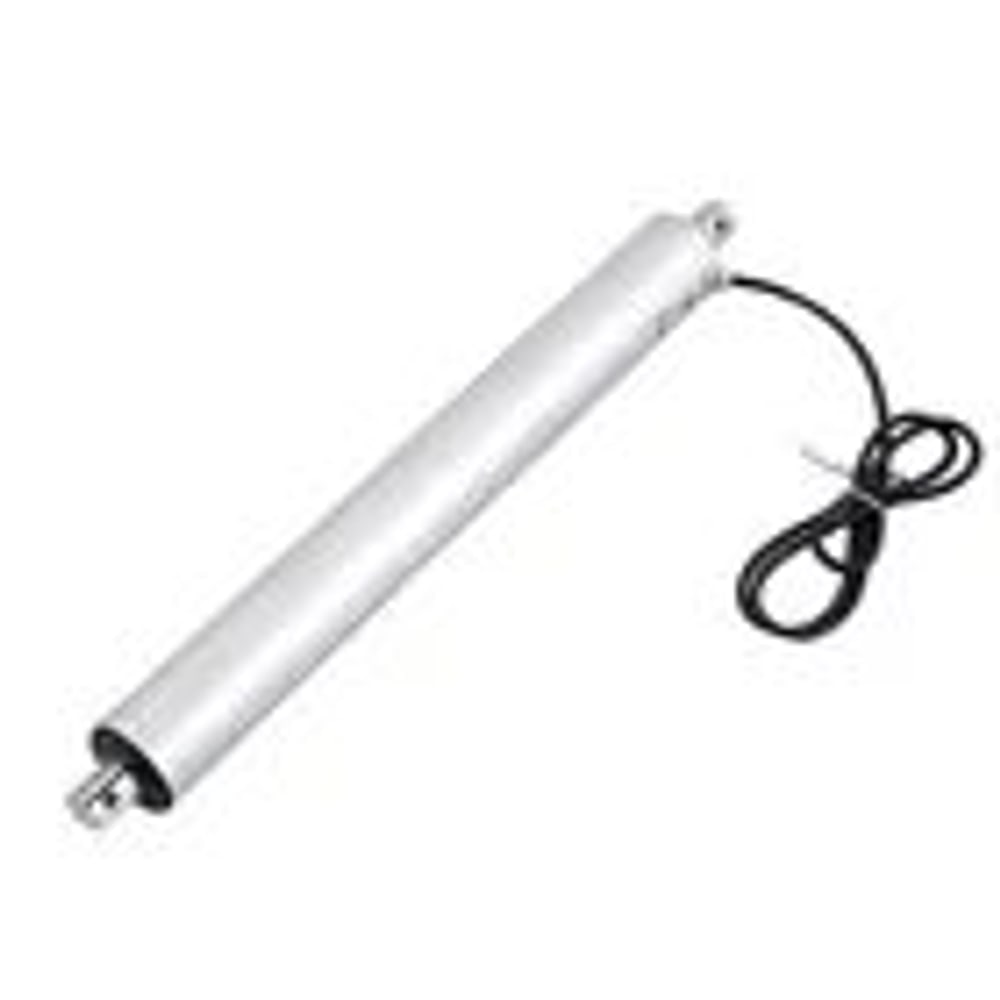

SLA05 Linear Actuator
12V/24V DC linear actuator with up to 1500N thrust, 2000N self-locking, 5–30 mm/s, built-in limit switches, aluminum alloy housing, IP54 (IP65 optional).
Key specifications
- Maximum load
- 1500 N
- Speed
- 5 mm/s – 30 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP54 / IP65
- Duty cycle
- 10% at rated load; 25% high-speed
Product overview
12V/24V DC linear actuator with up to 1500N thrust, 2000N self-locking, 5–30 mm/s, built-in limit switches, aluminum alloy housing, IP54 (IP65 optional).
- Maximum load
- 1500 N
- Speed
- 5 mm/s – 30 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP54 / IP65
- Duty cycle
- 10% at rated load; 25% high-speed
Applications
- fitness equipment : electric foot sofas
Benefits
- Up to 1500N thrust (150 kg) at 5 mm/s
- 2000N self-locking force
- 12V or 24V DC permanent-magnet motor
- Built-in limit switches
- Aluminum alloy housing and extension rod
- IP54 standard; IP65 optional
- Operating temperature -26°C to +65°C

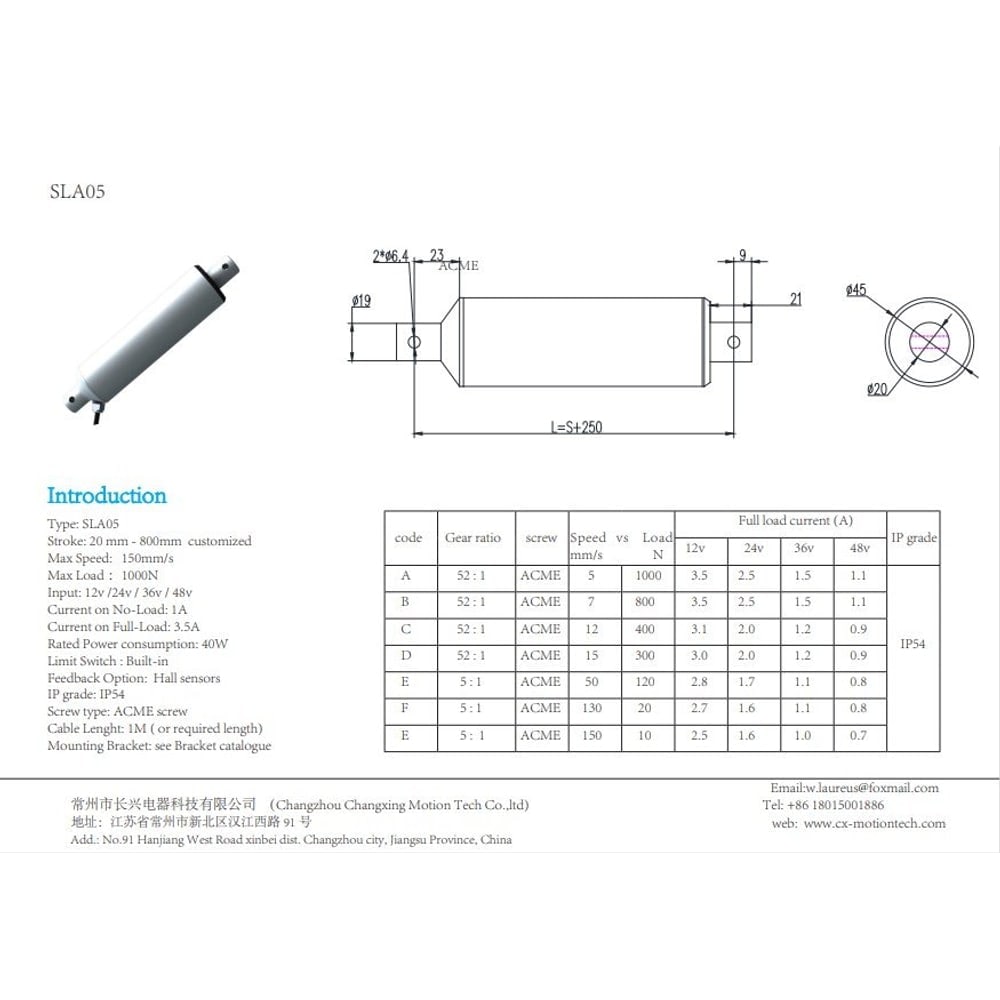

Technical specifications
| Maximum load | 1500 N |
|---|---|
| Speed | 5 mm/s – 30 mm/s |
| Speed options | 5 – 30 mm/s |
| Voltage | DC 12 V or DC 24 V |
| IP rating | IP54 / IP65 |
| Duty cycle | 10% at rated load; 25% high-speed |
| Limit switch | Yes |
| Housing material | Aluminum alloy |
| Rod material | Aluminum alloy |
| Operating temperature | -26°C to +65°C |
Performance matrix
| Speed | Thrust |
|---|---|
| 5 mm/s | 1500 N |
| 30 mm/s | 250 N |
Request technical documents
FAQ
What is the SLA05?
The SLA05 is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA05?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA05?
Key ratings from the product specifications include voltage 12V / 24V DC, load 1500 N, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA05?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
