Linear Actuator

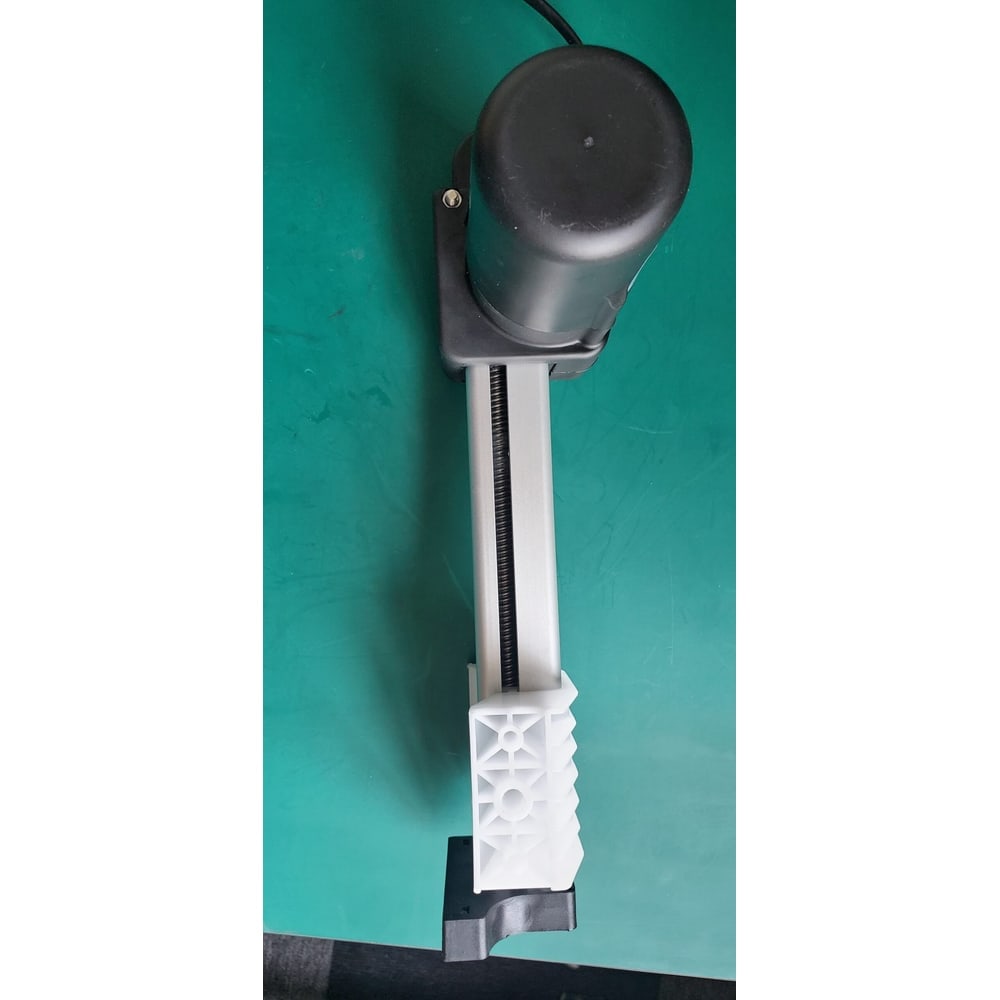

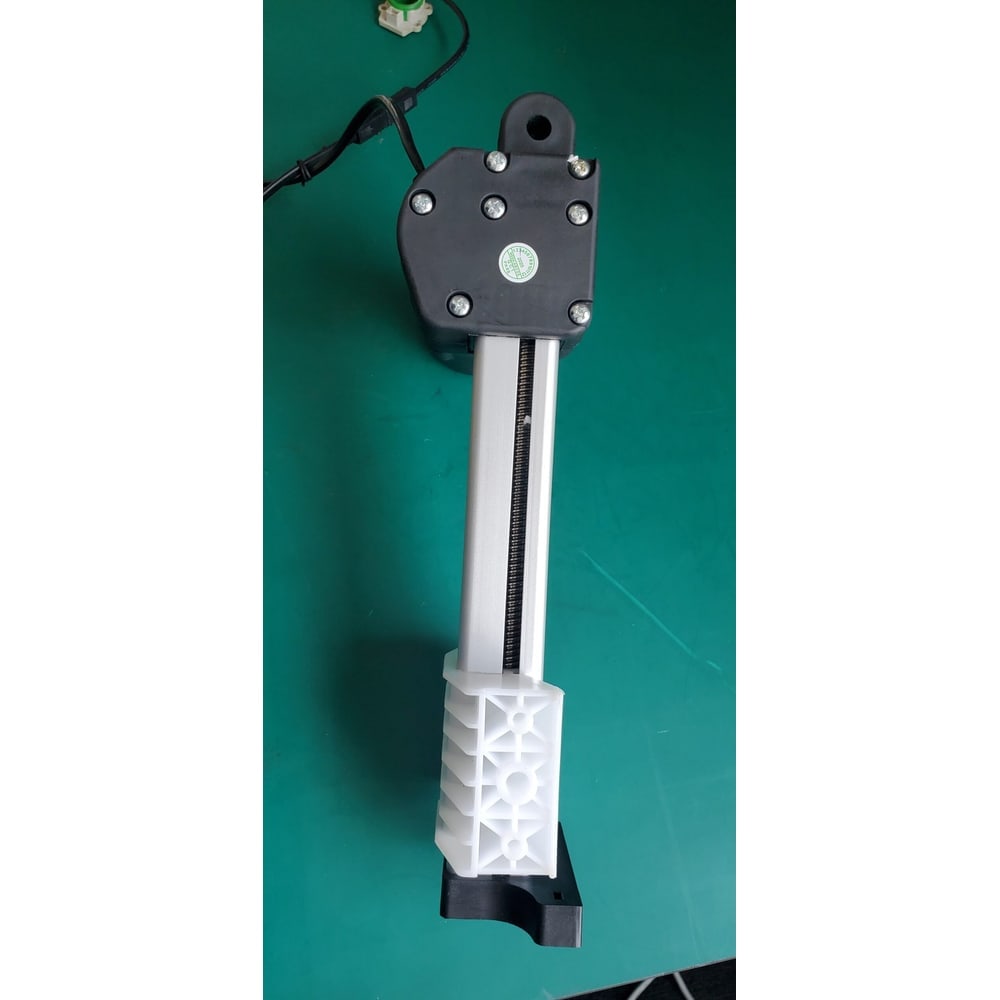

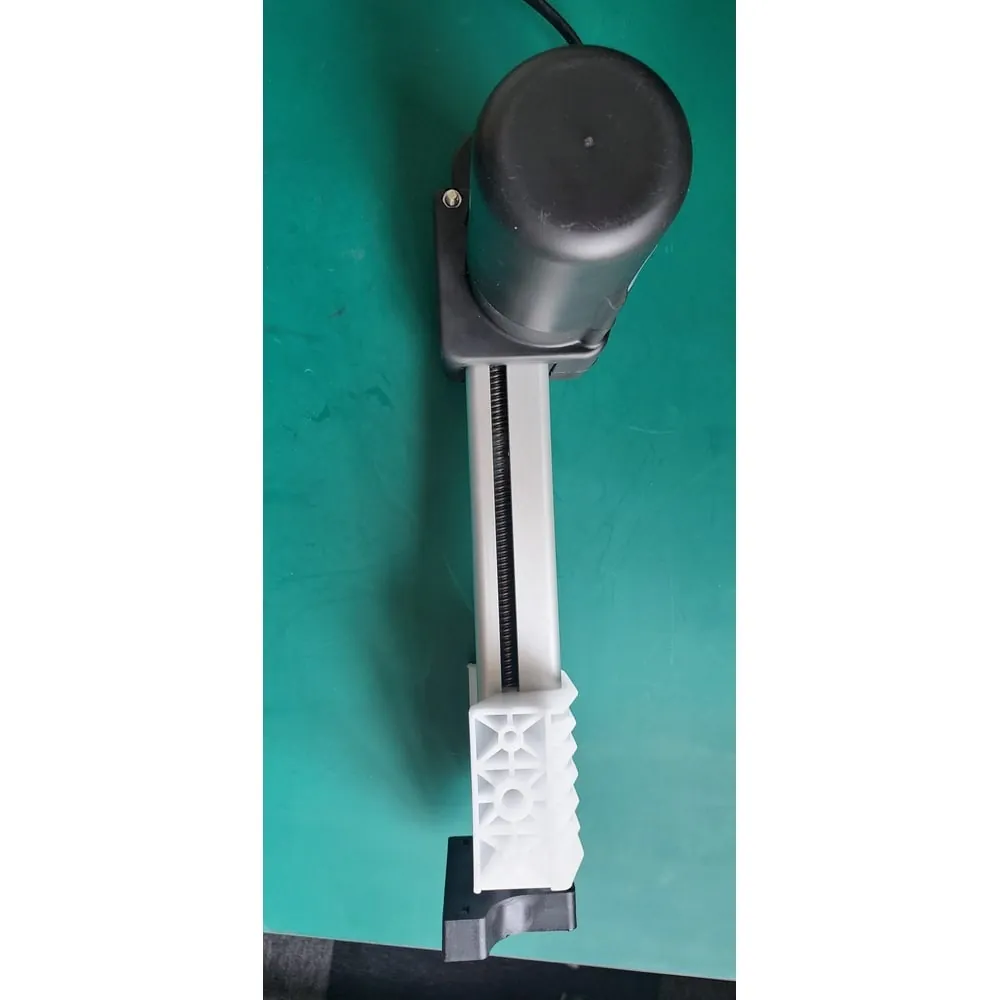

SLA-PT01 Linear Actuator
Compact recliner actuator for sofas and beds: 1000N push, 34 mm/s, 230 mm stroke, 127 mm minimum installation distance, 12/24/29V DC, 58W motor.
Key specifications
- Maximum load
- 1000 N (push)
- Stroke
- 230 ± 2 mm
- Speed
- 34 mm/s
- Voltage
- DC 12 V, 24 V or 29 V
Product overview
Compact recliner actuator for sofas and beds: 1000N push, 34 mm/s, 230 mm stroke, 127 mm minimum installation distance, 12/24/29V DC, 58W motor.
- Maximum load
- 1000 N (push)
- Stroke
- 230 ± 2 mm
- Speed
- 34 mm/s
- Voltage
- DC 12 V, 24 V or 29 V
Applications
- Furniture
Benefits
- 1000N push force at 34 mm/s
- 12V, 24V or 29V DC
- Short 127 mm minimum installation distance
- 230 mm stroke
- Adjustable cam-type limit switch
- 58W motor, 3700 RPM
- PVC, aluminum alloy and stainless steel construction
- Compact, low-noise design for furniture
Technical specifications
| Maximum load | 1000 N (push) |
|---|---|
| Stroke | 230 ± 2 mm |
| Speed | 34 mm/s |
| Speed options | 34 mm/s |
| Voltage | DC 12 V, 24 V or 29 V |
| Retracted length | 127 ± 2 mm |
| Limit switch | Adjustable cam type |
| Current | 2 – 2.2 A |
| Motor type | 58 W, 3700 RPM |
Request technical documents
FAQ
What is the SLA-PT01?
The SLA-PT01 is an Elerover linear actuator for industrial and OEM motion projects.
Does Elerover manufacture the SLA-PT01?
Yes. Elerover is a linear actuator manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-PT01?
Key ratings from the product specifications include voltage 12V / 24V / 29V DC, load 1000 N, stroke 230 ± 2 mm. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-PT01?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
