【Installation length】
320mm + S(Stroke length)
【Features】

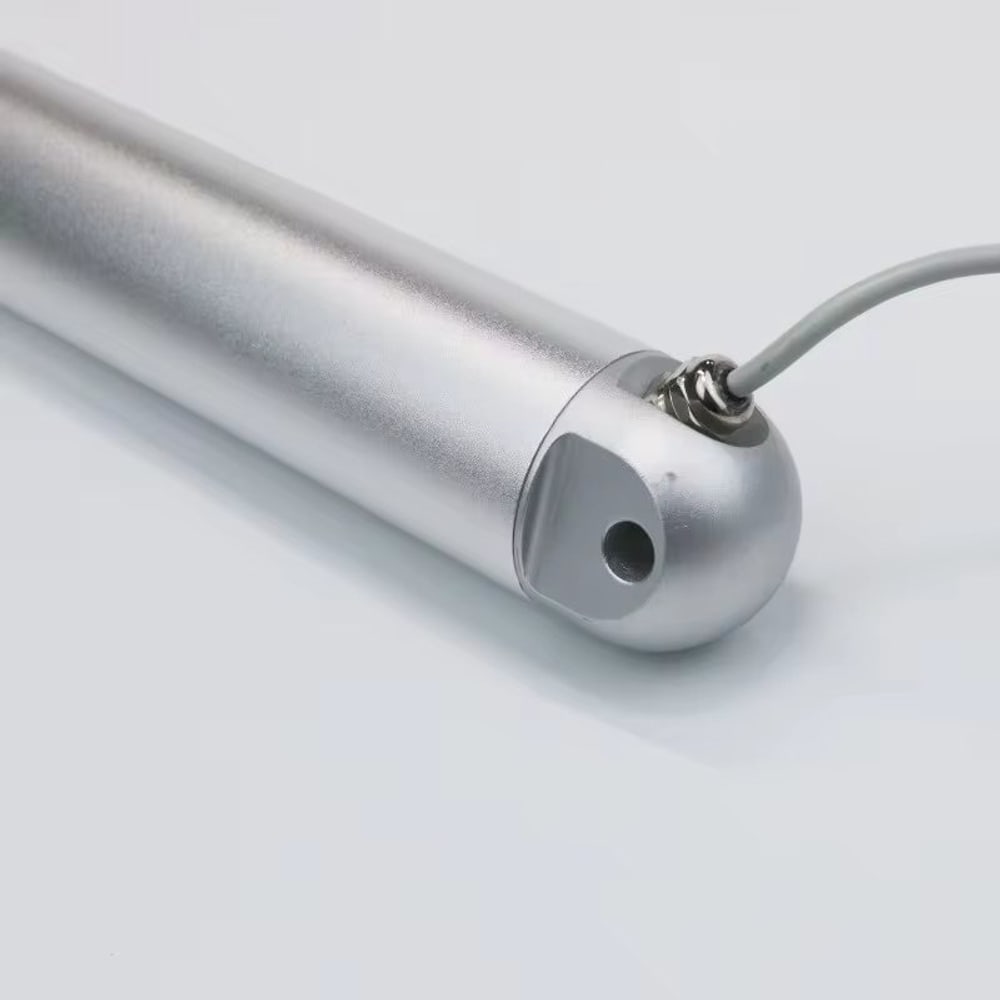

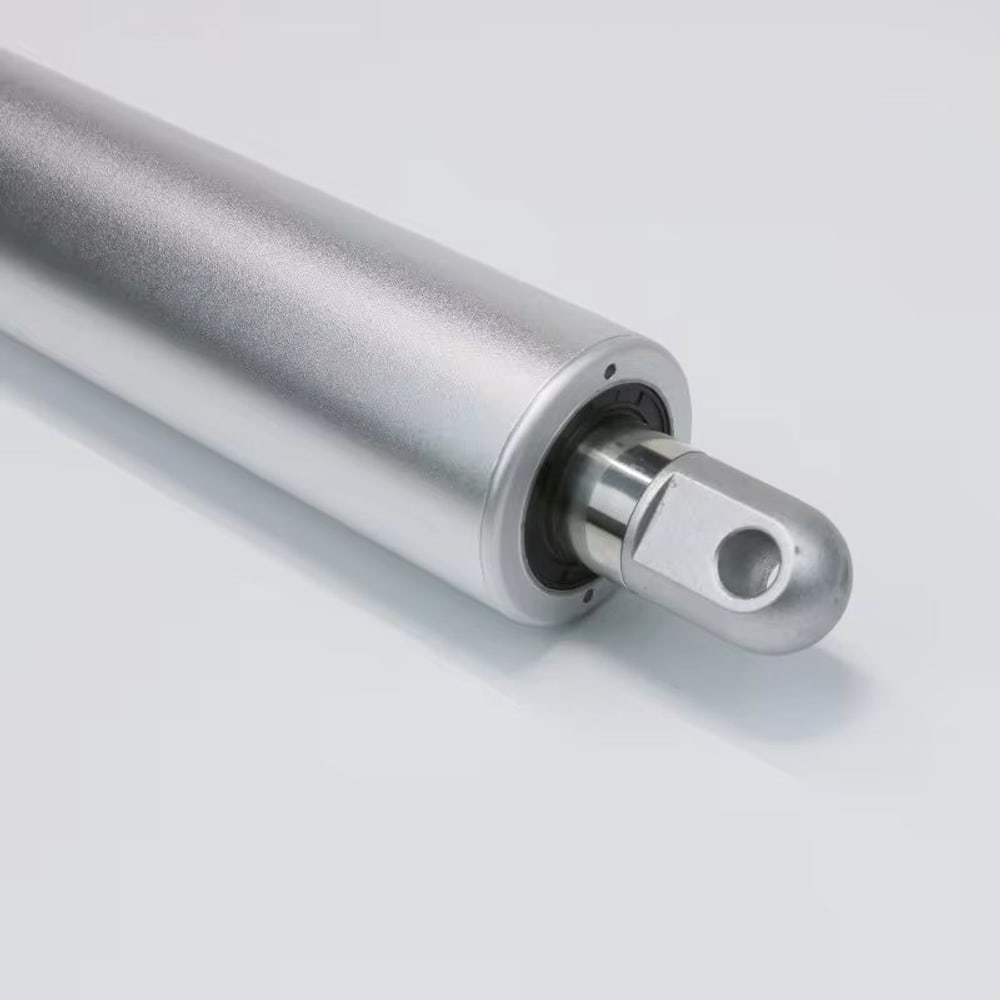

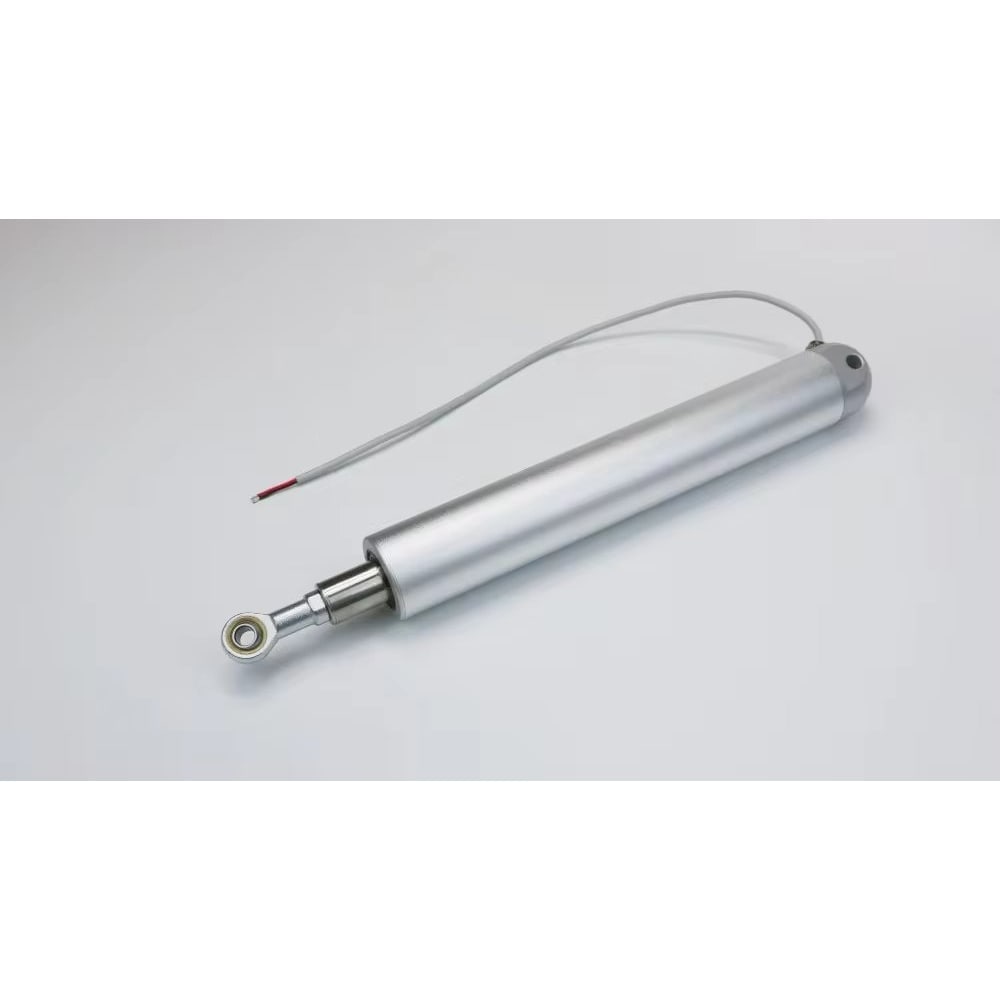

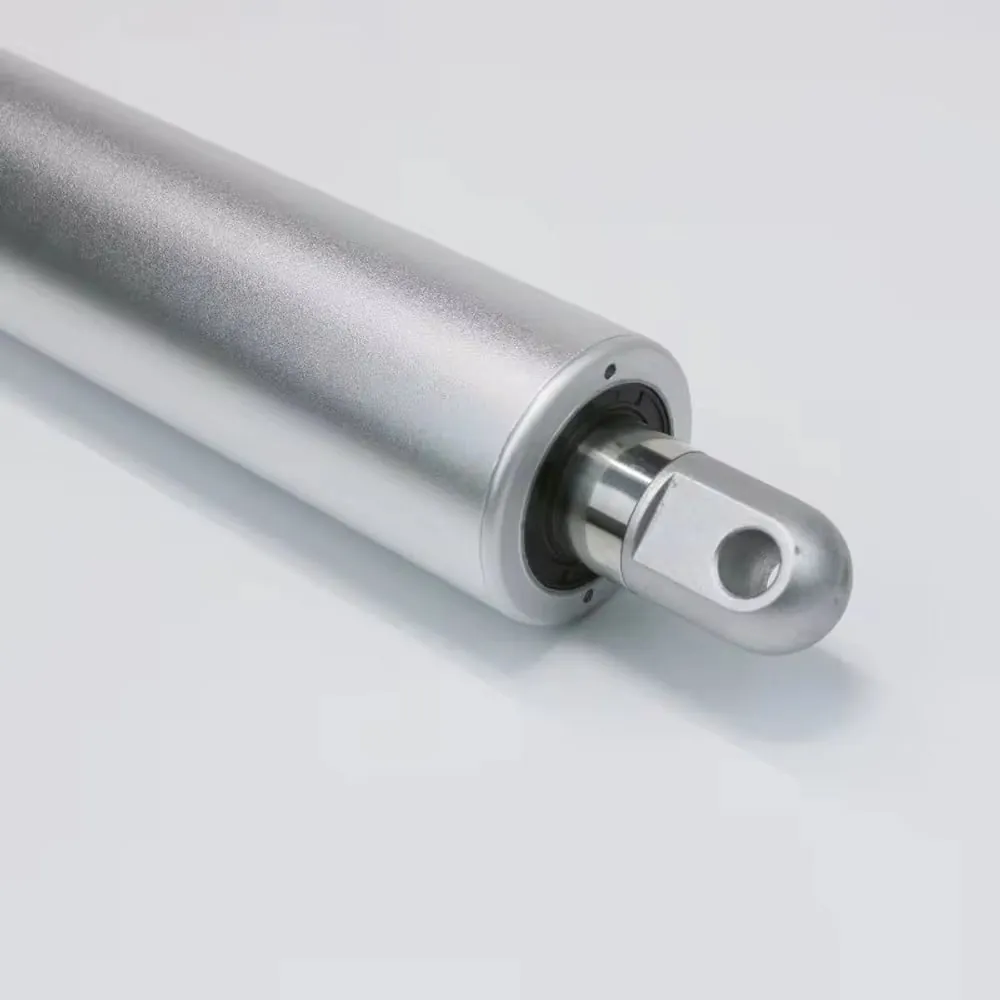

General features of 50mm tubular linear actuator
Motor voltage: 12V DC, 24V DC
Maximum load: 6000N pull / push
The slowest speed at full load: 2.4mm/s (loading 5000N)
Itinerary: 20~1000mm
Minimum size: Stroke + 320 mm

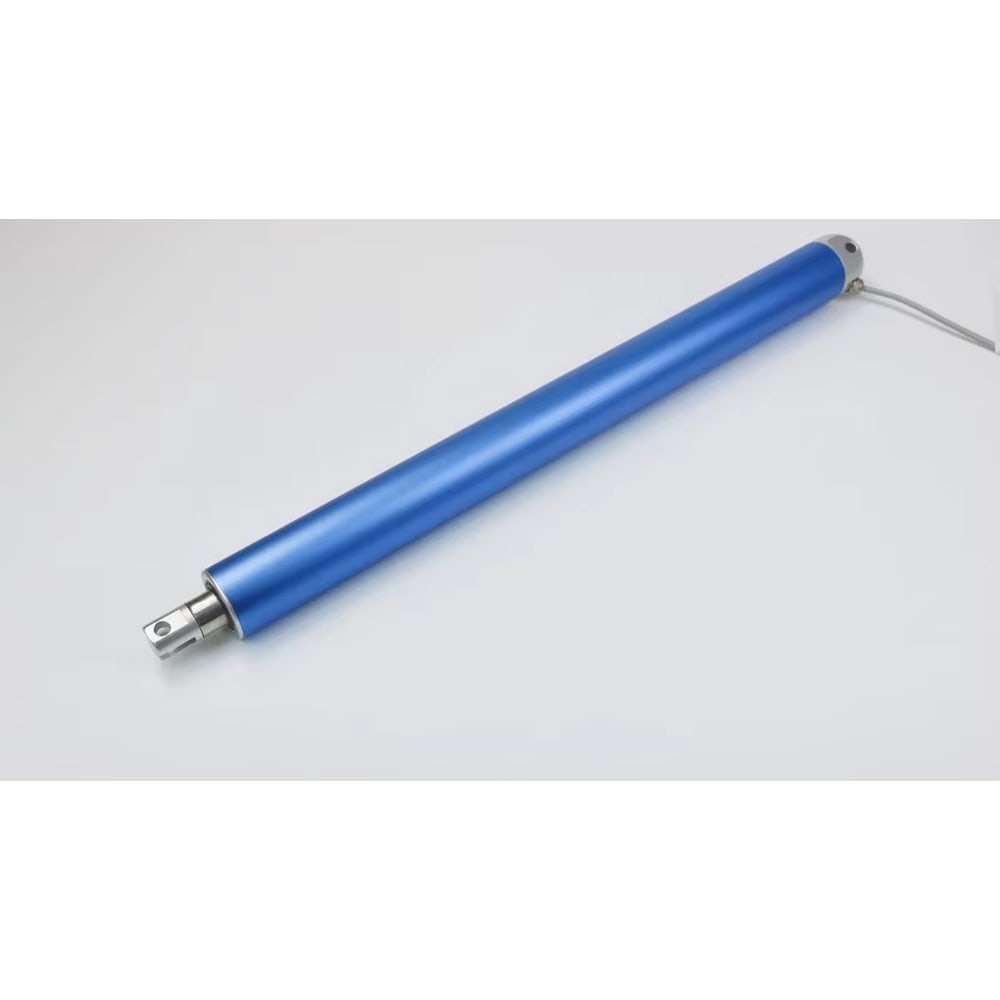

Color: silver gray or black
IP rating: IP66
Operating temperature range: -25 ° C ~ + 65 ° C
Higher duty cycle (20%)
Service life approx. 50,000 cycles
Other options: Hall sensor
Self-locking function
Built-in limit switches
【Application】
50mm In-line tubular linear actuator, with strong force motor, max load 6000Nm. widely used in Recreational Vehicle, Motorhomes, Solar tracking, Heavy window opener, Industry platform lift, etc.
Medical & Health equipment, Automatic switch window, Furniture automation, Clean Energy, woodworking machinery, logistic equipment, agriculture machines and so on.
|
Diameter |
50mm |
50mm |
50mm |
|
Rated Force |
1500N |
3000N |
5000N
|
|
Speed No-load |
7.69mm/s
|
4.2mm/s
|
2.4mm/s
|
|
Input Voltage |
12V/24V |
12/24v
|
12/24v |
|
No-load Current |
1.0/0.6A |
1.0/0.6A |
1.0/0.6A |
|
Rated Current
|
3.0/2.0A
|
3.5/2.5A |
3.5/2.5A |
|
Stroke |
30-1000mm |
30-1000mm |
30-1000mm |
|
Feedback |
Option |
Option |
Option |
|
Duty Cycle |
10%
|
10% |
10% |
|
IP Rating |
IP66 |
IP66 |
IP66 |
|
Operational Temperature |
-20°C/65°C |
-20°C/65°C |
-20°C/65°C |
|
Operating Noise |
51dB
|
51dB |
51dB |
|
Limit Switch |
Built-in, non-adjustable |
Built-in, non-adjustable |
Built-in, non-adjustable |
|
Housing Material |
Aluminum alloy
|
Aluminum alloy |
Aluminum alloy |
|
Stroke Rod Material |
Stainless steel
|
Stainless steel |
Stainless stee |
