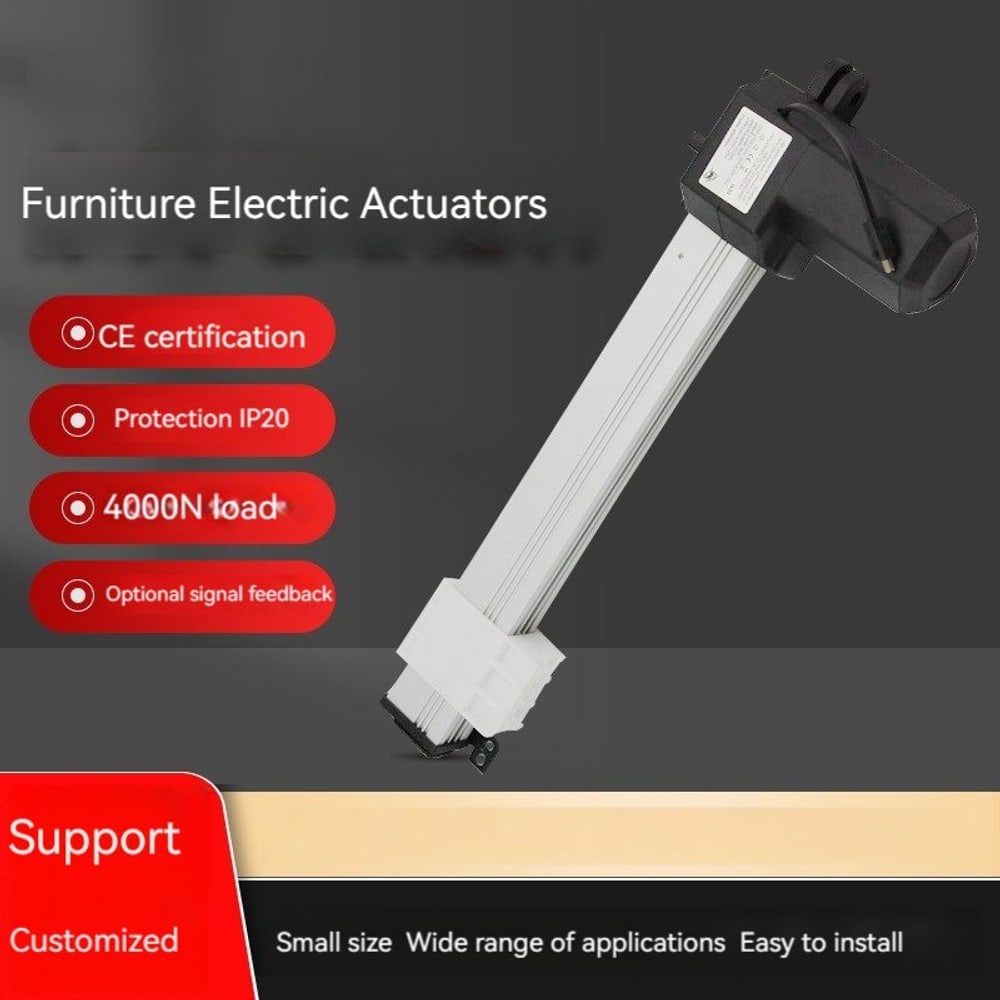

Electric Linear Actuator SLA-PT02 for Recliner Sofas and Chairs
Overview
The Electric Linear Actuator SLA-PT02 is specifically designed for recliner sofas and chairs, offering smooth and reliable performance for raising or lowering the backrest. This actuator operates by adjusting the white slider, ensuring a comfortable and customizable seating experience.
Key Features
- High Thrust Capacity: Capable of up to 4000N thrust, providing powerful and stable movement.
- Voltage Options: Operates with 12V or 24V DC input voltage for versatile application.
- Compact Design: Minimum installation dimension of S + 155mm, making it ideal for space-constrained environments.
- Standard Protection: IP43 protection class ensures durability and safe operation.
- Durable Construction: High-strength plastic housing protects the motor and gears, with black plastic parts and an anodized aluminum profile for added strength.
- Low Noise Level: Operates at a noise level of 48 dB when not loaded, ensuring a quiet and comfortable user experience.
- Elegant Appearance: Combines black plastic components with a natural anodized aluminum profile for a sleek and modern look.
- Duty Cycle: Maximum duty cycle of 10%, allowing for 2 minutes of continuous use followed by 18 minutes of rest.
Specifications
- Thrust: Up to 4000N
- Voltage: 12V / 24V DC
- Installation Dimension: S + 155mm
- Protection Class: IP43
- Housing Material: High-strength plastic
- Color: Black plastic parts and natural anodized aluminum profile
- Noise Level: 48 dB (actuator not loaded)
- Duty Cycle: Max 10% (2 minutes continuous use followed by 18 minutes rest)
Applications
The SLA-PT02 Electric Linear Actuator is perfect for:
- Recliner Sofas: Smoothly adjusting the backrest position for optimal comfort.
- Recliner Chairs: Providing precise and quiet backrest adjustments.
- Home Furniture: Enhancing the functionality and comfort of various seating solutions.
Benefits
- Powerful Performance: High thrust capacity ensures reliable operation even under heavy loads.
- Versatile Voltage: Compatible with both 12V and 24V DC inputs for flexible use.
- Space-Saving Design: Compact installation dimensions make it suitable for various furniture designs.
- Durability: Built with high-quality materials to withstand regular use and ensure a long lifespan.
- Quiet Operation: Low noise level enhances the user experience, especially in quiet environments.
- Stylish Look: Modern and elegant design fits seamlessly with contemporary furniture aesthetics.
Contact Us
For more information about the Electric Linear Actuator SLA-PT02 and how it can enhance your recliner sofas and chairs, please contact us.

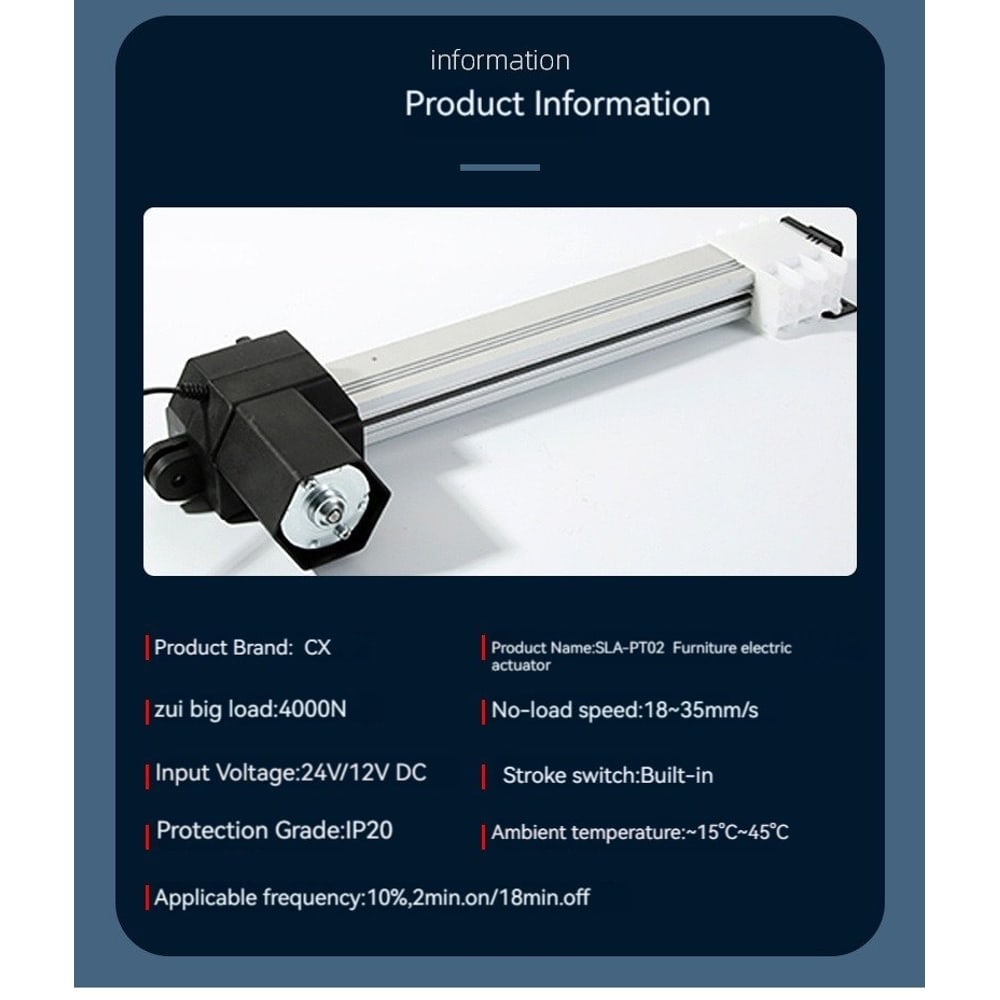

| Name: | Slide Linear Actuator |
| Model: | SLA-PT02 |
| Usage: | Electric Sofa, Recliner Sofa, Electric TV Lift, Electric Cabinet Lift,
other Application use |
| Input Voltage: | 12v or 24v DC |
| Load Capacity: | 750N, 1500N, 4000N |
| Free Load Speed: | 35mm/s, 18mm/s, 8mm/s |
| Standard Stroke: | 50 mm — 1000mm (Optional) |

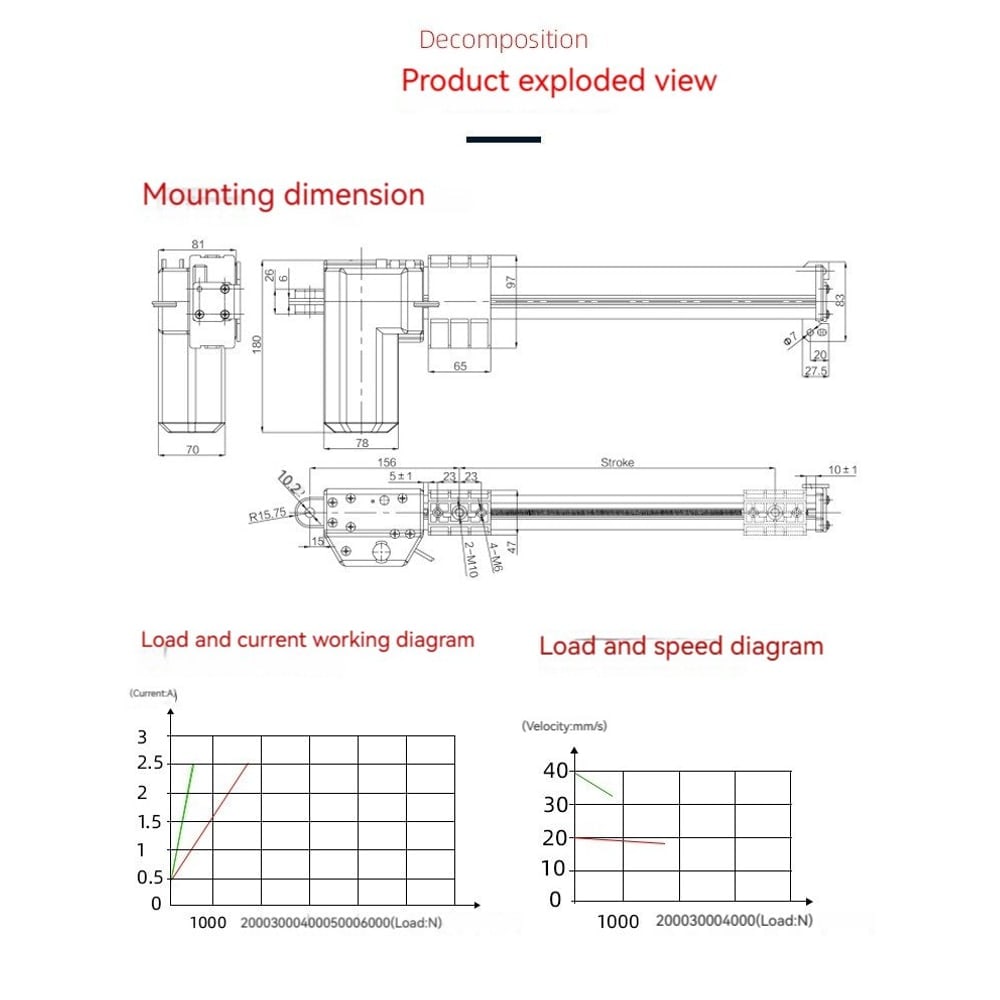

| Installation Dimension: | S + 205mm |
| Type of Duty: | S2 — 10 min (2 minutes work, 18 minutes rest) |
| Limit Switch: | Builtin / Inner (can not be adjust after left factory) |
| Work Temp.: | -26 to 65 centigrade |
| Protection Grade: | IP43 |
| Certificate: | CE / EMC + LVD, RoHS |
