Linear Actuator

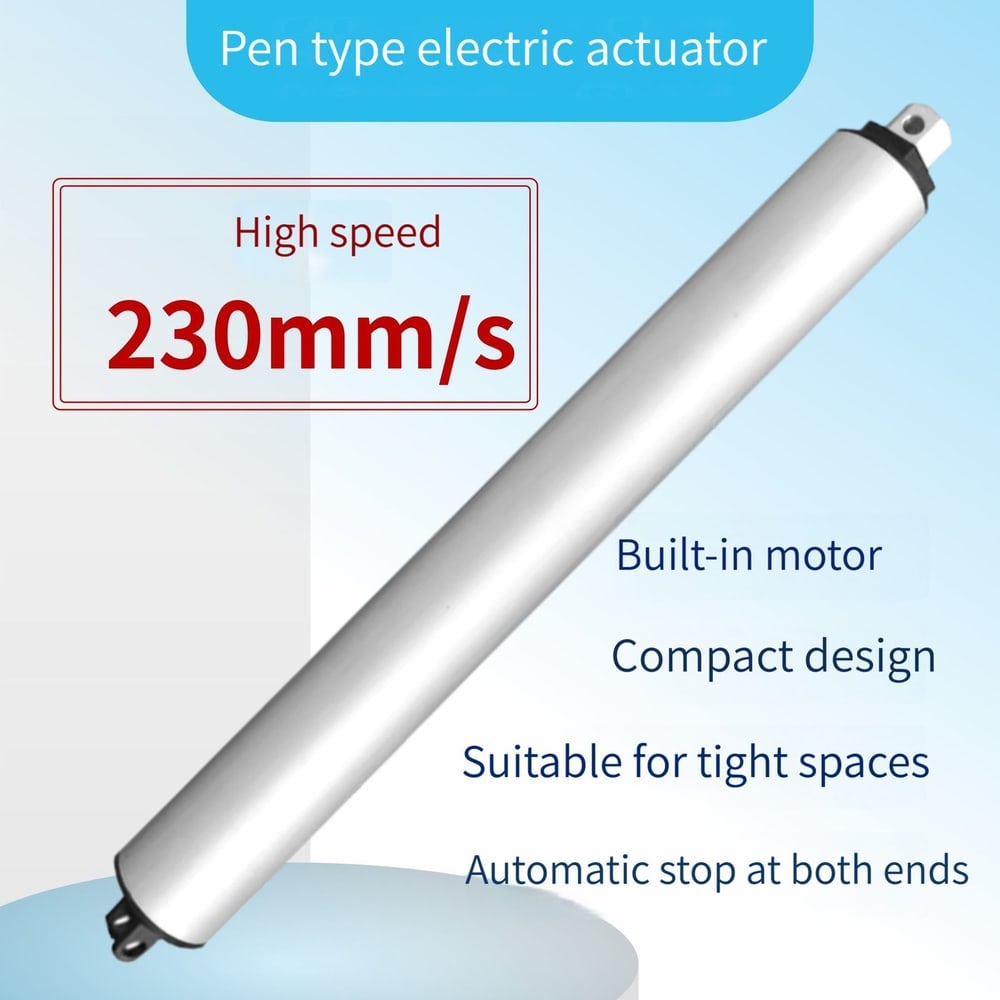

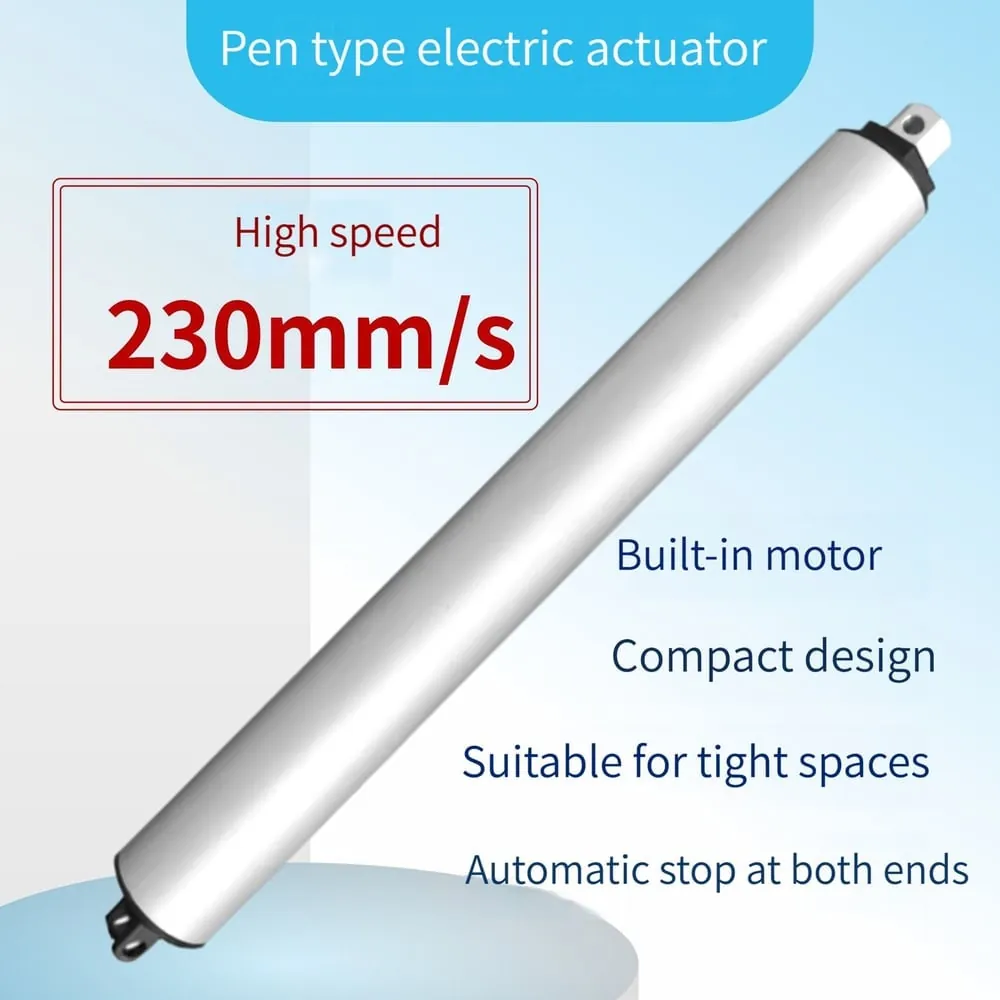

SLA04 Linear Actuator
High-speed 12V/24V DC linear actuator, 45–230 mm/s, up to 200N, built-in limit switches, ACME screw, optional Hall feedback, IP54, stroke 50–800 mm.
Key specifications
- Maximum load
- 200 N
- Stroke
- 50 – 800 mm (customizable)
- Speed
- 45 mm/s – 230 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP54
- Duty cycle
- 20%, max 2 min continuous
Product overview
High-speed 12V/24V DC linear actuator, 45–230 mm/s, up to 200N, built-in limit switches, ACME screw, optional Hall feedback, IP54, stroke 50–800 mm.
- Maximum load
- 200 N
- Stroke
- 50 – 800 mm (customizable)
- Speed
- 45 mm/s – 230 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP54
- Feedback
- Optional Hall sensor
Applications
- strong thrust : provides up to 200n / 20 kgs / 40 lbs of force.

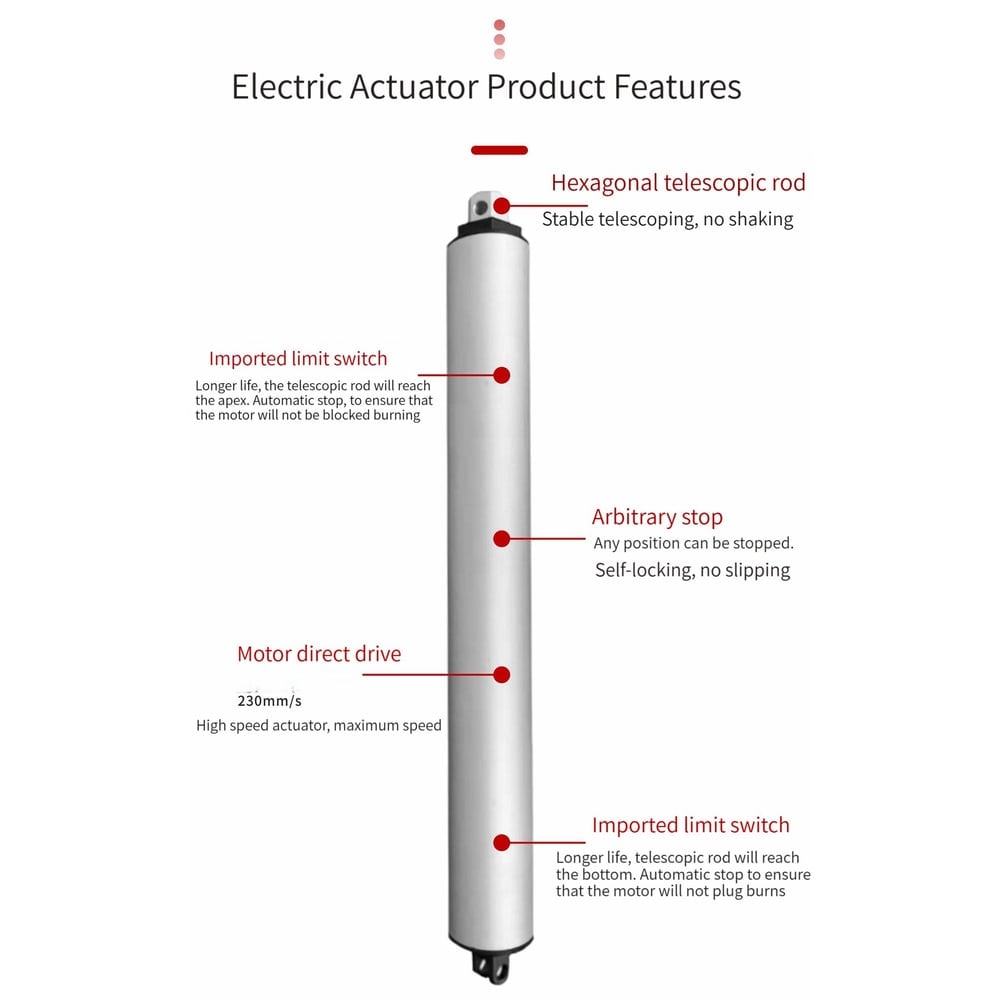

Benefits
- Four speed options: 45, 80, 140 and 230 mm/s
- Up to 200N thrust at 45 mm/s
- 12V or 24V DC; 24V recommended
- Built-in limit switches and self-locking
- ACME lead screw; optional Hall sensor
- Aluminum alloy housing and rod
- Low noise, about 46 – 52 dB
- Stroke 50 – 800 mm, customizable

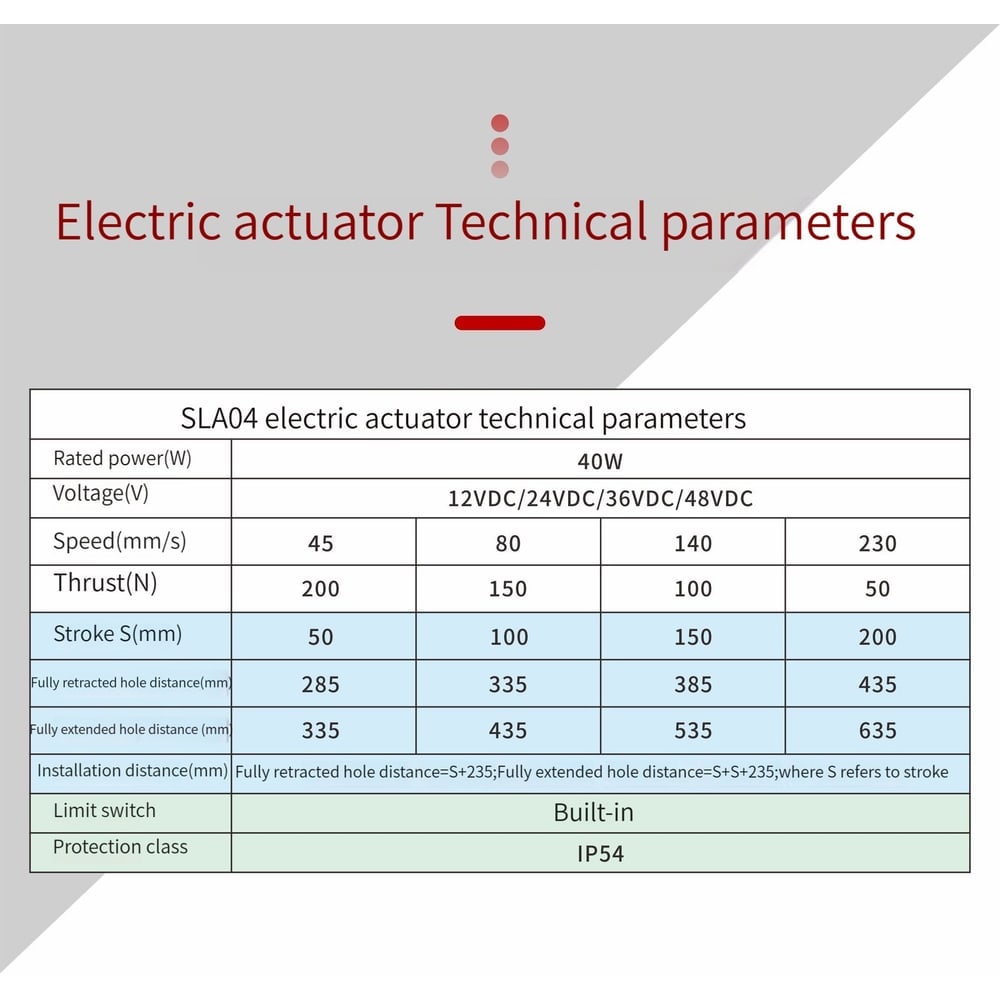

Technical specifications
| Maximum load | 200 N |
|---|---|
| Stroke | 50 – 800 mm (customizable) |
| Speed | 45 mm/s – 230 mm/s |
| Speed options | 45, 80, 140, 230 mm/s |
| Voltage | DC 12 V or DC 24 V |
| IP rating | IP54 |
| Duty cycle | 20%, max 2 min continuous |
| Feedback | Optional Hall sensor |
| Limit switch | Yes |
| Current | About 1.5 A no load; 3 – 6 A max load |
Show 5 more specifications Show fewer specifications
| Motor type | Brushed DC |
|---|---|
| Housing material | Aluminum alloy |
| Rod material | Aluminum alloy |
| Operating temperature | -26°C to +85°C |
| Certifications | CE |
Installation, electrical and use information

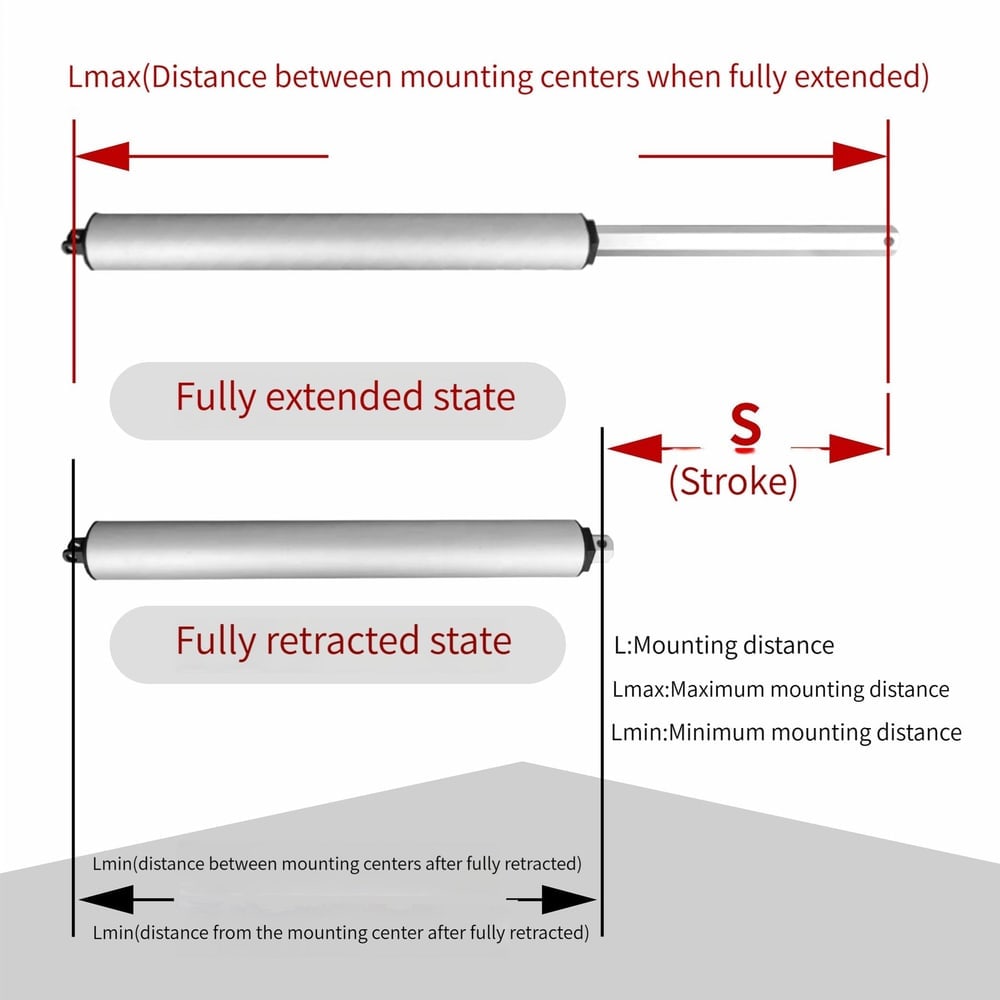

Dimensions
Dimensions
- Outer tube: 55 mm
- Rod: Φ28 mm
- Mounting holes: Φ8 mm
- Mounting brackets not included; each actuator needs two
Request technical documents
FAQ
What is the SLA04?
The SLA04 is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA04?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA04?
Key ratings from the product specifications include voltage 12V / 24V DC (24V recommended), load 200 N, stroke 50 – 800 mm (customizable), protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA04?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
