Linear Actuator

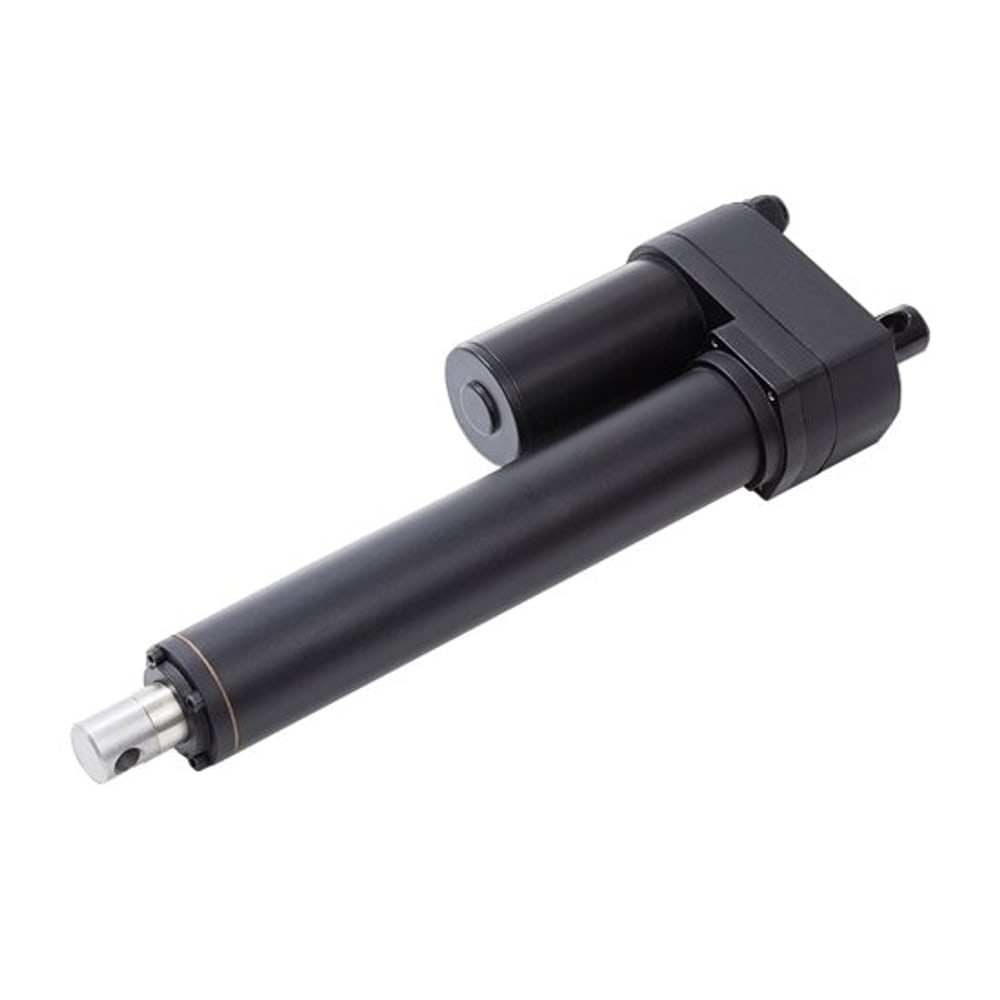

SLA08B Linear Actuator
IP65 heavy-duty linear actuator, 12–48V DC, up to 7000N push, 4–28.5 mm/s full-load speed, limit switches plus clutch, optional Hall or potentiometer feedback.
Key specifications
- Maximum load
- 7000 N
- Stroke
- 50 – 600 mm (customizable)
- Speed
- 5.5 mm/s – 35 mm/s
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP rating
- IP65
- Duty cycle
- 25% (4 min continuous)
Product overview
IP65 heavy-duty linear actuator, 12–48V DC, up to 7000N push, 4–28.5 mm/s full-load speed, limit switches plus clutch, optional Hall or potentiometer feedback.
- Maximum load
- 7000 N
- Stroke
- 50 – 600 mm (customizable)
- Speed
- 5.5 mm/s – 35 mm/s
- Voltage
- DC 12 V, 24 V, 36 V or 48 V
- IP rating
- IP65
- Feedback
- Optional Hall sensor or potentiometer
Applications
- Construction
- Wheelchair
Benefits
- Up to 7000N push force; self-locking up to 10000N
- 12V, 24V, 36V or 48V DC
- IP65 sealed housing, -40°C to +65°C
- Built-in limit switches plus clutch protection
- Optional Hall sensor or potentiometer feedback
- Metal gears for long service life
- Stroke 50 – 600 mm standard, customizable
- 25% duty cycle (4 min continuous)
Technical specifications
| Maximum load | 7000 N |
|---|---|
| Stroke | 50 – 600 mm (customizable) |
| Stroke options | 50 – 600 mm (customizable) |
| Speed | 5.5 mm/s – 35 mm/s |
| Speed options | 5.5, 8.5, 11, 17, 22, 35 mm/s (no load) |
| Voltage | DC 12 V, 24 V, 36 V or 48 V |
| IP rating | IP65 |
| Duty cycle | 25% (4 min continuous) |
| Feedback | Optional Hall sensor or potentiometer |
| Limit switch | Yes, plus clutch protection |
Show 3 more specifications Show fewer specifications
| Operating temperature | -40°C to +65°C |
|---|---|
| Cable length | 500 mm (customizable) |
| Certifications | CE |
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 5.5 mm/s | 4.0 mm/s | 7000 N | 10000 N |
| 8.5 mm/s | 7.0 mm/s | 7000 N | 10000 N |
| 11.0 mm/s | 9.5 mm/s | 5000 N | 8000 N |
| 17.0 mm/s | 14.0 mm/s | 4000 N | 7000 N |
| 22.0 mm/s | 18.0 mm/s | 3000 N | 5000 N |
| 35.0 mm/s | 28.5 mm/s | 2000 N | 4000 N |
Request technical documents
FAQ
What is the SLA08B?
The SLA08B is an Elerover linear actuator rated IP65.
Does Elerover manufacture the SLA08B?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA08B?
Key ratings from the product specifications include voltage 12V / 24V / 36V / 48V DC, load 7000 N, stroke 50 – 600 mm (customizable), protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA08B?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
