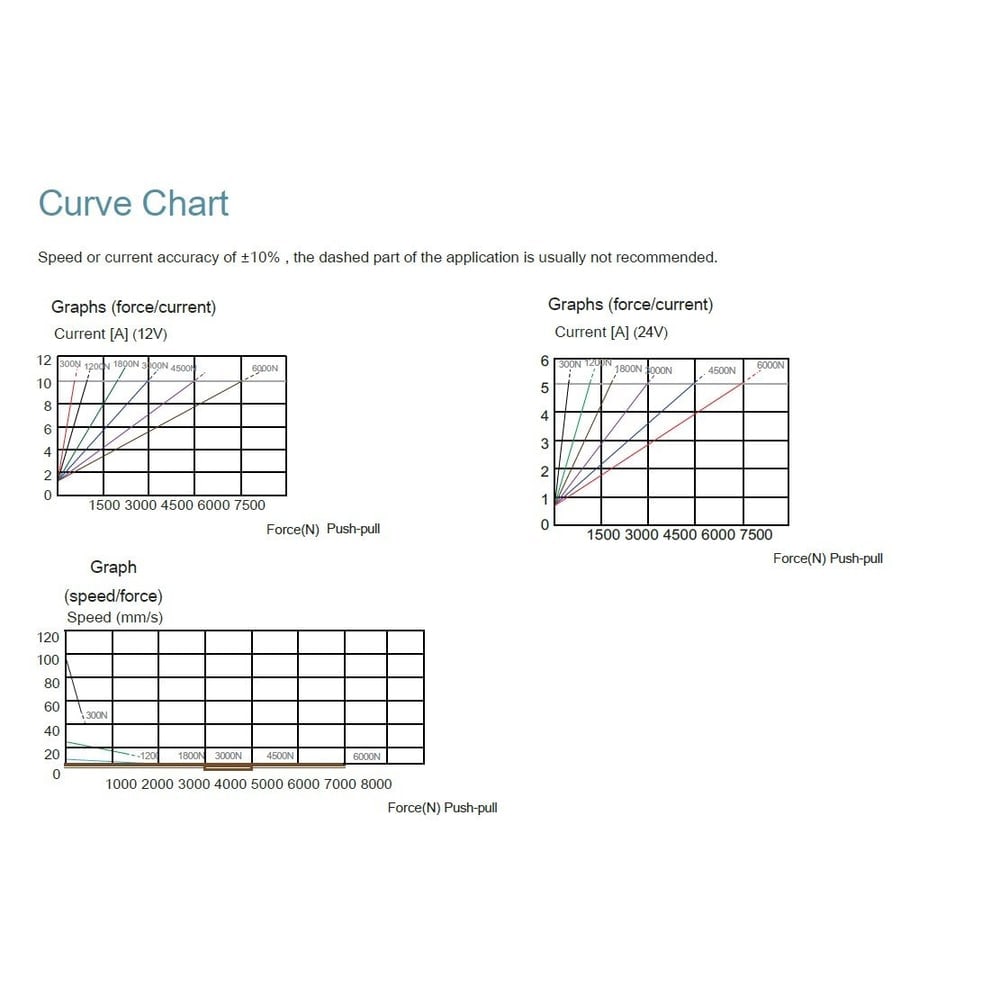

| Load(N) | 300 | 1200 | 1800 | 3000 | 4500 | 5000 | 6000 |
| Self-locking Force(N) | 600 | 2400 | 3600 | 6000 | 8000 | 7500 | 8000 |
| No-load Speed(mm/s) | 88 | 24 | 16 | 9.6 | 6.4 | 4.8 | 4.8 |
| Load Speed(mm/s) | 55 | 15 | 10 | 6 | 4.5 | 3.3 | 3 |
| Stroke(mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
| Weight(kg) | 1.8 | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | 2.5 |
- Push only function is optional.
- Output limit switches wires is optional.
- The max load of SLA-T52 12V is 5000N.
- Customized stroke lengths are available.
- The min stroke:20mm ,the max stroke:500mm.
- The stroke’s precision is ±2 mm.

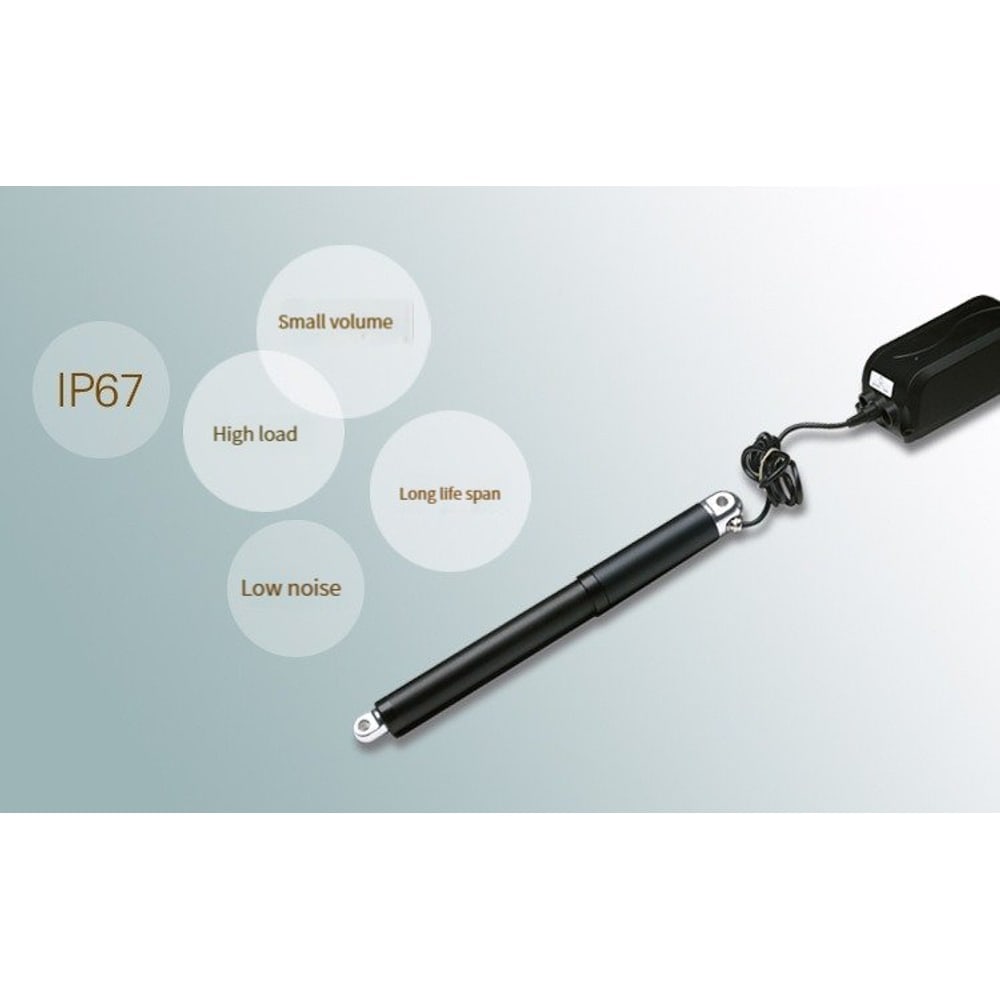

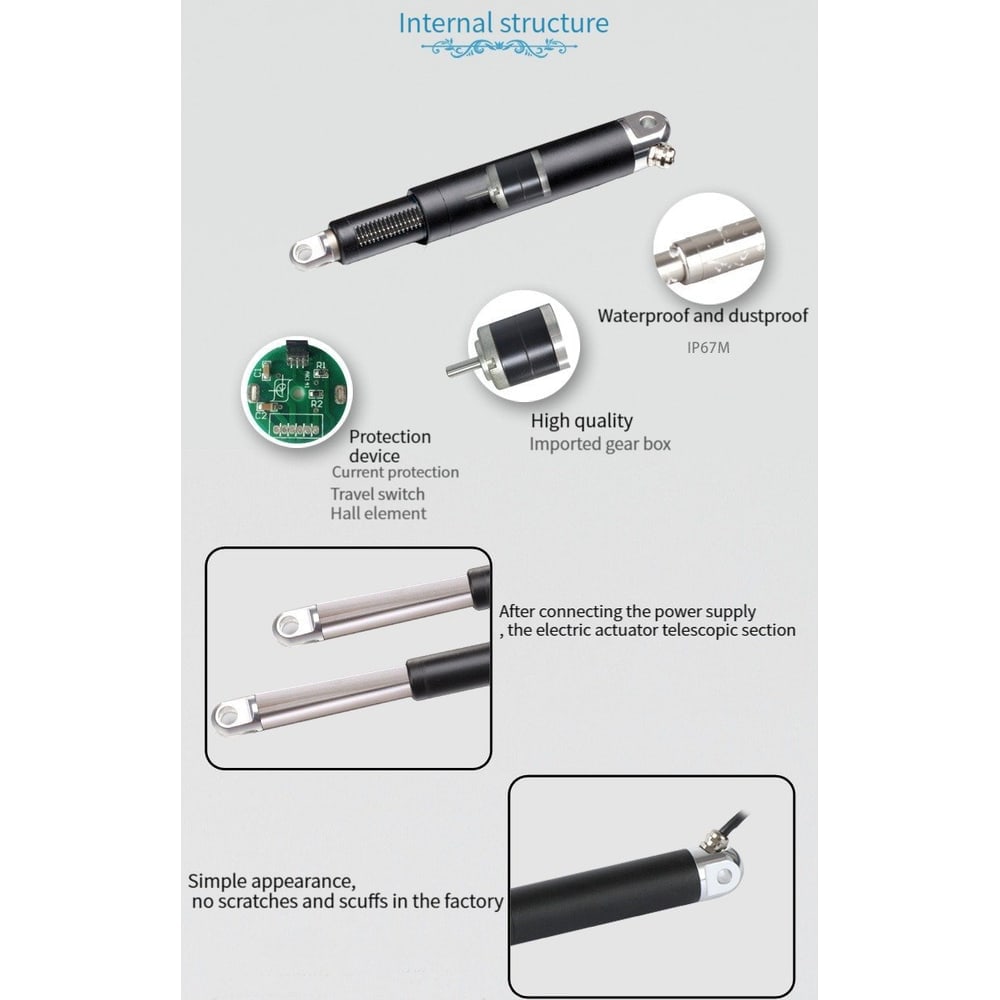

The SLA-T52 is a high-performance linear actuator boasting an exceptional IP67M protection rating, making it one of the most robust in its class. This rating signifies its ability to operate even when fully submerged in water for short periods, ensuring reliable performance in demanding environments.
Resistant to dust, water, and other harsh conditions, the SLA-T52 is a versatile solution for various industries, including agriculture, industrial applications, and especially marine environments. Its exceptional durability and waterproof design make it ideal for demanding tasks where reliability is paramount.
|
Diameter |
52mm |
52mm |
|
Rated Force |
6000N |
3000N |
|
Speed No-load |
5mm/s
|
10mm/s
|
|
Input Voltage |
12V/24V |
12V/24V
|
|
No-load Current |
2.5A/1.5A |
2.5A/1.5A |
|
Rated Current
|
13.0A/9.0A
|
13.0A/9.0A |
|
Stroke |
50-1000mm |
50-1000mm |
|
Hall Sensor |
Option |
Option |
|
Duty Cycle |
10%
|
10% |
|
IP Rating |
IP67 |
IP67 |
|
Operational Temperature |
-25°C/65°C |
-25°C/65°C |
|
Operating Noise |
＜60dB
|
＜60dB |
|
Limit Switch |
Built-in, non-adjustable |
Built-in, non-adjustable |
|
Housing Material |
Aluminum alloy
|
Aluminum alloy |
|
Stroke Rod Material |
Stainless steel
|
Stainless steel |
