Linear Actuator

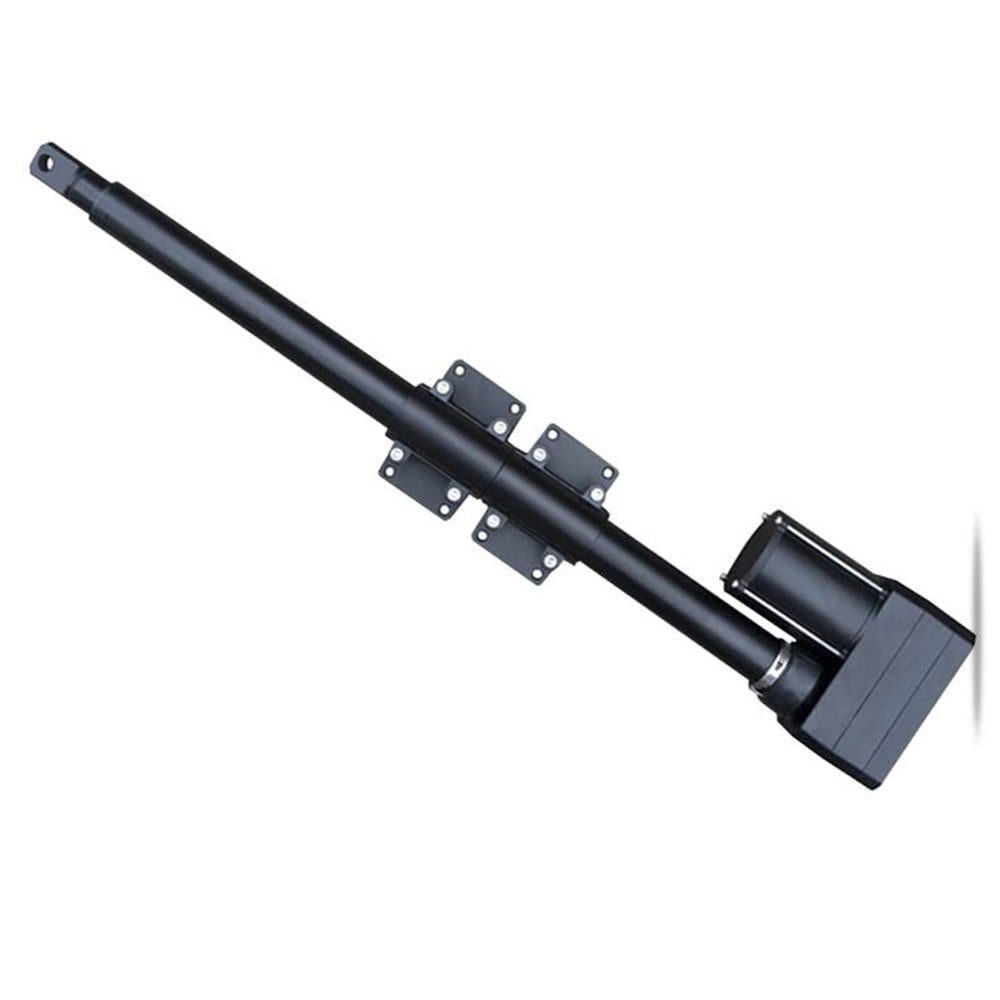

SLA024 Linear Actuator
5000N farm ventilation linear actuator, 24–48V DC or 120/230V AC, 4–4.5 mm/s, 1K potentiometer feedback, IP65, -40 to 65°C, stroke up to 1200 mm.
Key specifications
- Maximum load
- 5000 N
- Speed
- 4 mm/s – 4.5 mm/s
- Voltage
- DC 24 V, 36 V, 48 V; AC 120 V, 230 V
- IP rating
- IP65
- Duty cycle
- 10%
- Feedback
- 1K potentiometer
Product overview
5000N farm ventilation linear actuator, 24–48V DC or 120/230V AC, 4–4.5 mm/s, 1K potentiometer feedback, IP65, -40 to 65°C, stroke up to 1200 mm.
- Maximum load
- 5000 N
- Speed
- 4 mm/s – 4.5 mm/s
- Voltage
- DC 24 V, 36 V, 48 V; AC 120 V, 230 V
- IP rating
- IP65
- Feedback
- 1K potentiometer
- Duty cycle
- 10%
Applications
- Farm ventilation
- Livestock breeding
- Poultry houses
Benefits
- 5000N maximum load
- DC 24V, 36V, 48V or AC 120V, 230V versions
- 4.5 mm/s no load, 4 mm/s full load
- 1K potentiometer position feedback
- IP65, -40°C to +65°C
- Noise below 60 dB
- Stroke 50 – 450 mm standard; up to 1200 mm custom
- Bracket mounting with adjustable installation size
Technical specifications
| Maximum load | 5000 N |
|---|---|
| Speed | 4 mm/s – 4.5 mm/s |
| Speed options | 4.5 mm/s no load; 4 mm/s full load |
| Voltage | DC 24 V, 36 V, 48 V; AC 120 V, 230 V |
| IP rating | IP65 |
| Duty cycle | 10% |
| Feedback | 1K potentiometer |
| Mounting type | Bracket mounting, adjustable installation size |
| Operating temperature | -40°C to +65°C |
| Cable length | 1.2 m |
Request technical documents
FAQ
What is the SLA024?
The SLA024 is an Elerover linear actuator rated IP65.
Does Elerover manufacture the SLA024?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA024?
Key ratings from the product specifications include voltage 24V / 36V / 48V DC; 120V / 230V AC (optional), load 5000 N, stroke 50 – 450 mm standard; 50 – 1200 mm custom, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA024?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
