Linear Actuator

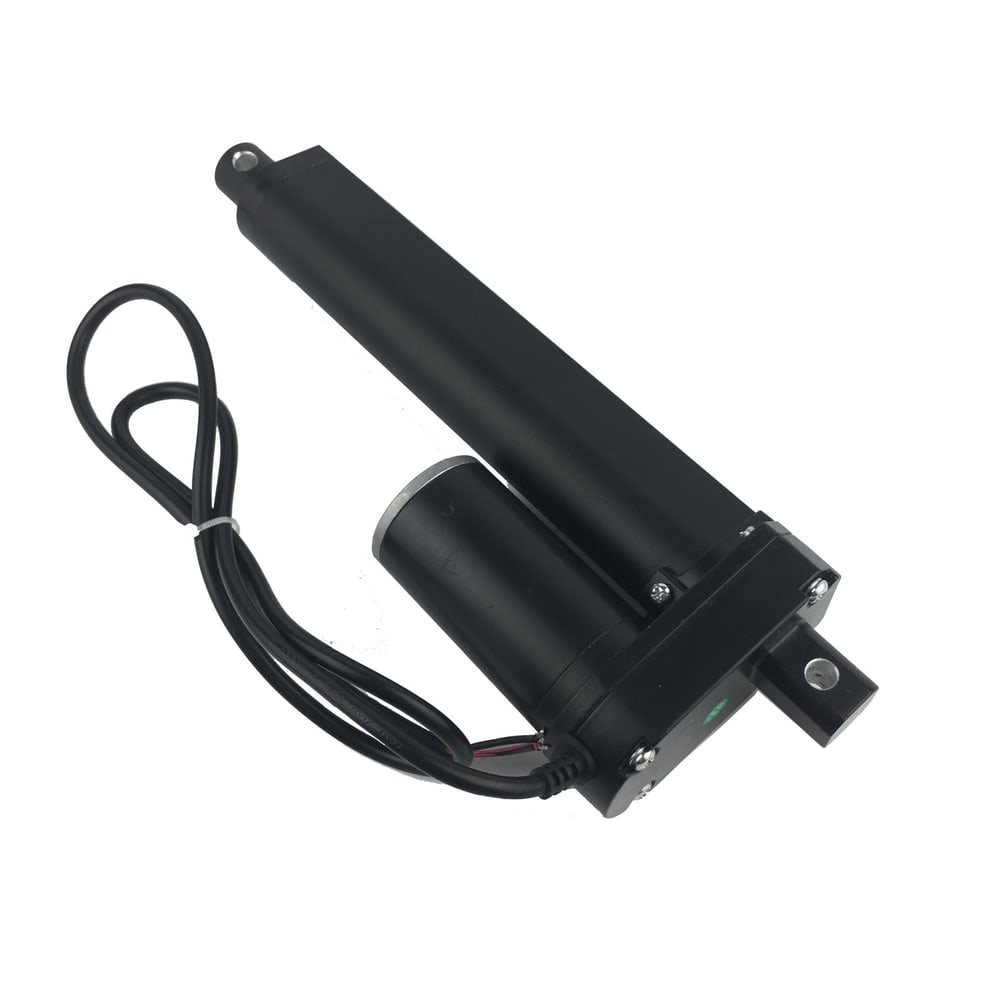

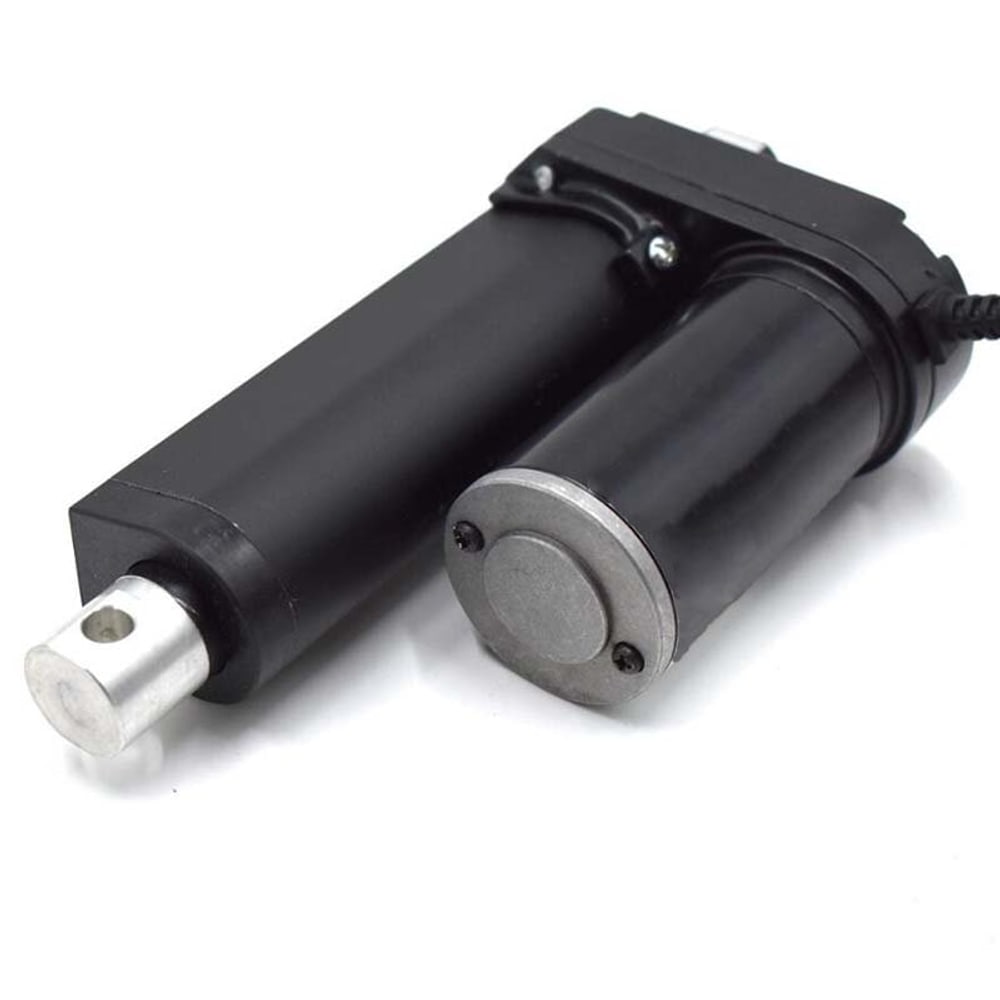

SLA06 Linear Actuator
Low-noise 12V/24V DC linear actuator with up to 3500N thrust, 3–30 mm/s speed options, built-in limit switches, IP54.
Key specifications
- Maximum load
- 3500 N
- Stroke
- 50 – 1000 mm; retracted length S + 120 mm
- Speed
- 3 mm/s – 30 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP54
- Duty cycle
- 10% (2 min on / 18 min off)
Product overview
Low-noise 12V/24V DC linear actuator with up to 3500N thrust, 3–30 mm/s speed options, built-in limit switches, IP54. Retracted length stroke + 120 mm.
- Maximum load
- 3500 N
- Stroke
- 50 – 1000 mm; retracted length S + 120 mm
- Speed
- 3 mm/s – 30 mm/s
- Voltage
- DC 12 V or DC 24 V
- IP rating
- IP54
- Duty cycle
- 10% (2 min on / 18 min off)
Applications
- TV lifts
- Massage tables
- Electric beds
- Medical chairs
Benefits
- Up to 3500N thrust at 3 mm/s
- 12V or 24V DC; voltage does not change force or speed
- Seven speed and force options from 3 to 30 mm/s
- Built-in limit switches at both ends of travel
- Low-noise operation below 42 dB
- Compact retracted length: stroke + 120 mm
- Stroke 50 – 1000 mm
- IP54 protection; black housing
Technical specifications
| Maximum load | 3500 N |
|---|---|
| Stroke | 50 – 1000 mm; retracted length S + 120 mm |
| Speed | 3 mm/s – 30 mm/s |
| Speed options | 3, 5, 10, 15, 20, 25, 30 mm/s |
| Voltage | DC 12 V or DC 24 V |
| IP rating | IP54 |
| Duty cycle | 10% (2 min on / 18 min off) |
| Retracted length | S + 120 mm |
| Limit switch | Yes, both ends |
| Operating temperature | -26°C to +65°C |
Performance matrix
| Speed | Thrust |
|---|---|
| 3 mm/s | 3500 N |
| 5 mm/s | 3000 N |
| 10 mm/s | 2500 N |
| 15 mm/s | 1500 N |
| 20 mm/s | 1000 N |
| 25 mm/s | 700 N |
| 30 mm/s | 500 N |
Request technical documents
FAQ
What is the SLA06?
The SLA06 is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA06?
Yes. Elerover is a linear actuator manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA06?
Key ratings from the product specifications include voltage 12V / 24V DC, load 3500 N, stroke 50 – 1000 mm; retracted length S + 120 mm, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA06?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
