Linear Actuator
SLA022 Linear Actuator

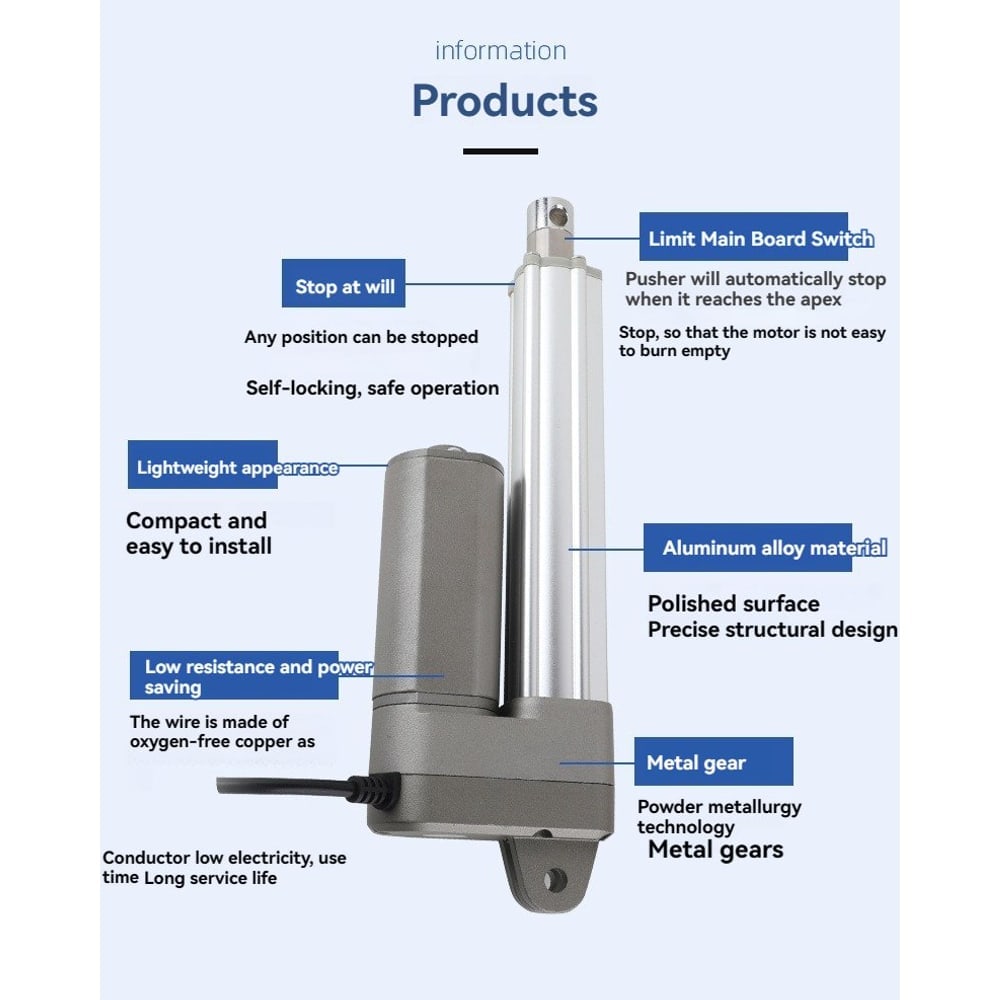

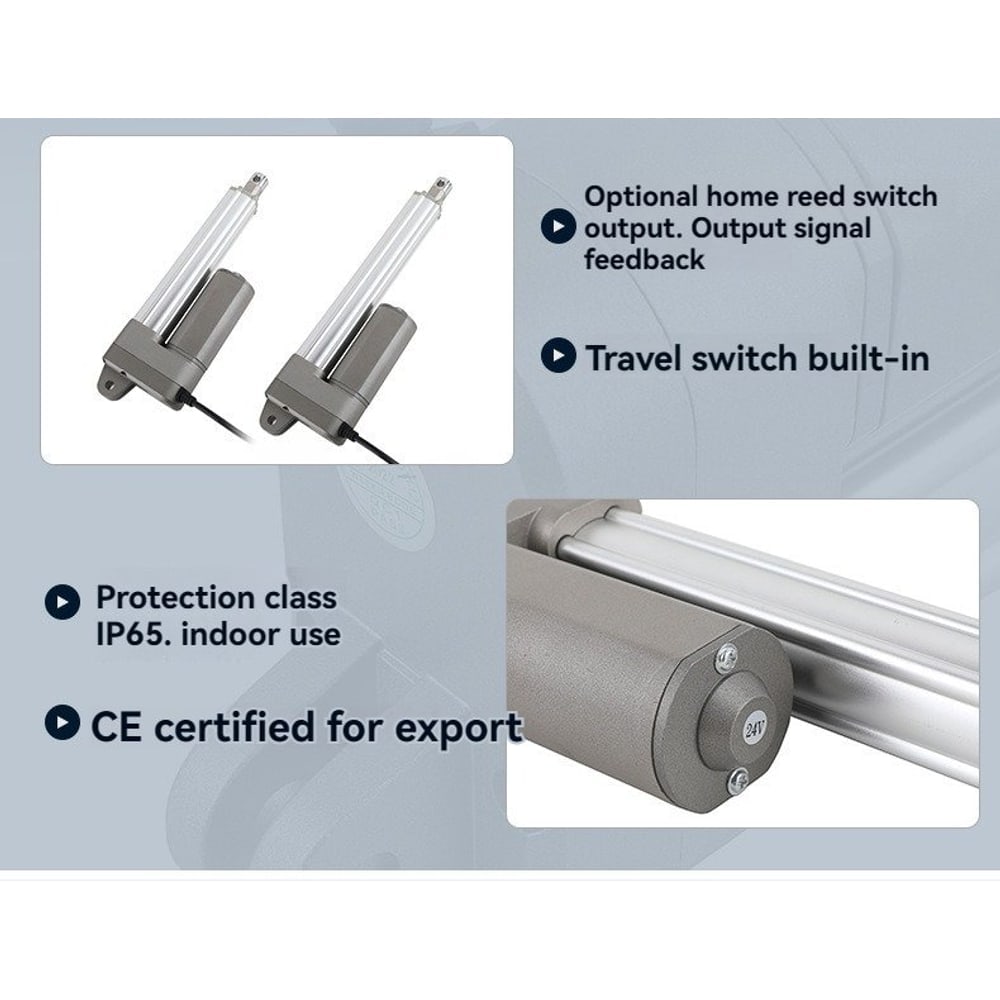

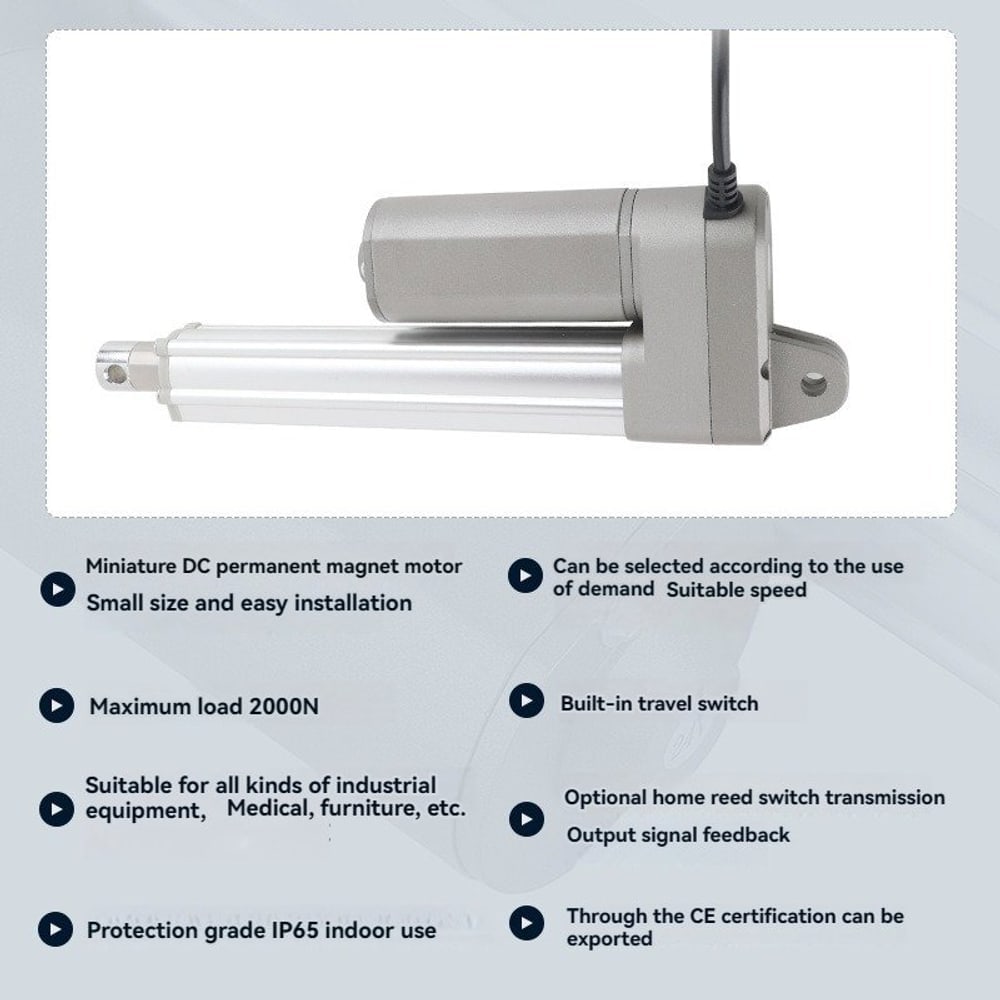

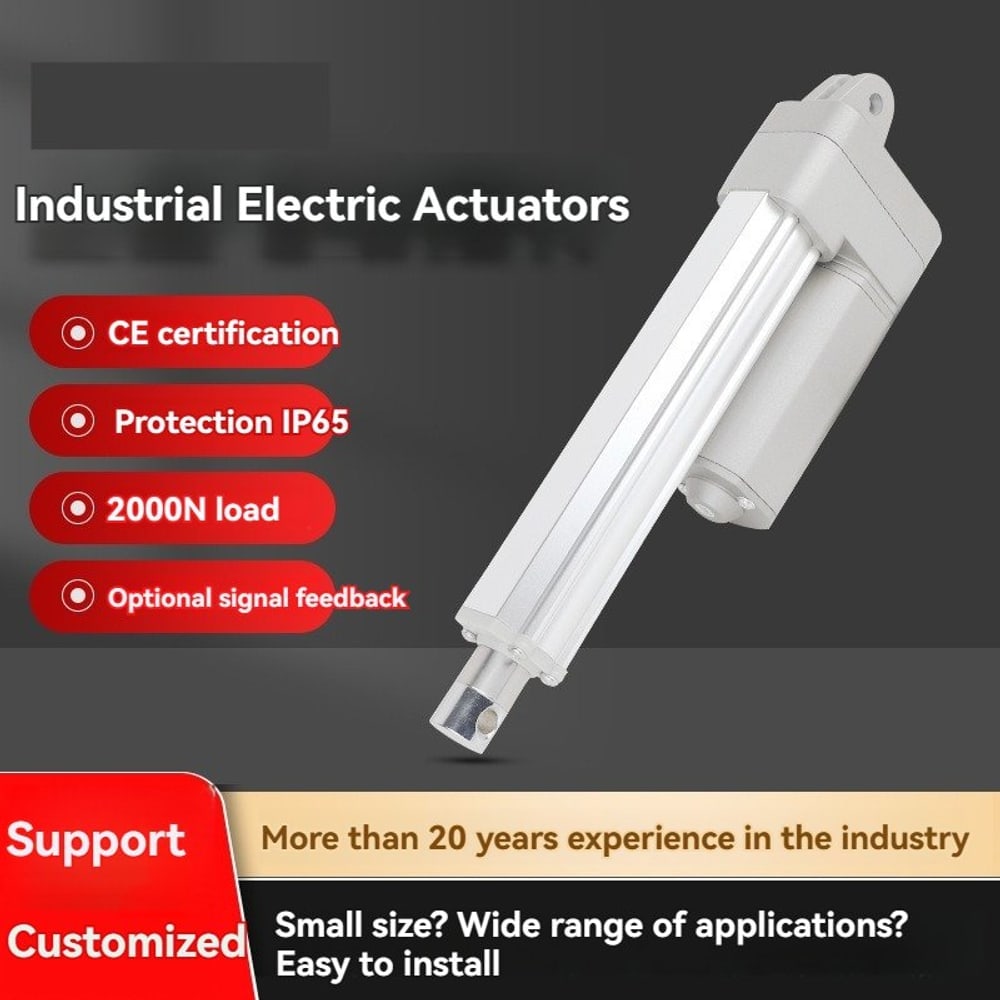

Low-noise 24V DC linear actuator, below 50 dB, 2000N push and pull, 7–20 mm/s, internal limit switch, IP65, stainless steel and aluminum build.
Key specifications
- Maximum load
- 2000 N
- Stroke
- 200 mm standard
- Speed
- 7 mm/s – 20 mm/s
- Voltage
- DC 24 V
- IP rating
- IP65
- Duty cycle
- 10% (2 min on / 18 min off)
Product overview
Low-noise 24V DC linear actuator, below 50 dB, 2000N push and pull, 7–20 mm/s, internal limit switch, IP65, stainless steel and aluminum build.
- Maximum load
- 2000 N
- Stroke
- 200 mm standard
- Speed
- 7 mm/s – 20 mm/s
- Voltage
- DC 24 V
- IP rating
- IP65
- Duty cycle
- 10% (2 min on / 18 min off)
Applications
- Construction
- Lifting
Benefits
- Operating noise below 50 dB
- 2000N push and pull
- 24V DC input
- No-load speed 7 – 20 mm/s
- Internal limit switch
- IP65 dustproof and waterproof
- Stainless steel and aluminum alloy construction
Technical specifications
| Maximum load | 2000 N |
|---|---|
| Stroke | 200 mm standard |
| Speed | 7 mm/s – 20 mm/s |
| Speed options | 7 – 20 mm/s (no load) |
| Voltage | DC 24 V |
| IP rating | IP65 |
| Duty cycle | 10% (2 min on / 18 min off) |
| Limit switch | Yes, internal |
| Housing material | Aluminum alloy |
| Rod material | Stainless steel |
| Operating temperature | -15°C to +45°C |
Request technical documents
FAQ
What is the SLA022?
The SLA022 is an Elerover linear actuator rated IP65.
Does Elerover manufacture the SLA022?
Yes. Elerover is a linear actuator manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA022?
Key ratings from the product specifications include voltage 24V DC, load 2000 N, stroke 200 mm standard, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA022?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
