SLA52M Linear Actuator
12V 24V SLA52M 6000N IP66/IP67M/IP69K waterproof tubular linear actuator for skylights, smoke vents and yacht automation from Elerover (datasheet model…
Key specifications
- Maximum load
- 6000 N / 600 kg / 1349 lbs (push / pull)
- Stroke
- Up to 500 mm
- Speed
- 88 mm/s (no load)
- Voltage
- 12 V / 24 V DC
- IP rating
- IP66 / IP67M / IP69K
- Duty cycle
- 10% (S2): 2 min continuous running, then 18 min rest
Product overview
12V 24V SLA52M 6000N IP66/IP67M/IP69K waterproof tubular linear actuator for skylights, smoke vents and yacht automation from Elerover (datasheet model SLA-T52). Up to 6000 N at 12V / 24V DC, stroke up to 500 mm, installation length from 305 mm + stroke, 10% duty cycle and ≥10,000 cycles service life.
- Maximum load
- 6000 N / 600 kg / 1349 lbs (push / pull)
- Stroke
- Up to 500 mm
- Speed
- 88 mm/s (no load)
- Voltage
- 12 V / 24 V DC
- IP rating
- IP66 / IP67M / IP69K
- Feedback
- Over-current protection, Hall sensor feedback, Limit switch signal output
Applications
- Skylight systems
- Smoke vent systems
- Yacht automation
- Agricultural machinery
Benefits
- Ø52 mm in-line tubular waterproof linear actuator
- Max dynamic force up to 6000 N / 600 kg / 1349 lbs, self-locking up to 8000 N
- Voltage: 12V / 24V DC, 120 W max power
- Protection: IP66 / IP67M / IP69K
- Stroke up to 500 mm; installation length from 305 mm + stroke
- 6063 aluminium or 316 stainless steel tube, 316 stainless steel piston rod
- Noise on load ≤75 dB
- Built-in limit switches
Technical specifications
| Maximum load | 6000 N / 600 kg / 1349 lbs (push / pull) |
|---|---|
| Stroke | Up to 500 mm |
| Speed | 88 mm/s (no load) |
| Voltage | 12 V / 24 V DC |
| IP rating | IP66 / IP67M / IP69K |
| Duty cycle | 10% (S2): 2 min continuous running, then 18 min rest |
| Retracted length | 305 mm + stroke (standard, A = 201 mm); 325 mm + stroke with Hall / IP67M / over-current / limit-signal (A = 221 mm) |
| Feedback | Over-current protection, Hall sensor feedback, Limit switch signal output |
| Limit switch | Built-in at both ends |
| Mounting type | Ø12 mm clevis holes at both ends |
Show 8 more specifications Show fewer specifications
| Current | No-load ≤1.6 A (12V) / ≤0.8 A (24V); full load ≤10 A (12V) / ≤5 A (24V) |
|---|---|
| Noise level | ≤75 dB |
| Housing material | 6063 aluminium or 316 stainless steel |
| Rod material | 316 stainless steel |
| Operating temperature | −20 °C to +60 °C |
| Service life | ≥10,000 cycles |
| Cable length | 1.5 m (custom length available) |
| Certifications | CE, RoHS |

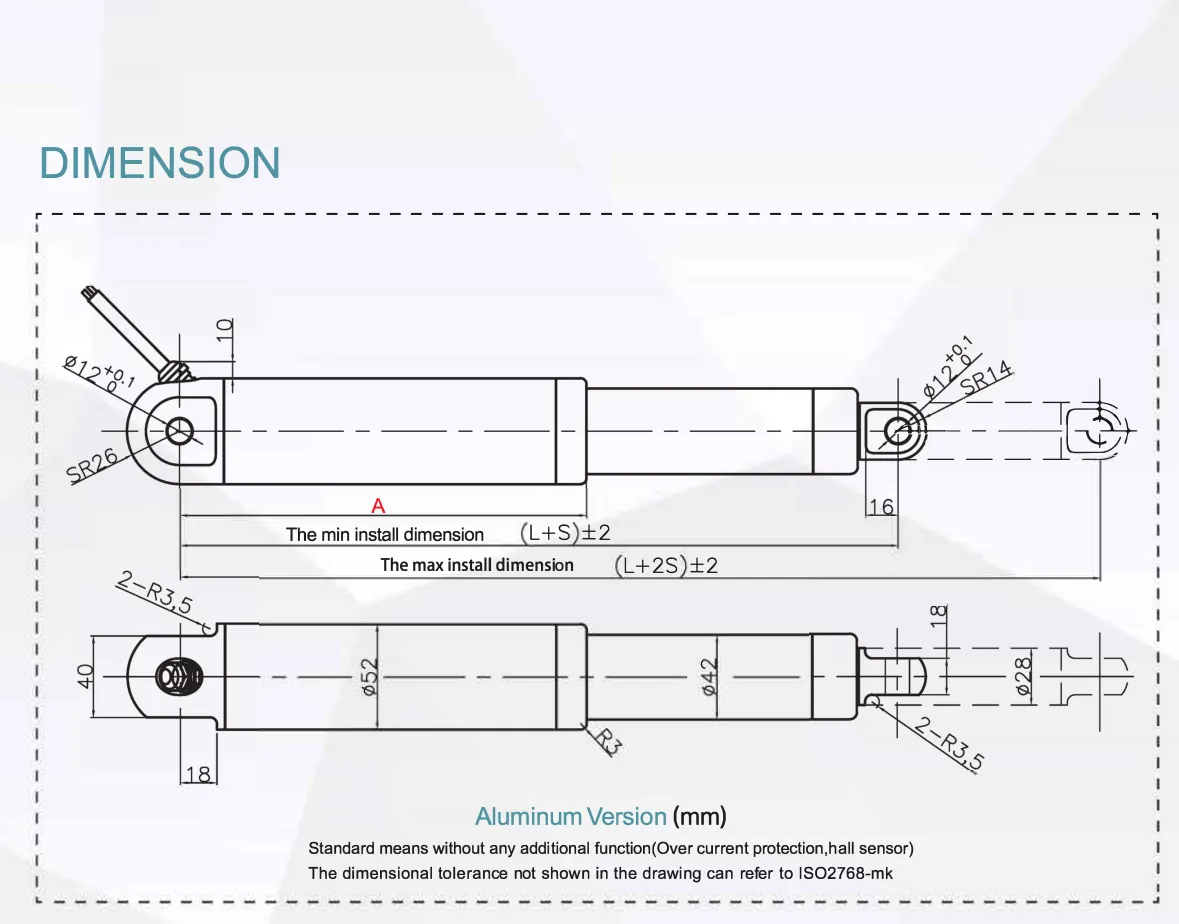

Dimensions & installation drawing
Retracted length: 305 mm + stroke (standard, A = 201 mm); 325 mm + stroke with Hall / IP67M / over-current / limit-signal (A = 221 mm). Extended length = retracted length + stroke (L + 2S).
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 4.8 mm/s | 2.5 mm/s | 6000 N | 8000 N |
| 4.8 mm/s | 2.8 mm/s | 5000 N | 7500 N |
| 6.4 mm/s | 3.5 mm/s | 4500 N | 8000 N |
| 9.6 mm/s | 5.5 mm/s | 3000 N | 6000 N |
| 16 mm/s | 9.5 mm/s | 1800 N | 3600 N |
| 24 mm/s | 13 mm/s | 1200 N | 2400 N |
| 88 mm/s | 50 mm/s | 300 N | 600 N |
Installation, electrical and use information
Minimum installation length by option · Stroke and weight · SLA52M Wiring, Hall Sensor & Limit Switch Options · Selection Guide: SLA52M Speed, Load & Current Curves
Minimum installation length by option
- Standard (built-in limit switch): 305 mm + stroke (A = 201 mm)
- IP67M / IP69K sealing: 325 mm + stroke (A = 221 mm)
- Hall sensor: 325 mm + stroke (A = 221 mm)
- Over-current protection: 325 mm + stroke (A = 221 mm)
- Limit switch signal output: 325 mm + stroke (A = 221 mm)
For a special installation length, send your required retracted and extended hole-to-hole dimensions.
Stroke and weight
- Stroke: up to 500 mm (other strokes on request)
- Aluminium tube: 1.8 kg @ 50 mm, 1.9 kg @ 100 mm, 2 kg @ 150 mm, 2.1 kg @ 200 mm, 2.2 kg @ 250 mm, 2.3 kg @ 300 mm, 2.4 kg @ 350 mm, 2.5 kg @ 400 mm
- Stainless steel tube: 3.95 kg @ 50 mm, 4.15 kg @ 100 mm, 4.35 kg @ 150 mm, 4.55 kg @ 200 mm, 4.75 kg @ 250 mm, 4.95 kg @ 300 mm, 5.15 kg @ 350 mm, 5.35 kg @ 400 mm
SLA52M Wiring, Hall Sensor & Limit Switch Options
Built-in limit switches stop the actuator at both ends of the stroke. Reverse the DC polarity on the two motor wires to change direction.
Hall sensor (optional): two-channel (A/B) pulse output for speed, position and multi-actuator synchronization. Hall resolution = lead screw pitch ÷ gear ratio ÷ pulses per revolution.
- White: Hall sensor B Vout
- Green: Hall sensor A Vout
- Red: Hall sensor VCC+
- Black: Hall sensor GND−
- Blue: Motor−
- Brown: Motor+
Over-current protection (optional): cuts motor current when the actuator reaches the end of stroke or is overloaded. Circuit breaking current 12 A at 12V DC / 6 A at 24V DC; response time 0.1–0.5 s. Input polarity is interchangeable.
Limit switch signal output (optional): optocoupler outputs that switch when the corresponding end-of-stroke limit switch is triggered, so a controller can confirm the fully extended or retracted position.
Selection Guide: SLA52M Speed, Load & Current Curves
Force vs current curves at 12V and 24V DC, and speed vs force curves for each gear option. Use them to size the power supply and check the speed at your working load.
Duty Cycle & Service Life
Duty cycle 10% (S2): run up to 2 minutes continuously, then rest 18 minutes. Rated service life ≥10,000 cycles. Operating temperature −20 °C to +60 °C; storage temperature −40 °C to +70 °C.
Download center
FAQ
What is the SLA52M?
The SLA52M is an Elerover linear actuator rated IP66.
Does Elerover manufacture the SLA52M?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA52M?
Key ratings from the product specifications include voltage 12V / 24V DC, load 6000 N, stroke Up to 500 mm, protection IP66. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA52M?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
