Waterproof Tubular Linear Actuators Catalog (SLA-T16–SLA-T52)
Linear Actuator
SLA38MP Linear Actuator
12V 24V SLA38MP 2500N IP67M/IP69K waterproof tubular linear actuator for bioclimatic pergola louvre control from Elerover (datasheet model SLA-T38P).
Key specifications
- Maximum load
- 2500 N / 250 kg / 562 lbs (push / pull)
- Stroke
- Up to 500 mm
- Speed
- 13 mm/s (no load)
- Voltage
- 12 V / 24 V DC
- IP rating
- IP67M / IP69K
- Duty cycle
- 10% (S2): 2 min continuous running, then 18 min rest
Product overview
12V 24V SLA38MP 2500N IP67M/IP69K waterproof tubular linear actuator for bioclimatic pergola louvre control from Elerover (datasheet model SLA-T38P). Up to 2500 N at 12V / 24V DC, stroke up to 500 mm, installation length from 300 mm + stroke, 10% duty cycle and ≥10,000 cycles service life.
- Maximum load
- 2500 N / 250 kg / 562 lbs (push / pull)
- Stroke
- Up to 500 mm
- Speed
- 13 mm/s (no load)
- Voltage
- 12 V / 24 V DC
- IP rating
- IP67M / IP69K
- Feedback
- Over-current protection, Hall sensor feedback, Limit switch signal output
Applications
- Bioclimatic pergola louvres
- Outdoor architectural shading
- Harsh-weather facade motion
- Premium outdoor OEM systems
Benefits
- Ø38 mm in-line tubular waterproof linear actuator
- Max dynamic force up to 2500 N / 250 kg / 562 lbs, self-locking up to 2500 N
- Voltage: 12V / 24V DC, 50 W max power
- Protection: IP67M / IP69K
- Stroke up to 500 mm; installation length from 300 mm + stroke
- Aluminium or stainless steel tube, 304 / 316 stainless steel piston rod
- Noise on load ≤56 dB
- Built-in limit switches
Technical specifications
| Maximum load | 2500 N / 250 kg / 562 lbs (push / pull) |
|---|---|
| Stroke | Up to 500 mm |
| Speed | 13 mm/s (no load) |
| Voltage | 12 V / 24 V DC |
| IP rating | IP67M / IP69K |
| Duty cycle | 10% (S2): 2 min continuous running, then 18 min rest |
| Retracted length | 300 mm + stroke (A = 208.5 mm) for standard, IP67M/IP69K, Hall, over-current and limit-signal options |
| Feedback | Over-current protection, Hall sensor feedback, Limit switch signal output |
| Limit switch | Built-in at both ends |
| Mounting type | Ø8 mm clevis holes; optional 38PF front and 38PR rear mounting brackets |
Show 8 more specifications Show fewer specifications
| Current | No-load ≤1.2 A (12V) / ≤0.6 A (24V); full load ≤3.8 A (12V) / ≤1.8 A (24V) |
|---|---|
| Noise level | ≤56 dB |
| Housing material | Aluminium or stainless steel |
| Rod material | 304 / 316 stainless steel |
| Operating temperature | −20 °C to +60 °C |
| Service life | ≥10,000 cycles |
| Cable length | 1.5 m (custom length available) |
| Certifications | CE, RoHS, UL325 |

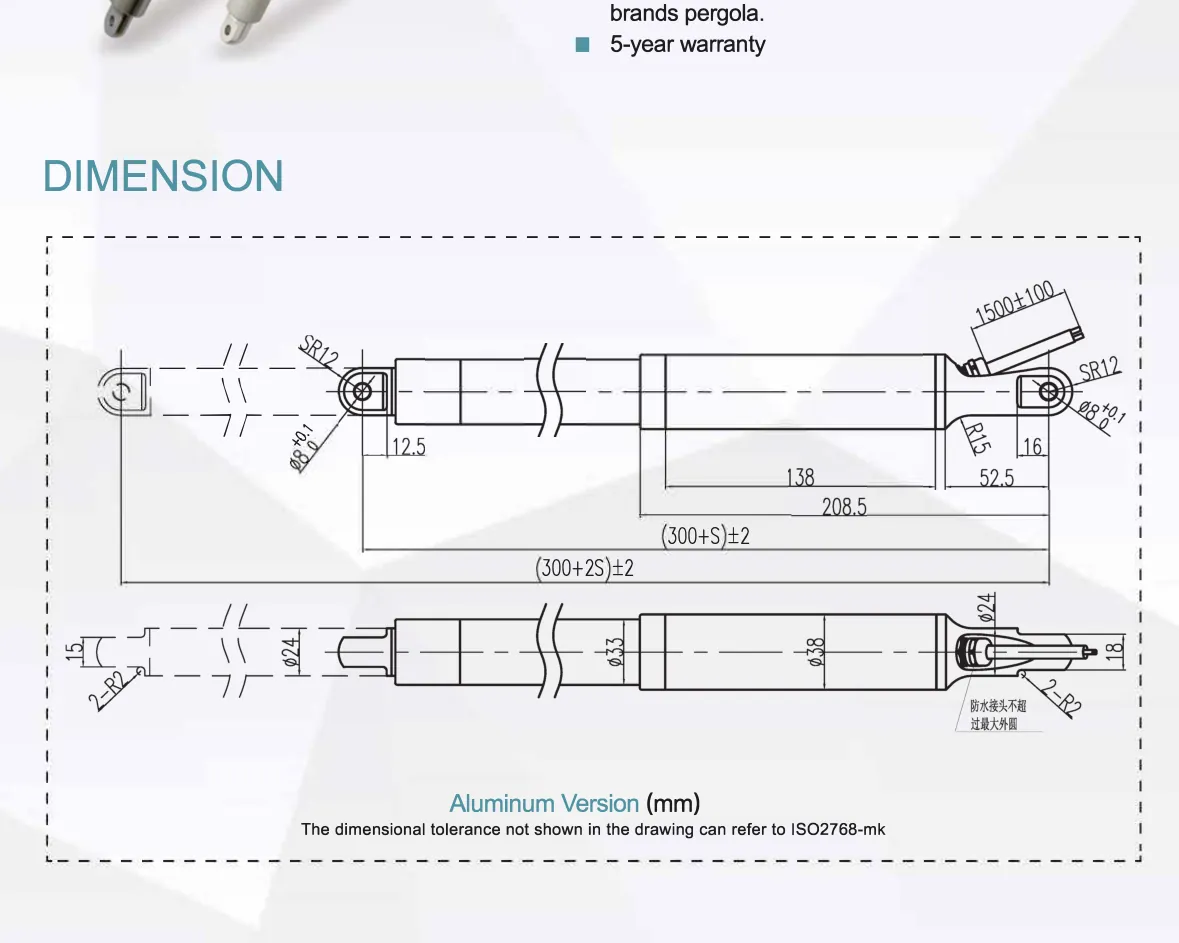

Dimensions & installation drawing
Retracted length: 300 mm + stroke (A = 208.5 mm) for standard, IP67M/IP69K, Hall, over-current and limit-signal options. Extended length = retracted length + stroke (L + 2S).
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 3.3 mm/s | 1.9 mm/s | 2500 N | 2500 N |
| 3.3 mm/s | 2.3 mm/s | 2000 N | 2000 N |
| 5 mm/s | 3 mm/s | 1500 N | 1500 N |
| 5 mm/s | 3.5 mm/s | 1200 N | 1200 N |
| 8.5 mm/s | 5.5 mm/s | 800 N | 800 N |
| 13 mm/s | 8.5 mm/s | 600 N | 600 N |
Installation, electrical and use information
Minimum installation length by option · Stroke and weight · SLA38MP Wiring, Hall Sensor & Limit Switch Options · Selection Guide: SLA38MP Speed, Load & Current Curves
Minimum installation length by option
- All options (standard, Hall, over-current, signal output): 300 mm + stroke (A = 208.5 mm)
For a special installation length, send your required retracted and extended hole-to-hole dimensions.
Stroke and weight
- Stroke: up to 500 mm (other strokes on request)
- Aluminium tube: 0.9 kg at 50 mm stroke to 1.6 kg at 400 mm stroke
- Stainless steel tube: 1.5 kg at 50 mm stroke to 2.55 kg at 400 mm stroke
SLA38MP Wiring, Hall Sensor & Limit Switch Options
Built-in limit switches stop the actuator at both ends of the stroke. Reverse the DC polarity on the two motor wires to change direction.
Hall sensor (optional): two-channel (A/B) pulse output for speed, position and multi-actuator synchronization. Hall resolution = lead screw pitch ÷ gear ratio ÷ pulses per revolution.
- White: Hall sensor B Vout
- Green: Hall sensor A Vout
- Red: Hall sensor VCC+
- Black: Hall sensor GND−
- Blue: Motor−
- Brown: Motor+
Over-current protection (optional): cuts motor current when the actuator reaches the end of stroke or is overloaded. Circuit breaking current 4.5 A at 12V DC / 2.5 A at 24V DC; response time 0.1–0.5 s. Input polarity is interchangeable.
Limit switch signal output (optional): optocoupler outputs that switch when the corresponding end-of-stroke limit switch is triggered, so a controller can confirm the fully extended or retracted position.
Selection Guide: SLA38MP Speed, Load & Current Curves
Force vs current curves at 12V and 24V DC, and speed vs force curves for each gear option. Use them to size the power supply and check the speed at your working load.
Duty Cycle & Service Life
Duty cycle 10% (S2): run up to 2 minutes continuously, then rest 18 minutes. Rated service life ≥10,000 cycles. Operating temperature −20 °C to +60 °C.
Download center
FAQ
What is the SLA38MP?
The SLA38MP is an Elerover linear actuator rated IP67M.
Does Elerover manufacture the SLA38MP?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA38MP?
Key ratings from the product specifications include voltage 12V / 24V DC, load 2500 N, stroke Up to 500 mm, protection IP67M. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA38MP?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
