SLA35M Linear Actuator
12V 24V SLA35M 2300N IP66/IP67M/IP69K waterproof tubular linear actuator for motorized pergolas and yacht automation from Elerover (datasheet model SLA-T35).
Key specifications
- Maximum load
- 2300 N / 230 kg / 517 lbs (push / pull)
- Stroke
- Up to 400 mm
- Speed
- 35 mm/s (no load)
- Voltage
- 12 V / 24 V DC
- IP rating
- IP66 / IP67M / IP69K
- Duty cycle
- 10% (S2): 2 min continuous running, then 18 min rest
Product overview
12V 24V SLA35M 2300N IP66/IP67M/IP69K waterproof tubular linear actuator for motorized pergolas and yacht automation from Elerover (datasheet model SLA-T35). Up to 2300 N at 12V / 24V DC, stroke up to 400 mm, installation length from 178 mm + stroke, 10% duty cycle and ≥10,000 cycles service life.
- Maximum load
- 2300 N / 230 kg / 517 lbs (push / pull)
- Stroke
- Up to 400 mm
- Speed
- 35 mm/s (no load)
- Voltage
- 12 V / 24 V DC
- IP rating
- IP66 / IP67M / IP69K
- Feedback
- Low-noise motor (up to 800 N), Over-current protection, Hall sensor feedback
Applications
- Motorized pergolas
- Yacht automation
- Special vehicles
- Rehabilitation equipment
Benefits
- Ø35 mm in-line tubular waterproof linear actuator
- Max dynamic force up to 2300 N / 230 kg / 517 lbs, self-locking up to 3600 N
- Voltage: 12V / 24V DC, 50 W max power
- Protection: IP66 / IP67M / IP69K
- Stroke up to 400 mm; installation length from 178 mm + stroke
- 6063 aluminium or 316 stainless steel tube, 316 stainless steel piston rod
- Noise on load ≤60 dB
- Built-in limit switches
Technical specifications
| Maximum load | 2300 N / 230 kg / 517 lbs (push / pull) |
|---|---|
| Stroke | Up to 400 mm |
| Speed | 35 mm/s (no load) |
| Voltage | 12 V / 24 V DC |
| IP rating | IP66 / IP67M / IP69K |
| Duty cycle | 10% (S2): 2 min continuous running, then 18 min rest |
| Retracted length | ≤800 N: 178 mm + stroke (A = 121.5 mm); >800 N: 188 mm + stroke (A = 131.5 mm); Hall, IP67M and over-current change L and A — see drawing |
| Feedback | Low-noise motor (up to 800 N), Over-current protection, Hall sensor feedback |
| Limit switch | Built-in at both ends |
| Mounting type | Ø10 mm clevis holes; optional 35F front and 35R rear mounting brackets |
Show 8 more specifications Show fewer specifications
| Current | No-load ≤0.7 A (12V) / ≤0.35 A (24V); full load ≤3.8 A (12V) / ≤1.8 A (24V) |
|---|---|
| Noise level | ≤60 dB |
| Housing material | 6063 aluminium or 316 stainless steel |
| Rod material | 316 stainless steel |
| Operating temperature | −20 °C to +60 °C |
| Service life | ≥10,000 cycles |
| Cable length | 1.5 m (custom length available) |
| Certifications | CE, RoHS |

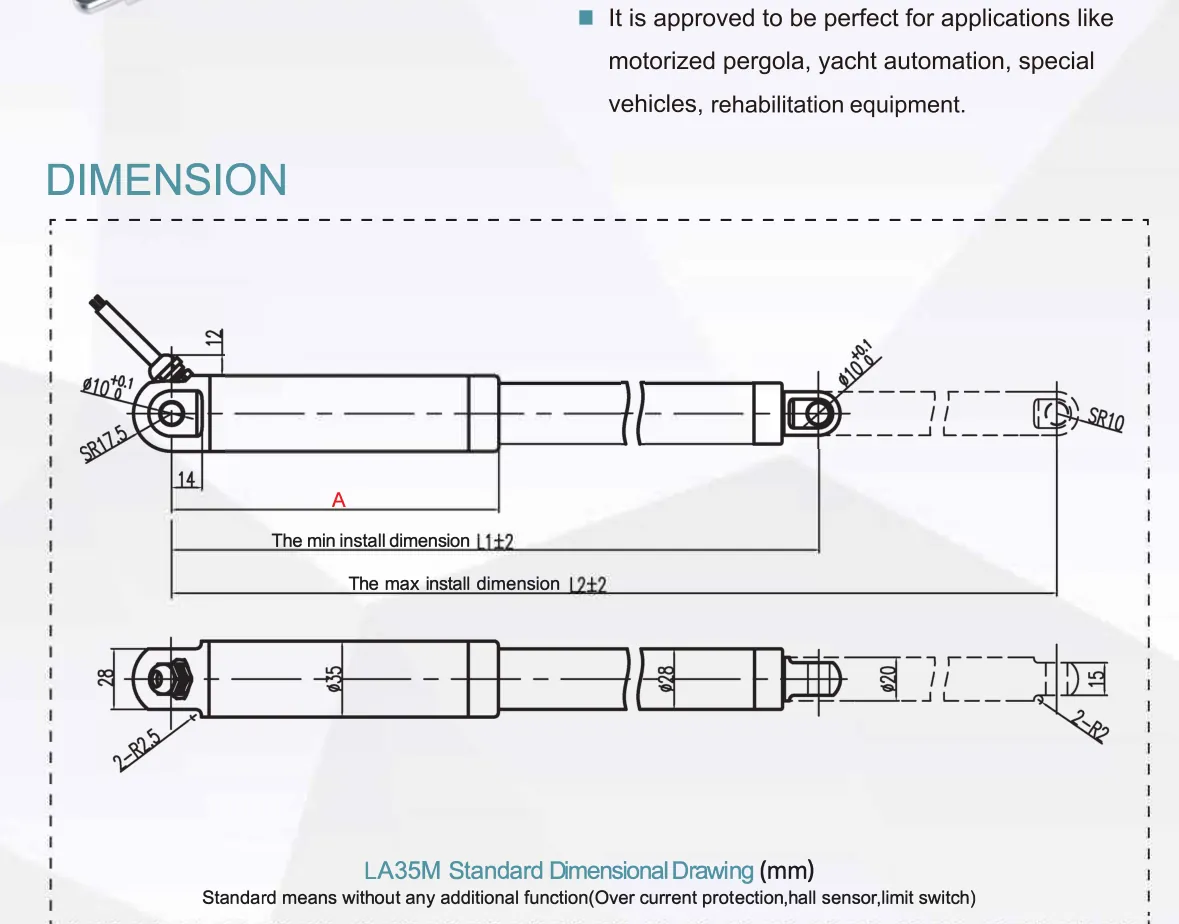

Dimensions & installation drawing
Retracted length: ≤800 N: 178 mm + stroke (A = 121.5 mm); >800 N: 188 mm + stroke (A = 131.5 mm); Hall, IP67M and over-current change L and A — see drawing. Extended length = retracted length + stroke (L + 2S).
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 3.5 mm/s | 2 mm/s | 2300 N | 3450 N |
| 4.5 mm/s | 2.5 mm/s | 1800 N | 3600 N |
| 6.8 mm/s | 4 mm/s | 1200 N | 1800 N |
| 12 mm/s | 6.5 mm/s | 800 N | 1600 N |
| 12 mm/s | 7.5 mm/s | 600 N | 1600 N |
| 18 mm/s | 11.5 mm/s | 400 N | 600 N |
| 25 mm/s | 14 mm/s | 300 N | 600 N |
| 35 mm/s | 24 mm/s | 100 N | 150 N |
Installation, electrical and use information
Minimum installation length by option · Stroke and weight · SLA35M Wiring, Hall Sensor & Limit Switch Options · Selection Guide: SLA35M Speed, Load & Current Curves
Minimum installation length by option
Force ≤800 N
- Standard (built-in limit switch): 178 mm + stroke (A = 121.5 mm)
- Low-noise motor: 188 mm + stroke (A = 131.5 mm)
- IP67M / IP69K sealing: 191 mm + stroke (A = 121.5 mm)
- Hall sensor: 200 mm + stroke (A = 143.5 mm)
- Over-current protection: 200 mm + stroke (A = 143.5 mm)
Force >800 N
- Standard (built-in limit switch): 188 mm + stroke (A = 131.5 mm)
- IP67M / IP69K sealing: 201 mm + stroke (A = 131.5 mm)
- Hall sensor: 208 mm + stroke (A = 151.5 mm)
- Over-current protection: 208 mm + stroke (A = 151.5 mm)
For a special installation length, send your required retracted and extended hole-to-hole dimensions.
Stroke and weight
- Stroke: up to 400 mm (other strokes on request)
- Aluminium tube: 0.6 kg at 50 mm stroke to 1.4 kg at 400 mm stroke
- Stainless steel tube: 1.1 kg at 50 mm stroke to 1.8 kg at 400 mm stroke
SLA35M Wiring, Hall Sensor & Limit Switch Options
Built-in limit switches stop the actuator at both ends of the stroke. Reverse the DC polarity on the two motor wires to change direction.
Hall sensor (optional): two-channel (A/B) pulse output for speed, position and multi-actuator synchronization. Hall resolution = lead screw pitch ÷ gear ratio ÷ pulses per revolution.
- White: Hall sensor B Vout
- Green: Hall sensor A Vout
- Red: Hall sensor VCC+
- Black: Hall sensor GND−
- Blue: Motor−
- Brown: Motor+
Over-current protection (optional): cuts motor current when the actuator reaches the end of stroke or is overloaded. Circuit breaking current 4.5 A at 12V DC / 2.5 A at 24V DC; response time 0.1–0.5 s. Input polarity is interchangeable.
Selection Guide: SLA35M Speed, Load & Current Curves
Force vs current curves at 12V and 24V DC, and speed vs force curves for each gear option. Use them to size the power supply and check the speed at your working load.
Low-noise motor option (speed with load / no load):
- 100 N: 19 mm/s with load, 25 mm/s no load
- 300 N: 17 mm/s with load, 25 mm/s no load
- 400 N: 11.5 mm/s with load, 16.5 mm/s no load
- 600 N: 8.5 mm/s with load, 13 mm/s no load
- 800 N: 5.5 mm/s with load, 8.5 mm/s no load
Duty Cycle & Service Life
Duty cycle 10% (S2): run up to 2 minutes continuously, then rest 18 minutes. Rated service life ≥10,000 cycles. Operating temperature −20 °C to +60 °C; storage temperature −40 °C to +70 °C.
Download center
FAQ
What is the SLA35M?
The SLA35M is an Elerover linear actuator rated IP66.
Does Elerover manufacture the SLA35M?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA35M?
Key ratings from the product specifications include voltage 12V / 24V DC, load 2300 N, stroke Up to 400 mm, protection IP66. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA35M?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
