SLA26M Linear Actuator
12V 24V SLA26M 500N IP66/IP67M/IP69K waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas from Elerover (datasheet…
Key specifications
- Maximum load
- 500 N / 50 kg / 112 lbs (push / pull)
- Stroke
- Up to 200 mm
- Speed
- 16 mm/s (no load)
- Voltage
- 12 V / 24 V DC
- IP rating
- IP66 / IP67M / IP69K
- Duty cycle
- 10% (S2): 2 min continuous running, then 18 min rest
Product overview
12V 24V SLA26M 500N IP66/IP67M/IP69K waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas from Elerover (datasheet model SLA-T26N). Up to 500 N at 12V / 24V DC, stroke up to 200 mm, installation length from 170 mm + stroke, 10% duty cycle and ≥10,000 cycles service life.
- Maximum load
- 500 N / 50 kg / 112 lbs (push / pull)
- Stroke
- Up to 200 mm
- Speed
- 16 mm/s (no load)
- Voltage
- 12 V / 24 V DC
- IP rating
- IP66 / IP67M / IP69K
- Feedback
- Over-current protection, Hall sensor feedback, Limit switch signal output
Applications
- Motorized louvre windows
- Bio-climatic pergolas
- Power wheelchair mechanisms
- Inspection robots
Benefits
- Ø26 mm in-line tubular waterproof linear actuator
- Max dynamic force up to 500 N / 50 kg / 112 lbs, self-locking up to 500 N
- Voltage: 12V / 24V DC, 14.5 W max power
- Protection: IP66 / IP67M / IP69K
- Stroke up to 200 mm; installation length from 170 mm + stroke
- 6063 aluminium tube, 316 stainless steel piston rod
- Noise on load ≤62 dB
- Built-in limit switches
Technical specifications
| Maximum load | 500 N / 50 kg / 112 lbs (push / pull) |
|---|---|
| Stroke | Up to 200 mm |
| Speed | 16 mm/s (no load) |
| Voltage | 12 V / 24 V DC |
| IP rating | IP66 / IP67M / IP69K |
| Duty cycle | 10% (S2): 2 min continuous running, then 18 min rest |
| Retracted length | 170 mm + stroke (standard, A = 108.5 mm); 185 mm + stroke IP67M/IP69K; 190 mm + stroke with Hall or over-current (A = 128.5 mm); 175 mm + stroke with limit-signal output (A = 113.5 mm) |
| Feedback | Over-current protection, Hall sensor feedback, Limit switch signal output |
| Limit switch | Built-in at both ends |
| Mounting type | Ø5.1 mm clevis holes; optional 26F front and 26R rear mounting brackets |
Show 8 more specifications Show fewer specifications
| Current | No-load ≤0.4 A (12V) / ≤0.25 A (24V); full load ≤1.3 A (12V) / ≤0.7 A (24V) |
|---|---|
| Noise level | ≤62 dB |
| Housing material | 6063 aluminium |
| Rod material | 316 stainless steel |
| Operating temperature | −20 °C to +60 °C |
| Service life | ≥10,000 cycles |
| Cable length | 1.5 m (custom length available) |
| Certifications | CE, RoHS |

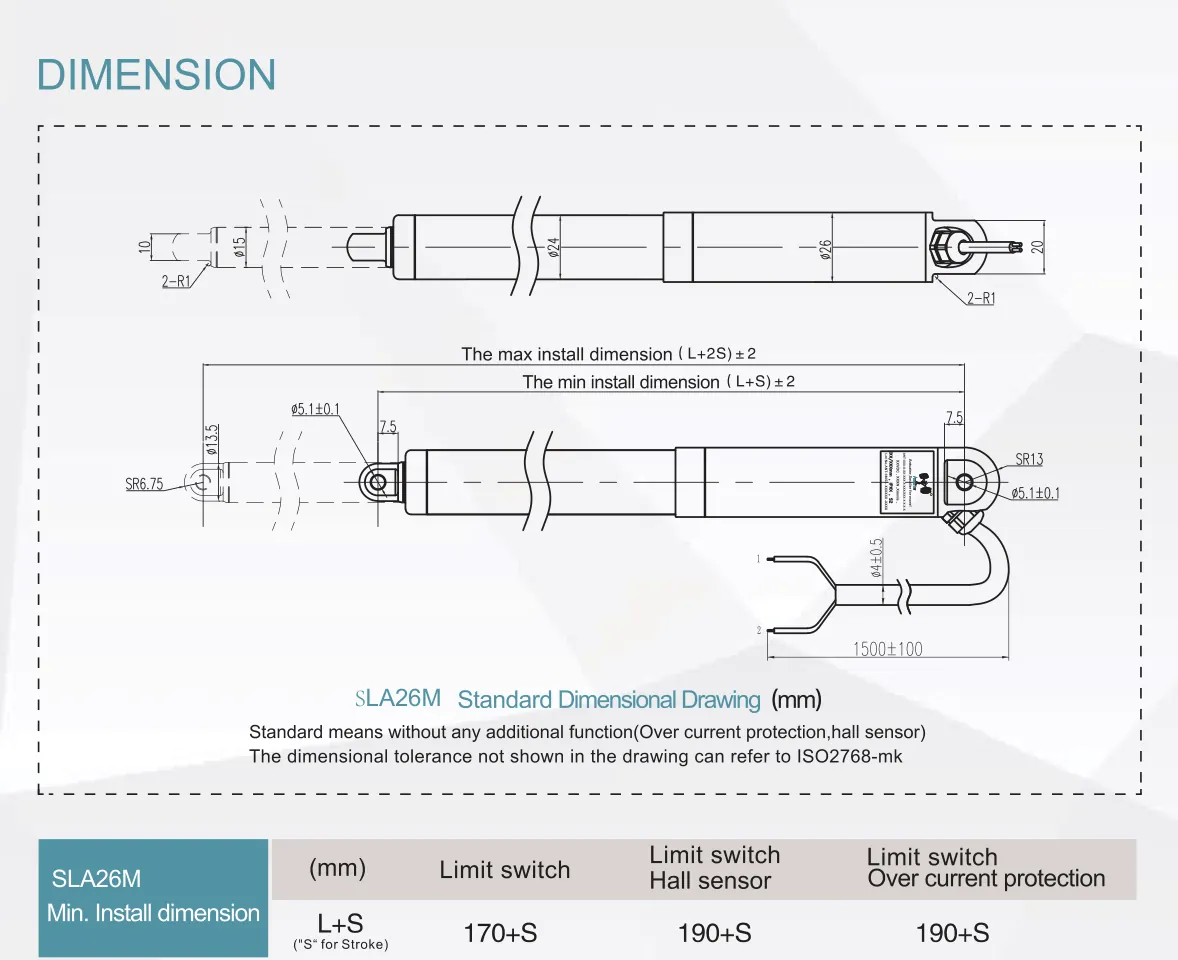

Dimensions & installation drawing
Retracted length: 170 mm + stroke (standard, A = 108.5 mm); 185 mm + stroke IP67M/IP69K; 190 mm + stroke with Hall or over-current (A = 128.5 mm); 175 mm + stroke with limit-signal output (A = 113.5 mm). Extended length = retracted length + stroke (L + 2S).
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 6 mm/s | 3.2 mm/s | 500 N | 500 N |
| 11 mm/s | 6 mm/s | 250 N | 375 N |
| 16 mm/s | 9.5 mm/s | 100 N | 150 N |
Installation, electrical and use information
Minimum installation length by option · Stroke and weight · SLA26M Wiring, Hall Sensor & Limit Switch Options · Selection Guide: SLA26M Speed, Load & Current Curves
Minimum installation length by option
- Standard (built-in limit switch): 170 mm + stroke (A = 108.5 mm)
- IP67M / IP69K sealing: 185 mm + stroke (A = 108.5 mm)
- Hall sensor: 190 mm + stroke (A = 128.5 mm)
- Over-current protection: 190 mm + stroke (A = 128.5 mm)
- Limit switch signal output: 175 mm + stroke (A = 113.5 mm)
For a special installation length, send your required retracted and extended hole-to-hole dimensions.
Stroke and weight
- Stroke: up to 200 mm (other strokes on request)
- Aluminium: 0.3 kg @ 50 mm, 0.35 kg @ 100 mm, 0.4 kg @ 150 mm, 0.45 kg @ 200 mm
SLA26M Wiring, Hall Sensor & Limit Switch Options
Built-in limit switches stop the actuator at both ends of the stroke. Reverse the DC polarity on the two motor wires to change direction.
Hall sensor (optional): two-channel (A/B) pulse output for speed, position and multi-actuator synchronization. Hall resolution = lead screw pitch ÷ gear ratio ÷ pulses per revolution.
- White: Hall sensor B Vout
- Green: Hall sensor A Vout
- Red: Hall sensor VCC+
- Black: Hall sensor GND−
- Blue: Motor−
- Brown: Motor+
Over-current protection (optional): cuts motor current when the actuator reaches the end of stroke or is overloaded. Circuit breaking current 1.5 A at 12V DC / 0.75 A at 24V DC; response time 0.1–0.5 s. Input polarity is interchangeable.
Limit switch signal output (optional): optocoupler outputs that switch when the corresponding end-of-stroke limit switch is triggered, so a controller can confirm the fully extended or retracted position.
Selection Guide: SLA26M Speed, Load & Current Curves
Force vs current curves at 12V and 24V DC, and speed vs force curves for each gear option. Use them to size the power supply and check the speed at your working load.
Duty Cycle & Service Life
Duty cycle 10% (S2): run up to 2 minutes continuously, then rest 18 minutes. Rated service life ≥10,000 cycles. Operating temperature −20 °C to +60 °C.
