SLA16M Linear Actuator
12V SLA16M 50N IP65 waterproof tubular linear actuator for inspection robots and navigation lights from Elerover (datasheet model SLA-T16).
Key specifications
- Maximum load
- 50 N / 5 kg / 11 lbs (push / pull)
- Stroke
- Up to 100 mm
- Speed
- 15 mm/s (no load)
- Voltage
- 12 V DC
- IP rating
- IP65
- Duty cycle
- 10% (S2): 2 min continuous running, then 18 min rest
Product overview
12V SLA16M 50N IP65 waterproof tubular linear actuator for inspection robots and navigation lights from Elerover (datasheet model SLA-T16). Up to 50 N at 12V DC, stroke up to 100 mm, installation length from 105 mm + stroke, 10% duty cycle and ≥10,000 cycles service life.
- Maximum load
- 50 N / 5 kg / 11 lbs (push / pull)
- Stroke
- Up to 100 mm
- Speed
- 15 mm/s (no load)
- Voltage
- 12 V DC
- IP rating
- IP65
- Feedback
- Hall sensor feedback
Applications
- Inspection robots
- Navigation lights
- Compact OEM mechanisms
- Laboratory automation
Benefits
- Ø16 mm in-line tubular waterproof linear actuator
- Max dynamic force up to 50 N / 5 kg / 11 lbs, self-locking up to 75 N
- Voltage: 12V DC, 3 W max power
- Protection: IP65
- Stroke up to 100 mm; installation length from 105 mm + stroke
- 6063 aluminium tube, 316 stainless steel piston rod
- Noise on load ≤65 dB
- Built-in limit switches
Technical specifications
| Maximum load | 50 N / 5 kg / 11 lbs (push / pull) |
|---|---|
| Stroke | Up to 100 mm |
| Speed | 15 mm/s (no load) |
| Voltage | 12 V DC |
| IP rating | IP65 |
| Duty cycle | 10% (S2): 2 min continuous running, then 18 min rest |
| Retracted length | 105 mm + stroke (standard, A = 75 mm); 125 mm + stroke with Hall sensor (A = 95 mm) |
| Feedback | Hall sensor feedback |
| Limit switch | Built-in at both ends |
| Mounting type | Ø3 mm clevis holes at both ends |
Show 7 more specifications Show fewer specifications
| Current | No-load ≤0.07 A; full load ≤0.25 A (12V) |
|---|---|
| Noise level | ≤65 dB |
| Housing material | 6063 aluminium |
| Rod material | 316 stainless steel |
| Operating temperature | +5 °C to +40 °C |
| Service life | ≥10,000 cycles |
| Cable length | 0.5 m (custom length available) |

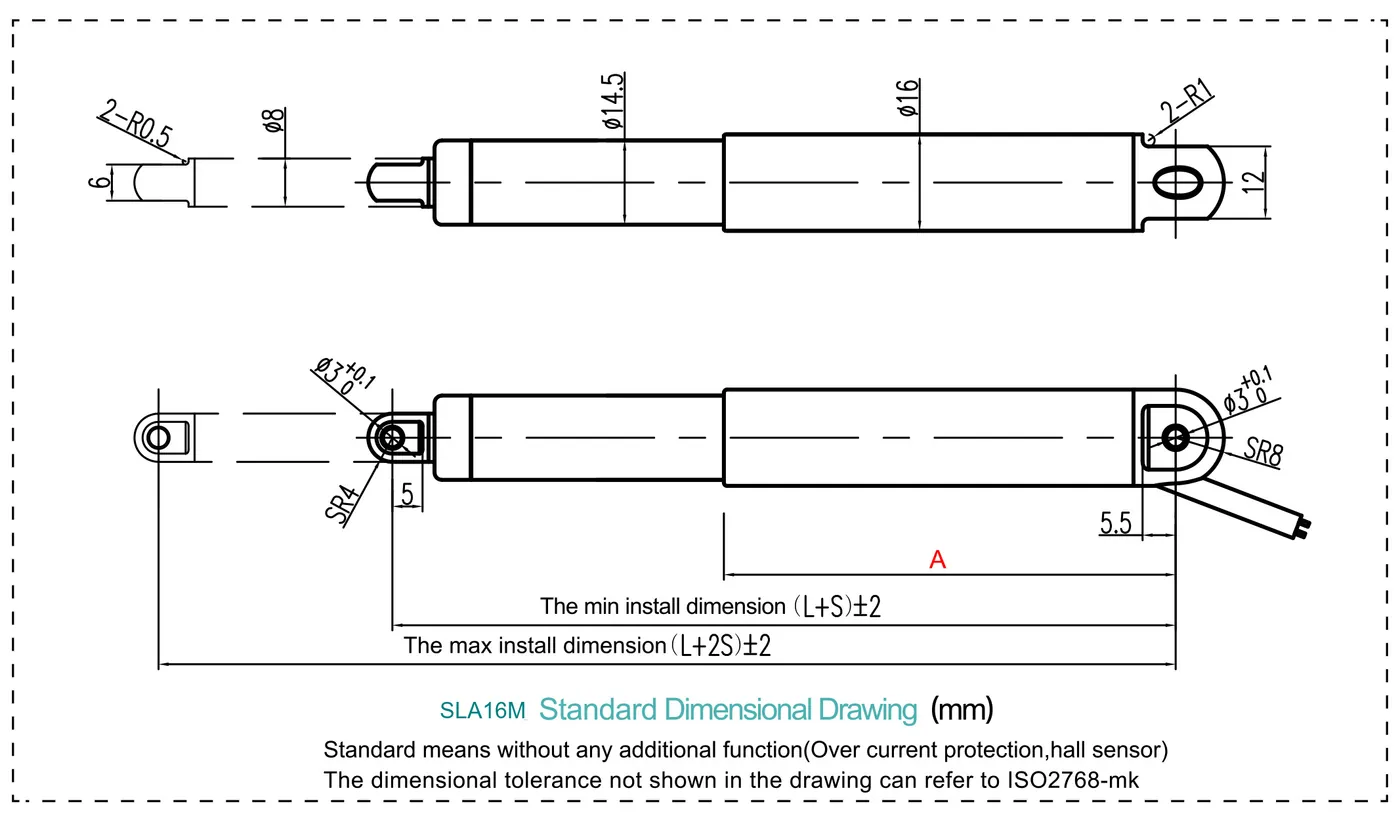

Dimensions & installation drawing
Retracted length: 105 mm + stroke (standard, A = 75 mm); 125 mm + stroke with Hall sensor (A = 95 mm). Extended length = retracted length + stroke (L + 2S).
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 7.5 mm/s | 4.9 mm/s | 50 N | 75 N |
| 15 mm/s | 9 mm/s | 20 N | 30 N |
Installation, electrical and use information
Minimum installation length by option · Stroke and weight · SLA16M Wiring, Hall Sensor & Limit Switch Options · Selection Guide: SLA16M Speed, Load & Current Curves
Minimum installation length by option
- Standard (built-in limit switch): 105 mm + stroke (A = 75 mm)
- Hall sensor: 125 mm + stroke (A = 95 mm)
For a special installation length, send your required retracted and extended hole-to-hole dimensions.
Stroke and weight
- Stroke: up to 100 mm (other strokes on request)
- Aluminium: 0.1 kg @ 50 mm, 0.2 kg @ 100 mm
SLA16M Wiring, Hall Sensor & Limit Switch Options
Built-in limit switches stop the actuator at both ends of the stroke. Reverse the DC polarity on the two motor wires to change direction.
Hall sensor (optional): two-channel (A/B) pulse output for speed, position and multi-actuator synchronization. Hall resolution = lead screw pitch ÷ gear ratio ÷ pulses per revolution.
- White: Hall sensor B Vout
- Green: Hall sensor A Vout
- Red: Hall sensor VCC+
- Black: Hall sensor GND−
- Blue: Motor−
- Brown: Motor+

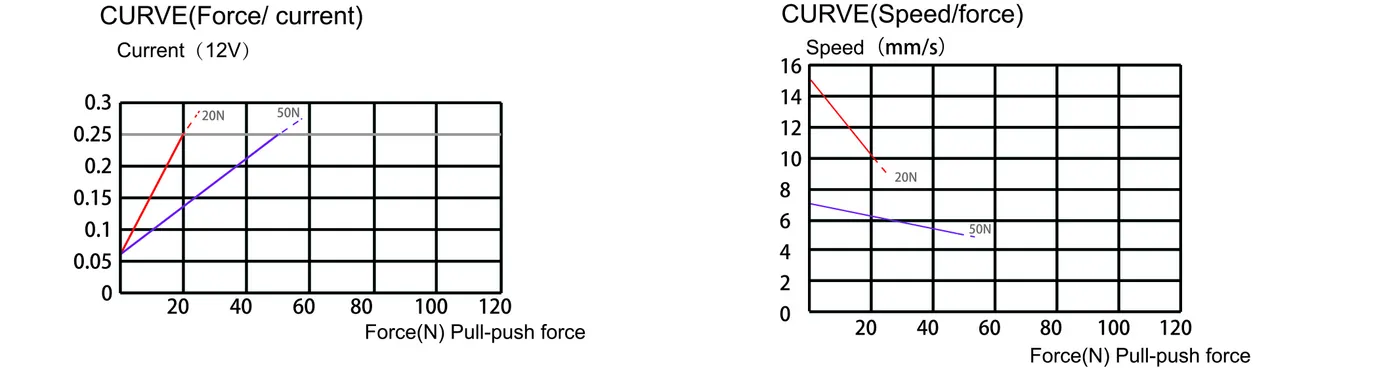

Selection Guide: SLA16M Speed, Load & Current Curves
Force vs current curves at 12V and 24V DC, and speed vs force curves for each gear option. Use them to size the power supply and check the speed at your working load.
Duty Cycle & Service Life
Duty cycle 10% (S2): run up to 2 minutes continuously, then rest 18 minutes. Rated service life ≥10,000 cycles. Operating temperature +5 °C to +40 °C; storage temperature +5 °C to +40 °C.
