Request Datasheet
Controller
SLA-CX04 Controller
SLA-CX04 control box for two synchronized Hall linear actuators: AC 110/220 V input, 12/24/29 V DC output, 5 A / 120 W, wired handle and wireless remote,…
Key specifications
- Actuator count
- 2 (synchronized)
- Input voltage
- AC 110 V / 220 V, 50 / 60 Hz
- Output voltage
- 12 V / 24 V / 29 V DC
- Maximum current
- 5 A
- Control method
- Lock / non-lock
- Hall sensor support
- Required on each actuator
Product overview
SLA-CX04 control box for two synchronized Hall linear actuators: AC 110/220 V input, 12/24/29 V DC output, 5 A / 120 W, wired handle and wireless remote, 10% duty cycle.
- Actuator count
- 2 (synchronized)
- Input voltage
- AC 110 V / 220 V, 50 / 60 Hz
- Output voltage
- 12 V / 24 V / 29 V DC
- Maximum current
- 5 A
- Control method
- Lock / non-lock
- Hall sensor support
- Required on each actuator
Applications
- 🏥 medical devices
- 🏡 home automation systems
- 🚪 automotive applications
- 🏢 industrial equipment
- 🖥️ office automation
- 🛠️ diy projects
Benefits
- Runs two Hall-feedback actuators synchronously
- AC 110 V / 220 V input, 50/60 Hz
- 12 V, 24 V or 29 V DC output, up to 5 A and 120 W

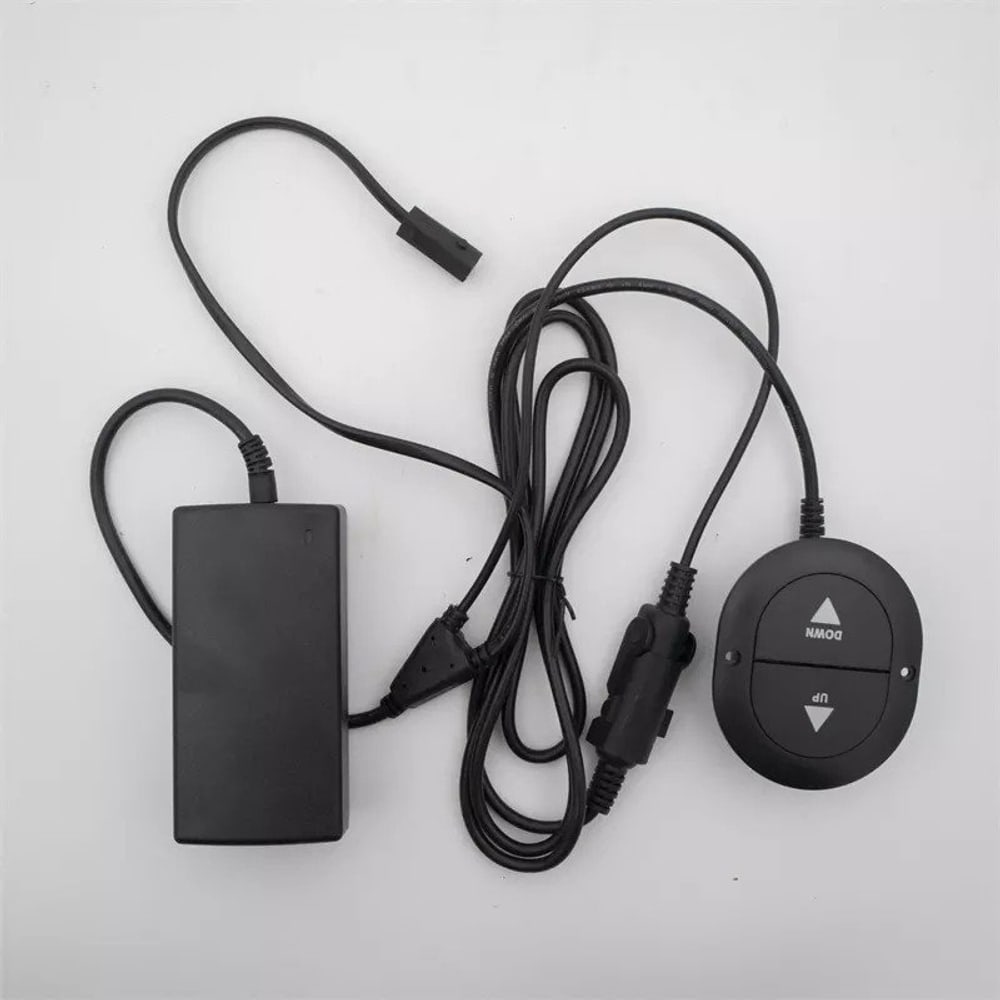

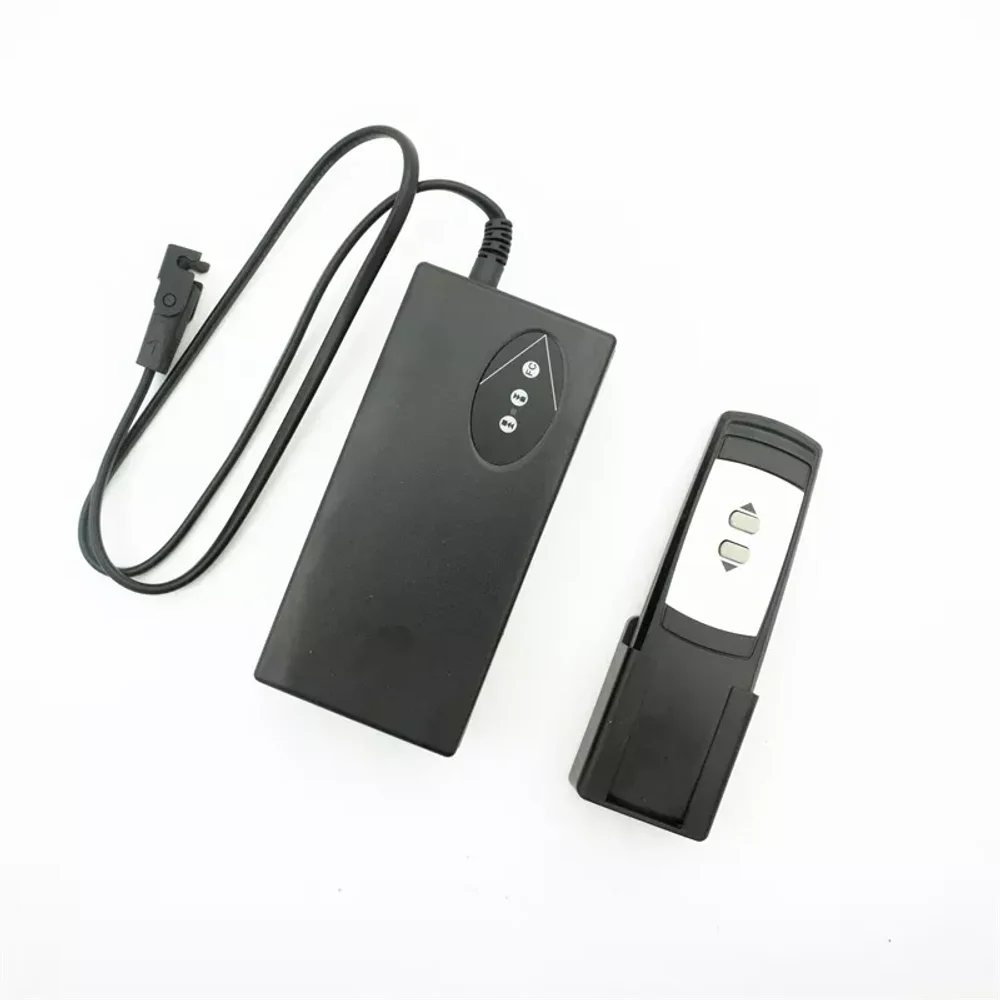

- Wired handle and wireless remote control
- Lock (one-press full stroke) or non-lock (hold to move) mode
- Reset button to re-zero both actuators

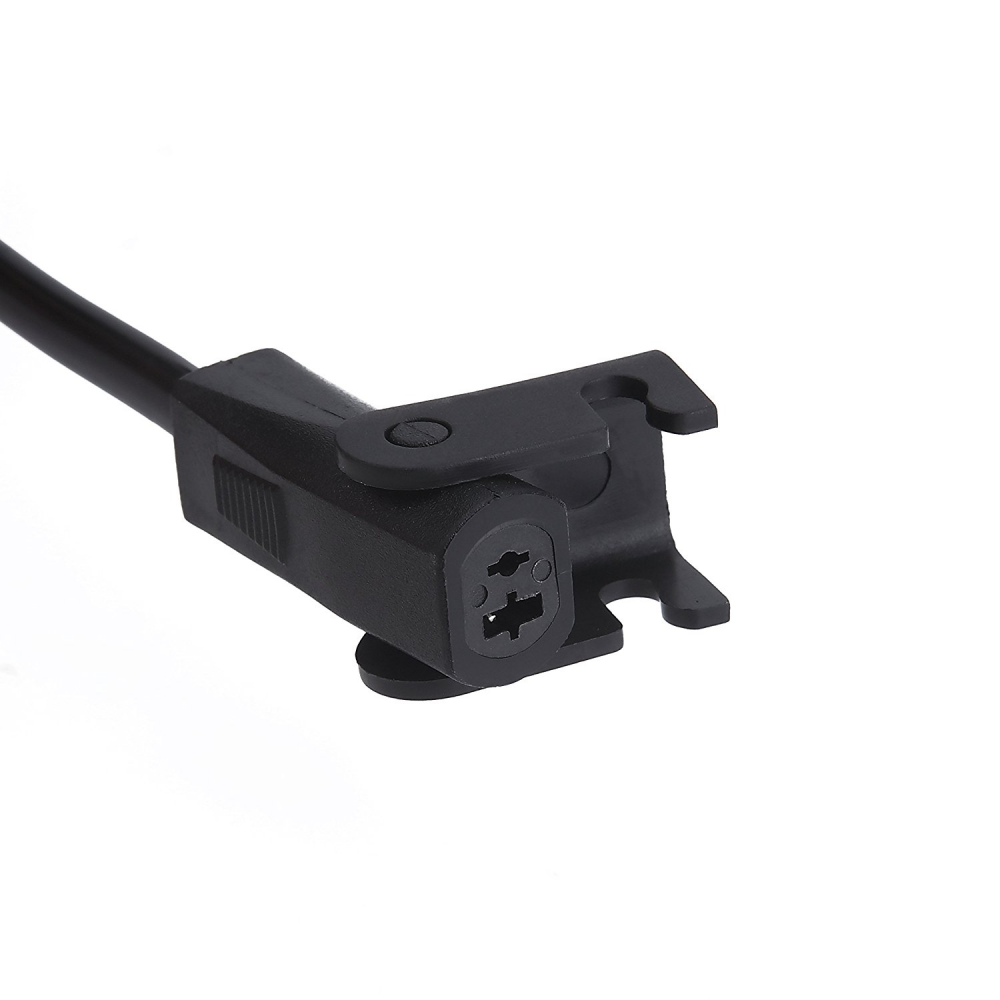

- 2-core motor plugs and 2-core figure-8 power plug
Technical specifications
| Actuator count | 2 (synchronized) |
|---|---|
| Input voltage | AC 110 V / 220 V, 50 / 60 Hz |
| Output voltage | 12 V / 24 V / 29 V DC |
| Maximum current | 5 A |
| Control method | Lock / non-lock |
| Remote control | Wired handle and wireless remote |
| Hall sensor support | Required on each actuator |
Request technical documents
FAQ
What is the SLA-CX04?
The SLA-CX04 is an Elerover controller for industrial and OEM motion projects.
Does Elerover manufacture the SLA-CX04?
Yes. Elerover is a controller manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-CX04?
Key ratings from the product specifications include voltage AC 110 V / 220 V, 50/60 Hz. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-CX04?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
