Slewing Drive

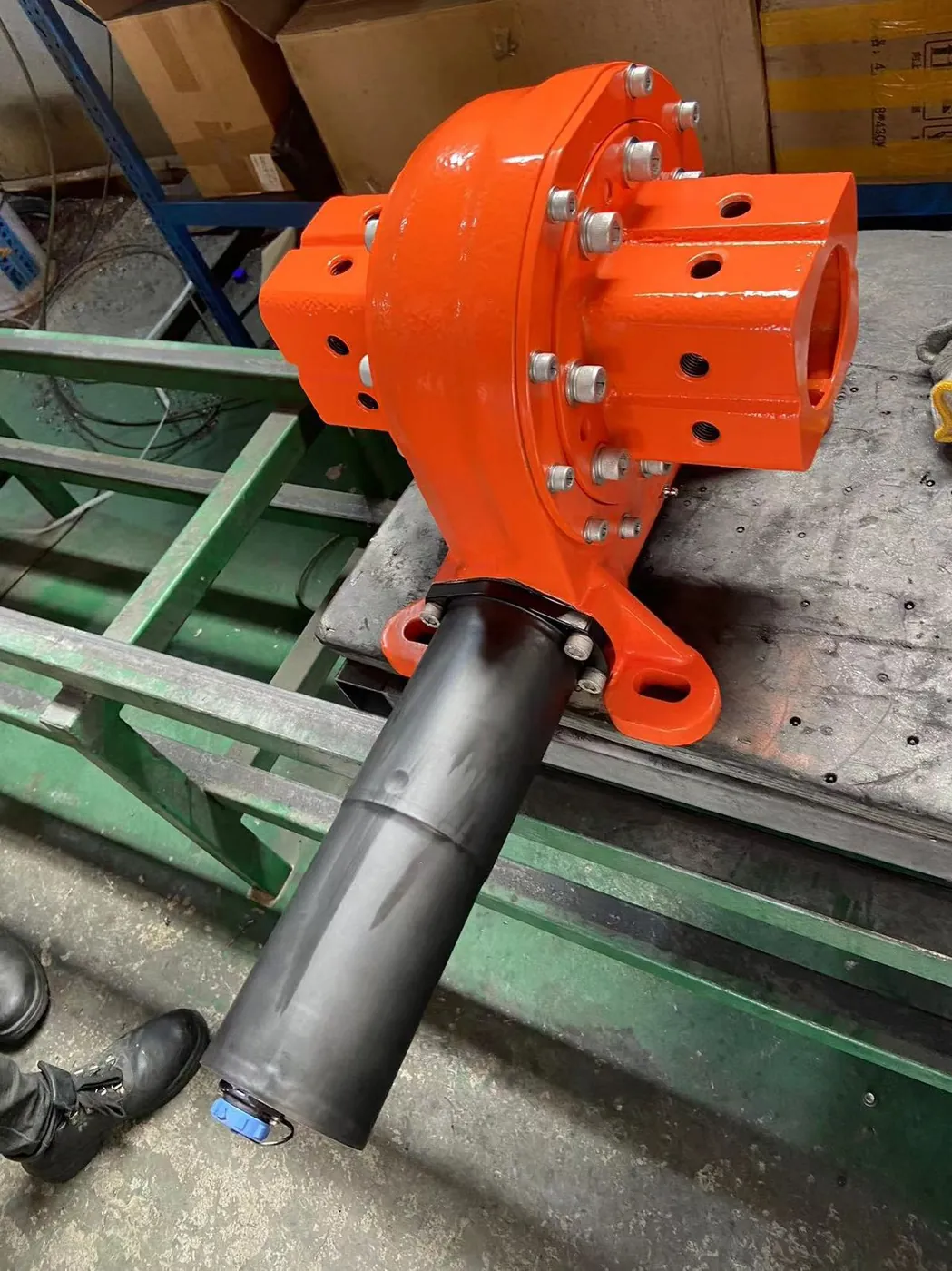

VH9-61S130-RC-2415300 Slewing Drive
VH9 9-inch vertical slewing drive for solar trackers.
Key specifications
- Output torque
- 6405 N·m
- Holding torque
- 56 kN·m
- Tilting moment torque
- 12 kN·m
- Axial load
- 338 kN
- Radial load
- 120 kN
- Gear ratio
- 61:1
Product overview
VH9 9-inch vertical slewing drive for solar trackers. 6405 N·m torque, 56 kN·m holding, 61:1, ±60° hard limit. Standard 24VDC IP65 motor; 36V / 48V / AC options for single-axis PV systems.
- Output torque
- 6405 N·m
- Holding torque
- 56 kN·m
- Tilting moment torque
- 12 kN·m
- Axial load
- 338 kN
- Radial load
- 120 kN
- Gear ratio
- 61:1
Applications
- Horizontal single-axis solar trackers
- Utility-scale PV plants
- Commercial and industrial solar farms
- Desert and outdoor tracking systems
- OEM solar tracker platforms
Benefits
- 9-inch vertical slewing drive for solar trackers
- Rated output torque 6405 N·m / holding torque 56 kN·m
- Hard travel limit ±60°
- Gear ratio 61:1 with precision ≤ 0.2°
- Standard 24VDC IP65 motor; 36V / 48V / AC options available
- C3 corrosion protection for outdoor solar sites
Technical specifications
| Drive type | 9-inch vertical slewing drive for solar tracker |
|---|---|
| Output torque | 6405 N·m |
| Holding torque | 56 kN·m |
| Tilting moment torque | 12 kN·m |
| Axial load | 338 kN |
| Radial load | 120 kN |
| Gear ratio | 61:1 |
| Backlash | ≤ 0.2° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |

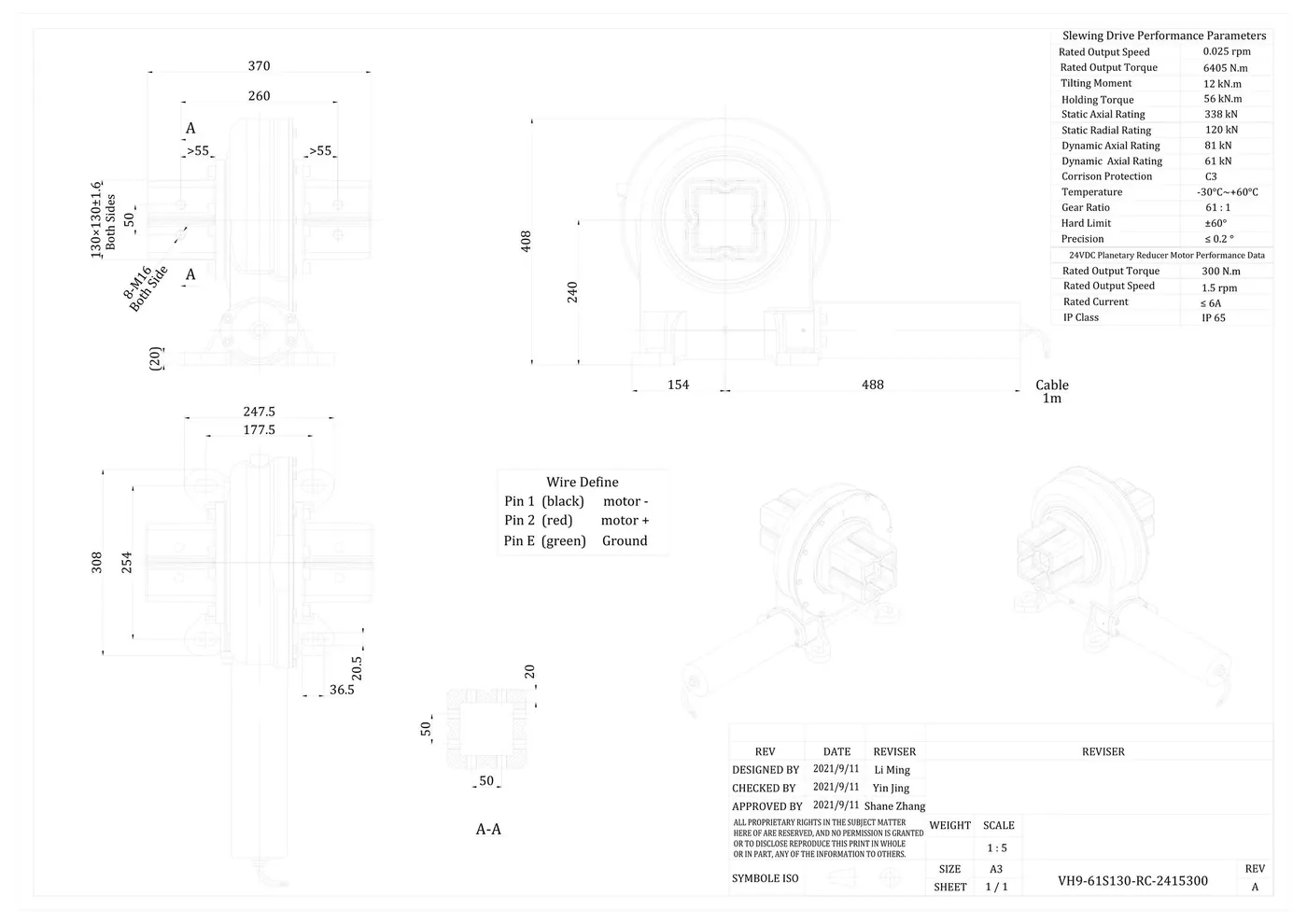

Dimensions & installation drawing
Installation, electrical and use information
VH9 Dimensions & Performance Drawing · OEM Mounting Pattern · Motor Options & Standard 24V Wiring · Key Installation Dimensions
VH9 Dimensions & Performance Drawing
Official dimensional drawing for model VH9-61S130-RC-2415300 Rev.A — mounting interfaces, motor data, hard limits and wiring.
Product Overview
OEM Mounting Pattern
8×M16 on 130×130 mm side mounts and slotted base feet for repeatable pier design.
Technical Data
Motor Options & Standard 24V Wiring
Standard drawing package: 24VDC IP65 planetary reducer motor. VH9 can also be mounted with 36V, 48V or AC motors for single-axis solar tracker systems.
| Item | Value |
|---|---|
| Standard Motor | 24VDC planetary reducer motor (drawing package) |
| Optional Motors | 36V / 48V DC or AC motor packages |
| Motor Output Torque | 300 N·m (24V standard) |
| Motor Output Speed | 1.5 rpm (24V standard) |
| Rated Current | ≤ 6 A (24V standard) |
| Motor IP Class | IP65 |
| Cable Length | Approx. 1 m |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + |
| E | Green | Ground |
Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the VH9 drawing for early tracker structural layout.
| Item | Value |
|---|---|
| Product Model | VH9-61S130-RC-2415300 |
| Drive Type | 9-inch vertical slewing drive for solar tracker |
| Side Mounting | 8×M16 on 130×130 mm pattern (both sides) |
| Base Feet | Slotted holes approx. 20.5 × 36.5 mm |
| Motor Interface | 24VDC IP65 planetary reducer |
| Cable | Approx. 1 m |
Applications
Can mounting and cables be customized?
Yes. Base feet, side mounting, cable length and motor packages can be reviewed for OEM tracker programs.
Request technical documents
FAQ
What is the VH9?
The VH9 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the VH9?
Yes. Elerover is a slewing drive manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the VH9?
Key ratings from the product specifications include voltage 24V, load 6405 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the VH9?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Request a quote
Quote context
