Slewing Drive

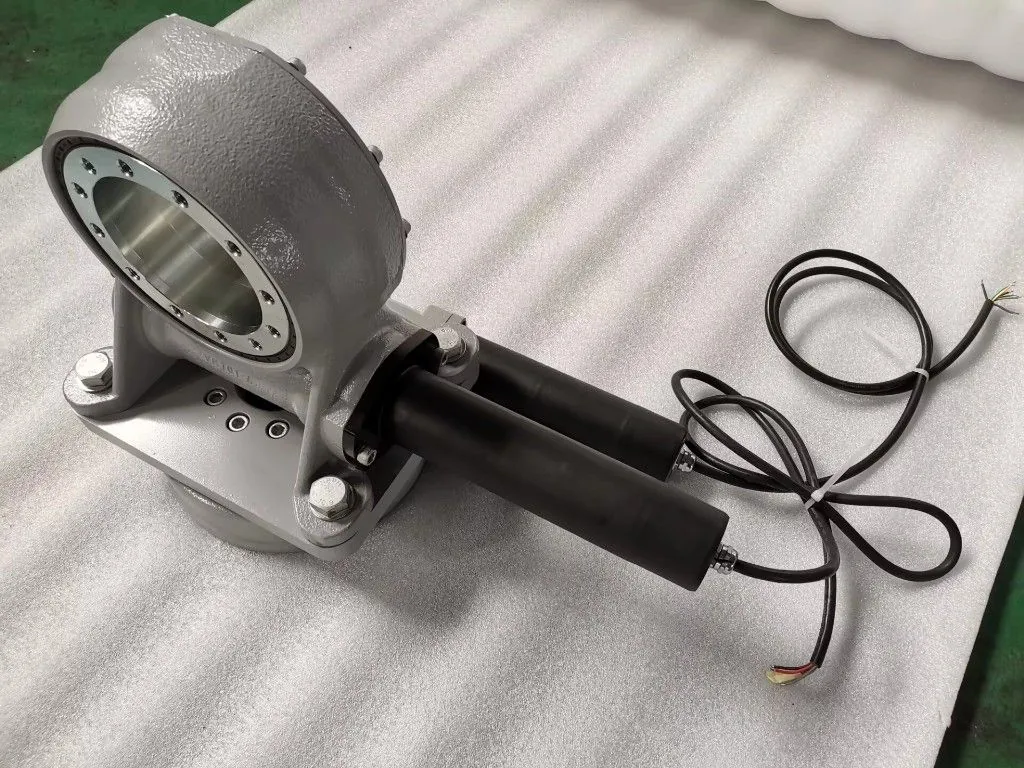

SVH9-61S61-RC-24H15300 Slewing Drive
SVH9 9-inch dual-axis slewing drive with 24VDC IP65 motors.
Key specifications
- Output torque
- 7320 N·m (both axes)
- Holding torque
- Horizontal: 38.7 kN·m; Elevation: 56 kN·m
- Tilting moment torque
- Horizontal: 33.9 kN·m; Elevation: 12 kN·m
- Axial load
- 338 kN
- Gear ratio
- 61:1 / 61:1
- Backlash
- ≤ 0.17°
Product overview
SVH9 9-inch dual-axis slewing drive with 24VDC IP65 motors. 7320 N·m output torque, elevation holding up to 56 kN·m, 61:1 ratios, ≤0.17° precision for large solar trackers and rotary platforms.
- Output torque
- 7320 N·m (both axes)
- Holding torque
- Horizontal: 38.7 kN·m; Elevation: 56 kN·m
- Tilting moment torque
- Horizontal: 33.9 kN·m; Elevation: 12 kN·m
- Axial load
- 338 kN
- Gear ratio
- 61:1 / 61:1
- Backlash
- ≤ 0.17°
Applications
- Large dual-axis solar trackers
- PV / CPV / CSP tracking systems
- Antenna and satellite positioning
- Industrial rotary platforms
- Heavy sensor and camera gimbals
Benefits
- 9-inch dual-axis slewing drive for azimuth and elevation motion
- Output torque 7320 N·m on both axes
- Elevation holding torque 56 kN·m / horizontal holding 38.7 kN·m
- Gear ratio 61:1 on both axes with precision ≤ 0.17°
- 24VDC IP65 reducer motors (24H/15/300) with hall A/B feedback
- Rated output speed 0.025 rpm for precise tracking
Technical specifications
| Drive type | 9-inch dual-axis electric slewing drive |
|---|---|
| Output torque | 7320 N·m (both axes) |
| Holding torque | Horizontal: 38.7 kN·m; Elevation: 56 kN·m |
| Tilting moment torque | Horizontal: 33.9 kN·m; Elevation: 12 kN·m |
| Axial load | 338 kN |
| Gear ratio | 61:1 / 61:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Dimensions & installation drawing
Configuration options
| Parameter | Horizontal Axis | Elevation Axis |
|---|---|---|
| Rated Output Speed | 0.025 rpm | 0.025 rpm |
| Output Torque | 7320 N·m | 7320 N·m |
| Tilting Moment | 33.9 kN·m | 12 kN·m |
| Holding Torque | 38.7 kN·m | 56 kN·m |
| Static Axial Rating | 338 kN | 338 kN |
| Static Radial Rating | 135 kN | 120 kN |
| Dynamic Axial Rating | 71 kN | 61 kN |
| Dynamic Radial Rating | 81 kN | 81 kN |
| Gear Ratio | 61:1 | 61:1 |
| Precision | ≤ 0.17° | ≤ 0.17° |
Installation, electrical and use information
SVH9 Dual-Axis Dimensions & Performance Drawing · OEM Mounting Geometry · 24VDC Reducer Motor Performance & Wiring · Key Installation Dimensions
SVH9 Dual-Axis Dimensions & Performance Drawing

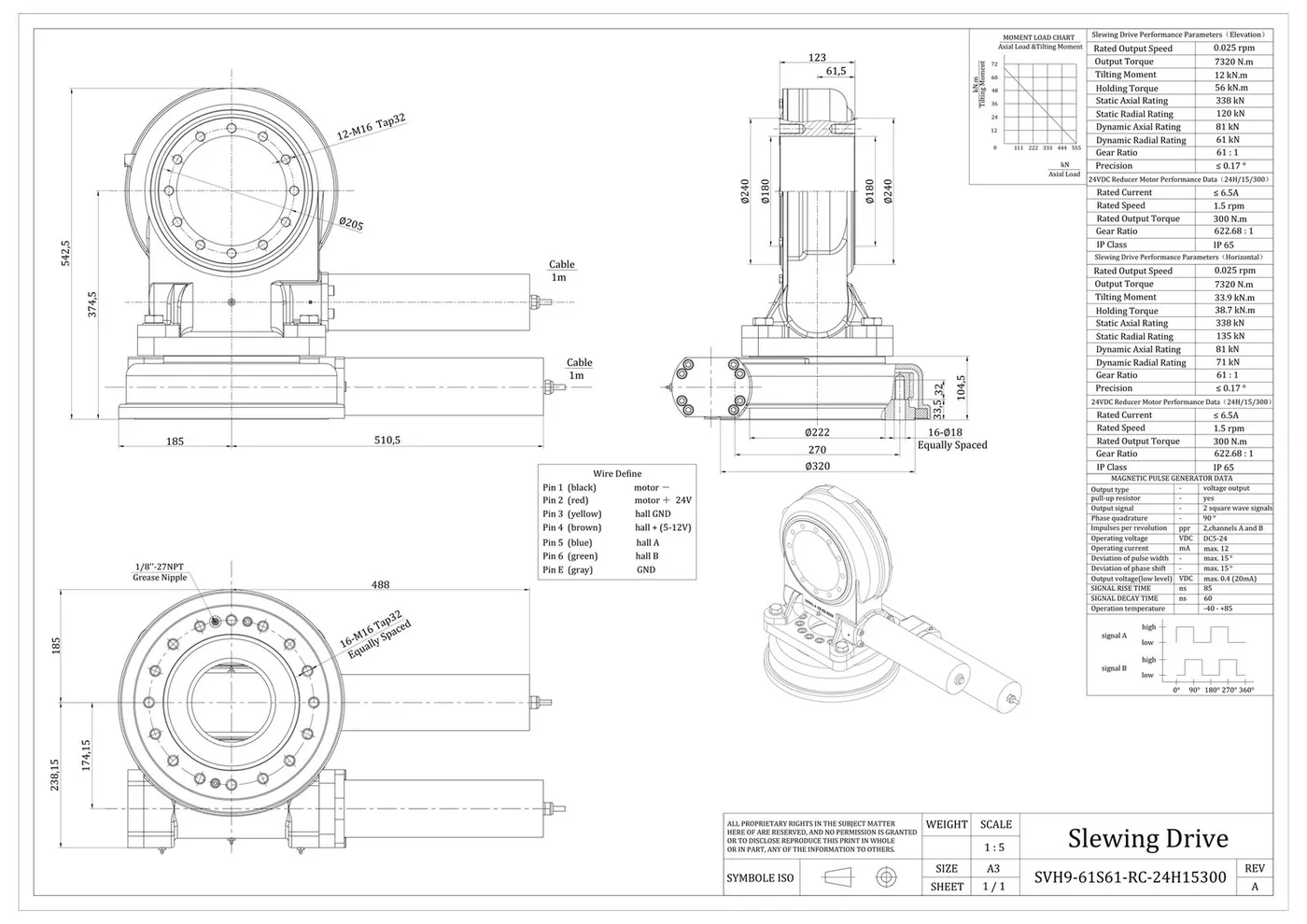

Official dimensional drawing for model SVH9-61S61-RC-24H15300 Rev.A — mounting interfaces, dual-axis load data, 24VDC motor specs and wiring.
Product Overview
OEM Mounting Geometry
Documented Ø320 / Ø240 flanges and 12×M16 / 16×M16 patterns support repeatable machine design.
Technical Data
24VDC Reducer Motor Performance & Wiring
Both axes use 24H/15/300 IP65 reducer motors with magnetic pulse generators for position feedback.
| Item | Value |
|---|---|
| Motor Code | 24H/15/300 |
| Rated Output Torque | 300 N·m |
| Rated Speed | 1.5 rpm |
| Motor Gear Ratio | 622.68:1 |
| IP Class | IP65 |
| Rated Current | ≤ 6.5 A |
| Cable Length | 1 m (drawing reference) |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + 24V |
| 3 | Yellow | Hall GND |
| 4 | Brown | Hall + (5–12V) |
| 5 | Blue | Hall A |
| 6 | Green | Hall B |
| E | Gray | GND |
Hall feedback: 2 square-wave channels with 90° phase quadrature, operating voltage DC 5–24 V.
Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SVH9 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SVH9-61S61-RC-24H15300 |
| Drive Type | 9-inch dual-axis electric slewing drive |
| Motor Interface | 24VDC IP65 with hall encoder |
| Reference Flange Diameters | Ø320 / Ø240 / Ø222 / Ø205 mm |
| Output Face Pattern | 12×M16 Tap 32 |
| Base Mounting Pattern | 16×M16 Tap 32 equally spaced |
| Through-Hole Pattern | 16×Ø18 equally spaced |
| Grease Nipple | 1/8''-27 NPT |
Applications
Can mounting and cables be customized?
Yes. Flange interfaces, motor packages, cable length and feedback options can be reviewed against your mechanical layout.
Request technical documents
FAQ
What is the SVH9?
The SVH9 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SVH9?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SVH9?
Key ratings from the product specifications include voltage 24V, load 7320 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SVH9?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request a quote
Quote context
