Slewing Drive

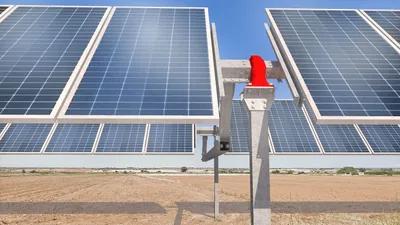

VH7-60S110-RC-2415300 Slewing Drive
VH7 7-inch vertical slewing drive for solar trackers.
Key specifications
- Output torque
- 6300 N·m
- Holding torque
- 45 kN·m
- Tilting moment torque
- 10 kN·m
- Axial load
- 100 kN
- Radial load
- 65 kN
- Gear ratio
- 60:1
Product overview
VH7 7-inch vertical slewing drive for solar trackers. 24VDC IP65, 6300 N·m torque, 45 kN·m holding, 60:1 ratio, ±60° hard limit, ≤0.2° precision for single-axis PV tracking systems.
- Output torque
- 6300 N·m
- Holding torque
- 45 kN·m
- Tilting moment torque
- 10 kN·m
- Axial load
- 100 kN
- Radial load
- 65 kN
- Gear ratio
- 60:1

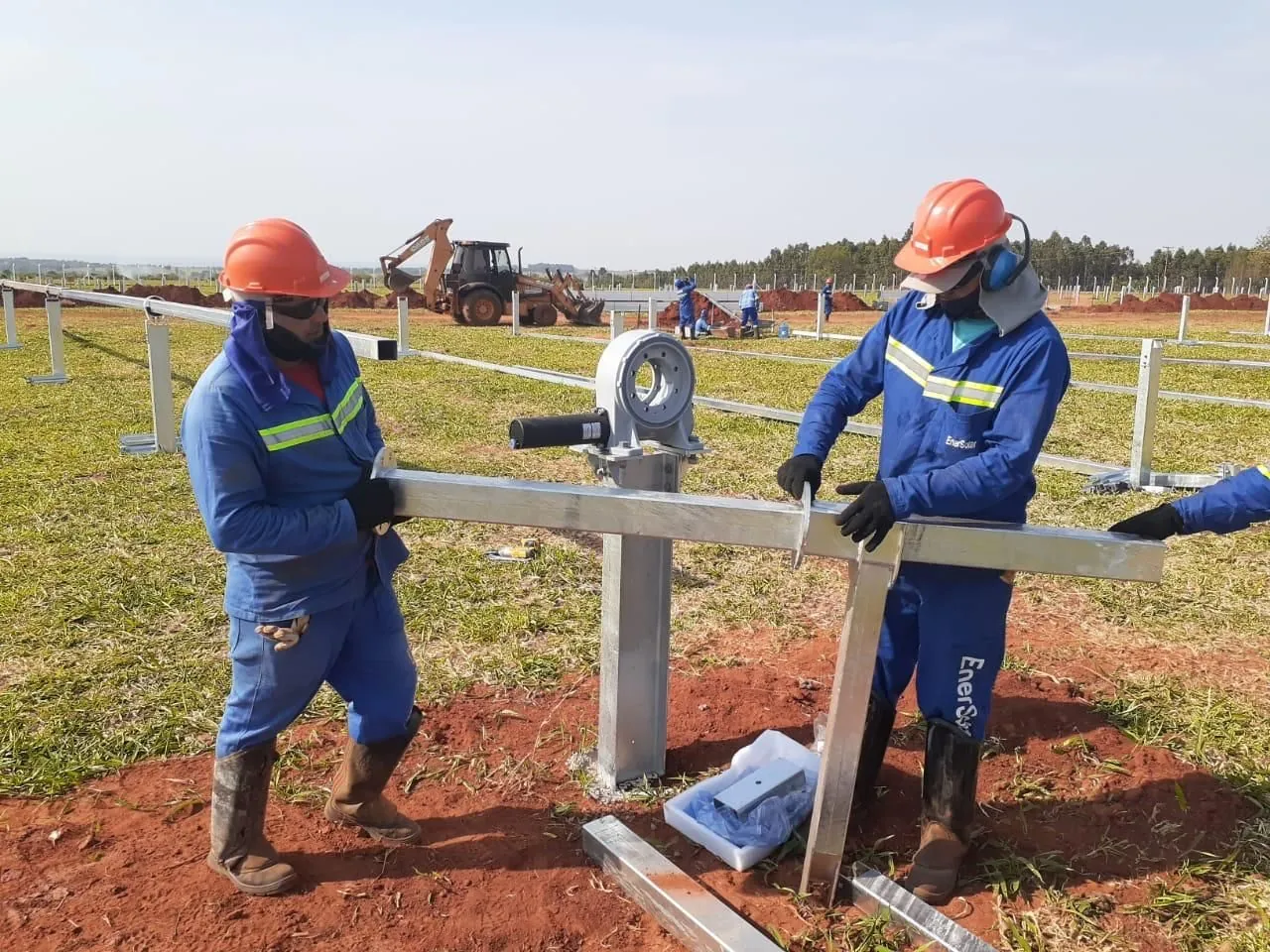

Applications

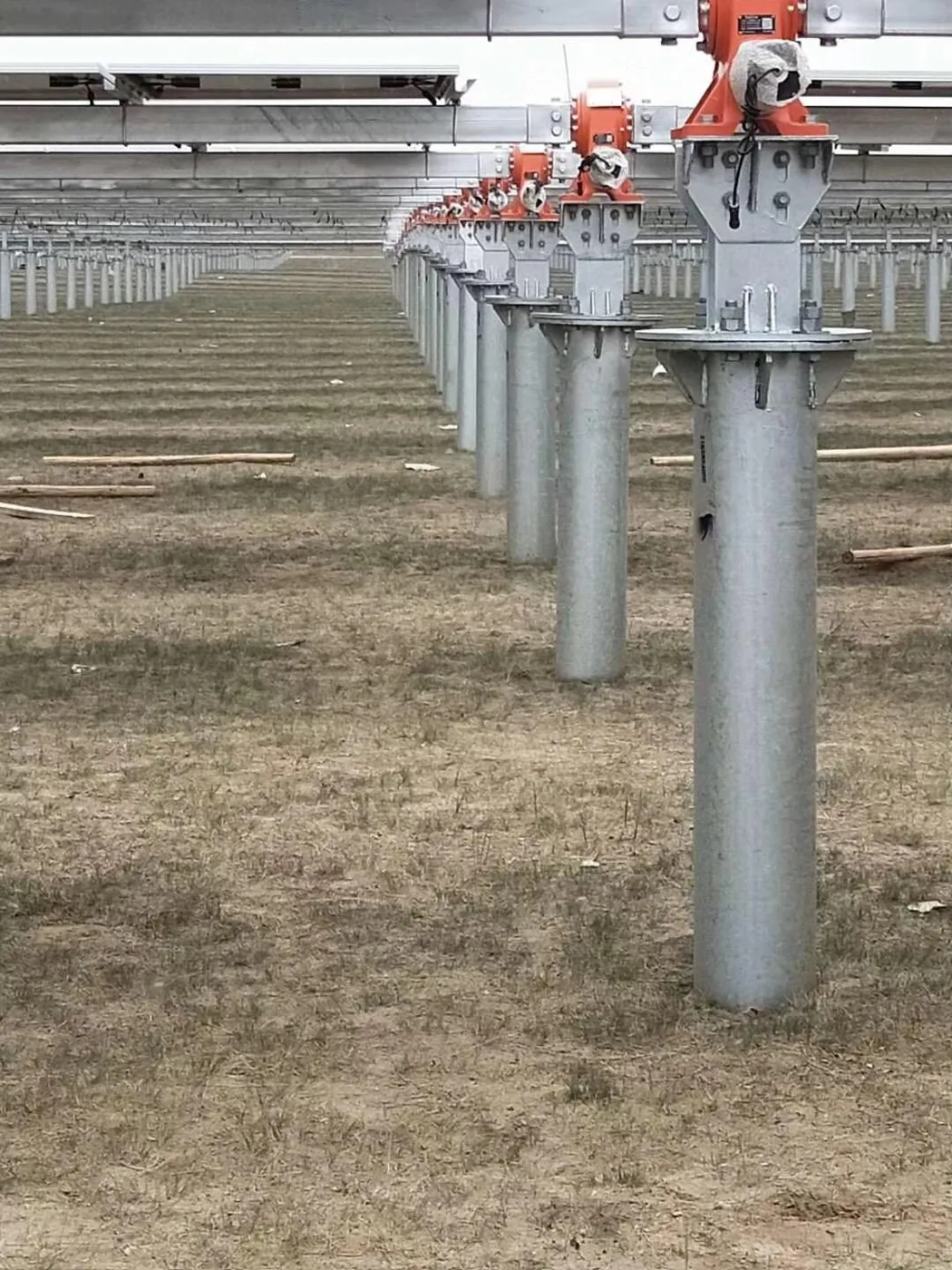

- Horizontal single-axis solar trackers
- Utility-scale PV plants
- Commercial and industrial solar farms
- Desert and outdoor tracking systems
- OEM solar tracker platforms
Benefits
- 7-inch vertical slewing drive for solar trackers
- Rated output torque 6300 N·m / holding torque 45 kN·m
- Hard travel limit ±60°
- Gear ratio 60:1 with precision ≤ 0.2°
- 24VDC IP65 motor with Weipu SP21 connector
- C3 corrosion protection for outdoor solar sites
Technical specifications
| Drive type | 7-inch vertical slewing drive for solar tracker |
|---|---|
| Output torque | 6300 N·m |
| Holding torque | 45 kN·m |
| Tilting moment torque | 10 kN·m |
| Axial load | 100 kN |
| Radial load | 65 kN |
| Gear ratio | 60:1 |
| Backlash | ≤ 0.2° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Dimensions & installation drawing
Installation, electrical and use information
VH7 Dimensions & Performance Drawing · 24VDC Field Wiring · 24VDC Motor Performance & Connector · Key Installation Dimensions
VH7 Dimensions & Performance Drawing

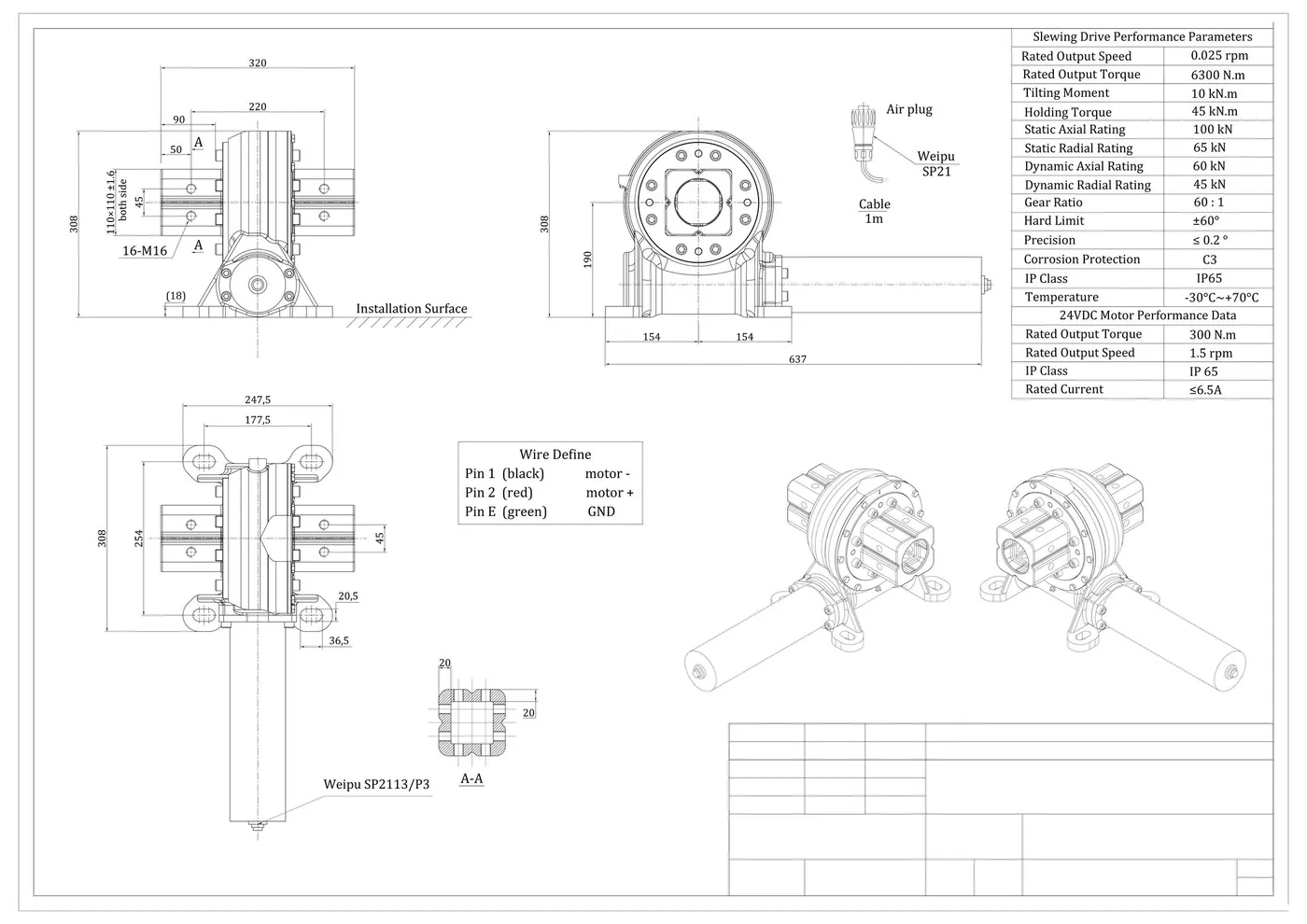

Official dimensional drawing for model VH7-60S110-RC-2415300 Rev.A — mounting interfaces, motor data, hard limits and wiring.
Product Overview
24VDC Field Wiring
IP65 motor with Weipu SP21 air plug and 1 m cable for faster site connection.
Technical Data

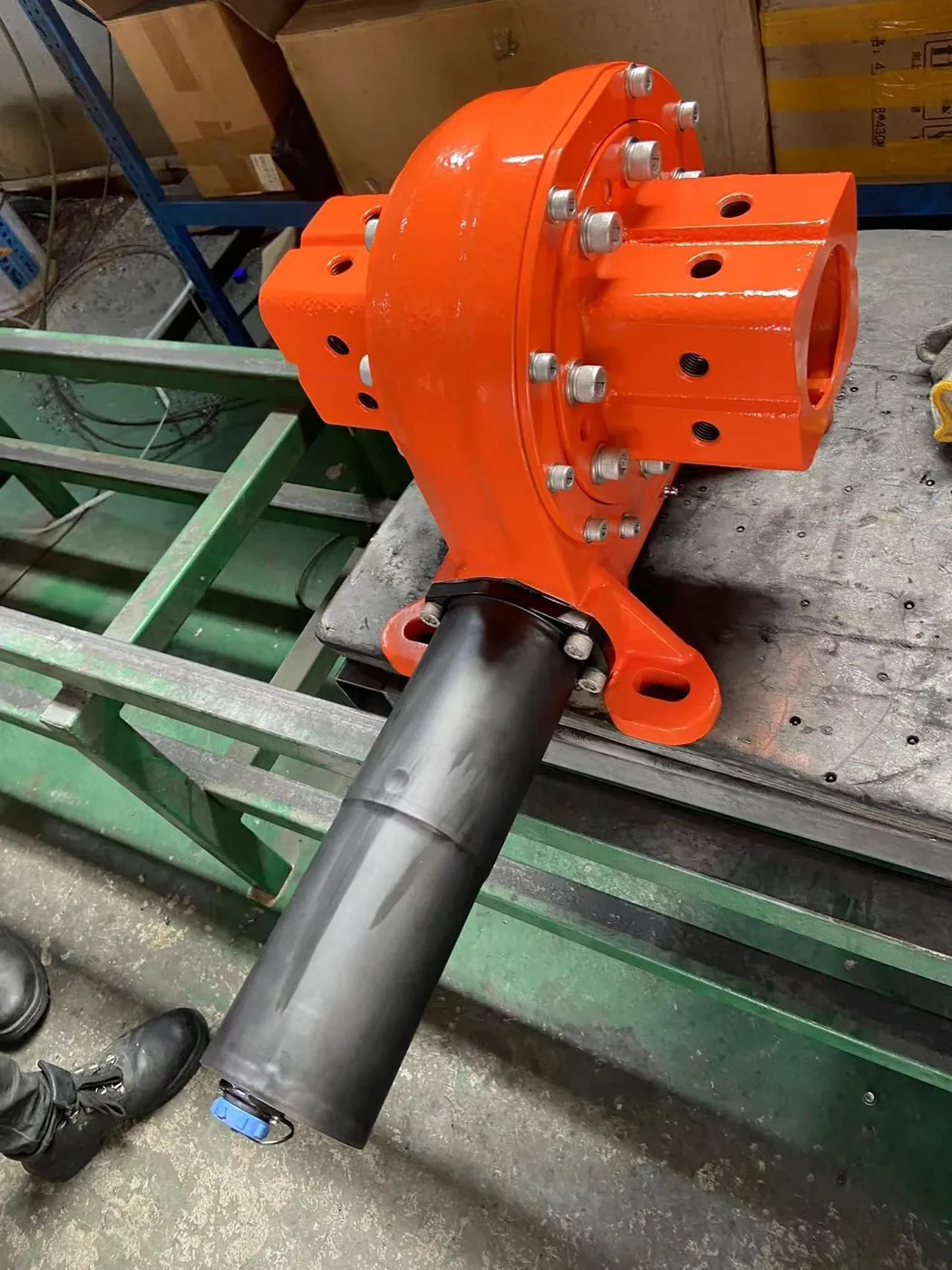

24VDC Motor Performance & Connector
VH7 uses a 24VDC IP65 motor with a Weipu SP21 air-plug cable for outdoor solar installations.
| Item | Value |
|---|---|
| Motor Voltage | 24 VDC |
| Motor Output Torque | 300 N·m |
| Motor Output Speed | 1.5 rpm |
| Rated Current | ≤ 6.5 A |
| Motor IP Class | IP65 |
| Connector | Weipu SP21 / SP2113/P3 |
| Cable Length | Approx. 1 m |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + |
| E | Green | GND |

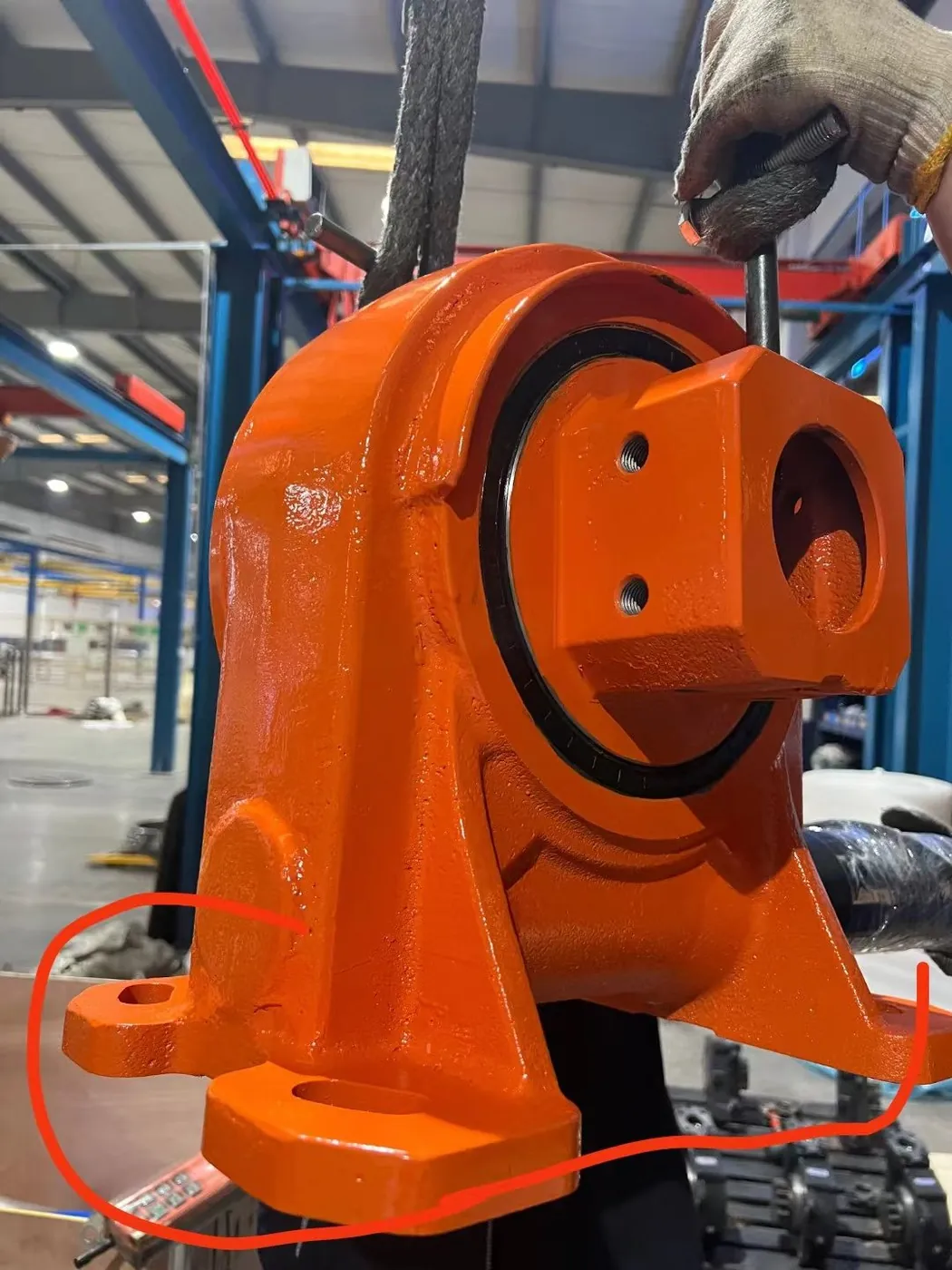

Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the VH7 drawing for early tracker structural layout.
| Item | Value |
|---|---|
| Product Model | VH7-60S110-RC-2415300 |
| Drive Type | 7-inch vertical slewing drive for solar tracker |
| Overall Width (approx.) | 637 mm (incl. motor housing) |
| Base / Height Reference | 308 mm footprint class / center height ≈ 190 mm |
| Side Mounting | 16×M16 on 110×110 mm pattern (both sides) |
| Base Feet | Slotted holes approx. 20.5 × 36.5 mm |
| Motor Interface | 24VDC IP65 with Weipu SP21 air plug |
Applications
Can mounting and connectors be customized?
Yes. Base feet, side mounting, cable length and connector options can be reviewed for OEM tracker programs.
Request technical documents
FAQ
What is the VH7?
The VH7 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the VH7?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the VH7?
Key ratings from the product specifications include voltage 24V, load 6300 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the VH7?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
