Slewing Drive

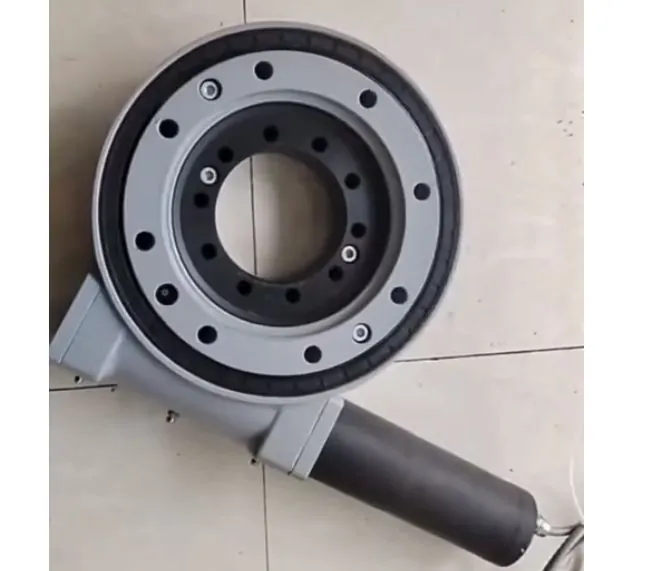

SC7-71-RC-24H3033 Slewing Drive
SC7 7-inch slewing drive with 24VDC IP65 motor.
Key specifications
- Output torque
- 937 N·m / 691 lbf·ft
- Holding torque
- 10400 N·m / 7671 lbf·ft
- Tilting moment torque
- 13500 N·m / 9958 lbf·ft
- Axial load
- 133 kN / 29925 lbf
- Radial load
- 53 kN / 11925 lbf
- Gear ratio
- 71:1
Product overview
SC7 7-inch slewing drive with 24VDC IP65 motor. 937 N·m output torque, 10400 N·m holding torque, 13500 N·m tilting moment, 71:1 ratio, ≤0.17° precision for solar trackers and rotary platforms.
- Output torque
- 937 N·m / 691 lbf·ft
- Holding torque
- 10400 N·m / 7671 lbf·ft
- Tilting moment torque
- 13500 N·m / 9958 lbf·ft
- Axial load
- 133 kN / 29925 lbf
- Radial load
- 53 kN / 11925 lbf
- Gear ratio
- 71:1
Applications
- Solar trackers
- PV tracking systems
- Antenna positioning
- Industrial rotary actuation
- OEM motion platforms
Benefits
- 7-inch worm-gear slewing drive with 24VDC IP65 motor
- Output torque 937 N·m / holding torque 10400 N·m
- Tilting moment 13500 N·m
- Gear ratio 71:1 with precision ≤ 0.17°
- Rated output speed 0.042 rpm
- Hall A/B feedback for closed-loop positioning
Technical specifications
| Drive type | 7-inch electric worm-gear slewing drive |
|---|---|
| Output torque | 937 N·m / 691 lbf·ft |
| Holding torque | 10400 N·m / 7671 lbf·ft |
| Tilting moment torque | 13500 N·m / 9958 lbf·ft |
| Axial load | 133 kN / 29925 lbf |
| Radial load | 53 kN / 11925 lbf |
| Gear ratio | 71:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Dimensions & installation drawing
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.042 rpm | — |
| Output Torque | 937 N·m | 691 lbf·ft |
| Tilting Moment | 13500 N·m | 9958 lbf·ft |
| Holding Torque | 10400 N·m | 7671 lbf·ft |
| Static Axial Rating | 133 kN | 29925 lbf |
| Static Radial Rating | 53 kN | 11925 lbf |
| Dynamic Axial Rating | 32 kN | 7200 lbf |
| Dynamic Radial Rating | 28 kN | 6300 lbf |
| Gear Ratio | 71:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 24 kg | — |
Installation, electrical and use information
SC7 Dimensions & Performance Drawing · OEM Mounting Geometry · 24VDC Motor Performance & Wiring · Key Installation Dimensions

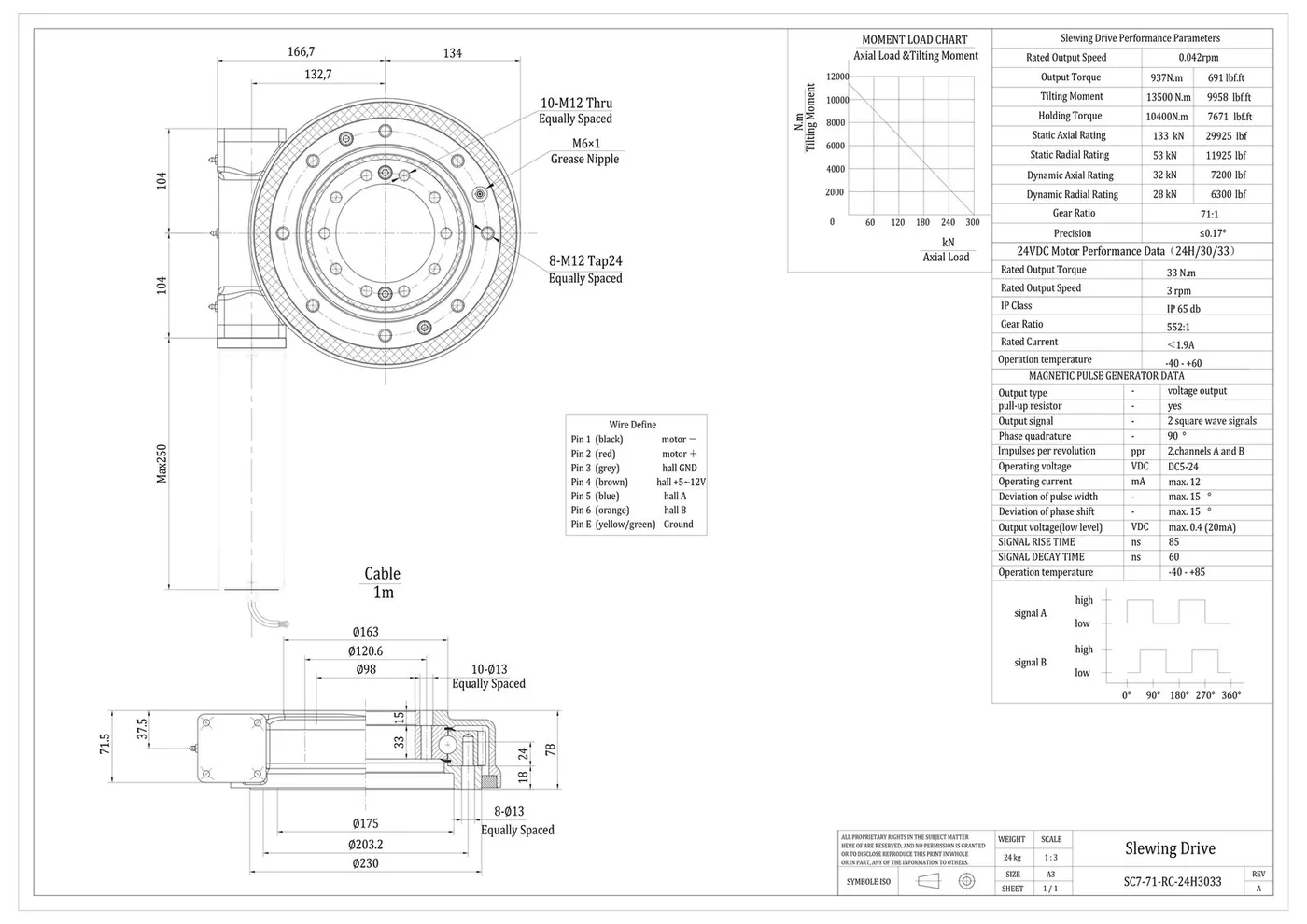

SC7 Dimensions & Performance Drawing
Official dimensional drawing for model SC7-71-RC-24H3033 Rev.A — mounting interfaces, motor data, load chart and wiring.
Product Overview
OEM Mounting Geometry
10×M12 thru / 8×M12 tap patterns and Ø230 flange support repeatable machine design.
Technical Data
24VDC Motor Performance & Wiring
SC7 uses a 24H/30/33 IP65 gear motor with magnetic pulse generator for closed-loop positioning.
| Item | Value |
|---|---|
| Motor Code | 24H/30/33 (24H3033) |
| Rated Output Torque | 33 N·m |
| Rated Output Speed | 3 rpm |
| Motor Gear Ratio | 552:1 |
| IP Class | IP65 |
| Rated Current | < 1.9 A |
| Operating Temperature | -40°C ~ +60°C |
| Cable Length | 1 m (drawing reference) |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + |
| 3 | Grey | Hall GND |
| 4 | Brown | Hall + (5–12V) |
| 5 | Blue | Hall A |
| 6 | Orange | Hall B |
| E | Yellow/Green | Ground |
Hall feedback: 2 square-wave channels with 90° phase quadrature, operating voltage DC 5–24 V.
Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SC7 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC7-71-RC-24H3033 |
| Drive Type | 7-inch electric worm-gear slewing drive |
| Motor Interface | 24VDC IP65 with hall encoder |
| Outer Diameter | Ø230 mm |
| Bolt Circles | Ø203.2 mm / Ø120.6 mm |
| Inner Bore | Ø98 mm |
| Housing Height | Approx. 78 mm |
| Mounting Pattern | 10×M12 Thru / 8×M12 Tap 24 |
| Through Holes | 10×Ø13 / 8×Ø13 equally spaced |
| Grease Nipple | M6×1 |
Applications
Can mounting and cables be customized?
Yes. Flange interfaces, motor packages, cable length and feedback options can be reviewed against your mechanical layout.
Request technical documents
FAQ
What is the SC7?
The SC7 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SC7?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC7?
Key ratings from the product specifications include voltage 24V, load 937 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC7?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
Request a quote
Quote context
