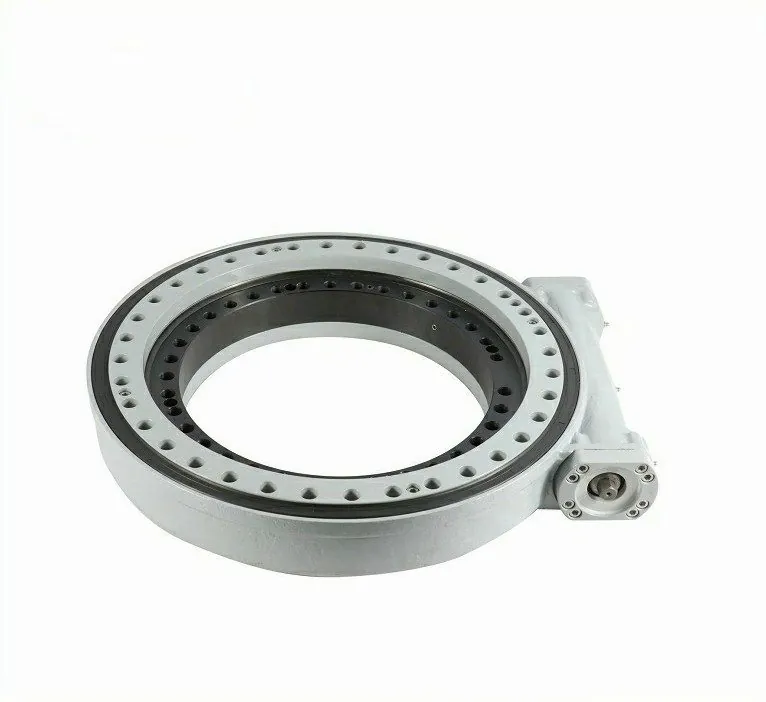

Slewing Drive

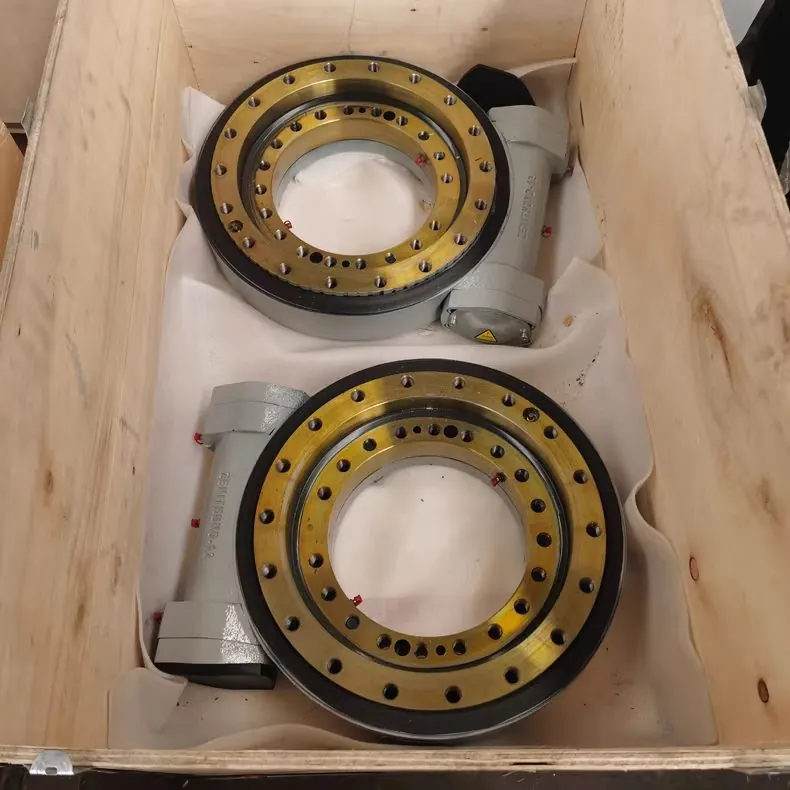

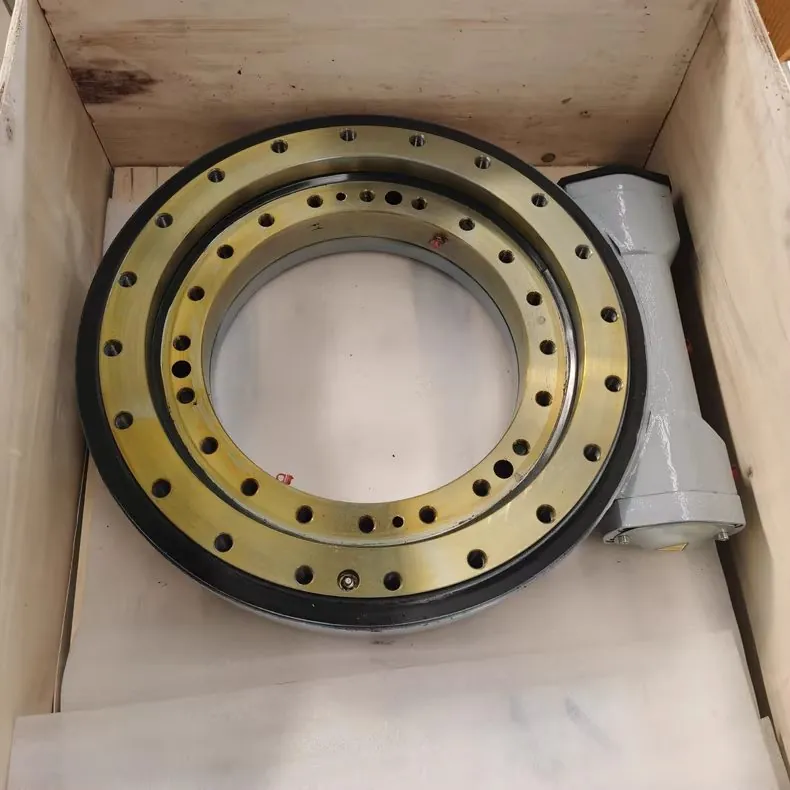

SC14-85-RC-24H15300 Slewing Drive
SC14 14-inch slewing drive with 24VDC IP65 motor.
Key specifications
- Output torque
- 10.2 kN·m / 7.53×10³ lbf·ft
- Holding torque
- 48 kN·m / 35×10³ lbf·ft
- Tilting moment torque
- 67.8 kN·m / 50×10³ lbf·ft
- Axial load
- 555 kN / 125×10³ lbf
- Radial load
- 222 kN / 50×10³ lbf
- Gear ratio
- 85:1
Product overview
SC14 14-inch slewing drive with 24VDC IP65 motor. 10.2 kN·m output torque, 48 kN·m holding torque, 67.8 kN·m tilting moment, 85:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
- Output torque
- 10.2 kN·m / 7.53×10³ lbf·ft
- Holding torque
- 48 kN·m / 35×10³ lbf·ft
- Tilting moment torque
- 67.8 kN·m / 50×10³ lbf·ft
- Axial load
- 555 kN / 125×10³ lbf
- Radial load
- 222 kN / 50×10³ lbf
- Gear ratio
- 85:1
Applications
- Large solar trackers
- PV / CSP tracking systems
- Antenna positioning
- Industrial rotary actuation
- Aerial platforms and machinery
Benefits
- 14-inch worm-gear slewing drive with 24VDC IP65 reducer motor
- Output torque 10.2 kN·m / holding torque 48 kN·m
- Tilting moment 67.8 kN·m
- Gear ratio 85:1 with precision ≤ 0.17°
- Rated output speed 0.018 rpm
- Hall A/B feedback for closed-loop positioning
Technical specifications
| Drive type | 14-inch electric worm-gear slewing drive |
|---|---|
| Output torque | 10.2 kN·m / 7.53×10³ lbf·ft |
| Holding torque | 48 kN·m / 35×10³ lbf·ft |
| Tilting moment torque | 67.8 kN·m / 50×10³ lbf·ft |
| Axial load | 555 kN / 125×10³ lbf |
| Radial load | 222 kN / 50×10³ lbf |
| Gear ratio | 85:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Dimensions & installation drawing
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.018 rpm | — |
| Output Torque | 10.2 kN·m | 7.53×10³ lbf·ft |
| Tilting Moment | 67.8 kN·m | 50×10³ lbf·ft |
| Holding Torque | 48 kN·m | 35×10³ lbf·ft |
| Static Axial Rating | 555 kN | 125×10³ lbf |
| Static Radial Rating | 222 kN | 50×10³ lbf |
| Gear Ratio | 85:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 72 kg | — |
Installation, electrical and use information
SC14 Dimensions & Performance Drawing · OEM Mounting Geometry · 24VDC Motor Performance & Wiring · Key Installation Dimensions

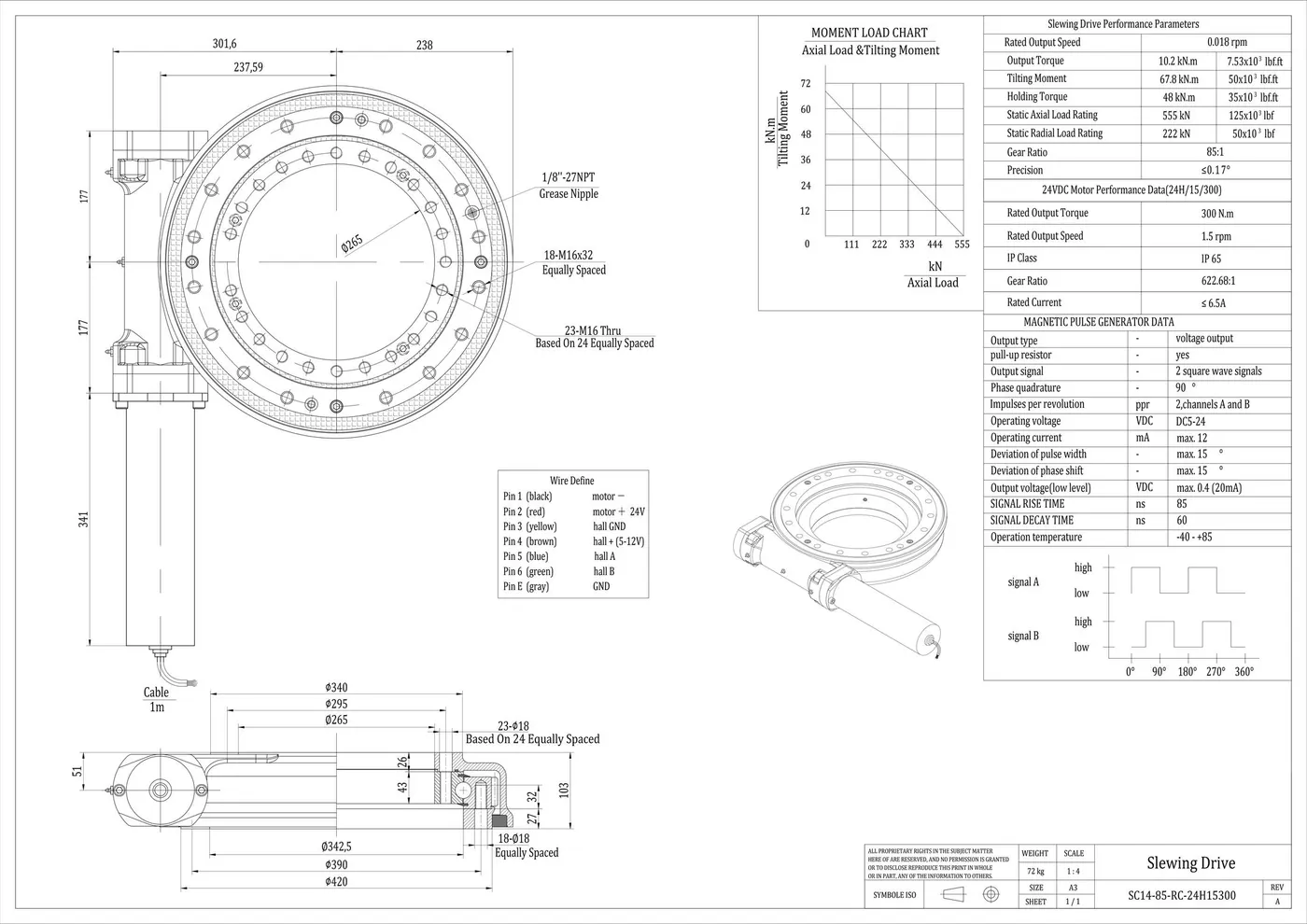

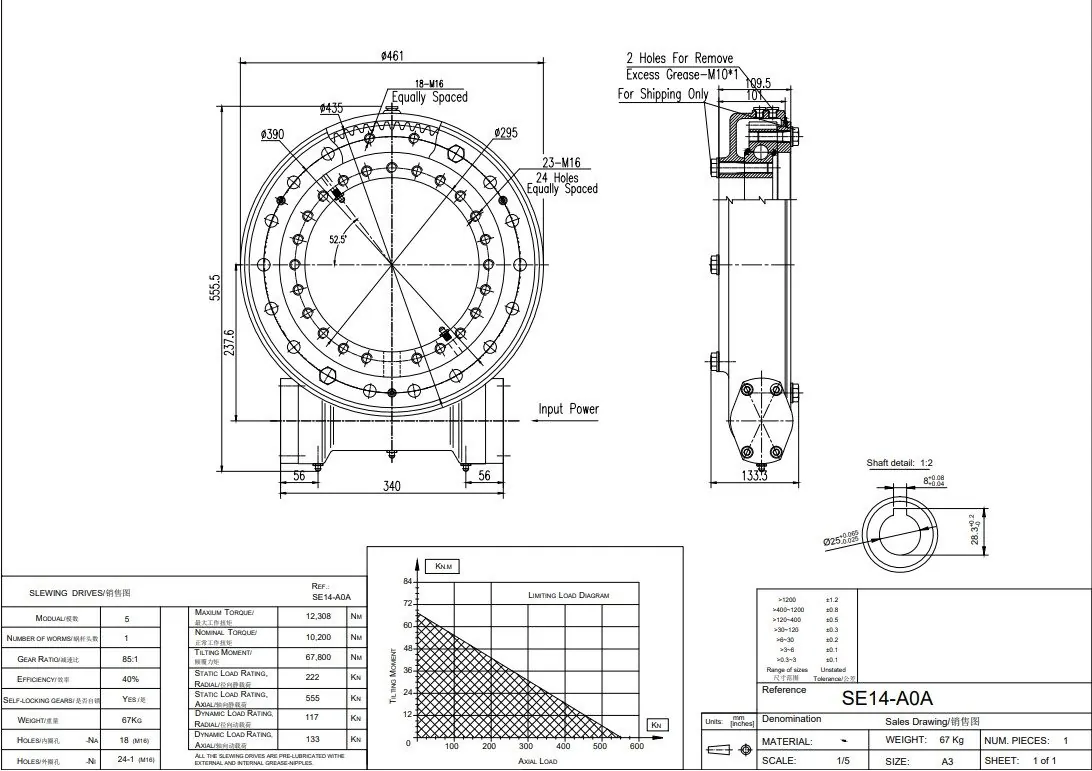

SC14 Dimensions & Performance Drawing
Official dimensional drawing for model SC14-85-RC-24H15300 Rev.A — mounting interfaces, motor data, load chart and wiring.
Product Overview
OEM Mounting Geometry
18×M16 / 23×M16 patterns and Ø420 envelope support repeatable machine design.
Technical Data
24VDC Motor Performance & Wiring
SC14 uses a 24H/15/300 IP65 reducer motor with magnetic pulse generator for closed-loop positioning.
| Item | Value |
|---|---|
| Motor Code | 24H/15/300 (24H15300) |
| Rated Voltage | 24 VDC |
| Rated Current | ≤ 6.5 A |
| Motor Output Torque | 300 N·m |
| Motor Output Speed | 1.5 rpm |
| Motor Gear Ratio | 622.68:1 |
| IP Class | IP65 |
| Operating Temperature | -40°C ~ +85°C |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + 24V |
| 3 | Yellow | Hall GND |
| 4 | Brown | Hall + (5–12V) |
| 5 | Blue | Hall A |
| 6 | Green | Hall B |
| E | Gray | GND |
Hall feedback: 2 square-wave channels with 90° phase quadrature, operating voltage DC 5–24 V.
Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SC14 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC14-85-RC-24H15300 |
| Drive Type | 14-inch electric worm-gear slewing drive |
| Motor Interface | 24VDC IP65 with hall encoder |
| Outer Diameter | Ø420 mm |
| Housing Height | 103 mm |
| Inner Mounting | 18×M16×32 equally spaced |
| Outer Mounting | 23×M16 thru (on 24-hole pattern) |
| Grease Nipple | 1/8''-27 NPT |
| Cable Length | Approx. 1 m (standard) |
Applications
Can mounting and cables be customized?
Yes. Flange interfaces, motor packages, cable length and feedback options can be reviewed against your mechanical layout for OEM / ODM projects.
Request technical documents
FAQ
What is the SC14?
The SC14 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SC14?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC14?
Key ratings from the product specifications include voltage 24V, load 10.2 kN·m / 7.53×10³ lbf·ft, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC14?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
