Slewing Drive
SVH7-71-60-RC-24H30100 Slewing Drive
SVH7 7-inch dual-axis slewing drive with 24VDC IP65 motors.
Key specifications
- Output torque
- Horizontal: 937 N·m; Elevation: 2100 N·m
- Holding torque
- Horizontal: 10.4 kN·m; Elevation: 42 kN·m
- Tilting moment torque
- Horizontal: 13.5 kN·m; Elevation: 10 kN·m
- Gear ratio
- Horizontal: 71:1; Elevation: 60:1
- Backlash
- ≤ 0.17°
Product overview
SVH7 7-inch dual-axis slewing drive with 24VDC IP65 motors. Elevation torque 2100 N·m, holding up to 42 kN·m, ratios 71:1 / 60:1, ≤0.17° precision for solar trackers and rotary platforms.
- Output torque
- Horizontal: 937 N·m; Elevation: 2100 N·m
- Holding torque
- Horizontal: 10.4 kN·m; Elevation: 42 kN·m
- Tilting moment torque
- Horizontal: 13.5 kN·m; Elevation: 10 kN·m
- Gear ratio
- Horizontal: 71:1; Elevation: 60:1
- Backlash
- ≤ 0.17°
Applications
- Dual-axis solar trackers
- PV / CPV / CSP tracking systems
- Antenna and satellite positioning
- Industrial rotary platforms
- Heavy sensor and camera gimbals
Benefits
- 7-inch dual-axis slewing drive for azimuth and elevation motion
- Elevation output torque 2100 N·m / holding torque 42 kN·m
- Horizontal output torque 937 N·m / holding torque 10.4 kN·m
- Gear ratios 71:1 (horizontal) and 60:1 (elevation)
- Precision ≤ 0.17° on both axes
- 24VDC IP65 motors with hall A/B feedback
Technical specifications
| Drive type | 7-inch dual-axis electric slewing drive |
|---|---|
| Output torque | Horizontal: 937 N·m; Elevation: 2100 N·m |
| Holding torque | Horizontal: 10.4 kN·m; Elevation: 42 kN·m |
| Tilting moment torque | Horizontal: 13.5 kN·m; Elevation: 10 kN·m |
| Gear ratio | Horizontal: 71:1; Elevation: 60:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Dimensions & installation drawing
Configuration options
| Parameter | Horizontal Axis | Elevation Axis |
|---|---|---|
| Rated Output Speed | 0.042 rpm | 0.05 rpm |
| Rated Output Torque | 937 N·m | 2100 N·m |
| Tilting Moment | 13.5 kN·m | 10 kN·m |
| Holding Torque | 10.4 kN·m | 42 kN·m |
| Static Axial Rating | 133 kN | 110 kN |
| Static Radial Rating | 53 kN | 60 kN |
| Gear Ratio | 71:1 | 60:1 |
| Precision | ≤ 0.17° | ≤ 0.17° |
| Operating Temperature | -30°C ~ +60°C | -30°C ~ +60°C |
Configuration options
| Parameter | Horizontal Motor | Elevation Motor |
|---|---|---|
| Motor Code | 24H/30/15 (family) | 24H/30/100 |
| Rated Torque | 33 N·m | 100 N·m |
| Rated Speed | 3 rpm | 3 rpm |
| Motor Gear Ratio | High-ratio planetary | 236:1 |
| IP Class | IP65 | IP65 |
| Rated Current | < 1.9 A | Approx. 4.5 A |
| Motor Temp. Range | -40°C ~ +80°C | -40°C ~ +80°C |
Installation, electrical and use information
SVH7 Dual-Axis Dimensions & Performance Drawing · OEM Mounting Geometry · 24VDC Motor Performance & Wiring · Key Installation Dimensions

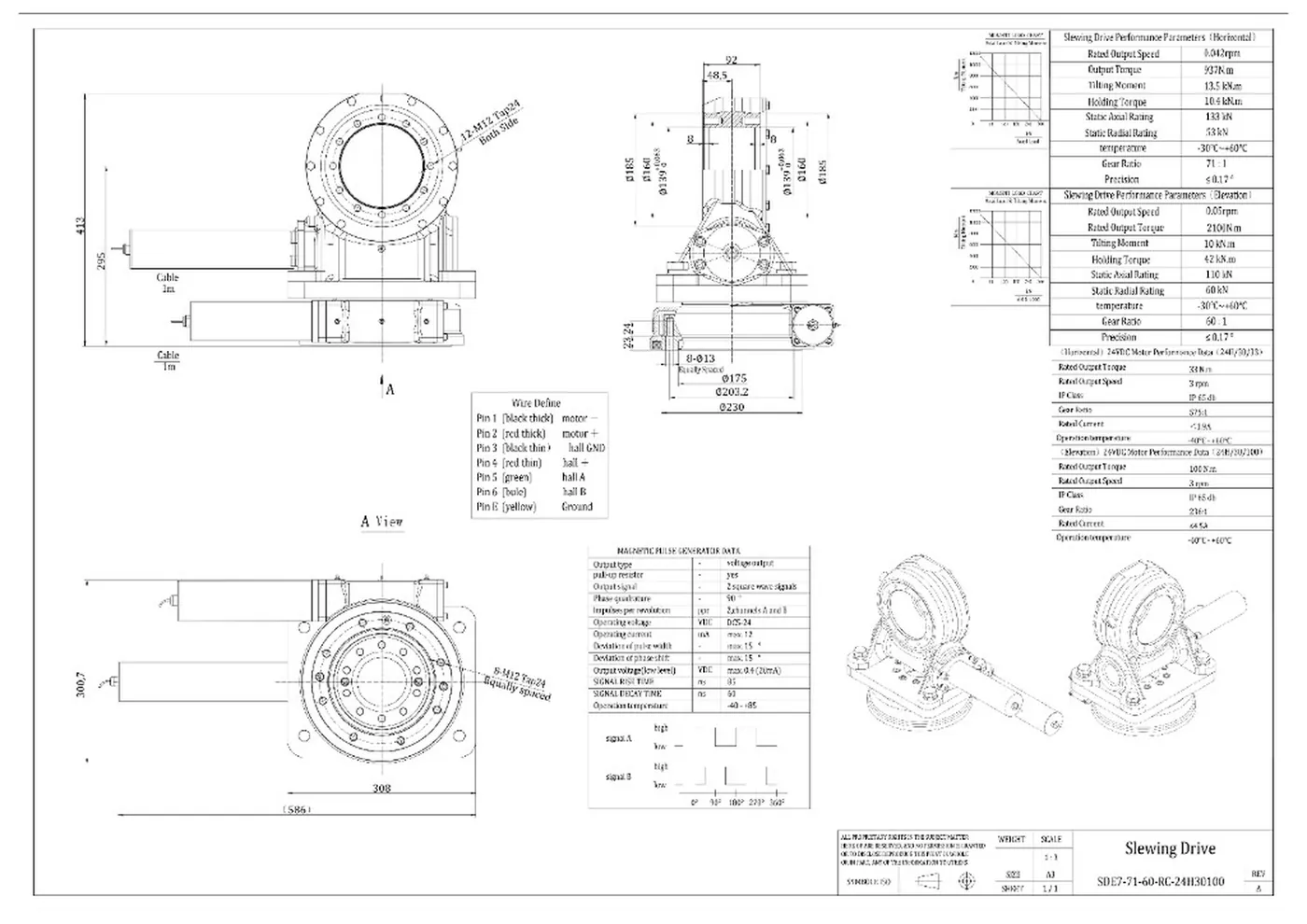

SVH7 Dual-Axis Dimensions & Performance Drawing
Official dimensional drawing for model SVH7-71-60-RC-24H30100 (drawing family SDE7-71-60-RC-24H3D100 Rev.A) — mounting interfaces, dual-axis load data, motor specs and wiring.
Product Overview
OEM Mounting Geometry
Documented Ø230 / Ø203.2 flanges and 12-M12 / 8-M12 patterns support repeatable machine design.
Technical Data
24VDC Motor Performance & Wiring
Both axes use 24VDC IP65 gear motors with magnetic pulse generators for position feedback.
| Item | Horizontal Motor | Elevation Motor |
|---|---|---|
| Motor Code | 24H/30/15 (family) | 24H/30/100 |
| Rated Torque | 33 N·m | 100 N·m |
| Rated Speed | 3 rpm | 3 rpm |
| Motor Gear Ratio | High-ratio planetary | 236:1 |
| IP Class | IP65 | IP65 |
| Rated Current | < 1.9 A | Approx. 4.5 A |
| Motor Temp. Range | -40°C ~ +80°C | -40°C ~ +80°C |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black (thick) | Motor − |
| 2 | Red (thick) | Motor + |
| 3 | Black (thin) | Hall GND |
| 4 | Red (thin) | Hall + |
| 5 | Green | Hall A |
| 6 | Blue | Hall B |
| E | Yellow | Ground |
Hall feedback: 2 square-wave channels with 90° phase quadrature, operating voltage DC 5–24 V.

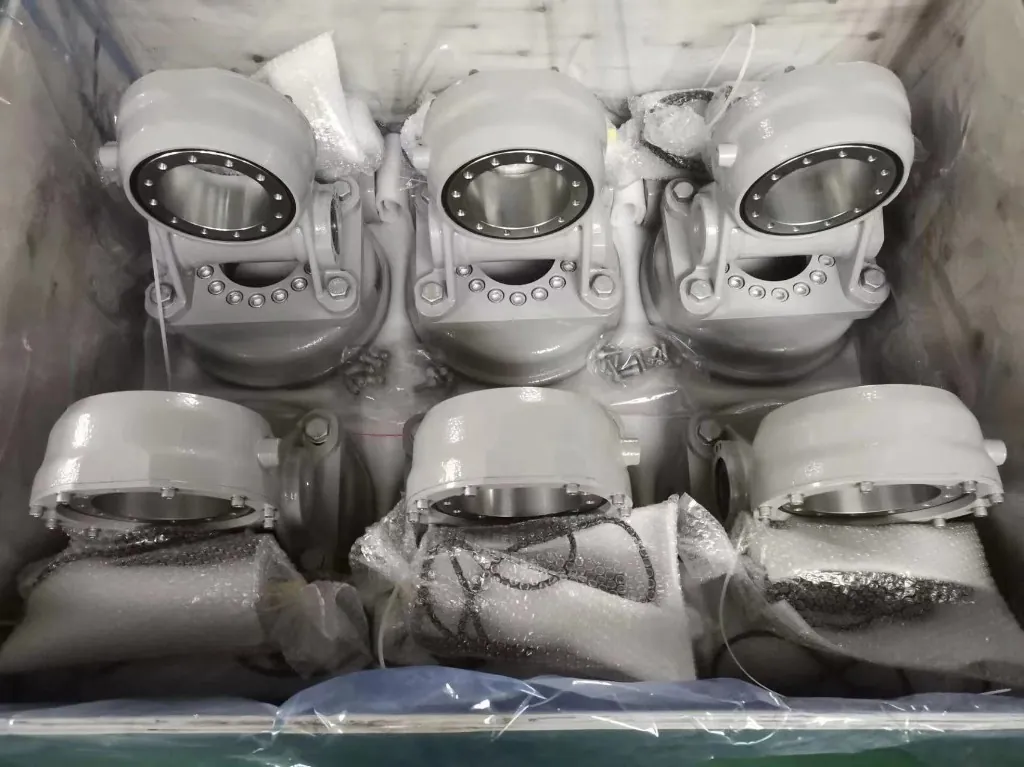

Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SVH7 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SVH7-71-60-RC-24H30100 |
| Drive Type | 7-inch dual-axis electric slewing drive |
| Motor Interface | 24VDC IP65 with hall encoder |
| Typical Envelope Height | Approx. 413 mm |
| Reference Base Width | Approx. 308 mm |
| Envelope with Motors | Approx. 586 mm overall length |
| Main Body Thickness | Approx. 92 mm |
| Flange / Bolt Circle | Ø230 / Ø203.2 mm, 8-Ø13 |
| Output Face Pattern | 12×M12 Tap 24 (both sides) |
| Base Mounting Pattern | 8×M12 Tap 24 equally spaced |
Applications
Can mounting and cables be customized?
Yes. Flange interfaces, motor packages, cable length and feedback options can be reviewed against your mechanical layout.
Request technical documents
FAQ
What is the SVH7?
The SVH7 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SVH7?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SVH7?
Key ratings from the product specifications include voltage 24V, load 937 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SVH7?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
