Slewing Drive

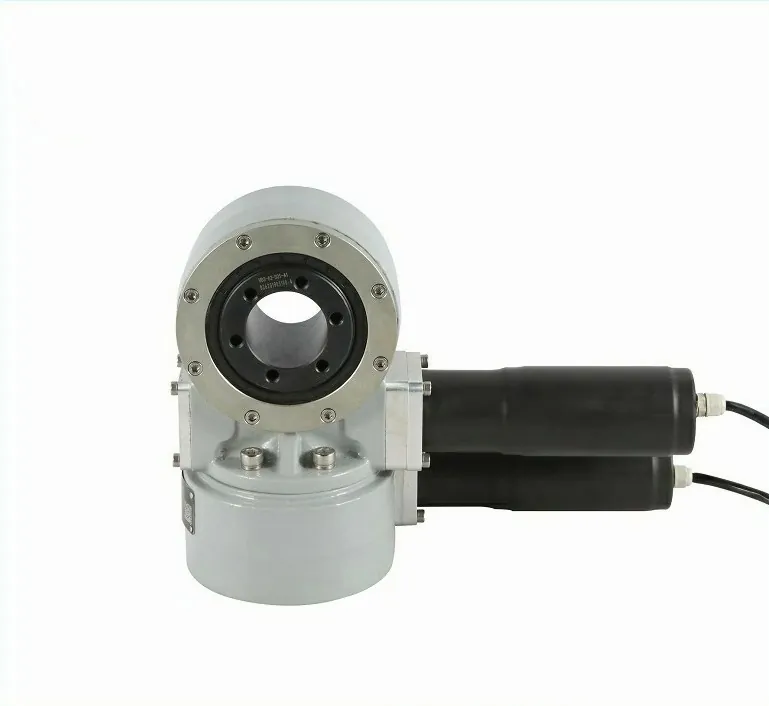

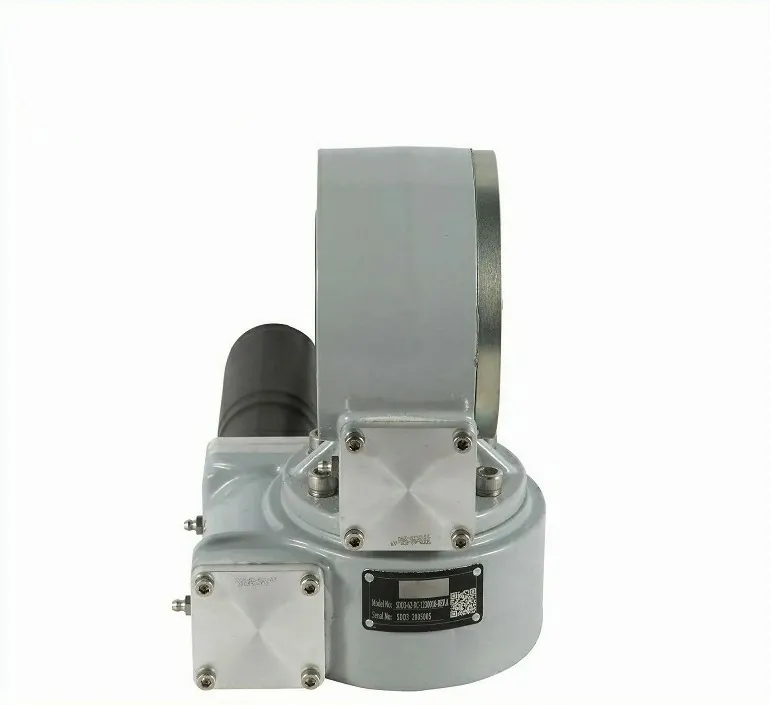

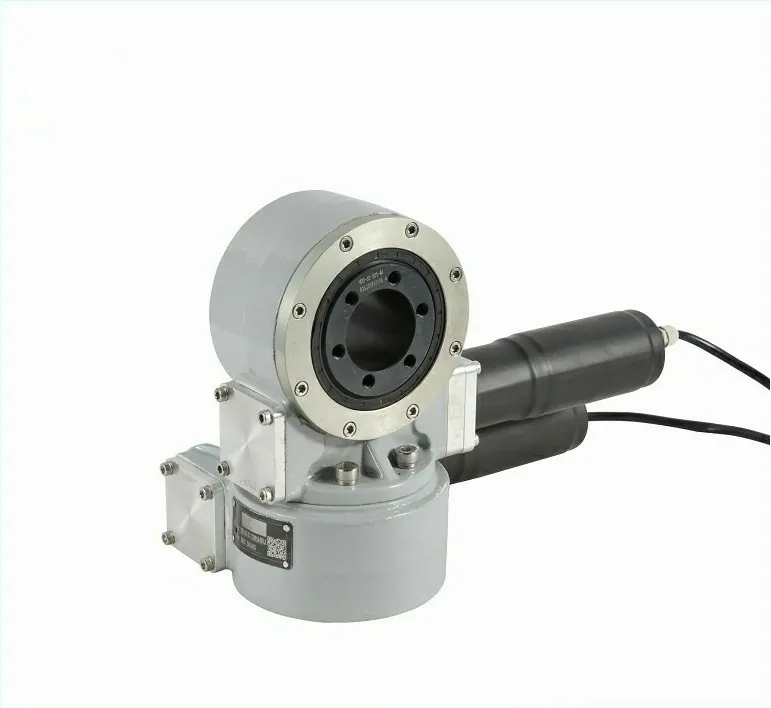

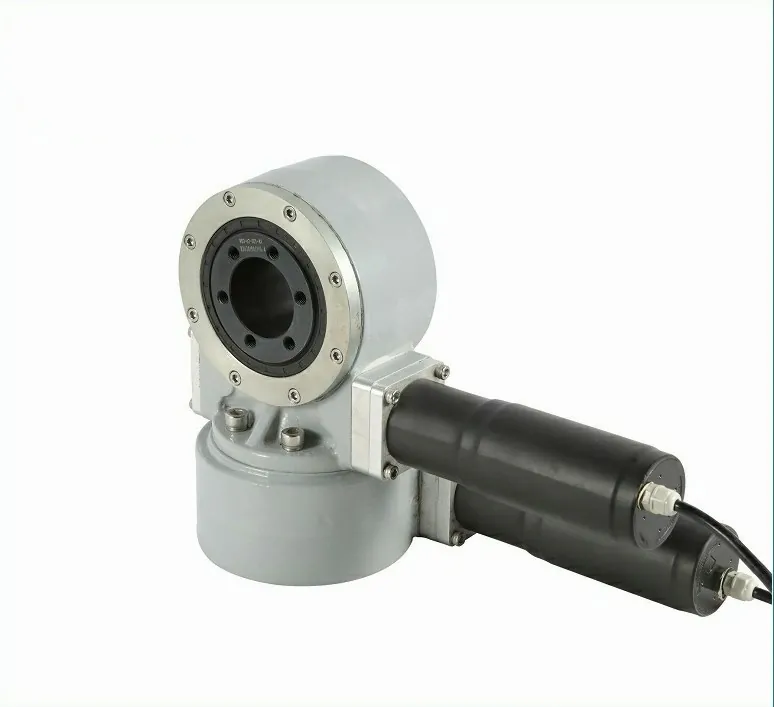

SVH3-62B-12RC / SVH3-62-12RC Slewing Drive
SVH3 3-inch dual-axis slewing drive with 12VDC motor interfaces.
Key specifications
- Output torque
- 800 N·m / 590 lbf·ft
- Holding torque
- 2200 N·m / 1623 lbf·ft
- Tilting moment torque
- 1200 N·m / 888 lbf·ft
- Axial load
- 32 kN / 7200 lbf
- Radial load
- 18 kN / 4050 lbf
- Gear ratio
- 62:1
Product overview
SVH3 3-inch dual-axis slewing drive with 12VDC motor interfaces. 800 N·m output torque, 2200 N·m holding torque, 62:1 ratio, ≤0.1° precision for solar trackers and rotary platforms.
- Output torque
- 800 N·m / 590 lbf·ft
- Holding torque
- 2200 N·m / 1623 lbf·ft
- Tilting moment torque
- 1200 N·m / 888 lbf·ft
- Axial load
- 32 kN / 7200 lbf
- Radial load
- 18 kN / 4050 lbf
- Gear ratio
- 62:1
Applications
- Dual-axis solar trackers
- PV / CPV / CSP tracking systems
- Antenna and satellite positioning
- Industrial rotary platforms
- Camera and sensor gimbals
Benefits
- 3-inch dual-axis slewing drive for azimuth and elevation motion
- Output torque 800 N·m / holding torque 2200 N·m
- Gear ratio 62:1 with precision ≤ 0.1°
- Rated output speed under 3 rpm
- 12VDC motor interface family (12RC)
- Compact integrated housing for solar tracker and OEM platforms
Technical specifications
| Drive type | 3-inch dual-axis electric slewing drive |
|---|---|
| Output torque | 800 N·m / 590 lbf·ft |
| Holding torque | 2200 N·m / 1623 lbf·ft |
| Tilting moment torque | 1200 N·m / 888 lbf·ft |
| Axial load | 32 kN / 7200 lbf |
| Radial load | 18 kN / 4050 lbf |
| Gear ratio | 62:1 |
| Backlash | ≤ 0.1° |
| Motor voltage | 12 V DC |
Dimensions & installation drawing
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | < 3 rpm | — |
| Output Torque | 800 N·m | 590 lbf·ft |
| Tilting Moment | 1200 N·m | 888 lbf·ft |
| Holding Torque | 2200 N·m | 1623 lbf·ft |
| Static Axial Rating | 32 kN | 7200 lbf |
| Static Radial Rating | 18 kN | 4050 lbf |
| Dynamic Axial Rating | 10 kN | 2250 lbf |
| Dynamic Radial Rating | 9 kN | 2025 lbf |
| Gear Ratio | 62:1 | — |
| Precision | ≤ 0.1° | — |
Installation, electrical and use information
SVH3 Dual-Axis Dimensions & Performance Drawing · OEM Mounting Options · Key Installation Dimensions

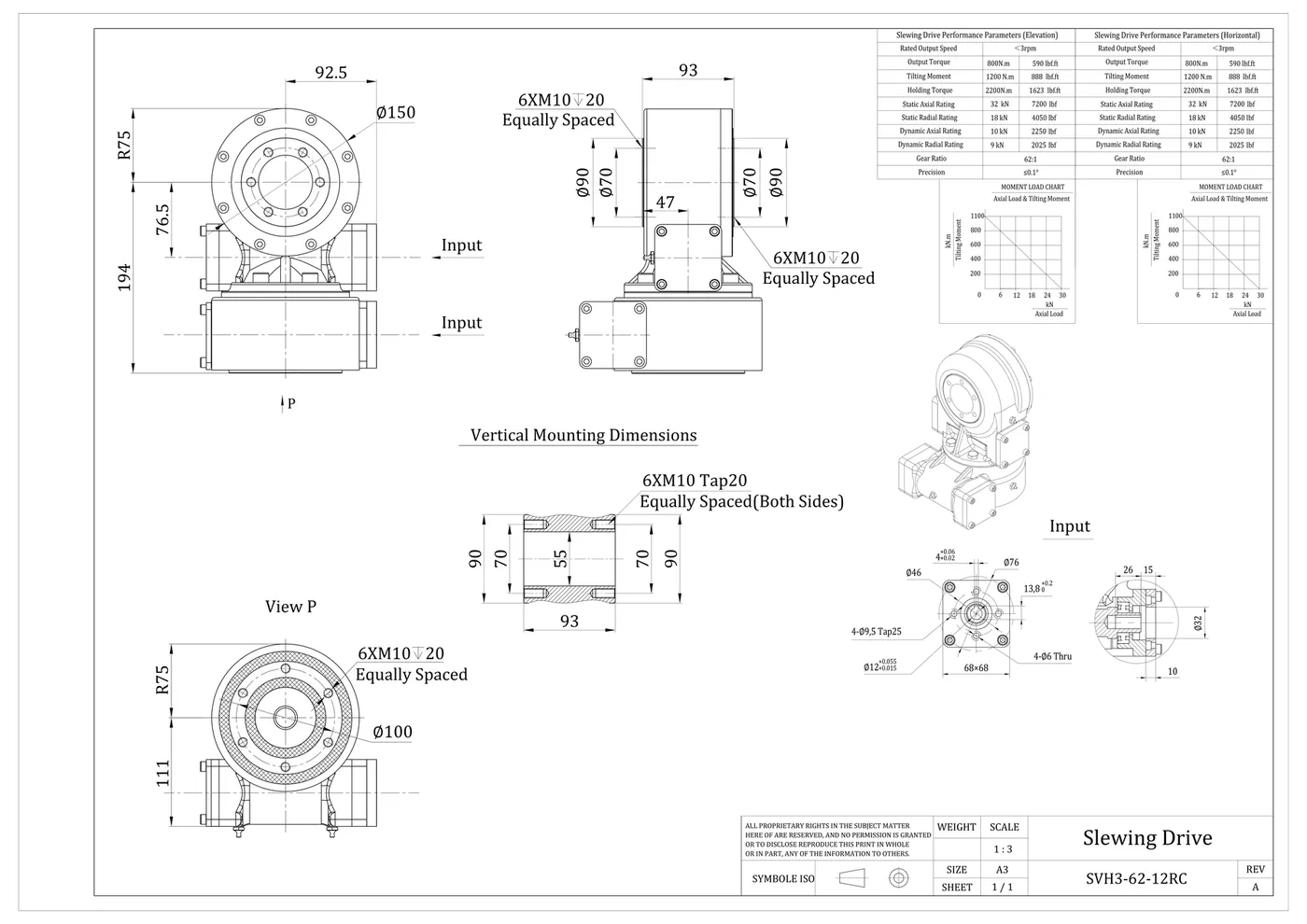

SVH3 Dual-Axis Dimensions & Performance Drawing
Official dimensional drawing for model SVH3-62-12RC / SVH3-62B-12RC — mounting interfaces, input flanges and load charts.
Product Overview
OEM Mounting Options
Defined flange hole patterns and motor input geometry support customized machine design.
Technical Data
Key Installation Dimensions
Selected envelope dimensions from the SVH3 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SVH3-62B-12RC / SVH3-62-12RC |
| Drive Type | 3-inch dual-axis electric slewing drive |
| Motor Interface | 12VDC (model family 12RC) |
| Typical Envelope Height | Approx. 194 mm |
| Main Body Width | Approx. 93 mm |
| Mounting Flange Pattern | 6×M10 equally spaced (multiple faces) |
| Reference Flange Diameter | Ø150 mm / Ø100 mm interfaces |
| Motor Input Flange | 68×68 mm, 4-Ø9.5 Tap25 |
Applications
Can mounting and cables be customized?
Yes. Flange interfaces, motor options, cable length and feedback can be reviewed against your mechanical layout.
Request technical documents
FAQ
What is the SVH3?
The SVH3 is an Elerover slewing drive for industrial and OEM motion projects.
Does Elerover manufacture the SVH3?
Yes. Elerover is a slewing drive manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SVH3?
Key ratings from the product specifications include voltage 12V, load 800 N. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SVH3?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
