Slewing Drive

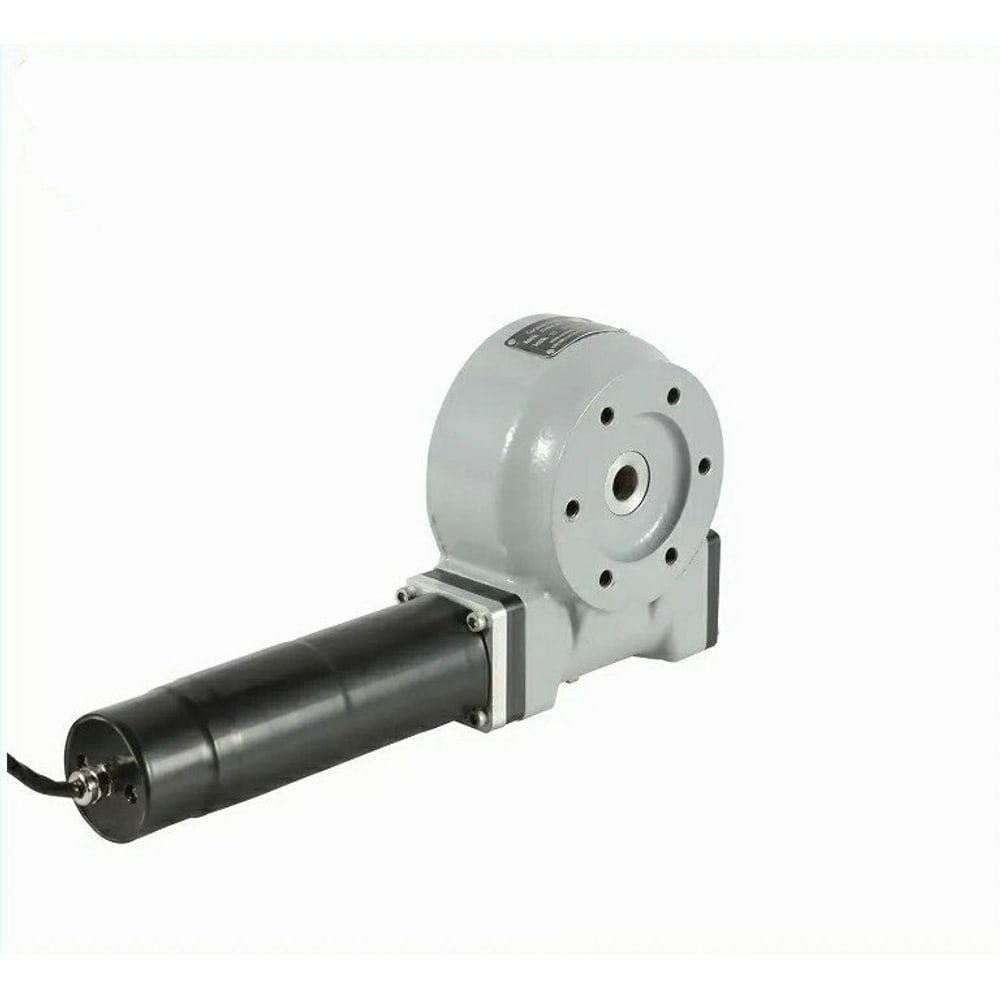

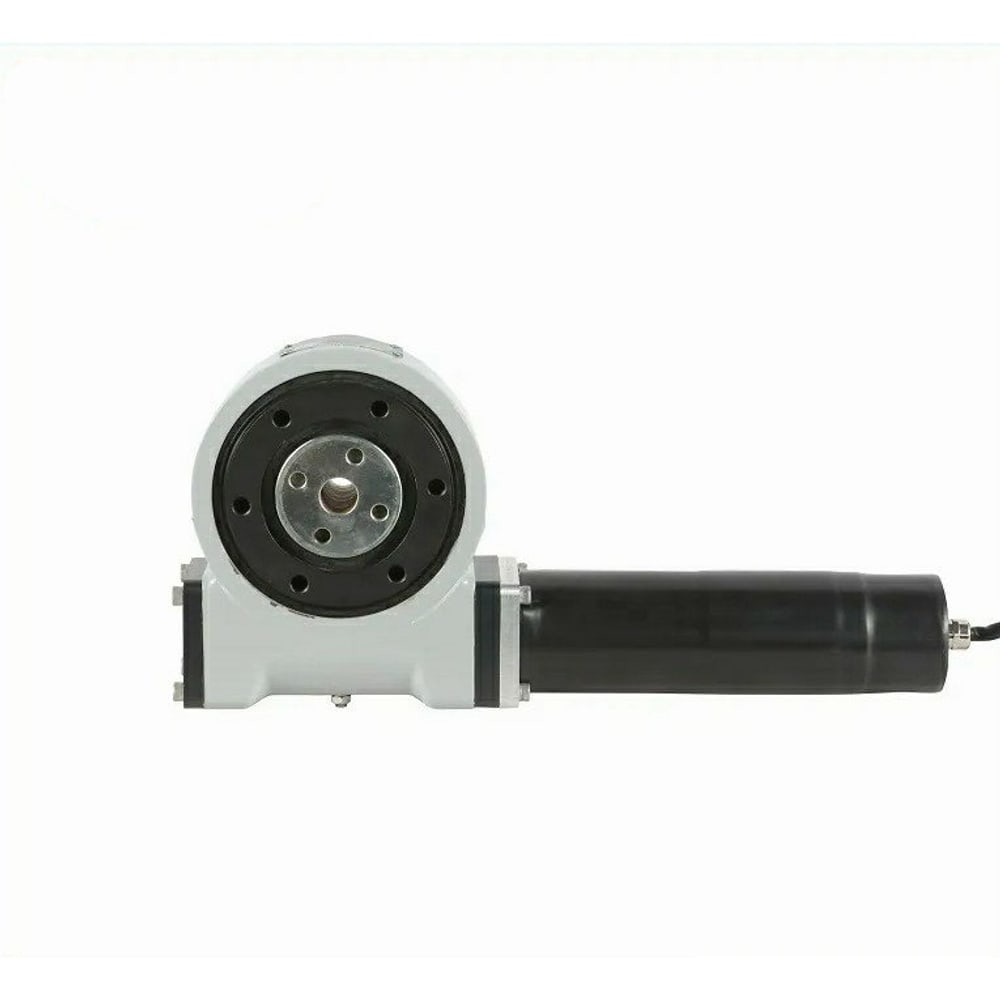

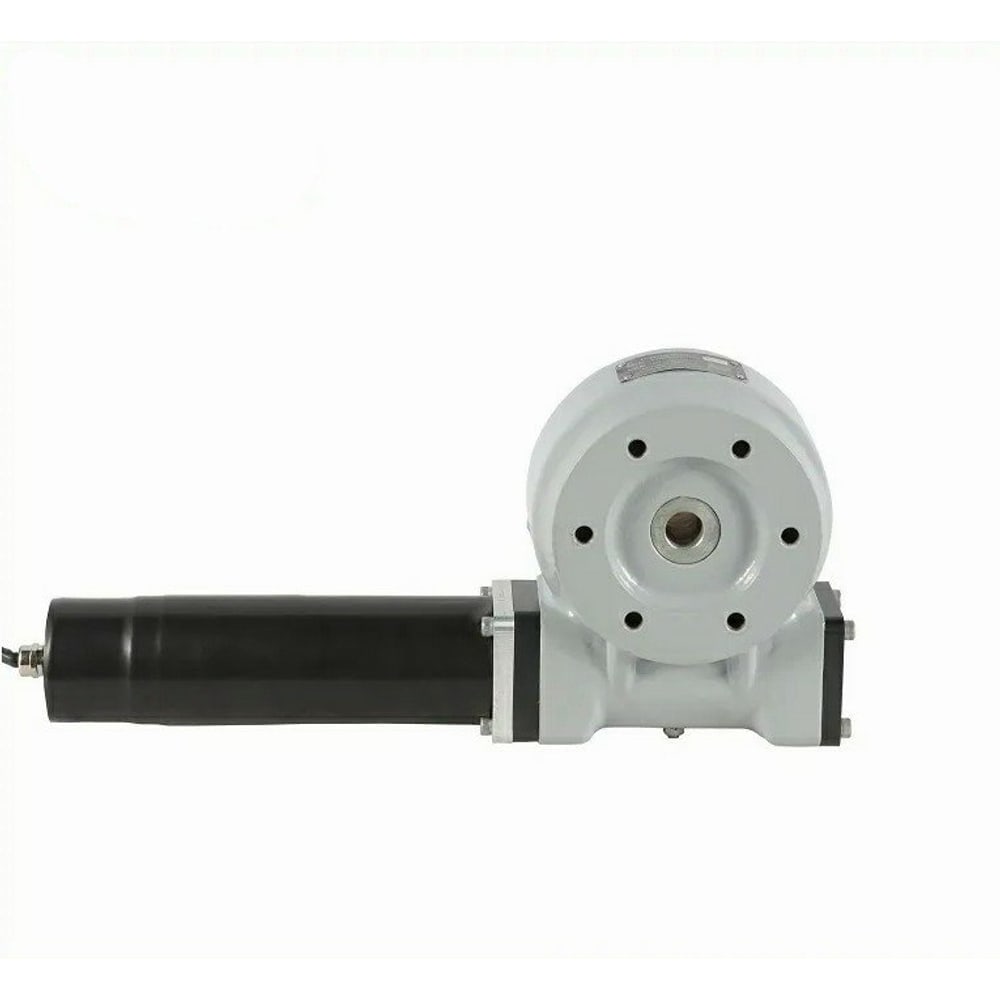

SC3-62B-RC-24H3033 Slewing Drive
SC3 compact worm-gear slewing drive with 24VDC IP65 motor: 818 N·m output torque, 2200 N·m holding torque, 0.05 rpm, 62:1 ratio, ≤0.17° precision, optional…
Key specifications
- Holding torque
- 2200 N·m / 1624 lbf·ft
- Tilting moment torque
- 1100 N·m / 812 lbf·ft
- Axial load
- 30 kN
- Radial load
- 15 kN
- Gear ratio
- 62:1
- Backlash
- ≤ 0.17°
Product overview
SC3 compact worm-gear slewing drive with 24VDC IP65 motor: 818 N·m output torque, 2200 N·m holding torque, 0.05 rpm, 62:1 ratio, ≤0.17° precision, optional Hall feedback.
- Holding torque
- 2200 N·m / 1624 lbf·ft
- Tilting moment torque
- 1100 N·m / 812 lbf·ft
- Axial load
- 30 kN
- Radial load
- 15 kN
- Gear ratio
- 62:1
- Backlash
- ≤ 0.17°
Applications
- Industrial Automation
- Solar Tracking
- Agricultural
Benefits
- 818 N·m output torque, 2200 N·m holding torque
- Integrated slewing bearing, worm gear and 24VDC planetary reducer motor
- Self-locking worm gear holds position when stopped
- 62:1 slewing ratio with ≤0.17° precision
- Slow 0.05 rpm output for precise positioning
- IP65 motor, rated current below 1.9 A
- Optional Hall A/B quadrature feedback
- Compact 15 kg package
Technical specifications
| Drive type | Electric worm-gear slewing drive |
|---|---|
| Holding torque | 2200 N·m / 1624 lbf·ft |
| Tilting moment torque | 1100 N·m / 812 lbf·ft |
| Axial load | 30 kN |
| Radial load | 15 kN |
| Gear ratio | 62:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Installation, electrical and use information
Hall Feedback and Wiring · Dimensions
Hall Feedback and Wiring
| Pin | Wire Color | Function |
|---|---|---|
| 1 | Black | Motor – |
| 2 | Red | Motor + |
| 3 | Yellow | Hall GND |
| 4 | Brown | Hall +5 – 12V |
| 5 | Blue | Hall A |
| 6 | Green | Hall B |
| E | Grey | Ground |

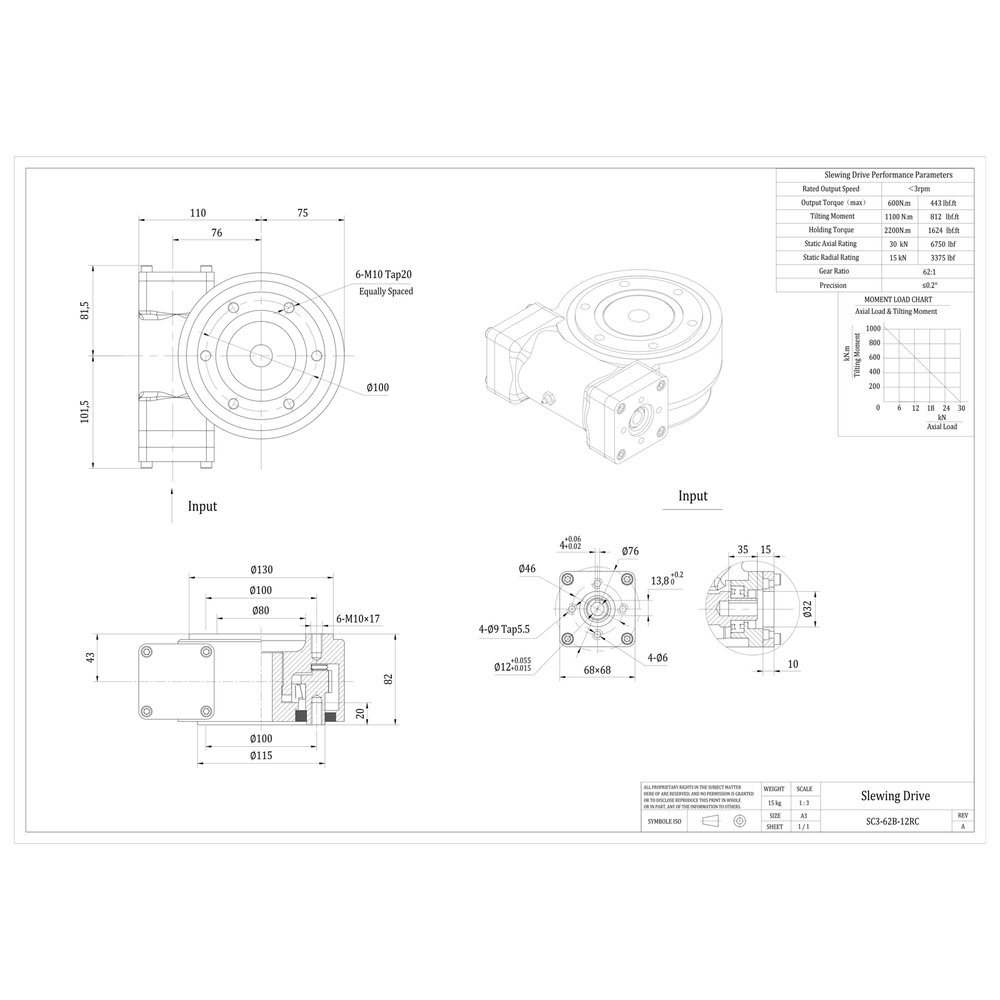

Dimensions
- Hall output: two square-wave channels A and B, 90° phase quadrature, voltage output with pull-up resistor
- Hall supply: 5 – 24 VDC, max 12 mA; operating temperature -40°C to +85°C
Request technical documents
FAQ
What is the SC3?
The SC3 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SC3?
Yes. Elerover is a slewing drive manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SC3?
Key ratings from the product specifications include voltage 24V, load 818 N, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC3?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
