Slewing Drive

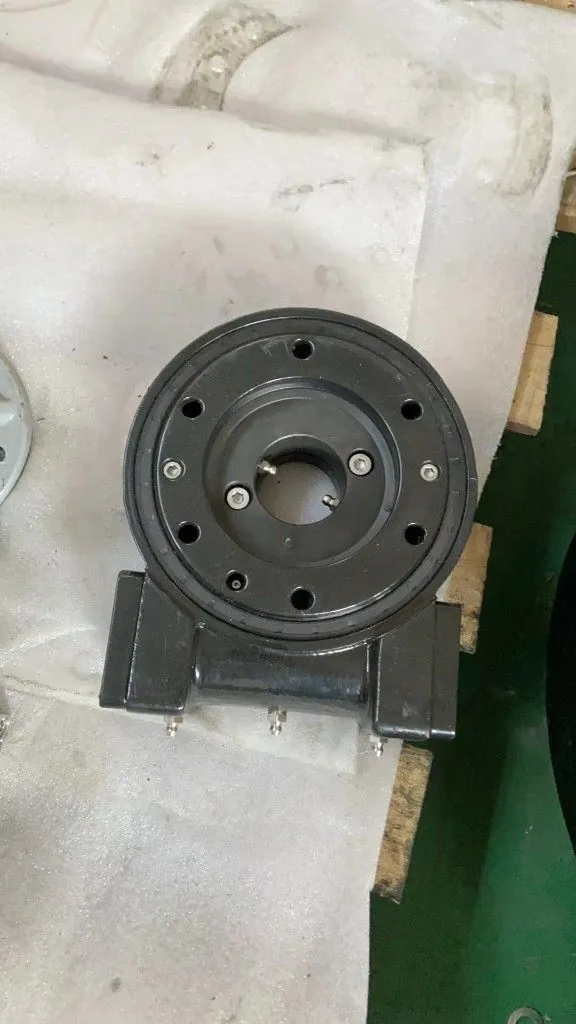

SC5-62B-12RC Slewing Drive
SC5 5-inch slewing drive with 12VDC motor interface.
Key specifications
- Output torque
- 720 N·m / 531.4 lbf·ft
- Holding torque
- 5450 N·m / 4022 lbf·ft
- Tilting moment torque
- 3160 N·m / 2322 lbf·ft
- Axial load
- 52 kN / 11700 lbf
- Radial load
- 28 kN / 6300 lbf
- Gear ratio
- 62:1
Product overview
SC5 5-inch slewing drive with 12VDC motor interface. 720 N·m output torque, 5450 N·m holding torque, 62:1 ratio, ≤0.17° precision for solar trackers and compact rotary platforms.
- Output torque
- 720 N·m / 531.4 lbf·ft
- Holding torque
- 5450 N·m / 4022 lbf·ft
- Tilting moment torque
- 3160 N·m / 2322 lbf·ft
- Axial load
- 52 kN / 11700 lbf
- Radial load
- 28 kN / 6300 lbf
- Gear ratio
- 62:1
Applications
- Solar trackers
- PV tracking systems
- Antenna positioning
- Industrial rotary actuation
- Light machinery and OEM platforms
Benefits
- Compact 5-inch worm-gear slewing drive
- Output torque 720 N·m / holding torque 5450 N·m
- Tilting moment 3160 N·m
- Gear ratio 62:1 with precision ≤ 0.17°
- Rated output speed under 3 rpm
- 12VDC motor interface family (12RC)
Technical specifications
| Drive type | 5-inch electric worm-gear slewing drive |
|---|---|
| Output torque | 720 N·m / 531.4 lbf·ft |
| Holding torque | 5450 N·m / 4022 lbf·ft |
| Tilting moment torque | 3160 N·m / 2322 lbf·ft |
| Axial load | 52 kN / 11700 lbf |
| Radial load | 28 kN / 6300 lbf |
| Gear ratio | 62:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 12 V DC |
Dimensions & installation drawing
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | < 3 rpm | — |
| Output Torque | 720 N·m | 531.4 lbf·ft |
| Tilting Moment | 3160 N·m | 2322 lbf·ft |
| Holding Torque | 5450 N·m | 4022 lbf·ft |
| Static Axial Rating | 52 kN | 11700 lbf |
| Static Radial Rating | 28 kN | 6300 lbf |
| Dynamic Axial Rating | 19.8 kN | 4455 lbf |
| Dynamic Radial Rating | 13.6 kN | 3060 lbf |
| Gear Ratio | 62:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 18 kg | — |
Installation, electrical and use information
SC5 Dimensions & Performance Drawing · OEM Mounting Options · Key Installation Dimensions

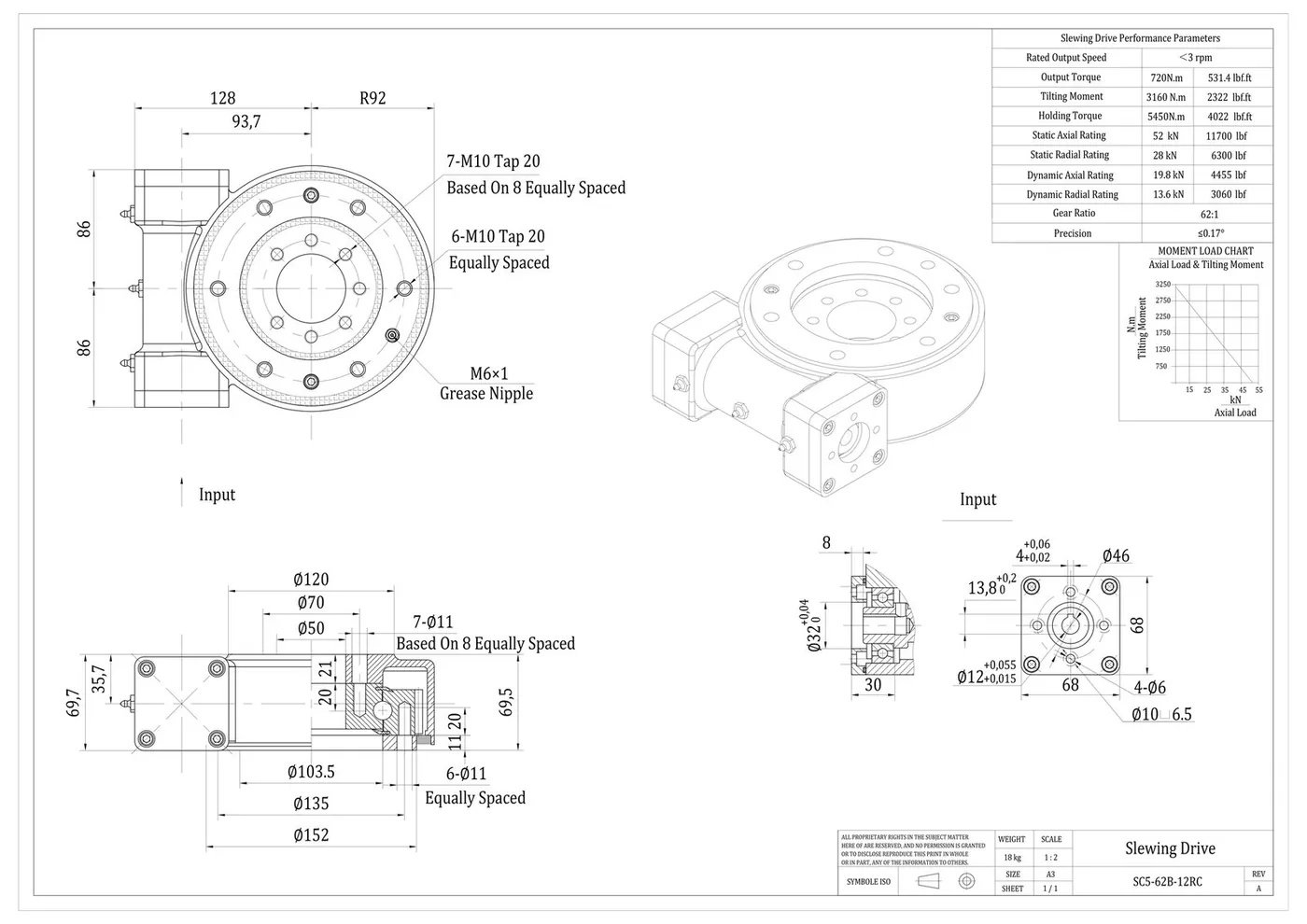

SC5 Dimensions & Performance Drawing
Official dimensional drawing for model SC5-62B-12RC Rev.A — mounting interfaces, input flange, load chart and performance data.
Product Overview
OEM Mounting Options
Defined flange hole patterns and 68×68 mm input geometry support customized machine design.
Technical Data
Key Installation Dimensions
Selected envelope dimensions from the SC5 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC5-62B-12RC |
| Drive Type | 5-inch electric worm-gear slewing drive |
| Motor Interface | 12VDC (12RC family) |
| Housing Height | Approx. 69.7 mm |
| Outer Diameter | Ø152 mm |
| Inner Bore | Ø50 mm |
| Output Mounting | 6×M10 / 7×M10 Tap 20 patterns |
| Through Holes | 6×Ø11 / 7×Ø11 equally spaced |
| Motor Input Flange | 68×68 mm, 4-Ø6 on Ø46 |
| Input Shaft Bore | Ø12 with keyway |
| Grease Nipple | M6×1 |
Applications
Can mounting and cables be customized?
Yes. Flange interfaces, motor options, cable length and feedback can be reviewed against your mechanical layout.
Request technical documents
FAQ
What is the SC5?
The SC5 is an Elerover slewing drive for industrial and OEM motion projects.
Does Elerover manufacture the SC5?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC5?
Key ratings from the product specifications include voltage 12V, load 720 N. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC5?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
