Slewing Drive

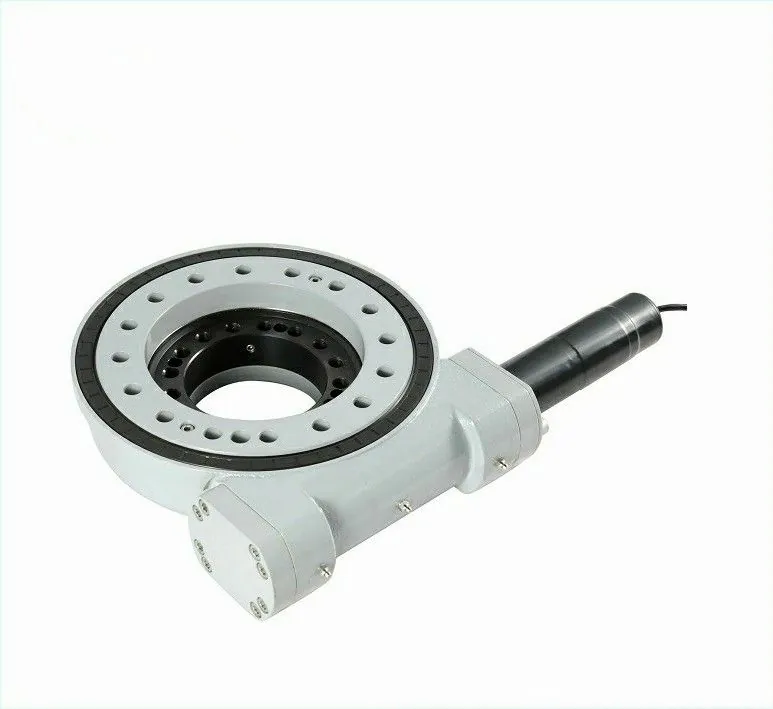

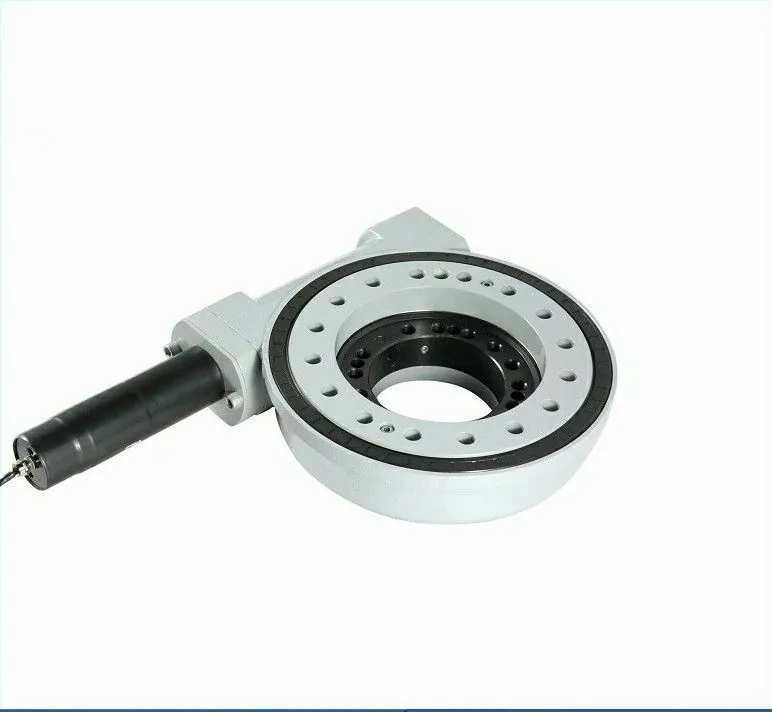

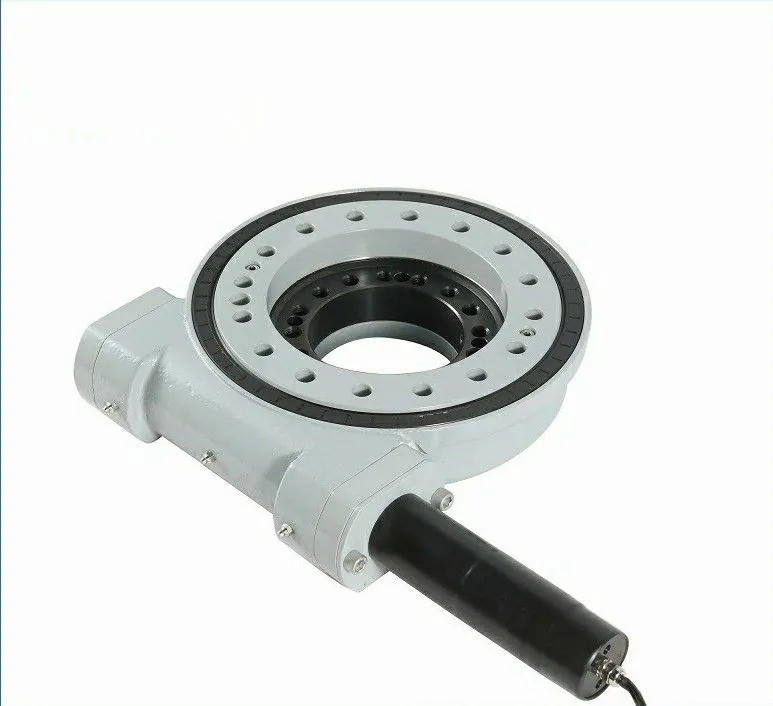

SC9-61-RC-24H30100 Slewing Drive
SC9 9-inch slewing drive with 24VDC IP65 motor.
Key specifications
- Output torque
- 2.44 kN·m / 1.8×10³ lbf·ft
- Holding torque
- 38.7 kN·m / 29×10³ lbf·ft
- Tilting moment torque
- 33.9 kN·m / 25×10³ lbf·ft
- Axial load
- 338 kN / 76×10³ lbf
- Radial load
- 135 kN / 30×10³ lbf
- Gear ratio
- 61:1
Product overview
SC9 9-inch slewing drive with 24VDC IP65 motor. 2.44 kN·m output torque, 38.7 kN·m holding torque, 33.9 kN·m tilting moment, 61:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
- Output torque
- 2.44 kN·m / 1.8×10³ lbf·ft
- Holding torque
- 38.7 kN·m / 29×10³ lbf·ft
- Tilting moment torque
- 33.9 kN·m / 25×10³ lbf·ft
- Axial load
- 338 kN / 76×10³ lbf
- Radial load
- 135 kN / 30×10³ lbf
- Gear ratio
- 61:1
Applications
- Large solar trackers
- PV / CSP tracking systems
- Antenna positioning
- Industrial rotary actuation
- OEM motion platforms
Benefits
- 9-inch worm-gear slewing drive with 24VDC IP65 motor
- Output torque 2.44 kN·m / holding torque 38.7 kN·m
- Tilting moment 33.9 kN·m
- Gear ratio 61:1 with precision ≤ 0.17°
- Rated output speed 0.049 rpm
- Hall A/B feedback for closed-loop positioning
Technical specifications
| Drive type | 9-inch electric worm-gear slewing drive |
|---|---|
| Output torque | 2.44 kN·m / 1.8×10³ lbf·ft |
| Holding torque | 38.7 kN·m / 29×10³ lbf·ft |
| Tilting moment torque | 33.9 kN·m / 25×10³ lbf·ft |
| Axial load | 338 kN / 76×10³ lbf |
| Radial load | 135 kN / 30×10³ lbf |
| Gear ratio | 61:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Dimensions & installation drawing
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.049 rpm | — |
| Output Torque | 2.44 kN·m | 1.8×10³ lbf·ft |
| Tilting Moment | 33.9 kN·m | 25×10³ lbf·ft |
| Holding Torque | 38.7 kN·m | 29×10³ lbf·ft |
| Static Axial Rating | 338 kN | 76×10³ lbf |
| Static Radial Rating | 135 kN | 30×10³ lbf |
| Gear Ratio | 61:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 56 kg | — |
Installation, electrical and use information
SC9 Dimensions & Performance Drawing · OEM Mounting Geometry · 24VDC Motor Performance & Wiring · Key Installation Dimensions
SC9 Dimensions & Performance Drawing

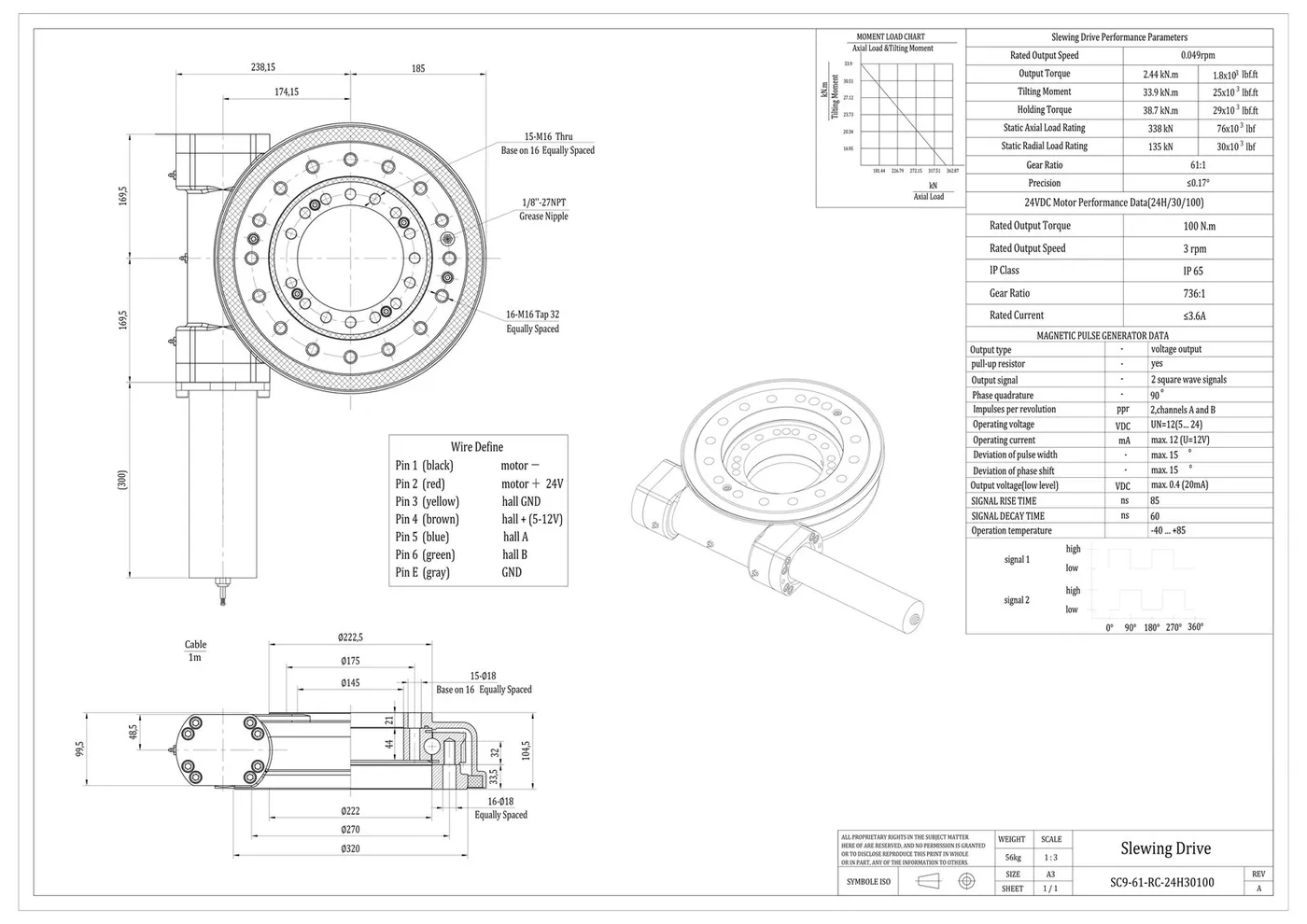

Official dimensional drawing for model SC9-61-RC-24H30100 Rev.A — mounting interfaces, motor data, load chart and wiring.
Product Overview

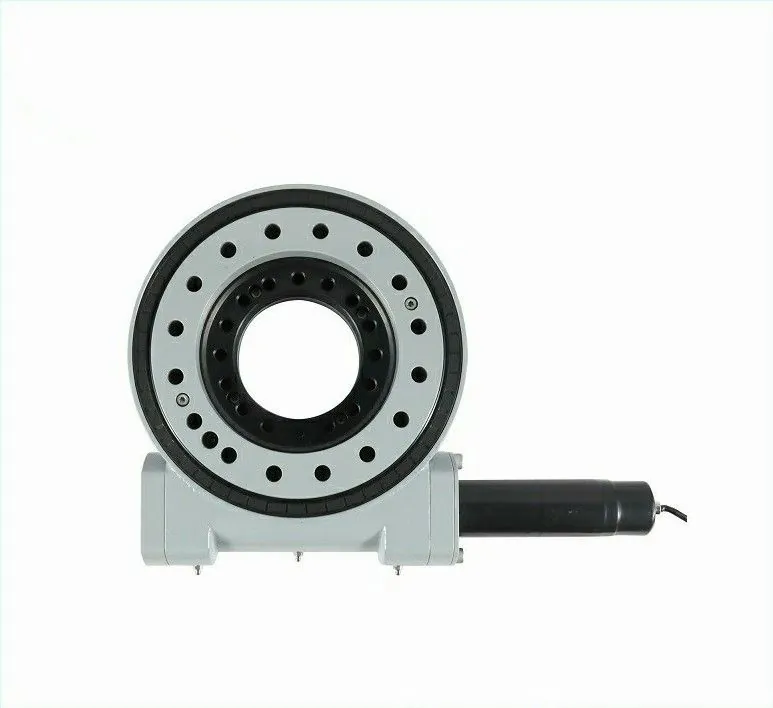

OEM Mounting Geometry
16×M16 thru / tap patterns and Ø320 flange support repeatable machine design.
Technical Data
24VDC Motor Performance & Wiring
SC9 uses a 24H/30/100 IP65 gear motor with magnetic pulse generator for closed-loop positioning.
| Item | Value |
|---|---|
| Motor Code | 24H/30/100 (24H30100) |
| Rated Output Torque | 100 N·m |
| Rated Output Speed | 3 rpm |
| Motor Gear Ratio | 736:1 |
| IP Class | IP65 |
| Rated Current | ≤ 3.6 A |
| Cable Length | 1 m (drawing reference) |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + 24V |
| 3 | Yellow | Hall GND |
| 4 | Brown | Hall + (5–12V) |
| 5 | Blue | Hall A |
| 6 | Green | Hall B |
| E | Gray | GND |
Hall feedback: 2 square-wave channels with 90° phase quadrature, operating voltage DC 5–24 V.

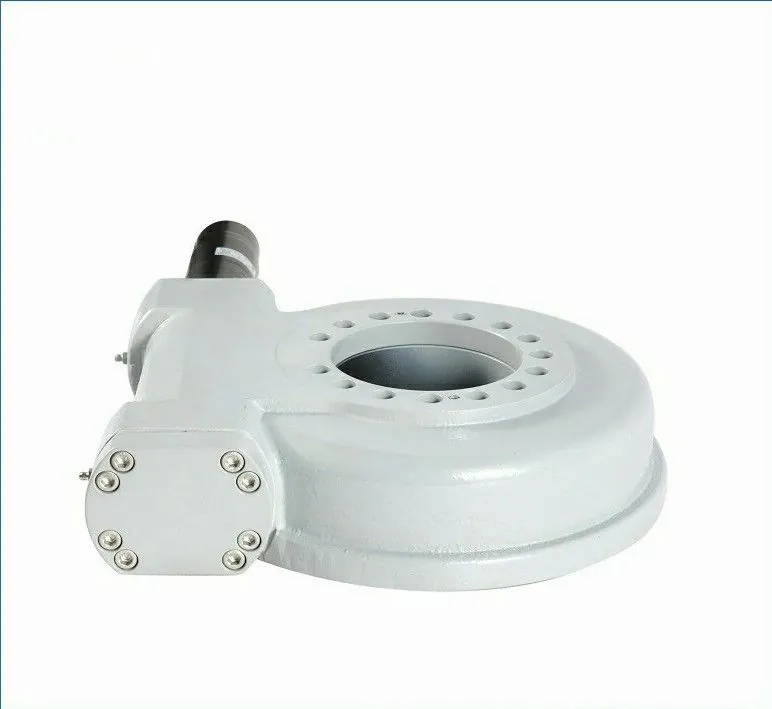

Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SC9 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC9-61-RC-24H30100 |
| Drive Type | 9-inch electric worm-gear slewing drive |
| Motor Interface | 24VDC IP65 with hall encoder |
| Outer Diameter | Ø320 mm |
| Bolt Circles | Ø270 mm / Ø222 mm |
| Inner Bore | Ø145 mm |
| Housing Height | Approx. 104.5 mm |
| Mounting Pattern | 16×M16 Thru / 16×M16 Tap 32 |
| Through Holes | 16×Ø18 equally spaced |
| Grease Nipple | 1/8''-27 NPT |
Applications
Can mounting and cables be customized?
Yes. Flange interfaces, motor packages, cable length and feedback options can be reviewed against your mechanical layout.
Request technical documents
FAQ
What is the SC9?
The SC9 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SC9?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC9?
Key ratings from the product specifications include voltage 24V, load 2.44 kN·m / 1.8×10³ lbf·ft, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC9?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
