Slewing Drive
SC32-154B-25RC Slewing Drive

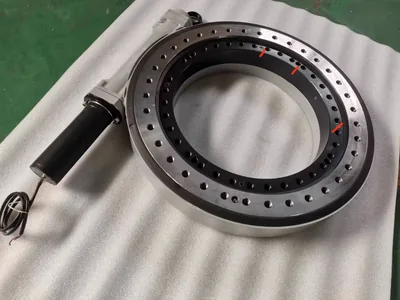

SC32 32-inch heavy-duty worm-gear slewing drive.
Key specifications
- Output torque
- 25 kN·m / 18.5×10³ lbf·ft
- Holding torque
- 190 kN·m / 140×10³ lbf·ft
- Tilting moment torque
- 347 kN·m / 256×10³ lbf·ft
- Axial load
- 3021 kN / 680×10³ lbf
- Radial load
- 1210 kN / 272×10³ lbf
- Gear ratio
- 154:1
Product overview
SC32 32-inch heavy-duty worm-gear slewing drive. 25 kN·m output torque, 190 kN·m holding torque, 347 kN·m tilting moment, 154:1 ratio, ≤0.17° precision for large solar trackers and construction machinery.
- Output torque
- 25 kN·m / 18.5×10³ lbf·ft
- Holding torque
- 190 kN·m / 140×10³ lbf·ft
- Tilting moment torque
- 347 kN·m / 256×10³ lbf·ft
- Axial load
- 3021 kN / 680×10³ lbf
- Radial load
- 1210 kN / 272×10³ lbf
- Gear ratio
- 154:1
Applications
- Large solar trackers
- PV / CSP tracking systems
- Truck-mounted cranes
- Aerial platforms and man lifts
- Industrial turntables
- Heavy construction machinery
Benefits
- 32-inch worm-gear slewing drive for extra-heavy rotary loads
- Output torque 25 kN·m / holding torque 190 kN·m
- Tilting moment 347 kN·m
- Gear ratio 154:1 with precision ≤ 0.17°
- Output speed ≤ 2 rpm
- Motor-ready Ø25 keyed input for electric or hydraulic drives
Technical specifications
| Drive type | 32-inch worm-gear slewing drive |
|---|---|
| Output torque | 25 kN·m / 18.5×10³ lbf·ft |
| Holding torque | 190 kN·m / 140×10³ lbf·ft |
| Tilting moment torque | 347 kN·m / 256×10³ lbf·ft |
| Axial load | 3021 kN / 680×10³ lbf |
| Radial load | 1210 kN / 272×10³ lbf |
| Gear ratio | 154:1 |
| Backlash | ≤ 0.17° |
Dimensions & installation drawing
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Output Speed | ≤ 2 rpm | — |
| Output Torque | 25 kN·m | 18.5×10³ lbf·ft |
| Tilting Moment | 347 kN·m | 256×10³ lbf·ft |
| Holding Torque | 190 kN·m | 140×10³ lbf·ft |
| Static Axial Load Rating | 3021 kN | 680×10³ lbf |
| Static Radial Load Rating | 1210 kN | 272×10³ lbf |
| Gear Ratio | 154:1 | — |
| Precision | ≤ 0.17° | — |
Installation, electrical and use information
SC32 Dimensions & Performance Drawing · OEM Mounting Geometry · Key Installation Dimensions

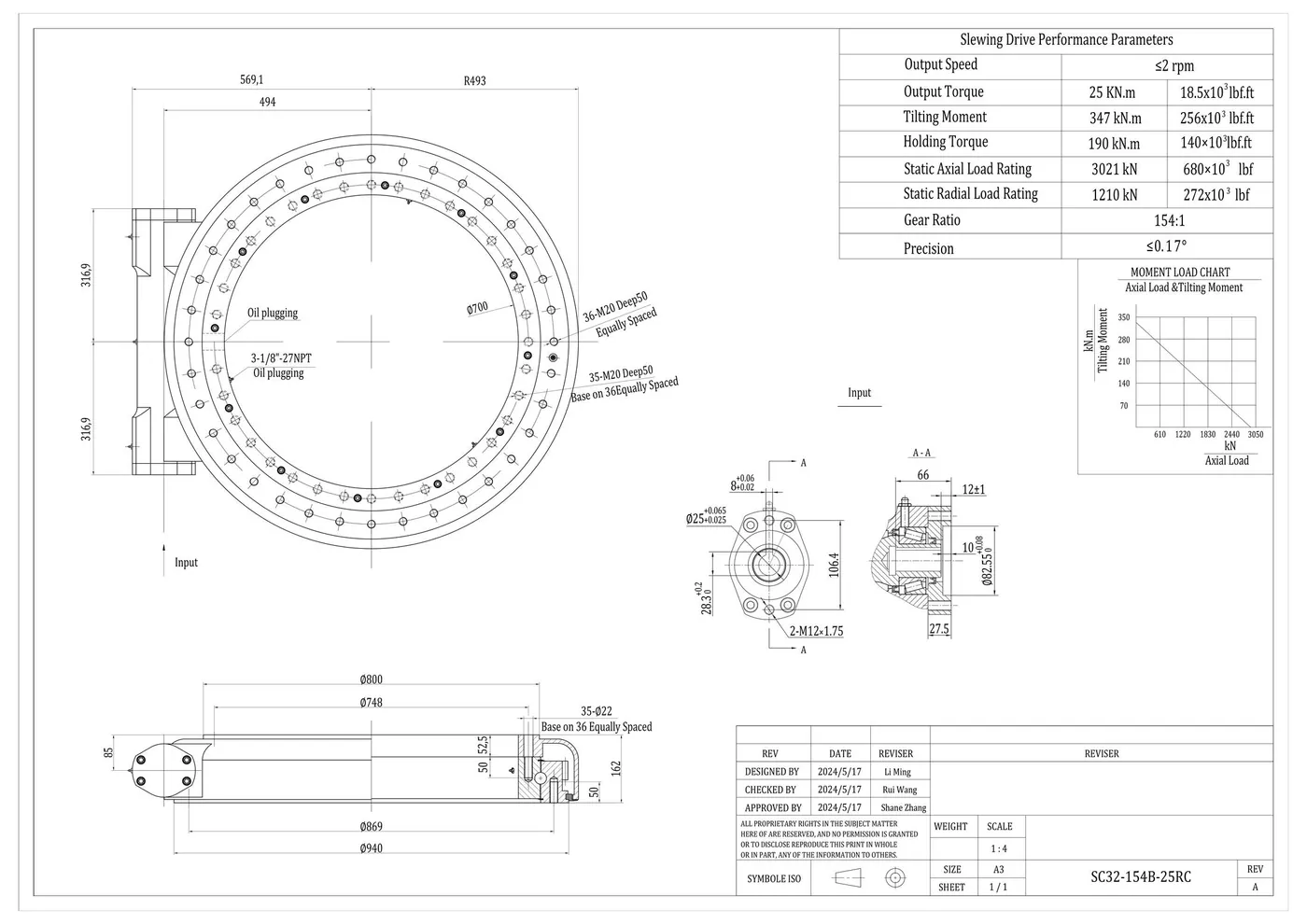

SC32 Dimensions & Performance Drawing
Official dimensional drawing for model SC32-154B-25RC Rev.A — mounting interfaces, input geometry, load chart and performance data.
Product Overview
OEM Mounting Geometry
36×M20 / 35×M20 / Ø22 patterns and Ø940 envelope support repeatable machine design.
Technical Data
Key Installation Dimensions
Selected envelope and input dimensions from the SC32 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC32-154B-25RC |
| Drive Type | 32-inch worm-gear slewing drive |
| Outer Envelope | Approx. Ø940 mm |
| Housing Height | Approx. 162 mm |
| Key Bolt Circles | Ø869 / Ø800 / Ø748 / Ø700 mm |
| Mounting Pattern | 36×M20 Deep 50 / 35×M20 Deep 50 / 35×Ø22 |
| Input Shaft | Ø25 mm keyed interface |
| Input Pilot | Ø82.55 mm with 2×M12 mounting |
| Oil / Grease Ports | 3× 1/8''-27 NPT |
Applications
Can mounting and motor packages be customized?
Yes. Flange interfaces, motor type, feedback options and cable / hose interfaces can be reviewed against your mechanical layout for OEM / ODM projects.
Request technical documents
FAQ
What is the SC32?
The SC32 is an Elerover slewing drive for industrial and OEM motion projects.
Does Elerover manufacture the SC32?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC32?
Key ratings from the product specifications include load 25 kN·m / 18.5×10³ lbf·ft. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC32?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
