Slewing Drive

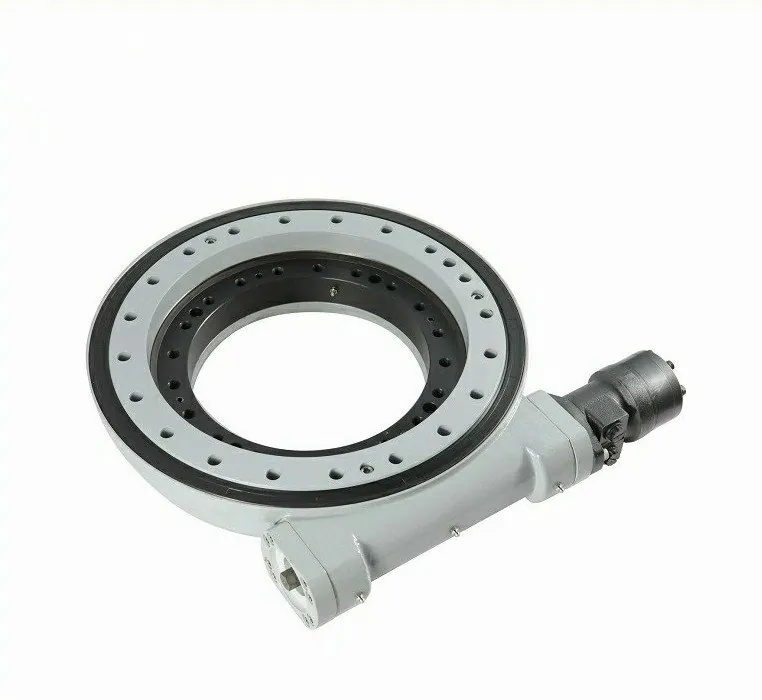

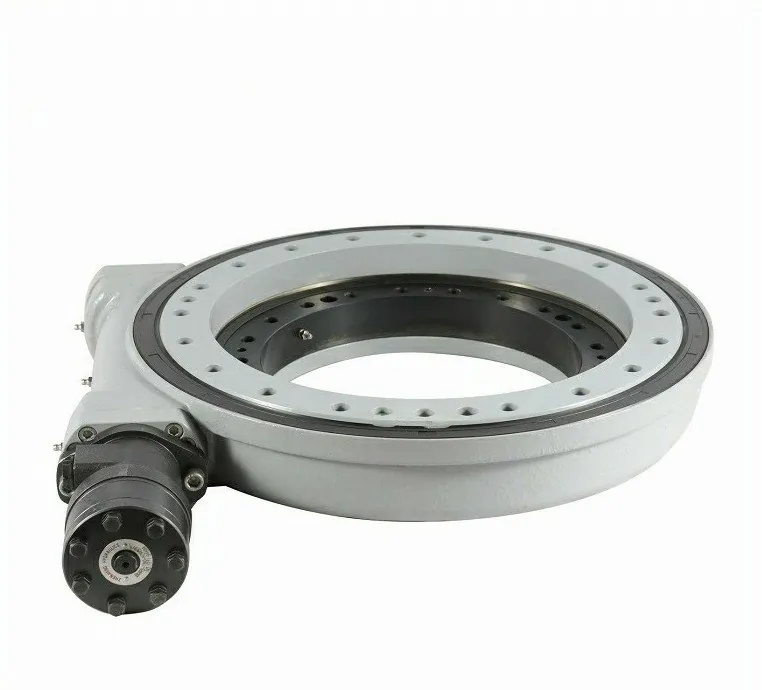

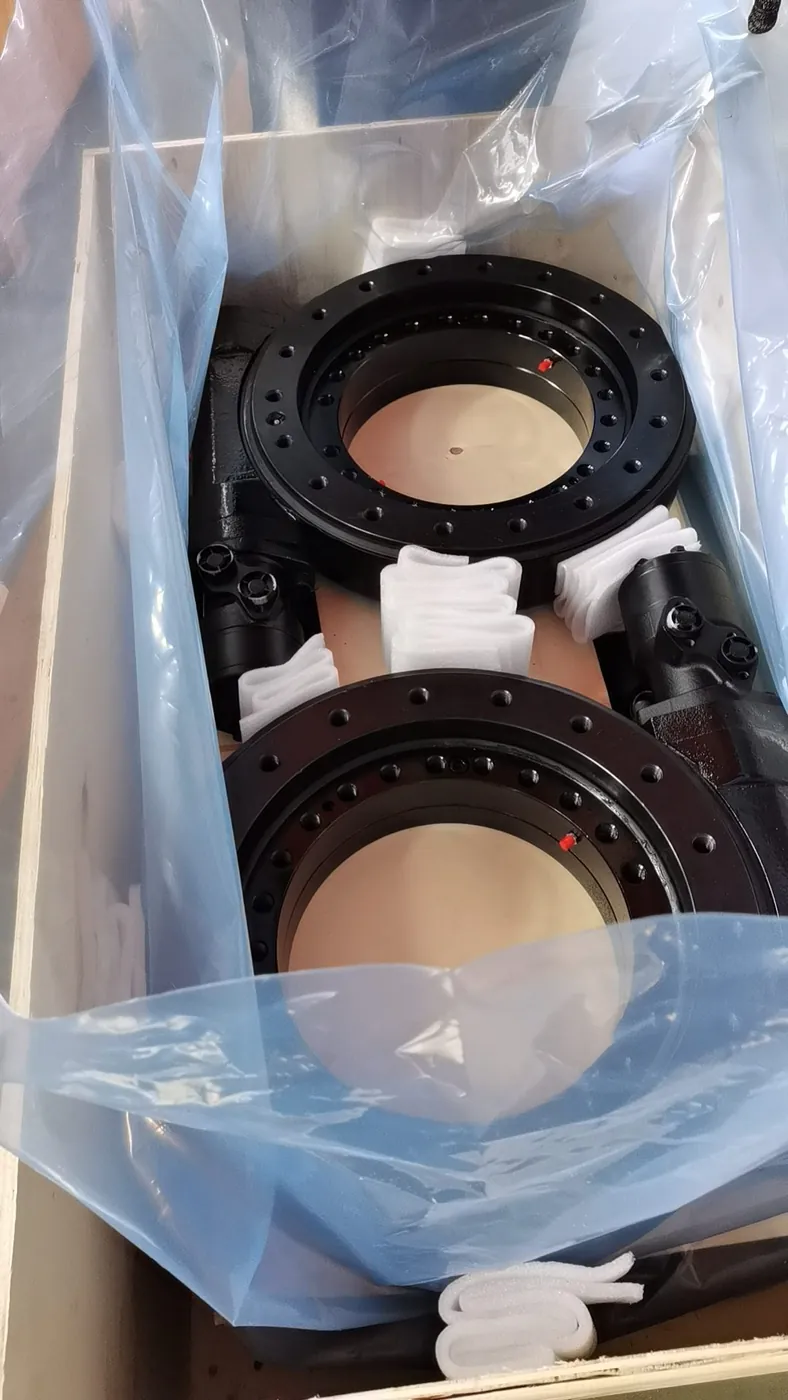

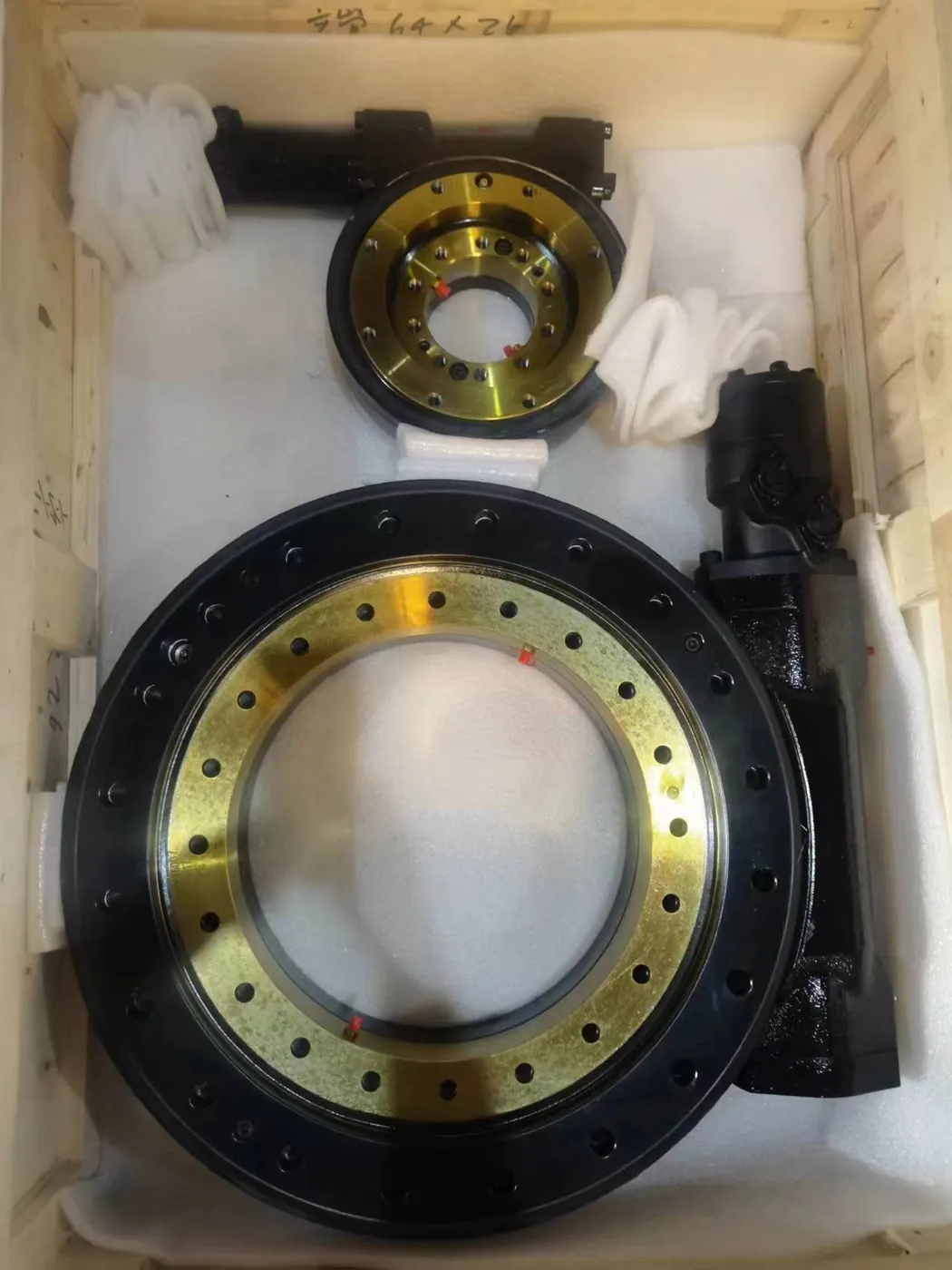

SC17-102-RC-24H15300 Slewing Drive
SC17 17-inch slewing drive with 24VDC IP65 motor.
Key specifications
- Output torque
- 12.24 kN·m / 9.03×10³ lbf·ft
- Holding torque
- 72.3 kN·m / 53.3×10³ lbf·ft
- Tilting moment torque
- 135.6 kN·m / 100×10³ lbf·ft
- Axial load
- 970 kN / 218.3×10³ lbf
- Radial load
- 390 kN / 87.8×10³ lbf
- Gear ratio
- 102:1
Product overview
SC17 17-inch slewing drive with 24VDC IP65 motor. 12.24 kN·m output torque, 72.3 kN·m holding torque, 135.6 kN·m tilting moment, 102:1 ratio, ≤0.17° precision for large solar trackers and heavy machinery.
- Output torque
- 12.24 kN·m / 9.03×10³ lbf·ft
- Holding torque
- 72.3 kN·m / 53.3×10³ lbf·ft
- Tilting moment torque
- 135.6 kN·m / 100×10³ lbf·ft
- Axial load
- 970 kN / 218.3×10³ lbf
- Radial load
- 390 kN / 87.8×10³ lbf
- Gear ratio
- 102:1
Applications
- Large solar trackers
- PV / CSP tracking systems

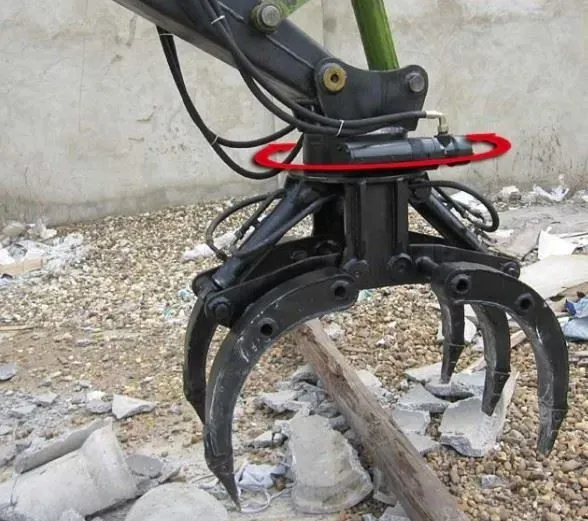

- Excavator grapples and attachments
- Aerial platforms and man lifts
- Antenna positioning
- Industrial rotary actuation
Benefits
- 17-inch worm-gear slewing drive with 24VDC IP65 reducer motor
- Output torque 12.24 kN·m / holding torque 72.3 kN·m
- Tilting moment 135.6 kN·m
- Gear ratio 102:1 with precision ≤ 0.17°
- Rated output speed 0.015 rpm
- Hall A/B feedback for closed-loop positioning
Technical specifications
| Drive type | 17-inch electric worm-gear slewing drive |
|---|---|
| Output torque | 12.24 kN·m / 9.03×10³ lbf·ft |
| Holding torque | 72.3 kN·m / 53.3×10³ lbf·ft |
| Tilting moment torque | 135.6 kN·m / 100×10³ lbf·ft |
| Axial load | 970 kN / 218.3×10³ lbf |
| Radial load | 390 kN / 87.8×10³ lbf |
| Gear ratio | 102:1 |
| Backlash | ≤ 0.17° |
| Motor voltage | 24 V DC |
| IP rating | IP65 |
Dimensions & installation drawing
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.015 rpm | — |
| Output Torque | 12.24 kN·m | 9.03×10³ lbf·ft |
| Tilting Moment | 135.6 kN·m | 100×10³ lbf·ft |
| Holding Torque | 72.3 kN·m | 53.3×10³ lbf·ft |
| Static Axial Rating | 970 kN | 218.3×10³ lbf |
| Static Radial Rating | 390 kN | 87.8×10³ lbf |
| Gear Ratio | 102:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 105 kg | — |
Installation, electrical and use information
SC17 Dimensions & Performance Drawing · OEM Mounting Geometry · 24VDC Motor Performance & Wiring · Key Installation Dimensions

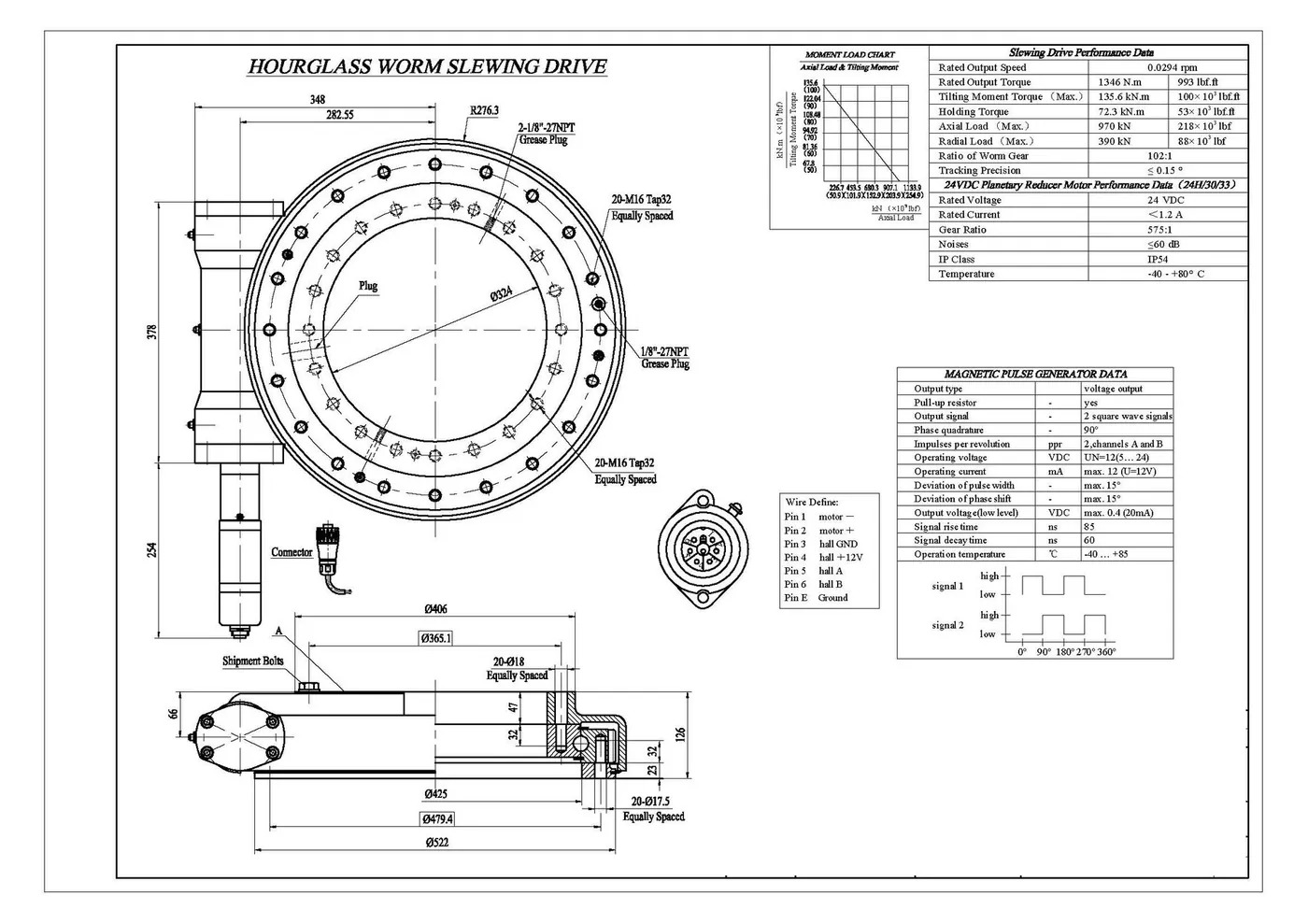

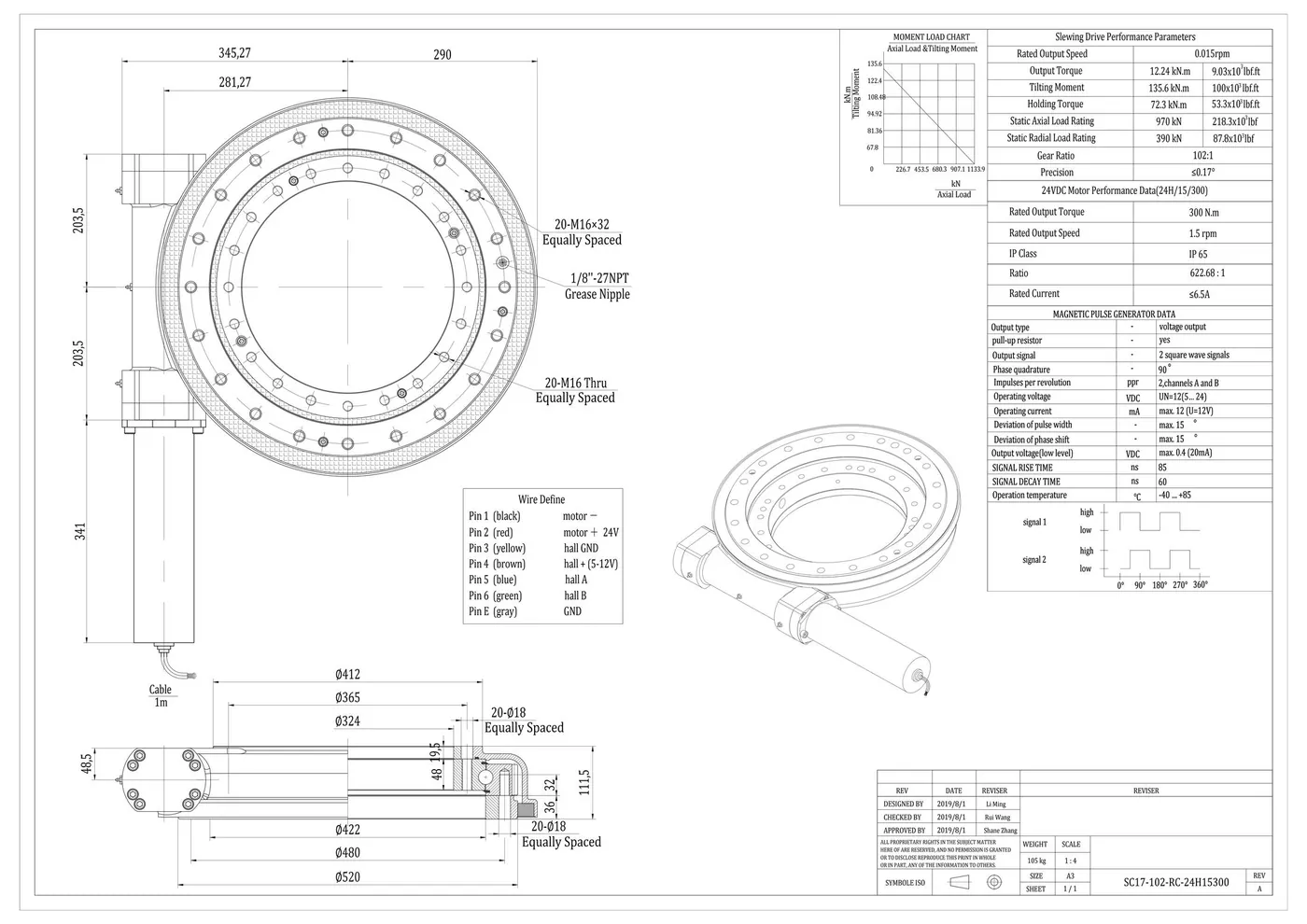

SC17 Dimensions & Performance Drawing
Official dimensional drawing for model SC17-102-RC-24H15300 Rev.A — mounting interfaces, motor data, load chart and wiring.
Product Overview
OEM Mounting Geometry
20×M16 / 20×Ø18 patterns and Ø520 envelope support repeatable machine design.
Technical Data
24VDC Motor Performance & Wiring
SC17 uses a 24H/15/300 IP65 reducer motor with magnetic pulse generator for closed-loop positioning.
| Item | Value |
|---|---|
| Motor Code | 24H/15/300 (24H15300) |
| Rated Voltage | 24 VDC |
| Rated Current | ≤ 6.5 A |
| Motor Output Torque | 300 N·m |
| Motor Output Speed | 1.5 rpm |
| Motor Gear Ratio | 622.68:1 |
| IP Class | IP65 |
| Operating Temperature | -40°C ~ +85°C |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + 24V |
| 3 | Yellow | Hall GND |
| 4 | Brown | Hall + (5–12V) |
| 5 | Blue | Hall A |
| 6 | Green | Hall B |
| E | Gray | GND |
Hall feedback: 2 square-wave channels with 90° phase quadrature, operating voltage DC 5–24 V.
Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SC17 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC17-102-RC-24H15300 |
| Drive Type | 17-inch electric worm-gear slewing drive |
| Motor Interface | 24VDC IP65 with hall encoder |
| Outer Diameter | Ø520 mm |
| Inner Through Bore | Approx. Ø324 mm |
| Housing Height | 111.5 mm |
| Inner Mounting | 20×M16×32 equally spaced (≈Ø365 mm) |
| Outer Mounting | 20×M16 thru / 20×Ø18 (≈Ø480 mm) |
| Grease Nipple | 1/8''-27 NPT |
| Cable Length | Approx. 1 m (standard) |
Applications
Can mounting and cables be customized?
Yes. Flange interfaces, motor packages, cable length and feedback options can be reviewed against your mechanical layout for OEM / ODM projects.
Request technical documents
FAQ
What is the SC17?
The SC17 is an Elerover slewing drive rated IP65.
Does Elerover manufacture the SC17?
Yes. Elerover is a slewing drive manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SC17?
Key ratings from the product specifications include voltage 24V, load 12.24 kN·m / 9.03×10³ lbf·ft, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SC17?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
