188N 6V 12V linear actuator for Robot – Copy

High-Quality Miniature Linear Actuators

Enhance your projects with our high-quality miniature linear actuators, designed to deliver superior performance and reliability across a wide range of applications. Built with robust materials and advanced technology, these actuators are perfect for environments demanding precision, durability, and adaptability.

Features:

• High-Quality Products and Services: We provide top-notch actuators along with exceptional customer support.
• Durable Polyamide Housing: Capable of operating in harsh environments.
• Metal Gearbox: Features high-strength, wear-resistant gears for longevity.
• Corrosion-Resistant Construction: Made with aluminum alloy telescopic and outer tubes.
• Strong Thrust: Delivers up to 188N / 19 Kgs / 42 lbs.
• Multiple Speed Options: Ranges from 5 mm/second to 150 mm/second.
• Versatile Stroke Options: Offers strokes from 10 mm to 150 mm.
• Advanced Waterproof and Dustproof Technology: Ensures reliable performance.
• Low Power Consumption and Noise: Designed for efficient and quiet operation.
• Built-in Limit Switches: Automatically stops when the stroke rod reaches the limit position and locks in place without requiring power.
• Maintenance-Free: Designed for long-term, hassle-free use.

Specifications:

• Working Voltage Options: 6V DC, 12V DC, or 24V DC
• Stroke Options: 10 mm

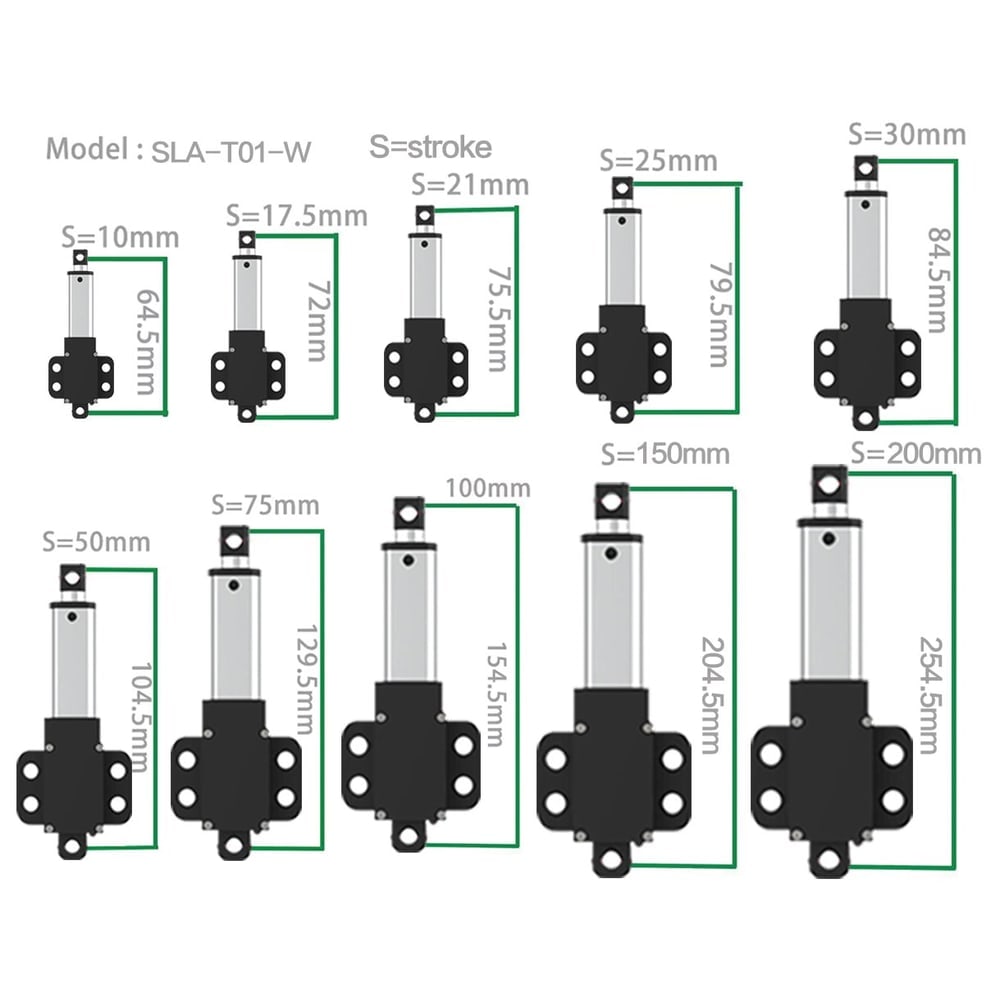

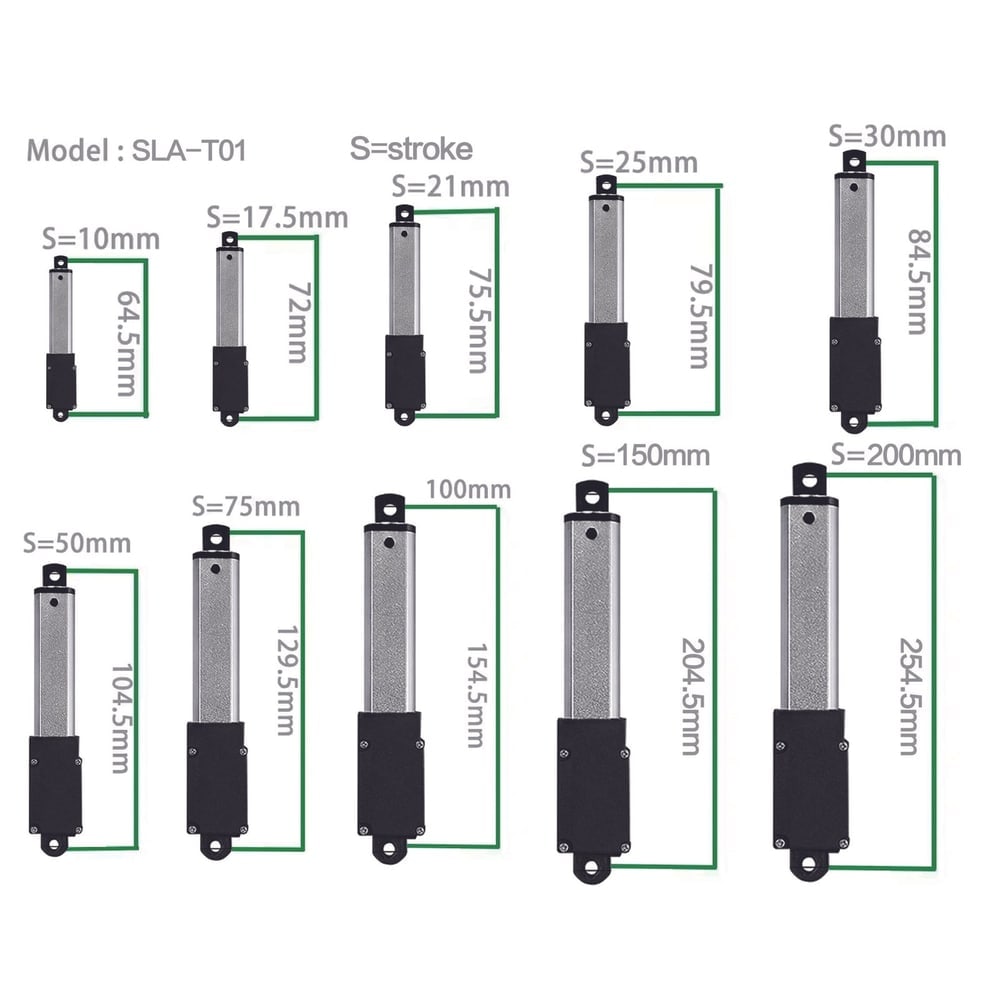

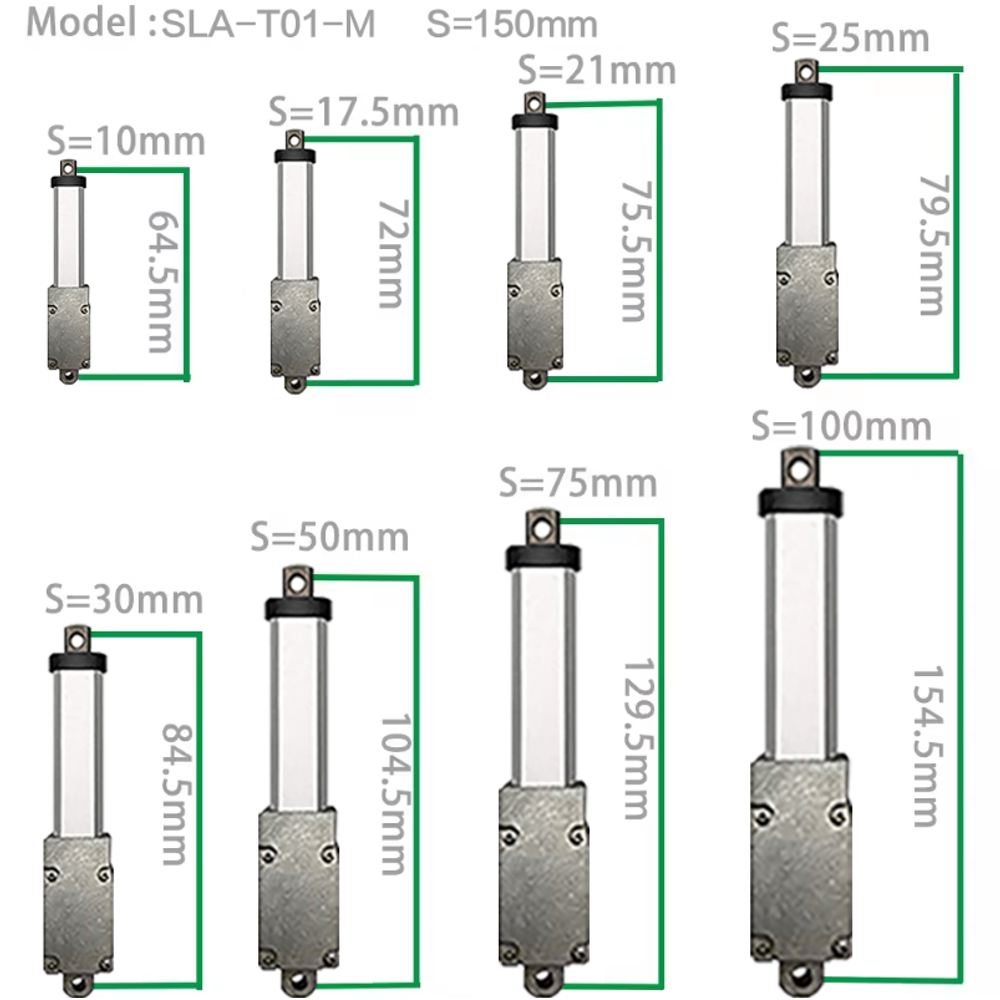

• Installation Length: 55 mm + Stroke
• Speed Options:
  • 5 mm±1mm/s
  • 7 mm±2mm/s
  • 9.5 mm±2mm/s
  • 15 mm±3mm/s
  • 30 mm±5mm/s
  • 50 mm±10mm/s
  • 150 mm±20mm/s
• Max Load Capacity: 188N / 19 Kgs / 42 lbs at 5 mm/second
• No-load Current:
  • 0.02~0.04A at 12V
  • 0.04~0.08A at 6V
• Full Load Current:
  • 0.2~0.3A at 12V
  • 0.4~0.6A at 6V
• Outer Tube Diameter: 12*16 mm
• Telescopic Tube Diameter: 6*9 mm
• Mounting Holes Diameter: 4 mm
• Material:
  • Housing: Polyamide
  • Stroke Rod: Aluminum Alloy
  • Outer Tube: Aluminum Alloy
  • Gear: Steel Alloy
• Motor Type: Brushed DC Motor
• Duty Cycle: 10%
• Plug Standard: Ordinary Two-core Wire
• Certifications: CE
• Operating Temperature: -26℃ to 85℃
• Operating Noise: Approximately 45dB~55dB
• IP Rating: IP54

Applications:

These miniature linear actuators are small, light, quiet, and durable, making them ideal for a variety of applications in industries such as:

• Small Doors and Windows
• Furniture
• Medical and Healthcare Equipment
• Agricultural Machinery
• Vehicles and Ships
• Drones and Aircraft Models
• Car and Ship Models
• Robotics
• Remote Controls (RC)

Our versatile actuators are capable of performing multiple functions, including opening, closing, pushing, pulling, lifting, and lowering various devices. With precision engineering and a compact design, they deliver seamless functionality while ensuring minimal space usage.

Upgrade your systems with our high-quality miniature linear actuators and experience the perfect blend of efficiency, reliability, and performance.
