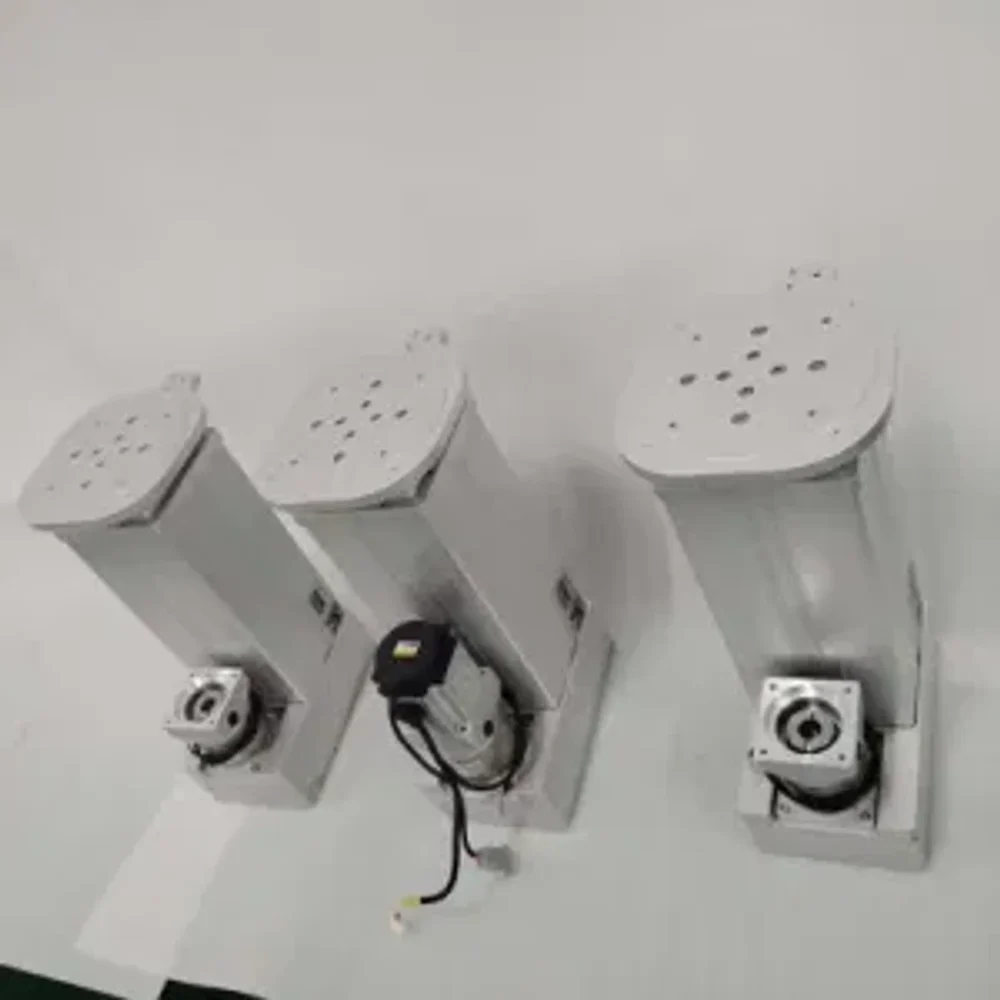

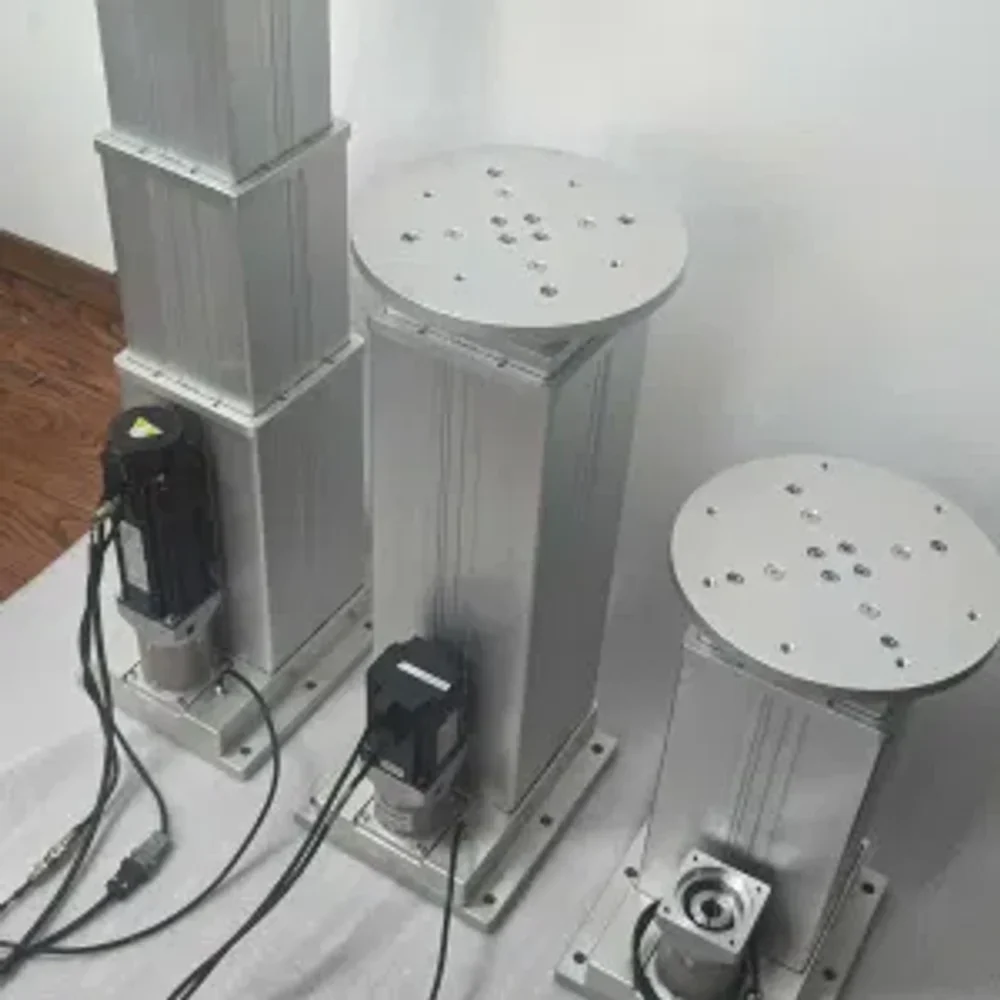

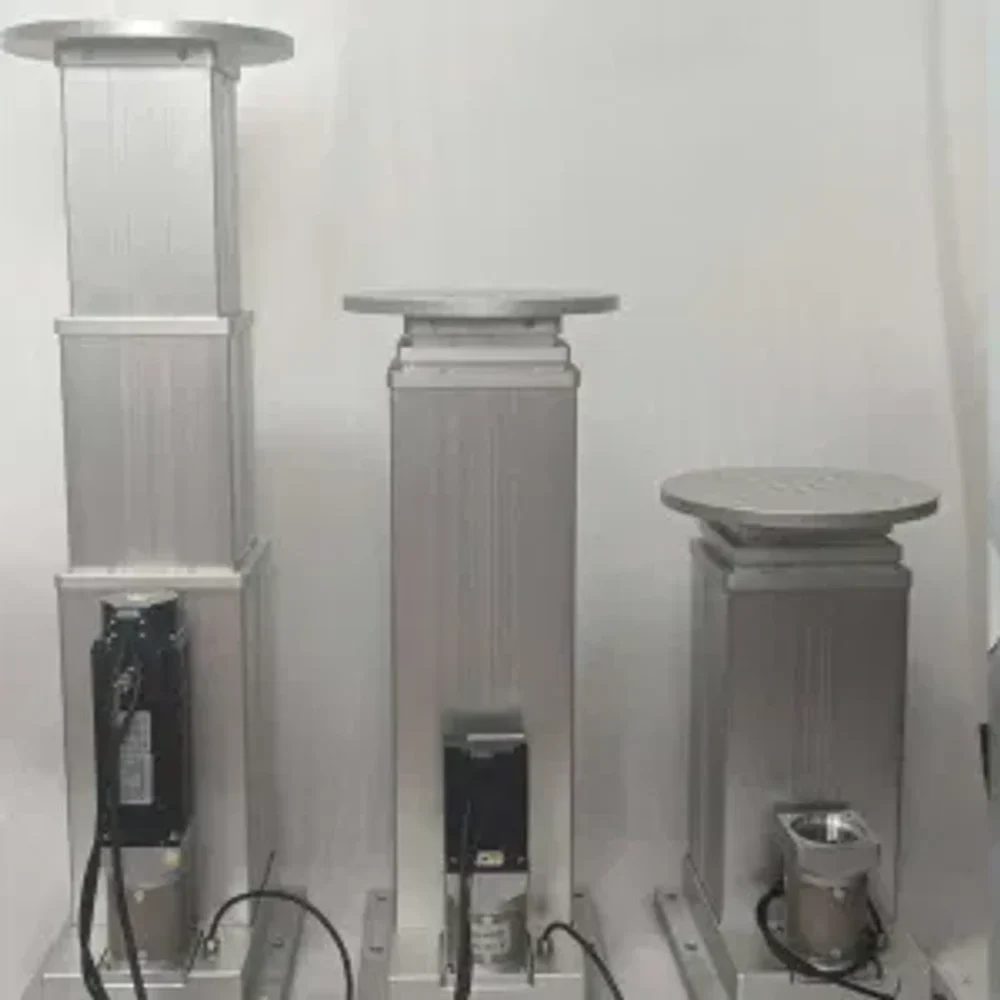

SLA-LC03-RC Servo Lifting Column
The SLA-LC03-RC servo lifting column is engineered for collaborative robots and industrial automation systems,
delivering precise vertical motion, high thrust capacity, smooth operation, and reliable stability for demanding
automation environments.
Technical Specifications of SLA-LC03-RC Servo Lifting Column
Designed for collaborative robotics, automated production lines, precision positioning, and industrial lifting
applications, the SLA-LC03-RC provides excellent performance in both DC and AC servo configurations.
| Product Name | SLA-LC03-RC Servo Lifting Column |
| Application | Collaborative Robots, Industrial Automation |
| Voltage Options | 48V DC / 220V AC |
| Motor Options | DC Servo Motor, AC Servo Motor |
| Maximum Thrust / Pull Force | 5,000N / 3,000N, configuration dependent |
| Maximum Speed Under Load | 100 mm/s with load of 2,000N |
| Minimum Installation Size | Stroke/2 + 350mm |
| Dynamic Lateral Moment | 1,000Nm |
| Static Lateral Moment | 1,800Nm |
| Color | Aluminum, Silver-Gray |
| Noise Level | 55~68 dB |
| Operating Temperature Range | -35°C to +75°C |
| Screw Type Options | Ball Screw, Trapezoidal Screw |
| Signal Type | Built-in Limit Signal |
| Control Options | CAN Bus Control |
| Typical Applications | Automated Assembly Lines, Packaging Systems, Medical Robots, Automotive Manufacturing, Precision Positioning and Handling |
Precision Vertical Motion for Collaborative Robotic Automation
The SLA-LC03-RC servo lifting column is designed to elevate the capabilities of collaborative robotic systems.
By utilizing advanced servo motor technology, it provides remarkable positioning accuracy, smooth movement,
and strong structural stability across various automation applications.
Whether used in manufacturing, logistics, packaging, medical robotics, or precision handling systems, this servo
lifting column enhances flexibility and performance. Its compact structure, reliable motion control, and high
load capacity make it an essential component for modern automation solutions.
Key Product Highlights
- Up to 5,000N maximum thrust force
- 100 mm/s maximum speed under 2,000N load
- 48V DC and 220V AC servo motor options
- Dynamic lateral moment up to 1,000Nm
- Static lateral moment up to 1,800Nm
- CAN bus control for automation integration
- Built-in limit signal for enhanced operational safety
High Load Capacity, Fast Motion, and Stable Structure
The SLA-LC03-RC is built for demanding robotic lifting applications where thrust force, speed, precision,
and lateral stability are critical.
5,000N
100 mm/s
1,000Nm
1,800Nm
Why Choose SLA-LC03-RC Servo Lifting Column?
Combining servo-driven precision, high structural strength, intelligent control, and compact installation,
the SLA-LC03-RC is ideal for modern collaborative robotic systems.
Servo Motor Precision
Advanced servo motor technology enables accurate vertical positioning, smooth acceleration, and stable motion
control for collaborative robotic applications.
Powerful Motor Options
Available with DC servo motor for 48V DC systems and AC servo motor for 220V AC systems, allowing flexible
integration into different industrial environments.
High Load Capacity
With maximum thrust up to 5,000N, the lifting column is suitable for precision lifting, material handling,
robotic positioning, and demanding automation tasks.
Fast Movement Under Load
The column can reach a movement speed of 100 mm/s under a 2,000N load, supporting efficient and timely
positioning in automated workflows.
Compact Installation Design
The minimum installation size of Stroke/2 + 350mm helps optimize space utilization in compact robotic
workstations and integrated automation systems.
CAN Bus Control
CAN bus control enables smooth communication with advanced automation controllers and robotic control systems
for intelligent motion management.
Robust Structure with High Lateral Stability
The SLA-LC03-RC servo lifting column is built to withstand rigorous operational demands. With a dynamic lateral
moment up to 1,000Nm and a static lateral moment up to 1,800Nm, it delivers excellent stability both during
movement and while stationary.
Quiet Operation and Wide Temperature Range
With a low noise level of 55~68 dB, this lifting column supports comfortable industrial working environments.
It is also designed to operate reliably in temperatures ranging from -35°C to +75°C, making it suitable for
diverse working conditions.
Ball Screw and Trapezoidal Screw Configurations
Choose the proper screw mechanism based on your requirements for precision, efficiency, durability, and budget.
Ball Screw
The ball screw option is ideal for high-accuracy, efficient, and smooth linear positioning operations.
It is suitable for applications where repeatability, speed, and motion smoothness are key requirements.
Trapezoidal Screw
The trapezoidal screw option is suitable for cost-effective applications requiring durability and moderate
precision. It offers dependable performance for many general industrial lifting applications.

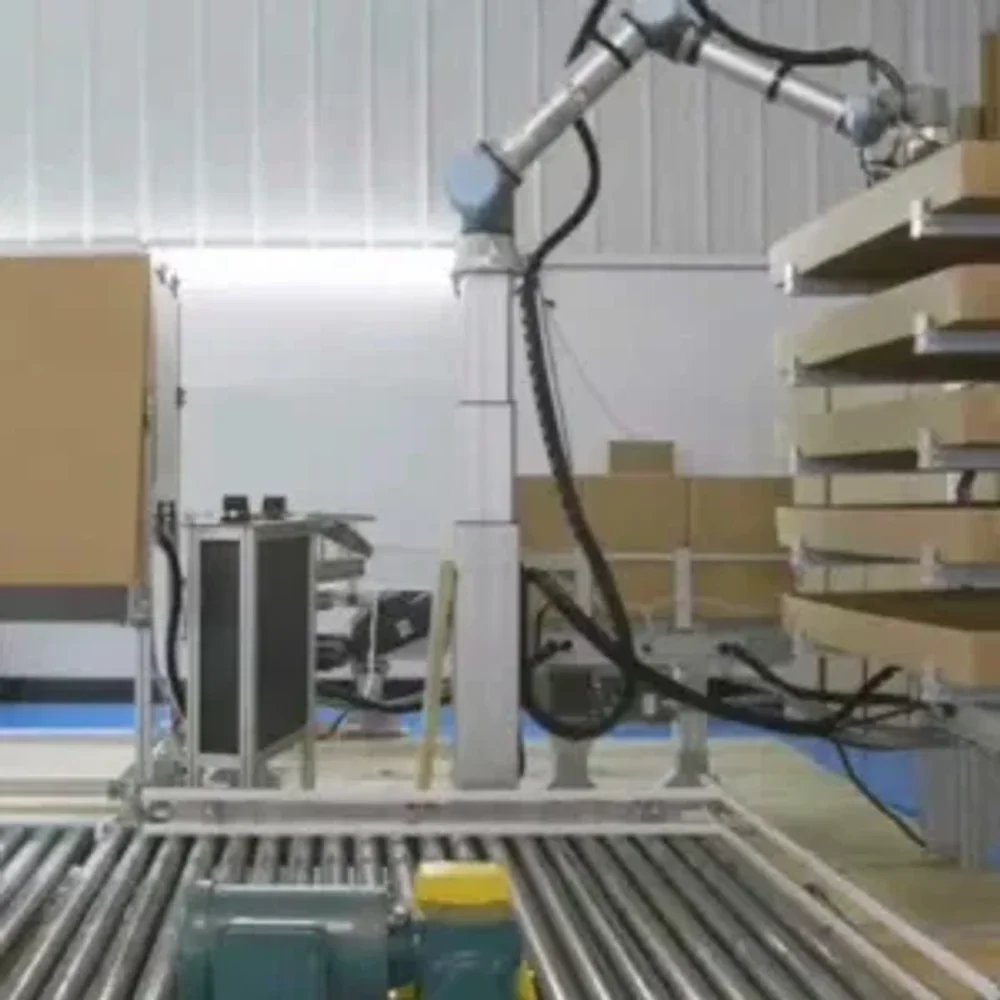

Typical Applications of SLA-LC03-RC Servo Lifting Column
With precise control, compact design, high thrust capacity, and strong stability, the SLA-LC03-RC is widely
suitable for collaborative robotics and industrial automation use cases.
Select Motor Type
Choose 48V DC servo motor or 220V AC servo motor according to your system power supply and application
environment.
Confirm Stroke and Load
Confirm stroke length, required thrust force, load condition, installation space, and motion speed requirements.
Integrate Control System
Use CAN bus control and built-in limit signals to integrate the lifting column into your robotic or automation
control platform.
Frequently Asked Questions
What is the main application of the SLA-LC03-RC servo lifting column?
It is mainly used for collaborative robots, industrial automation systems, precision positioning, automated
assembly lines, packaging equipment, medical robots, and material handling applications.
What voltage options are available?
The SLA-LC03-RC supports 48V DC and 220V AC configurations, depending on the selected servo motor and system
requirements.
What is the maximum thrust force?
The maximum thrust or pull force can reach up to 5,000N, or 3,000N depending on the selected configuration.
Does it support intelligent control?
Yes. The lifting column supports CAN bus control and includes built-in limit signal functionality for safer
and more reliable integration.
Can it be used in harsh temperature environments?
Yes. The operating temperature range is from -35°C to +75°C, making it suitable for a wide variety of industrial
environments.
Need a Servo Lifting Column for Your Robotic System?
Contact Changxing Motion Technology to discuss your load, stroke, voltage, speed, and control requirements.
Our team can help you select the right SLA-LC03-RC configuration for your automation project.
