Lifting Column

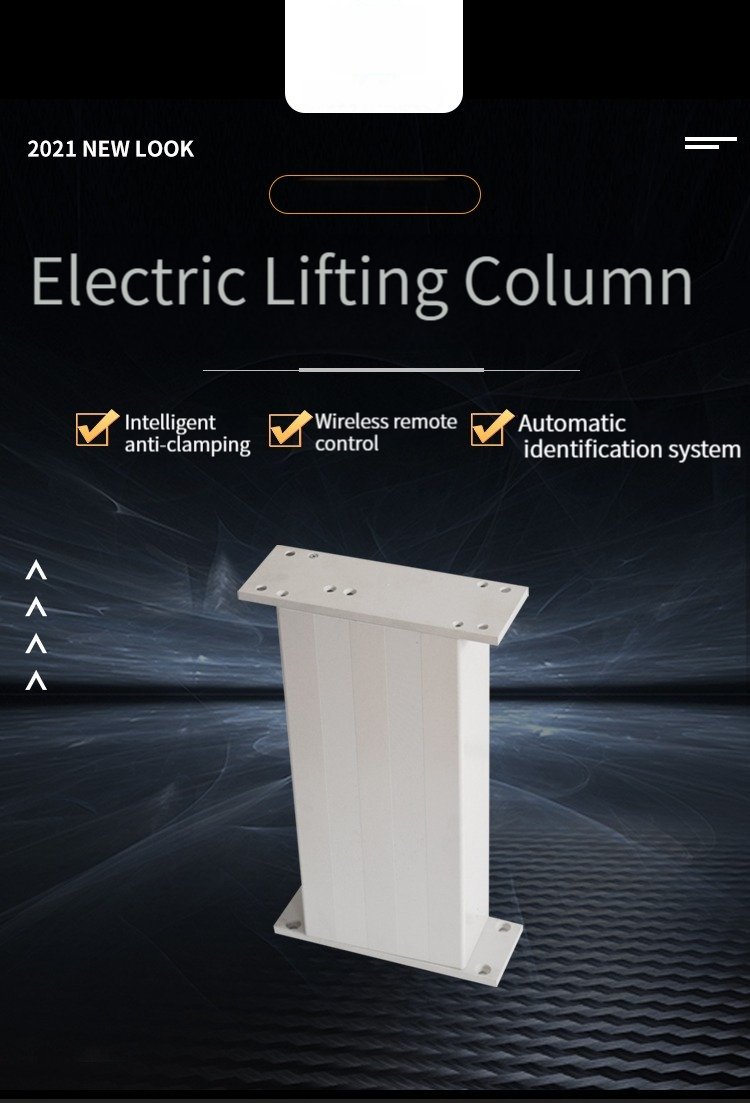

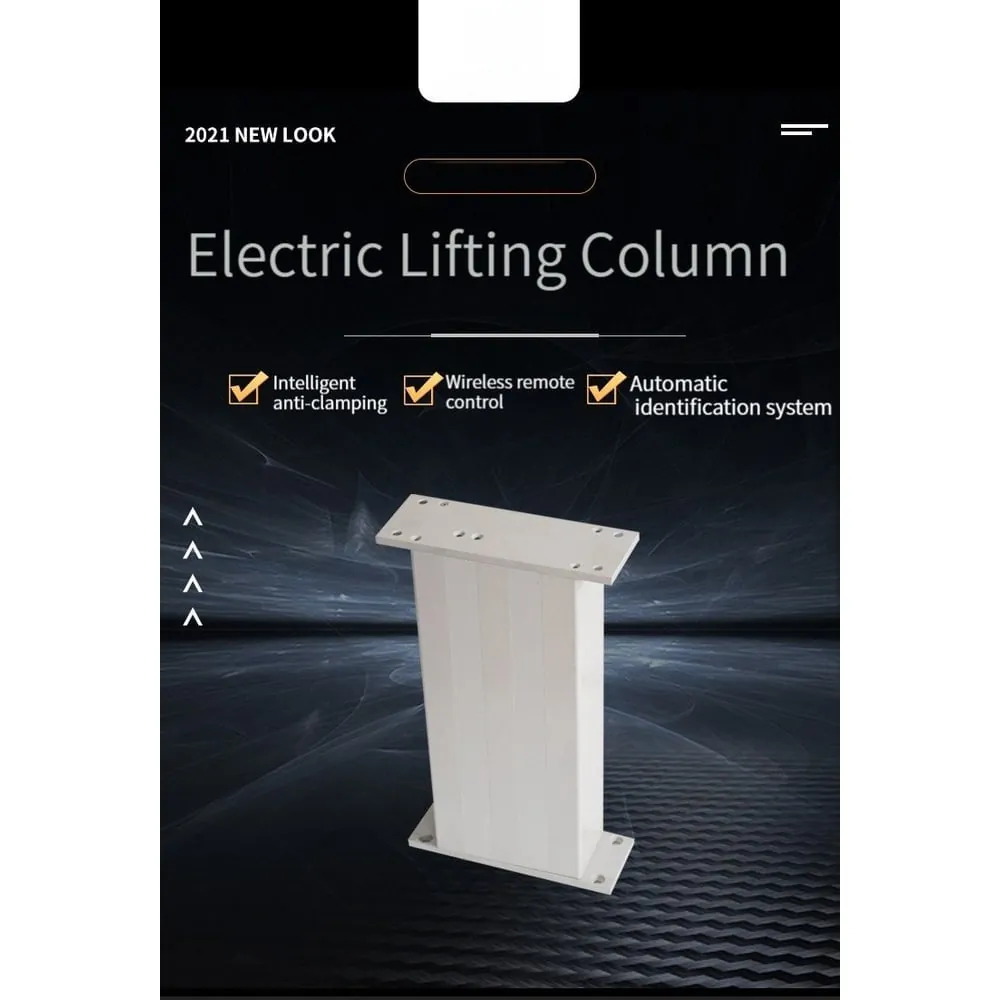

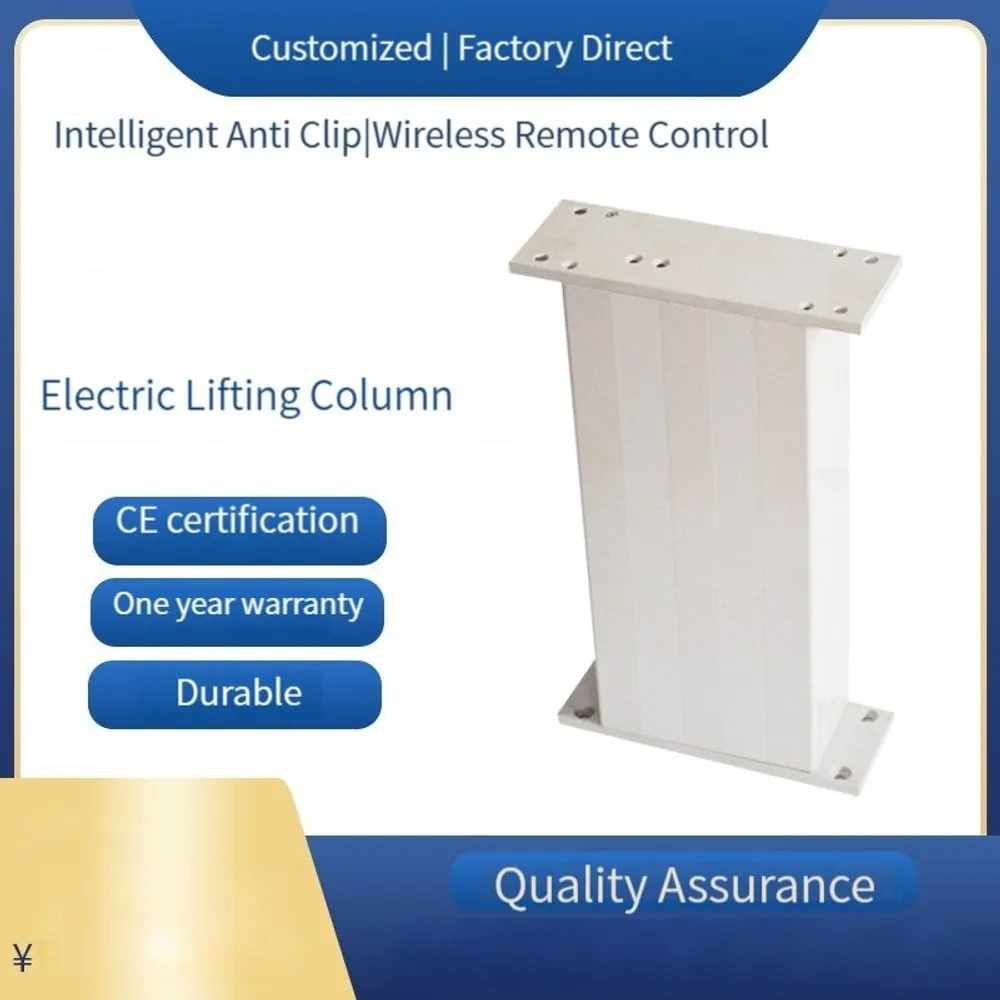

SLA-LC01 4,000 N load Lifting column
SLA-LC01 4000 N lifting column, 12/24 VDC: 4 mm/s at full load up to 30 mm/s at 500 N, built-in limit switch, IP54, aluminum tubes, customizable stroke.
Key specifications
- Maximum load
- 4000 N
- Speed
- 4 mm/s – 30 mm/s
Product overview
SLA-LC01 4000 N lifting column, 12/24 VDC: 4 mm/s at full load up to 30 mm/s at 500 N, built-in limit switch, IP54, aluminum tubes, customizable stroke.
- Maximum load
- 4000 N
- Speed
- 4 mm/s – 30 mm/s
- Voltage
- 12 V / 24 V
Applications
- Furniture
- Desk
- Lifting
Benefits
- 4000 N dynamic and static load
- 12 or 24 VDC permanent-magnet DC motor
- 4 mm/s at 4000 N up to 30 mm/s at 500 N
- Built-in limit switch

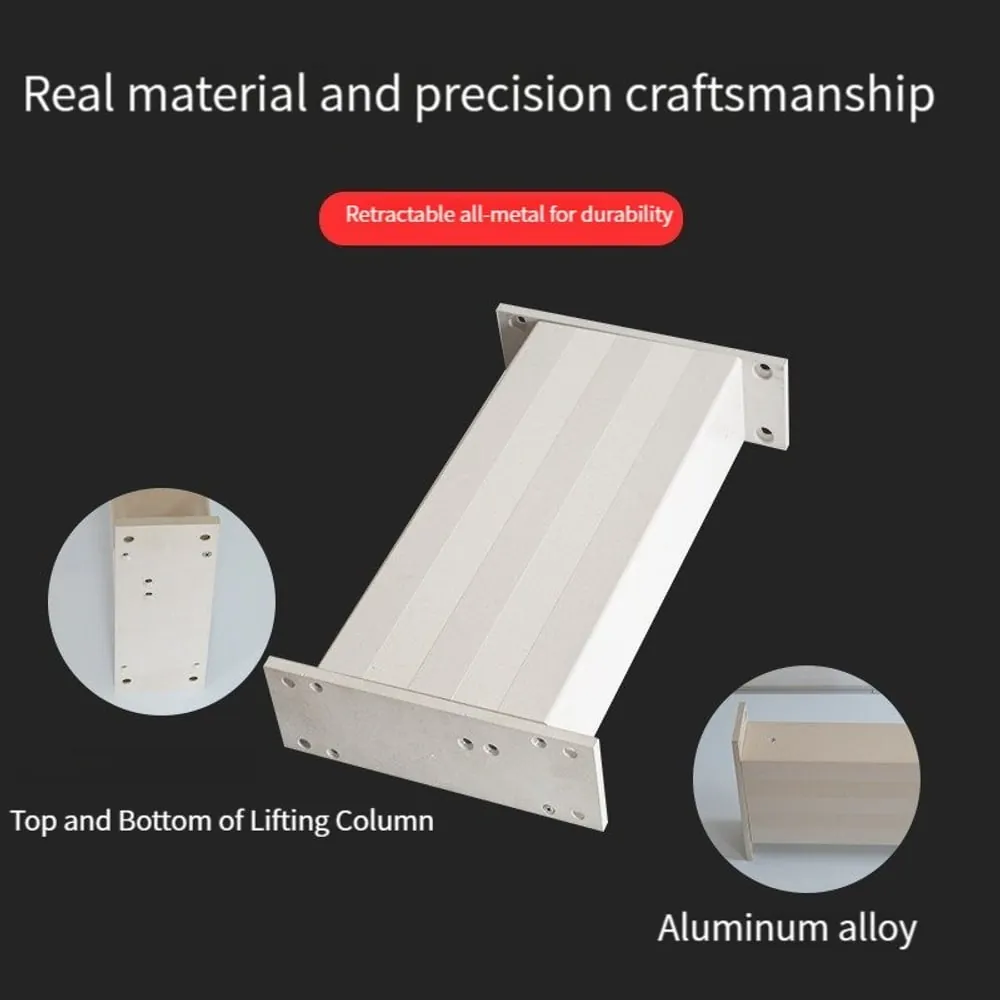

- Aluminum outer and inner tubes, aluminum alloy end clevis
- IP54; -26°C to +65°C
- Customizable stroke; wired or wireless control options
- CE and RoHS

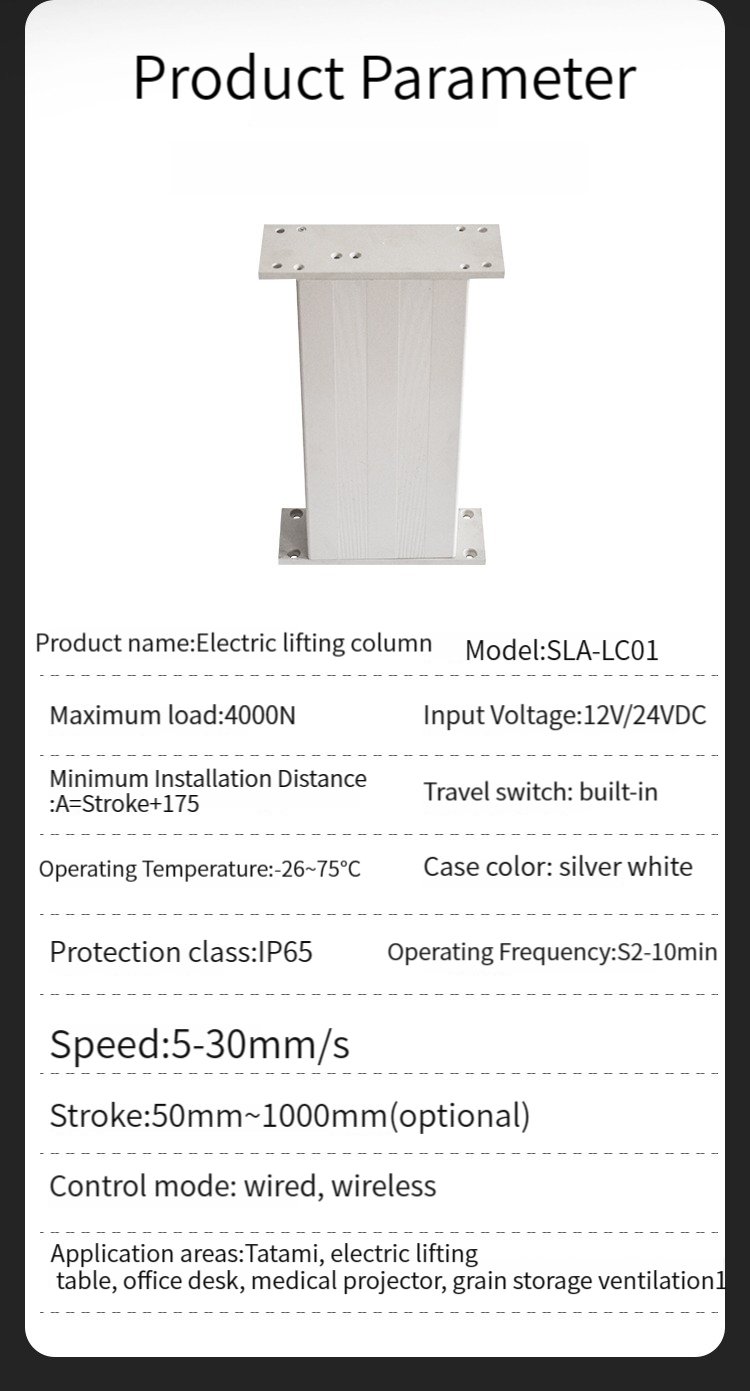

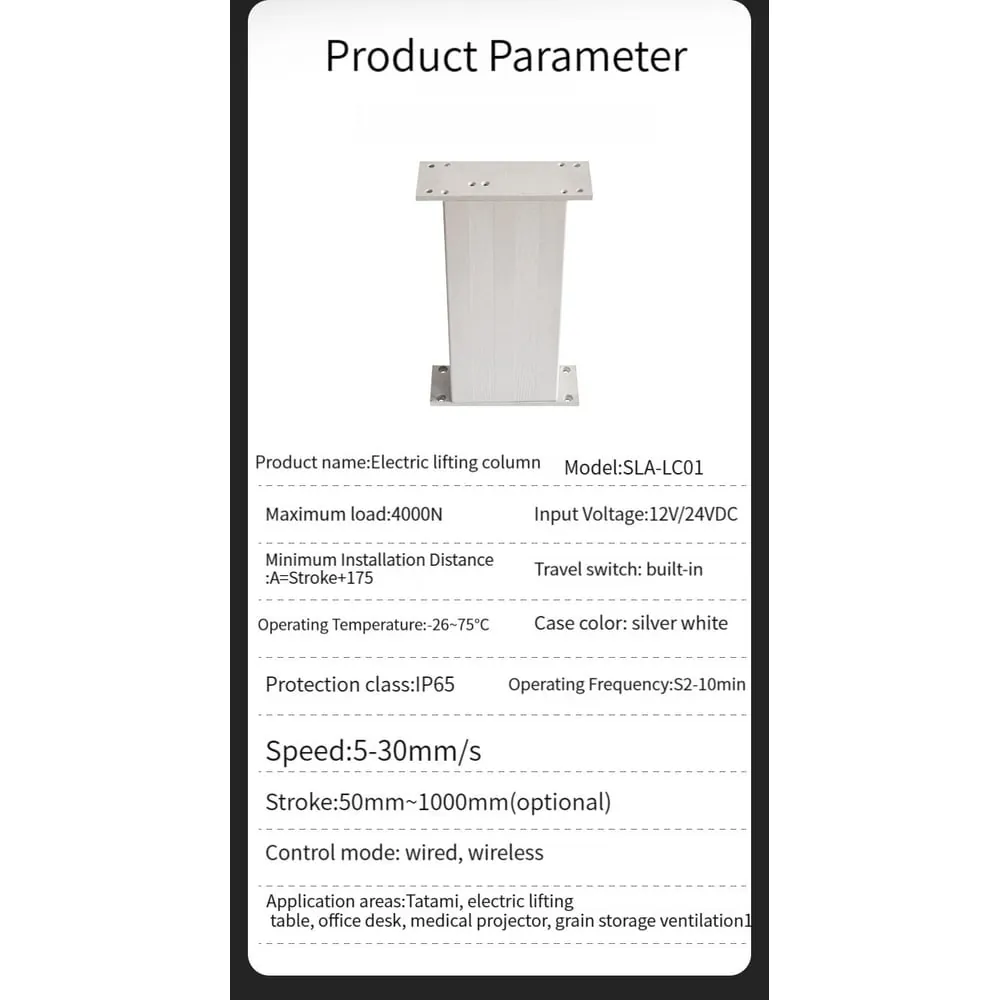

Technical specifications
| Maximum load | 4000 N |
|---|---|
| Speed | 4 mm/s – 30 mm/s |
| Voltage | 12 V / 24 V |
| Duty cycle | 20% |
| Limit switch | Built-in |
| IP rating | IP54 |
| Operating temperature | -26°C to +65°C |
| Certifications | CE, RoHS |
Performance matrix
| Speed | Thrust |
|---|---|
| 4 mm/s | 4000 N |
| 12 mm/s | 2000 N |
| 21 mm/s | 1000 N |
| 26 mm/s | 800 N |
| 29 mm/s | 600 N |
| 30 mm/s | 500 N |
Request technical documents
FAQ
What is the SLA-LC01?
The SLA-LC01 is an Elerover lifting column rated IP54.
Does Elerover manufacture the SLA-LC01?
Yes. Elerover is a lifting column manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-LC01?
Key ratings from the product specifications include voltage 12 V / 24 V, load 4000 N, stroke Customizable, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-LC01?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
