Linear Actuator
SLA-T01-W Linear Actuator
DC 6V/12V/24V compact electric linear actuator with 100mm stroke, max thrust 188N / 42 lbs.
Key specifications
- Maximum load
- 188 N / 19 kg / 42 lbs at 5mm/s
- Stroke
- 100 mm
- Speed
- 5 mm/s – 150 mm/s
- Voltage
- 6 V / 12 V / 24 V DC
- IP rating
- IP54
- Duty cycle
- 10%
Product overview
DC 6V/12V/24V compact electric linear actuator with 100mm stroke, max thrust 188N / 42 lbs. Flanged housing for narrow spaces, furniture, medical and OEM applications.
- Maximum load
- 188 N / 19 kg / 42 lbs at 5mm/s
- Stroke
- 100 mm
- Speed
- 5 mm/s – 150 mm/s
- Voltage
- 6 V / 12 V / 24 V DC
- IP rating
- IP54
- Duty cycle
- 10%
Applications
- Medical equipment and adjustable beds
- Solar tracking systems
- Industrial automation
- Smart home window openers
- Furniture adjustment
- Narrow-space OEM motion modules
Benefits
- Compact flanged housing for narrow-space OEM installations
- Optional working voltage: 6V / 12V / 24V DC
- Max thrust up to 188N / 19 kg / 42 lbs at 5mm/s
- Multiple speed options from 5mm/s to 150mm/s
- Side mounting flanges plus front/rear clevis mounts
- Stainless steel stroke rod and aluminum alloy outer tube
- Built-in limit switches with auto-locking at rest
- Low noise, smooth operation for furniture and automation
Technical specifications
| Maximum load | 188 N / 19 kg / 42 lbs at 5mm/s |
|---|---|
| Stroke | 100 mm |
| Speed | 5 mm/s – 150 mm/s |
| Speed options | 5–150mm/s (optional) |
| Voltage | 6 V / 12 V / 24 V DC |
| IP rating | IP54 |
| Duty cycle | 10% |

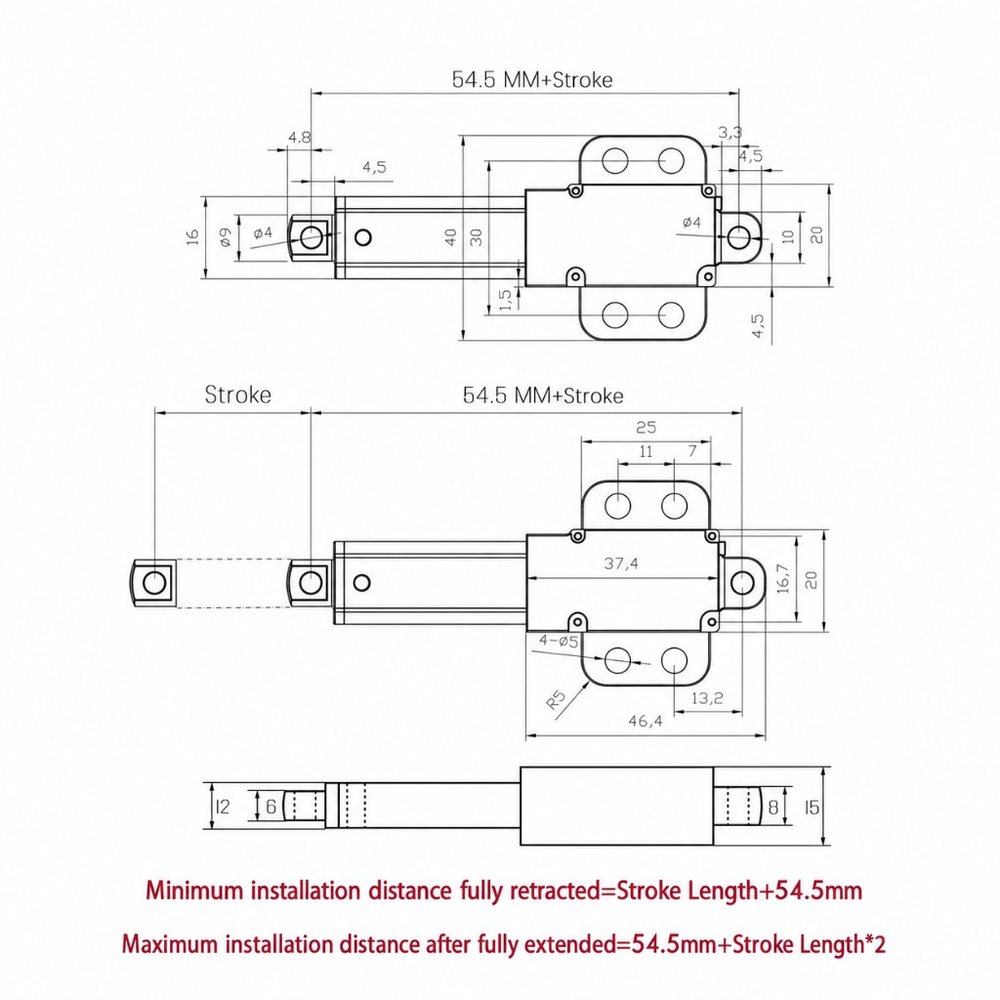

| Retracted length | 154.5 mm |
| Mounting type | 4mm clevis / 5mm side flanges |
| Housing material | 12×16mm |
Performance matrix
| Speed | Thrust |
|---|---|
| 5 mm/s | 188 N |
| 7 mm/s | 128 N |
| 9.5 mm/s | 96 N |
| 15 mm/s | 64 N |
| 30 mm/s | 32 N |
| 50 mm/s | 19 N |
| 150 mm/s | 6 N |
Request technical documents
FAQ
What is the SLA-T01-W?
The SLA-T01-W is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA-T01-W?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-T01-W?
Key ratings from the product specifications include voltage 6V / 12V / 24V DC, load 188 N, stroke 100 mm, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-T01-W?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
