Linear Actuator
SLA-T01 Linear Actuator
Miniature linear actuator for robots, 6/12/24V DC, 5–150 mm/s, up to 188N, installation length 55 mm + stroke, built-in limit switches, IP54.
Key specifications
- Maximum load
- 188 N / 19 kg / 42 lbs (at 5 mm/s)
- Stroke
- 10 – 150 mm
- Speed
- 5 mm/s – 150 mm/s
- Voltage
- DC 6 V, 12 V or 24 V
- IP rating
- IP54
- Duty cycle
- 10%
Product overview
Miniature linear actuator for robots, 6/12/24V DC, 5–150 mm/s, up to 188N, installation length 55 mm + stroke, built-in limit switches, IP54.
- Maximum load
- 188 N / 19 kg / 42 lbs (at 5 mm/s)
- Stroke
- 10 – 150 mm
- Speed
- 5 mm/s – 150 mm/s
- Voltage
- DC 6 V, 12 V or 24 V
- IP rating
- IP54
- Duty cycle
- 10%
Applications
- small doors and windows
- furniture
- medical and healthcare equipment
- agricultural machinery
- vehicles and ships
- drones and aircraft models
Benefits
- Up to 188N (19 kg / 42 lbs) at 5 mm/s
- 6V, 12V or 24V DC
- Seven speed options from 5 to 150 mm/s
- Installation length only 55 mm + stroke
- Built-in limit switches; holds position without power
- Metal gearbox with steel alloy gears
- Polyamide housing with aluminum alloy tubes
- Low current and 45 – 55 dB noise
Technical specifications
| Maximum load | 188 N / 19 kg / 42 lbs (at 5 mm/s) |
|---|---|
| Stroke | 10 – 150 mm |
| Stroke options | 10 – 150 mm |
| Speed | 5 mm/s – 150 mm/s |
| Speed options | 5, 7, 9.5, 15, 30, 50, 150 mm/s |
| Voltage | DC 6 V, 12 V or 24 V |
| IP rating | IP54 |
| Duty cycle | 10% |

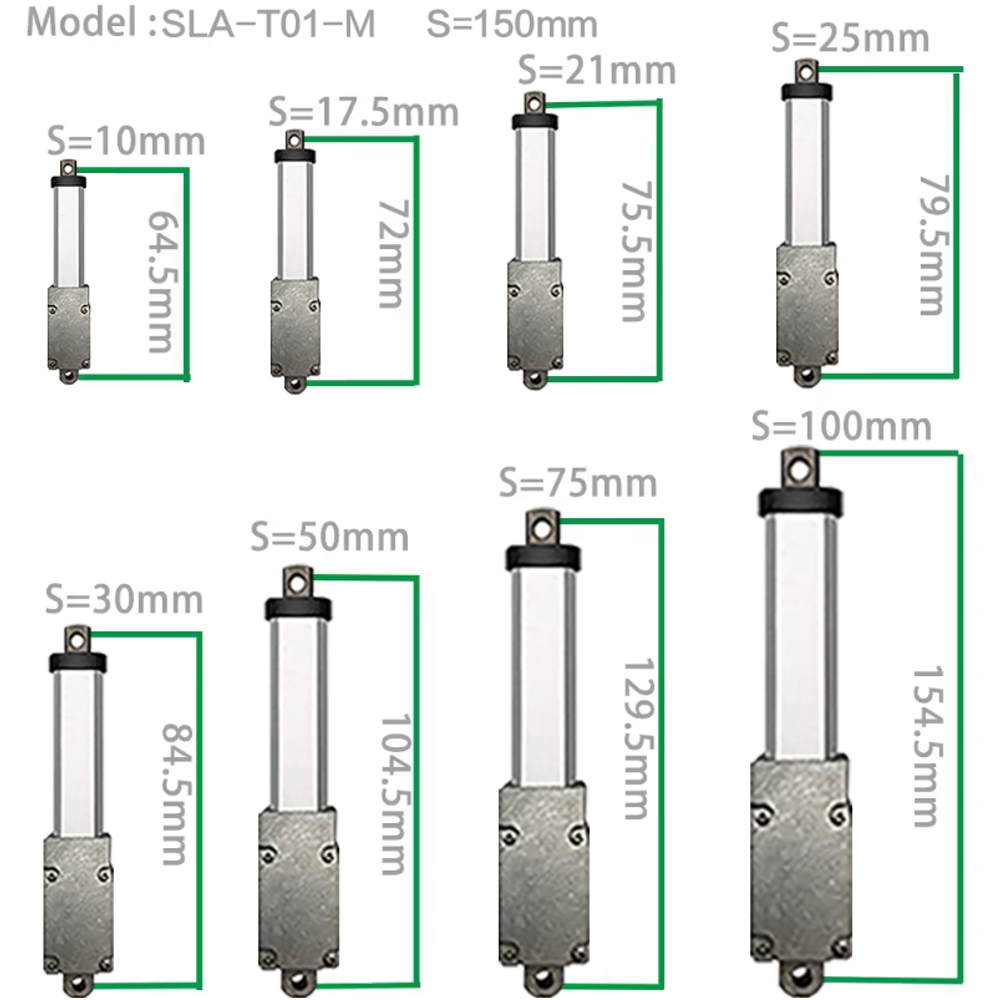

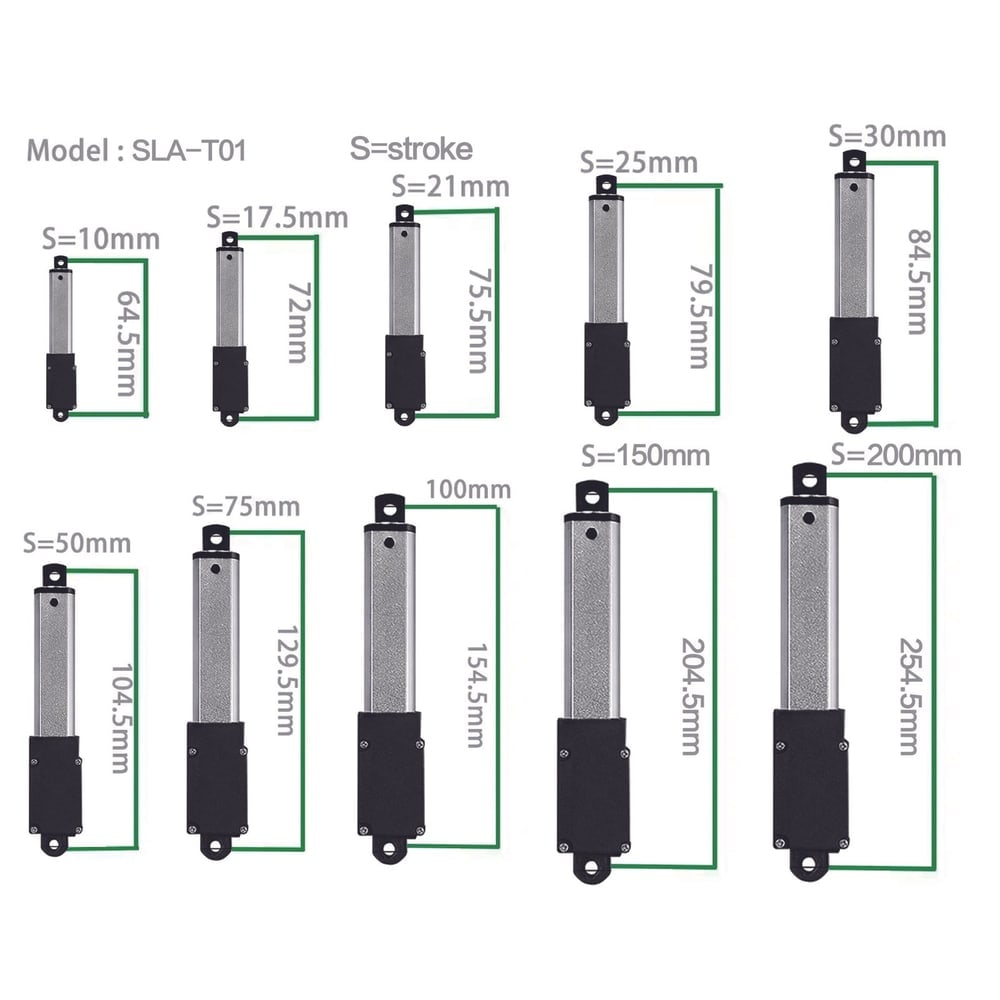

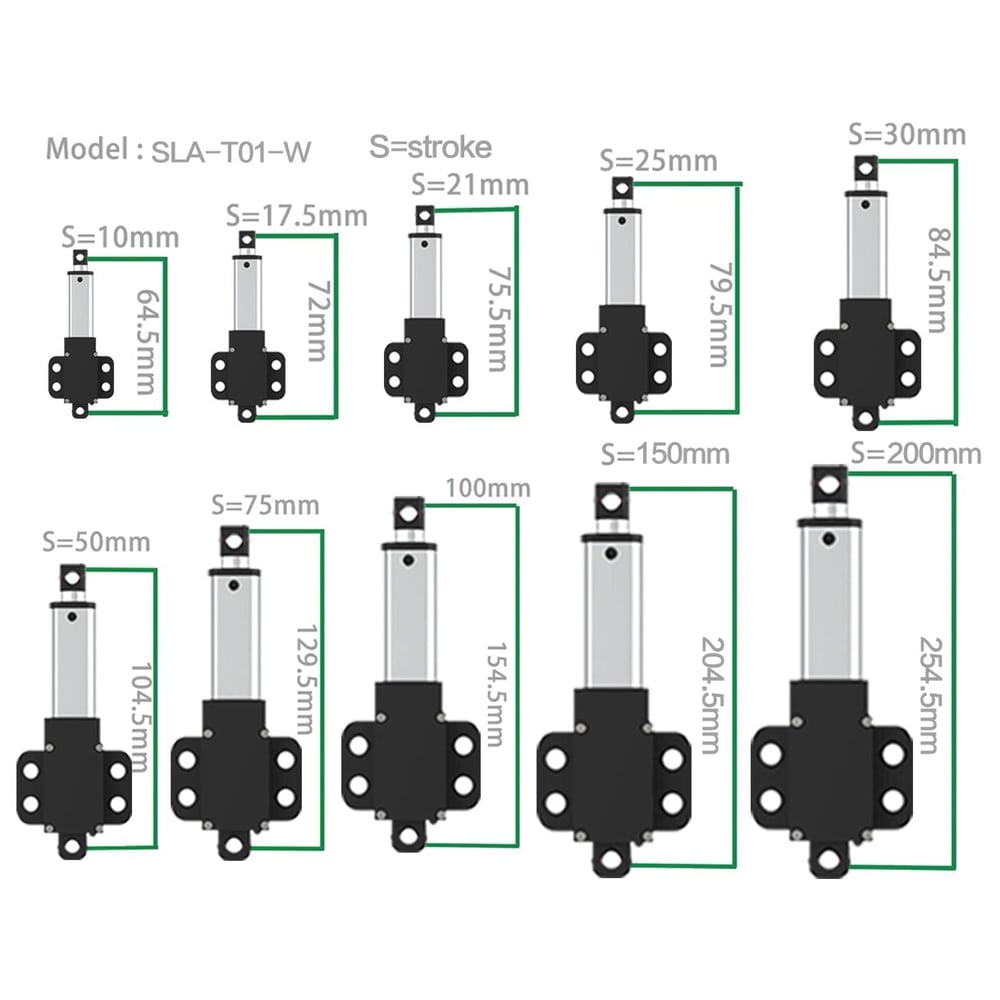

| Retracted length | 55 mm + S |
| Limit switch | Yes |
Show 5 more specifications Show fewer specifications
| Motor type | Brushed DC |
|---|---|
| Housing material | Polyamide |
| Rod material | Aluminum alloy |
| Operating temperature | -26°C to +85°C |
| Certifications | CE |

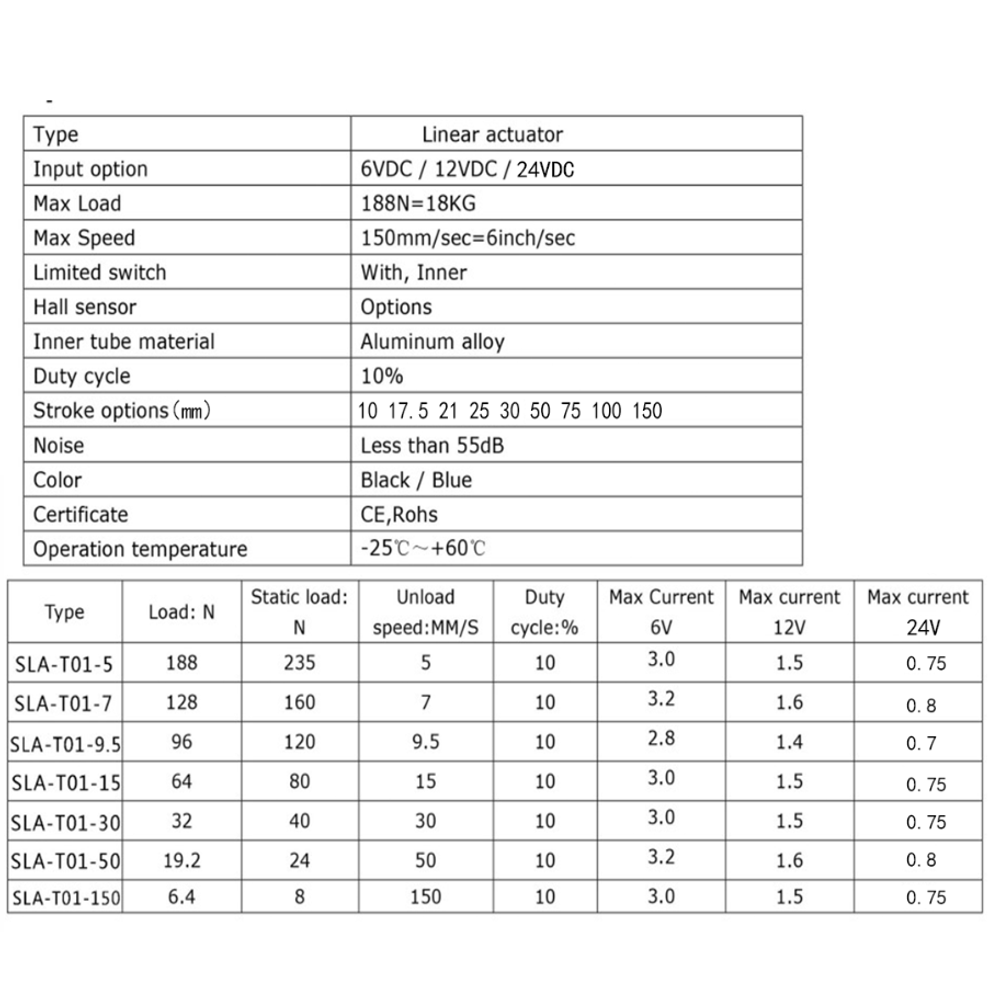

Performance matrix
| Speed | Thrust |
|---|---|
| 5 mm/s | 188 N / 19 kg / 42 lbs |
| 7 mm/s | 128 N / 13 kg / 29 lbs |
| 9.5 mm/s | 96 N / 9.8 kg / 21 lbs |
| 15 mm/s | 64 N / 6.5 kg / 14 lbs |
| 30 mm/s | 32 N / 3.2 kg / 7 lbs |
| 50 mm/s | 19 N / 1.9 kg / 4 lbs |
| 150 mm/s | 6 N / 0.6 kg / 1.3 lbs |
Installation, electrical and use information

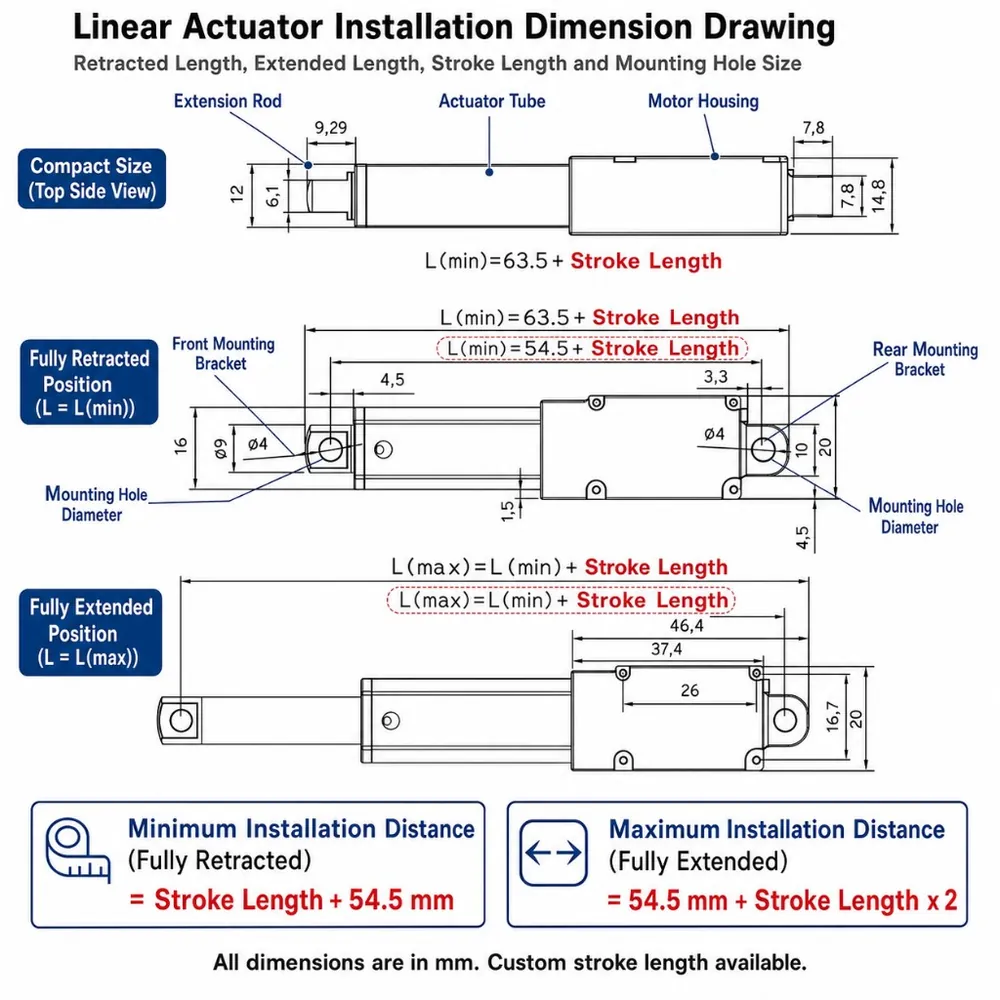

Dimensions
Dimensions
- Outer tube: 12 × 16 mm
- Telescopic tube: 6 × 9 mm
- Mounting holes: Φ4 mm
Request technical documents
FAQ
What is the SLA-T01?
The SLA-T01 is an Elerover linear actuator rated IP54.
Does Elerover manufacture the SLA-T01?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-T01?
Key ratings from the product specifications include voltage 6V / 12V / 24V DC, load 188 N, stroke 10 – 150 mm, protection IP54. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-T01?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
