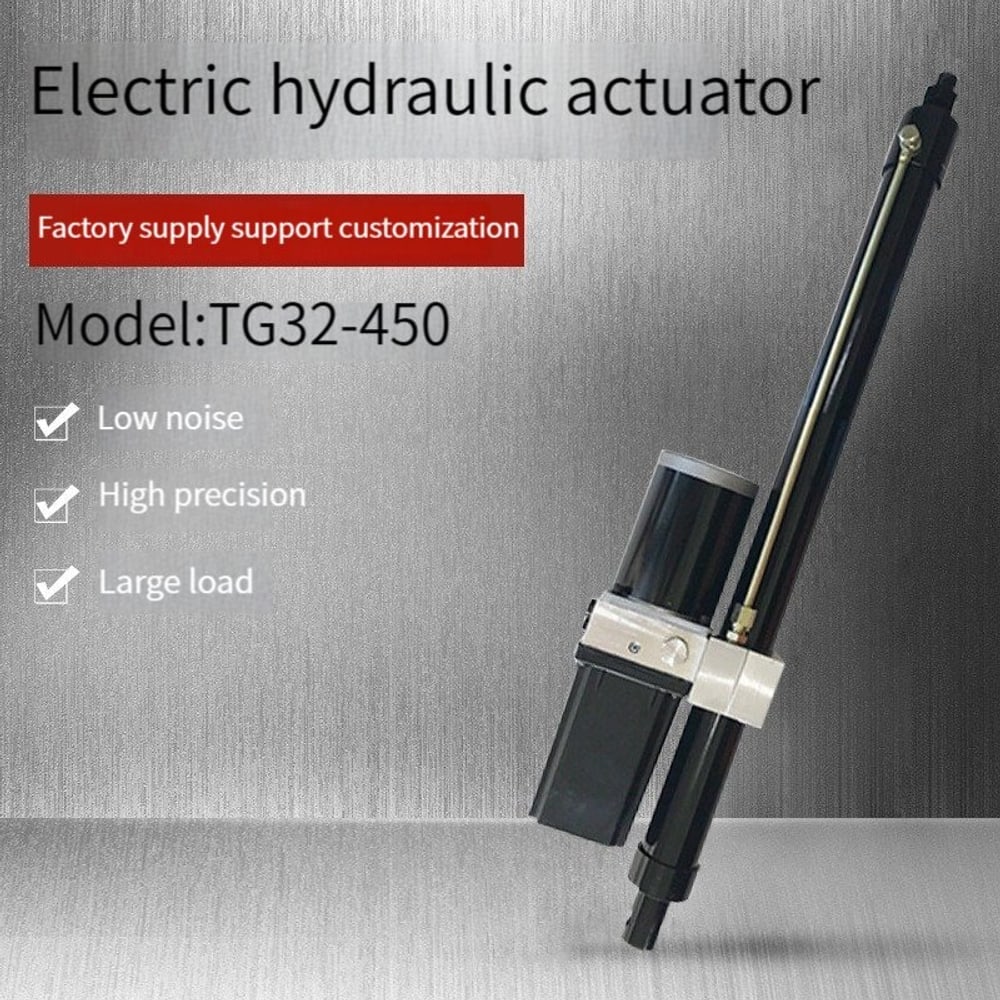

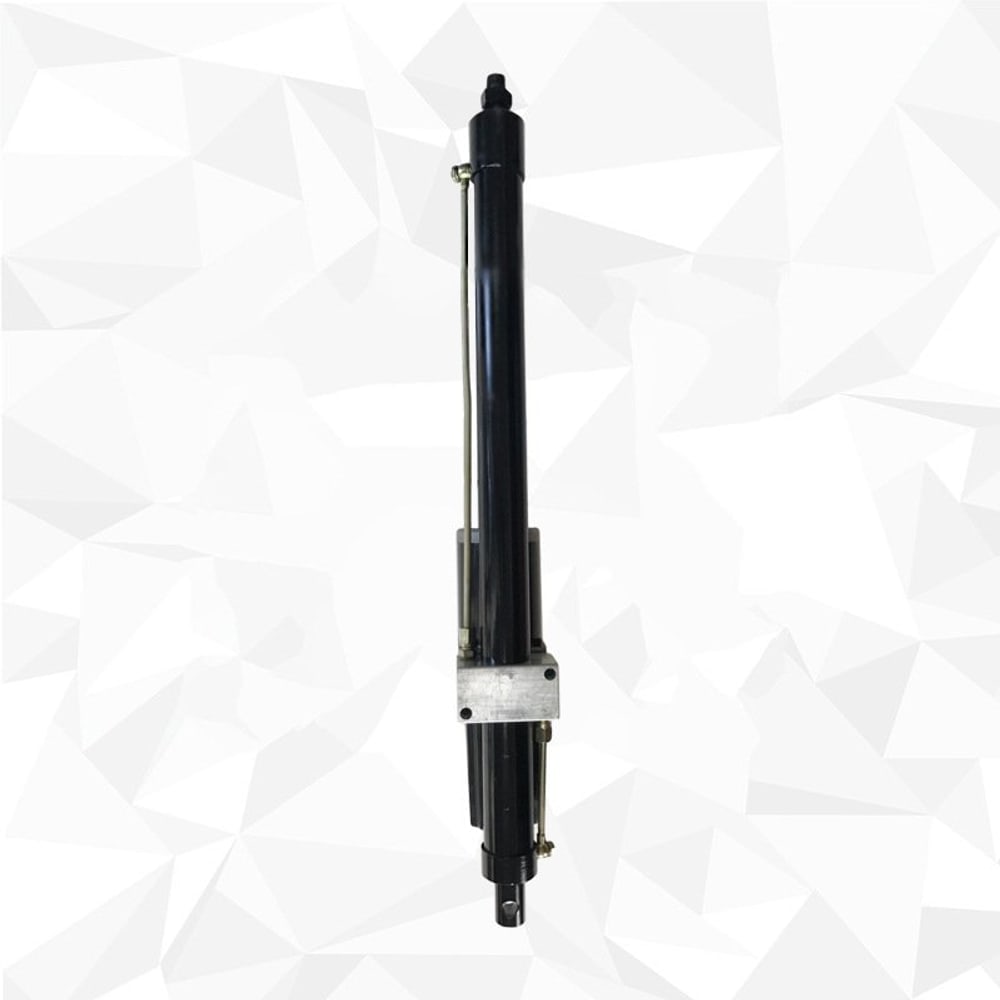

SLA-TG32S Electric Hydraulic Actuator
This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
Key specifications
- Maximum push force
- 10,000 N
- Maximum pull force
- 5,000 N
- Stroke
- 50 – 800 mm
- Speed
- 10 mm/s – 20 mm/s
- Voltage
- 12 V (300W only) / 24 V / 48 V DC
Product overview
SLA-TG32S 10000N load electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
- Maximum push force
- 10,000 N
- Maximum pull force
- 5,000 N
- Stroke
- 50 – 800 mm
- Voltage
- 12 V (300W only) / 24 V / 48 V DC
- Speed
- 10 mm/s – 20 mm/s
Applications
- Industrial Automation
- Agricultural
- Construction
- Lifting
Benefits
- 10,000 N push (1 t) and 5,000 N pull (0.5 t)
- Integrated motor, pump, valves and cylinder; ready to use once powered
- Over-current, overload and overheat protection
- Two-way pressure self-locking with self-locking, reversing and over-pressure valves
- 12V (300W only) / 24V / 48V DC with 300W / 800W motor options
- Speed 10–12 or 20–25 mm/s depending on motor power
- Stroke 50 – 800 mm, customizable
- Adjustable push and pull force; built-in safety valve
Technical specifications
| Maximum push force | 10,000 N |
|---|---|
| Maximum pull force | 5,000 N |
| Stroke | 50 – 800 mm |
| Voltage | 12 V (300W only) / 24 V / 48 V DC |
| Speed | 10 mm/s – 20 mm/s |

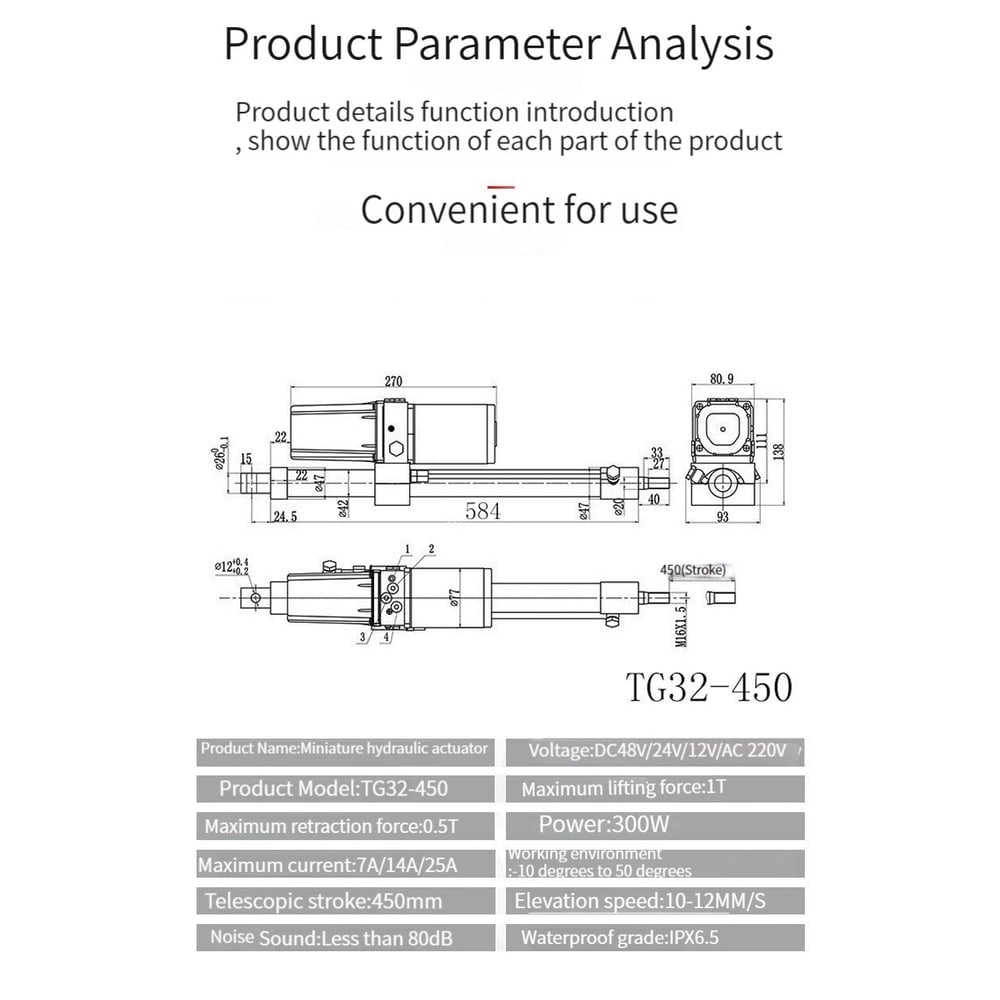

Dimensions & installation drawing
Performance matrix
| Speed | Thrust |
|---|---|
| 10 mm/s | 10000 N |
| 20 mm/s | 10000 N |
Configuration options
| Parameter | Motor Power | Speed | Max Push Force | Max Pull Force |
|---|---|---|---|---|
| 300W | 10–12 mm/s | 10,000 N | 5,000 N | |
| 800W | 20–25 mm/s | 10,000 N | 5,000 N |
Download center
FAQ
What is the SLA-TG32S?
The SLA-TG32S is an Elerover electric hydraulic actuator rated IPX6.
Does Elerover manufacture the SLA-TG32S?
Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-TG32S?
Key ratings from the product specifications include voltage 12 V (300W only) / 24 V / 48 V DC, load 10000 N, stroke 50 – 800 mm, protection IPX6. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-TG32S?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
