Electric Hydraulic Actuator Catalog 2023
Electric Hydraulic Actuator

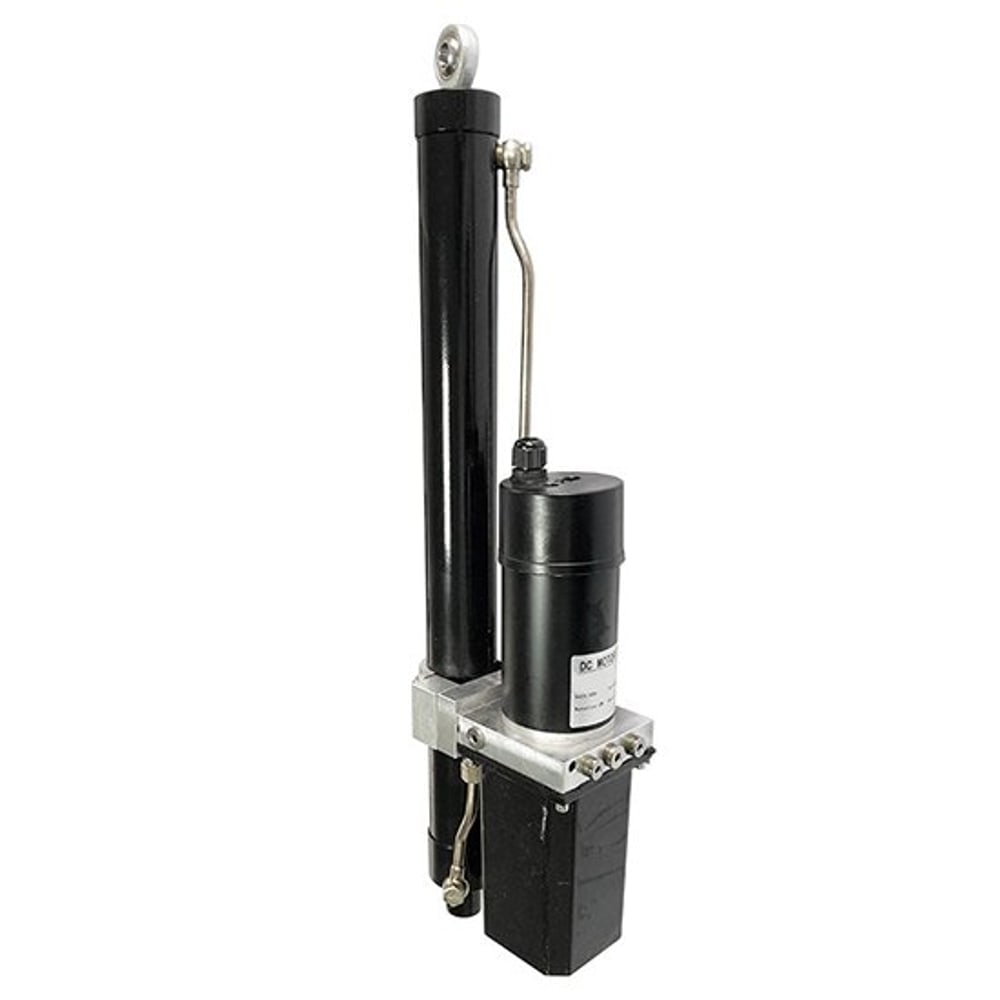

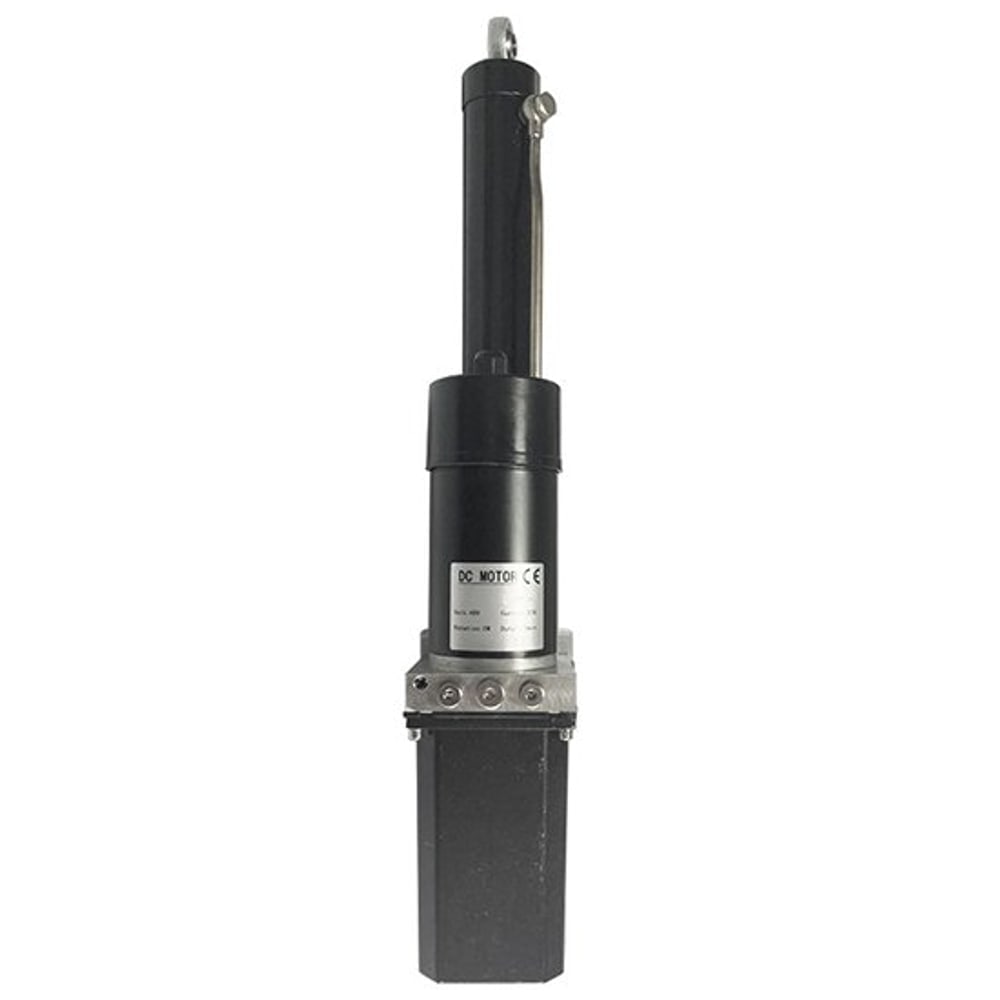

SLA-NH32S Electric Hydraulic Actuator
This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
Key specifications
- Maximum push force
- 12,000 N
- Maximum pull force
- 7,000 N
- Stroke
- 50 – 1000 mm
- Speed
- 25 mm/s – 55 mm/s
- Voltage
- 24 V / 48 V DC
Product overview
SLA-NH32S 12000N load electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
- Maximum push force
- 12,000 N
- Maximum pull force
- 7,000 N
- Stroke
- 50 – 1000 mm
- Voltage
- 24 V / 48 V DC
- Speed
- 25 mm/s – 55 mm/s
Applications
- Industrial Automation
- Agricultural
- Construction
- Lifting
Benefits
- 12,000 N push (1.2 t) and 7,000 N pull (0.7 t)

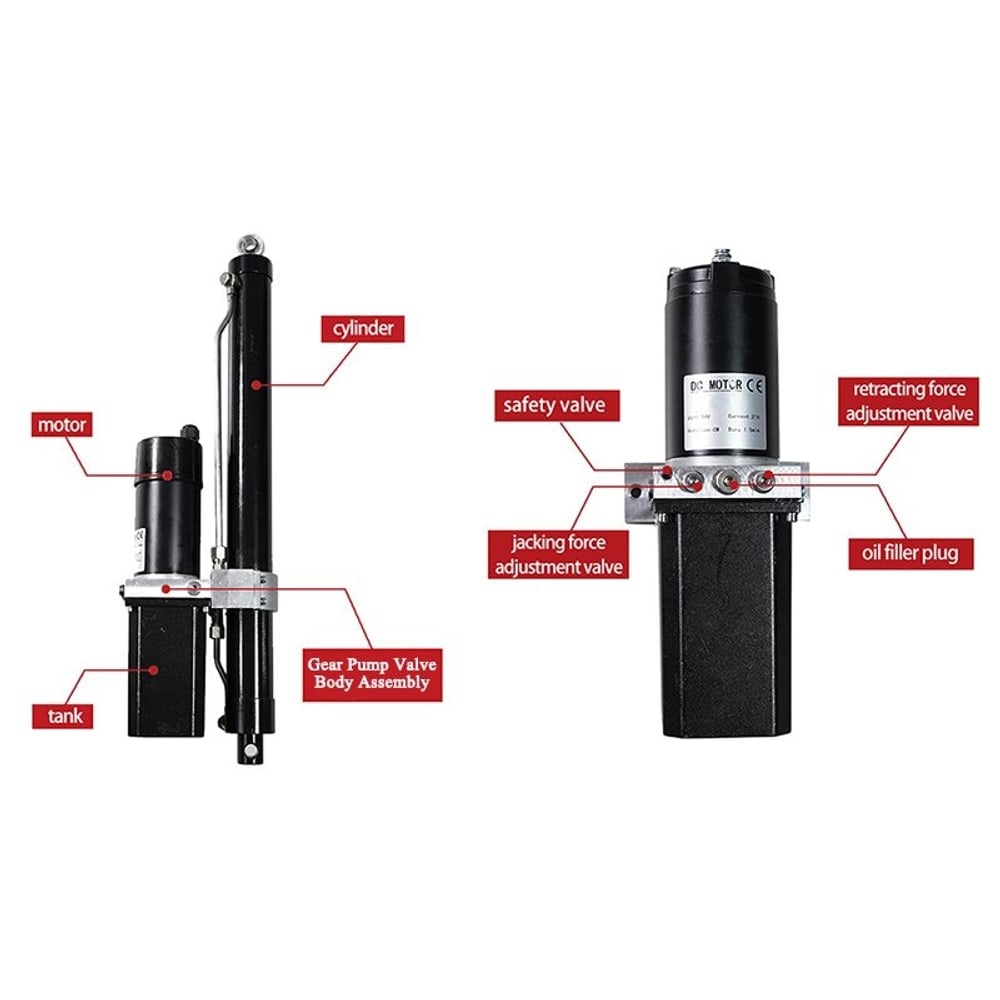

- Integrated motor, pump, valves and cylinder; ready to use once powered
- Over-current, overload and overheat protection
- Two-way pressure self-locking with self-locking, reversing and over-pressure valves
- 24V or 48V DC, 800W motor
- Three speed options: 25–26, 39–40 or 55–56 mm/s
- Stroke 50 – 1000 mm, customizable
- Adjustable push and pull force; built-in safety valve
Technical specifications
| Maximum push force | 12,000 N |
|---|---|
| Maximum pull force | 7,000 N |
| Stroke | 50 – 1000 mm |
| Voltage | 24 V / 48 V DC |
| Speed | 25 mm/s – 55 mm/s |

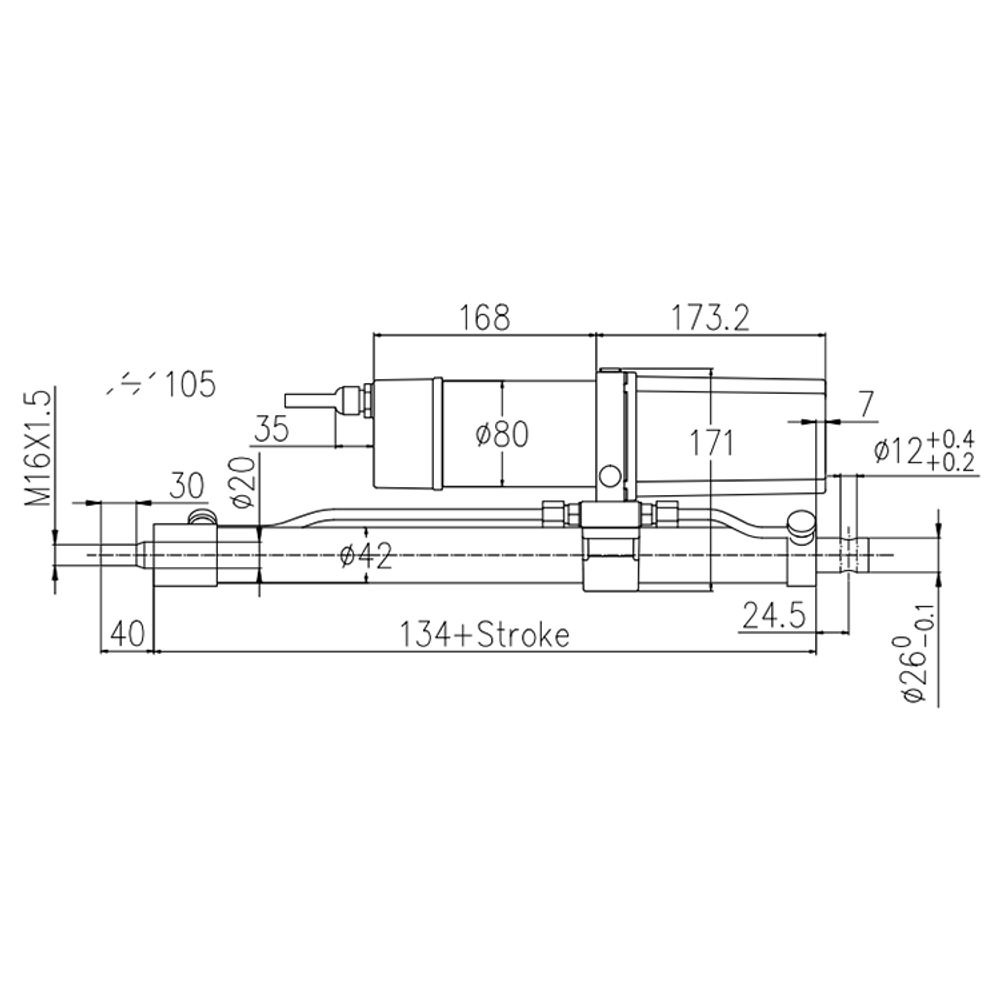

Dimensions & installation drawing
Performance matrix
| Speed | Thrust |
|---|---|
| 25 mm/s | 12000 N |
| 39 mm/s | 12000 N |
| 55 mm/s | 12000 N |
Configuration options
| Parameter | Speed | Max Push Force | Max Pull Force |
|---|---|---|---|
| 25–26 mm/s | 12,000 N | 7,000 N | |
| 39–40 mm/s | 12,000 N | 7,000 N | |
| 55–56 mm/s | 12,000 N | 7,000 N |
Download center
FAQ
What is the SLA-NH32S?
The SLA-NH32S is an Elerover electric hydraulic actuator rated IPX6.
Does Elerover manufacture the SLA-NH32S?
Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-NH32S?
Key ratings from the product specifications include voltage 24 V / 48 V DC, load 12000 N, stroke 50 – 1000 mm, protection IPX6. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-NH32S?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
