Request Datasheet
Electric Hydraulic Actuator
SLA-EHA02 Electric Hydraulic Actuator
This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
Key specifications
- Maximum push force
- 30,000 N
- Stroke
- 50 – 800 mm
- Voltage
- 12 V / 24 V / 48 V DC
Product overview

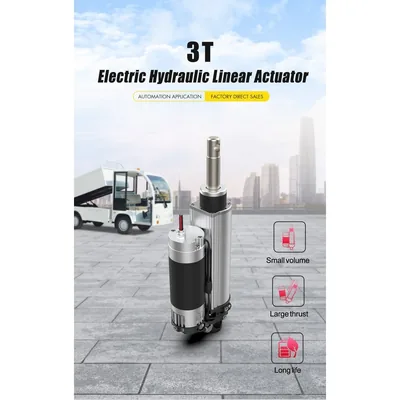

SLA-EHA 30000N load electric hydraulic linear actuator with hall sensor from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
- Maximum push force
- 30,000 N
- Stroke
- 50 – 800 mm
- Voltage
- 12 V / 24 V / 48 V DC
Applications
- Agricultural
- Lifting
Benefits
- 30,000 N (3 t) thrust

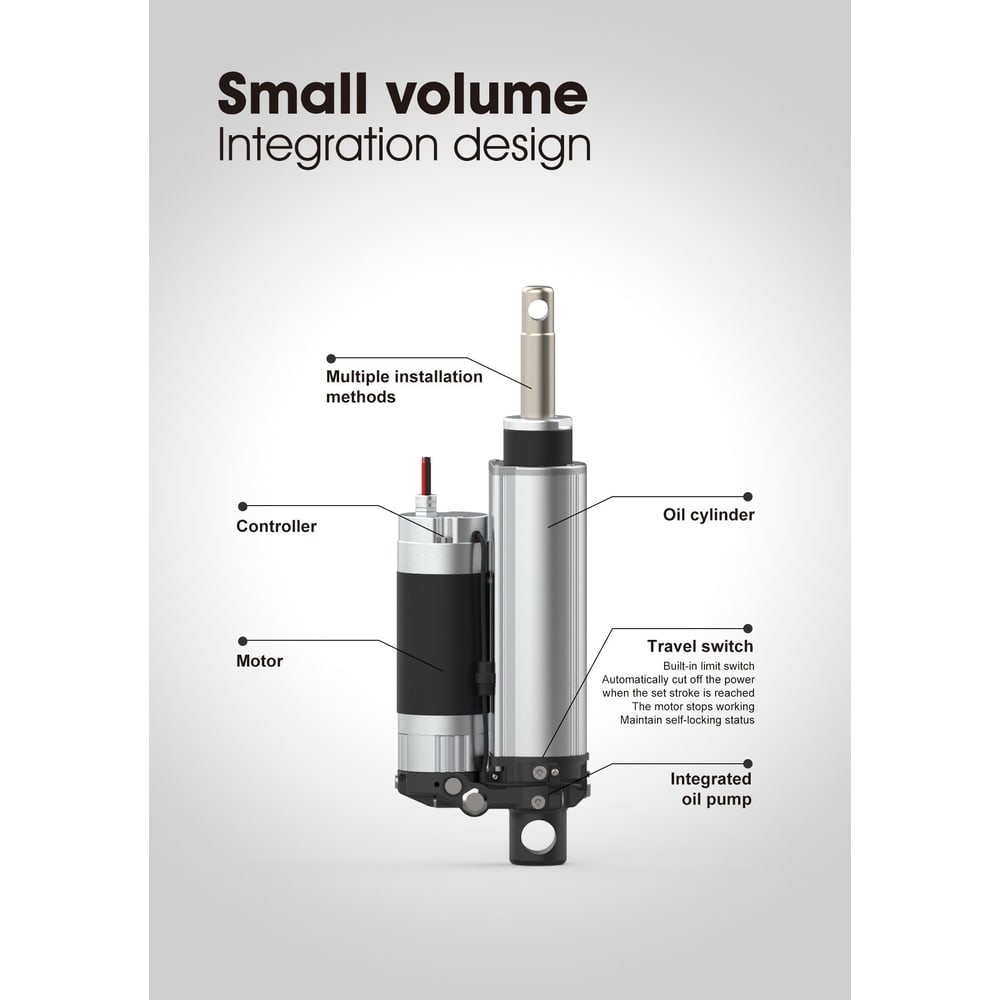

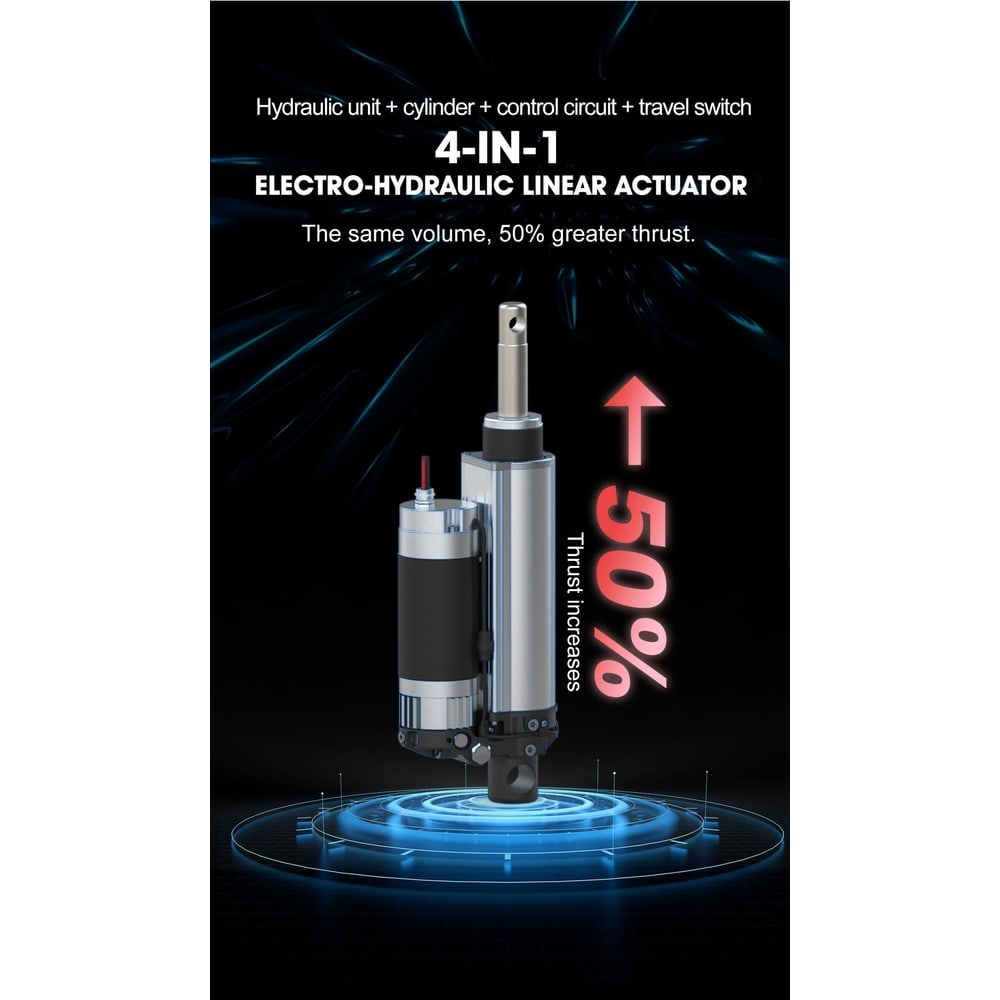

- 4-in-1 design: hydraulic unit, cylinder, control circuit and travel switch
- About 50% more thrust than a conventional actuator of the same volume

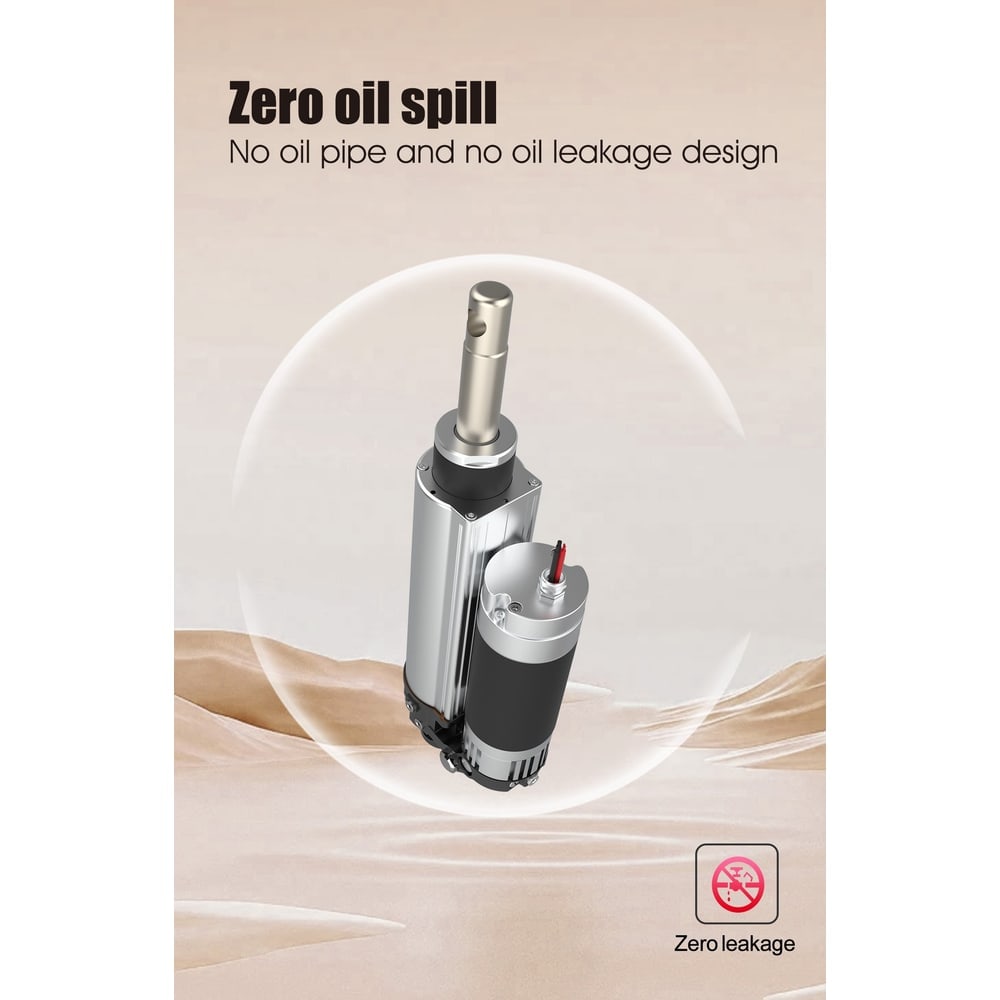

- No external oil pipes; sealed against oil leakage
- 12V, 24V or 48V DC with 300W motor
- IP65 aluminum alloy housing
- Stroke 50 – 800 mm, customizable
- Multiple mounting methods
Technical specifications
| Maximum push force | 30,000 N |
|---|---|
| Stroke | 50 – 800 mm |
| Voltage | 12 V / 24 V / 48 V DC |
| Protection class | IP65 |
Installation, electrical and use information
SLA-EHA 30000N load electric hydraulic linear actuator with hall sensor
SLA-EHA 30000N load electric hydraulic linear actuator with hall sensor
The SLA-EHA is a 3-ton (30,000 N) electric hydraulic actuator that combines hydraulic unit, cylinder, control circuit and travel switch in one IP65 aluminum housing. It runs on 12V, 24V or 48V DC with a 300W motor and 50 to 800 mm stroke.
Model
SLA-EHA02
SLA-EHA02
Push Force
30,000 N
30,000 N
Voltage
12 / 24 / 48V DC
12 / 24 / 48V DC
Power
300W
300W
Stroke
50 – 800 mm
50 – 800 mm
Protection
IP65
IP65
Request technical documents
FAQ
What is the SLA-EHA?
The SLA-EHA is an Elerover electric hydraulic actuator rated IP65.
Does Elerover manufacture the SLA-EHA?
Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. Share your application requirements and quantity for a factory quote on this model.
What are the key specifications of the SLA-EHA?
Key ratings from the product specifications include voltage 12 V / 24 V / 48 V DC, load 30000 N, stroke 50 – 800 mm, protection IP65. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-EHA?
Send load, stroke, voltage, IP rating, duty cycle and quantity via the contact form or WhatsApp.
