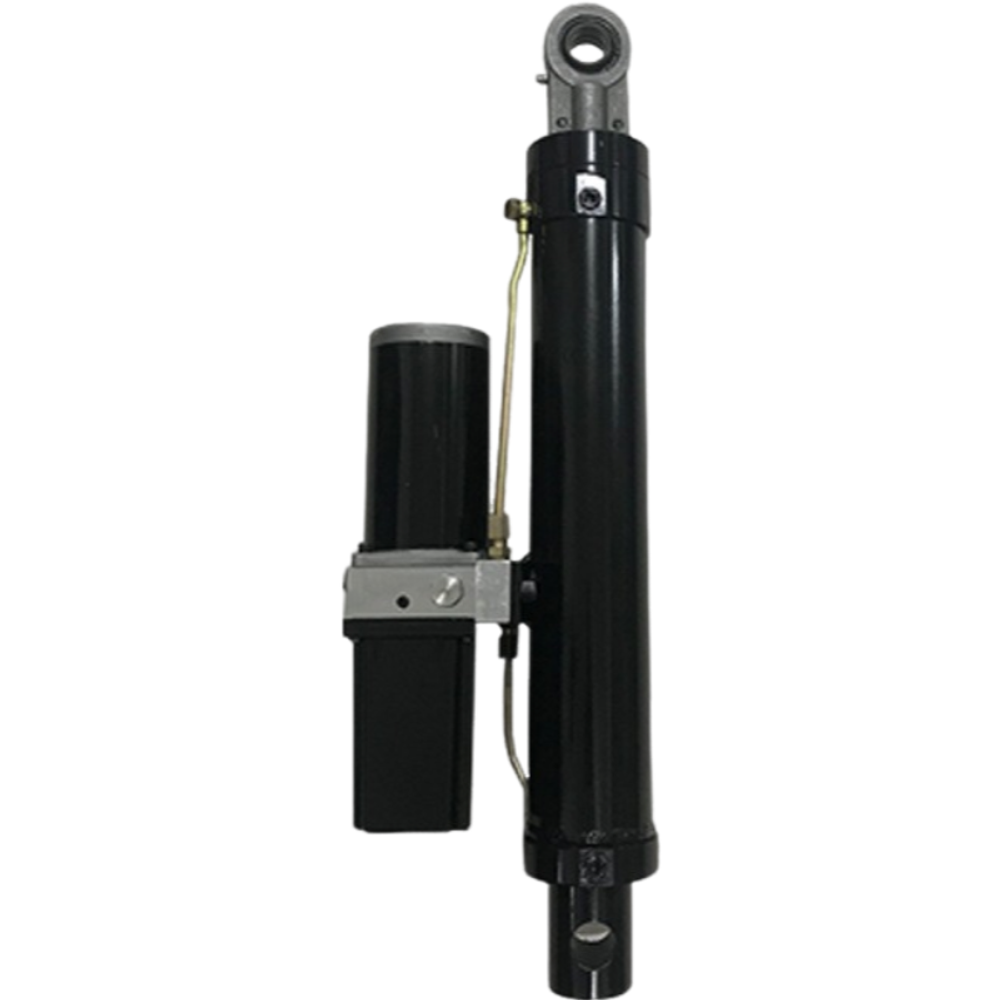

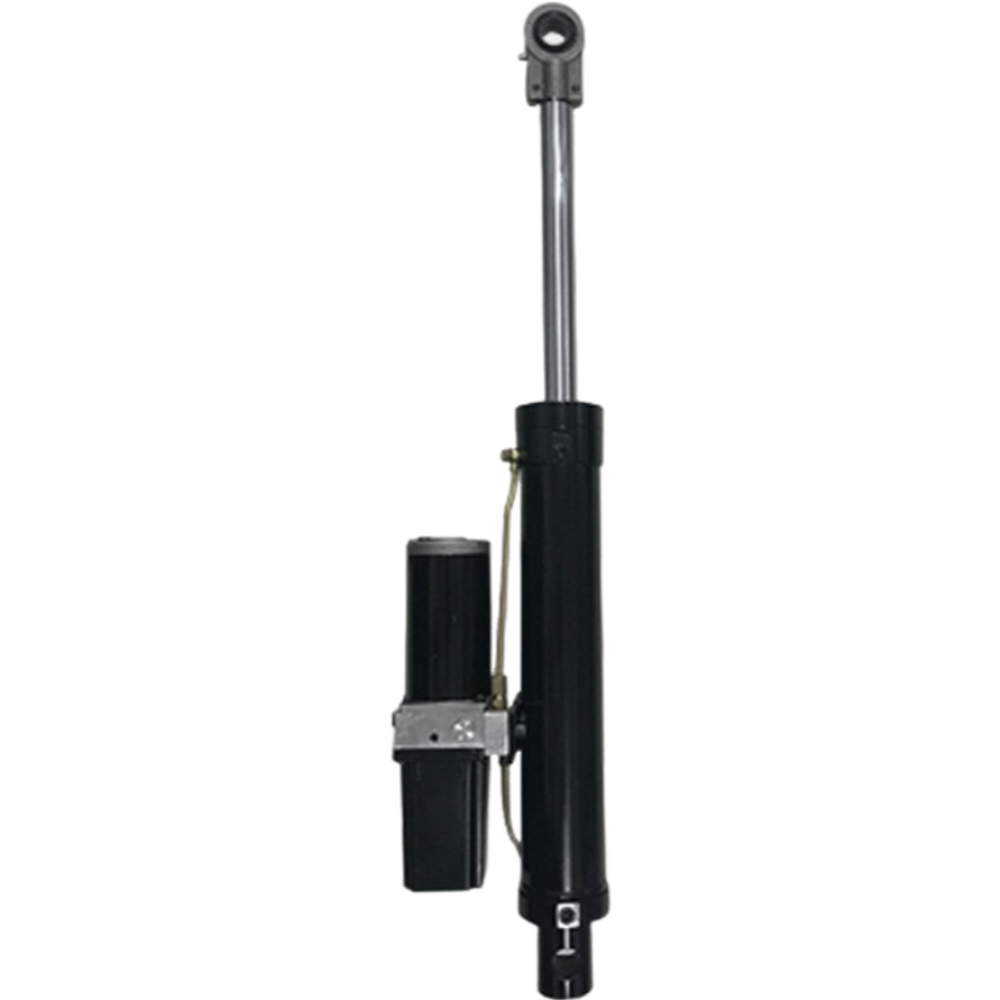

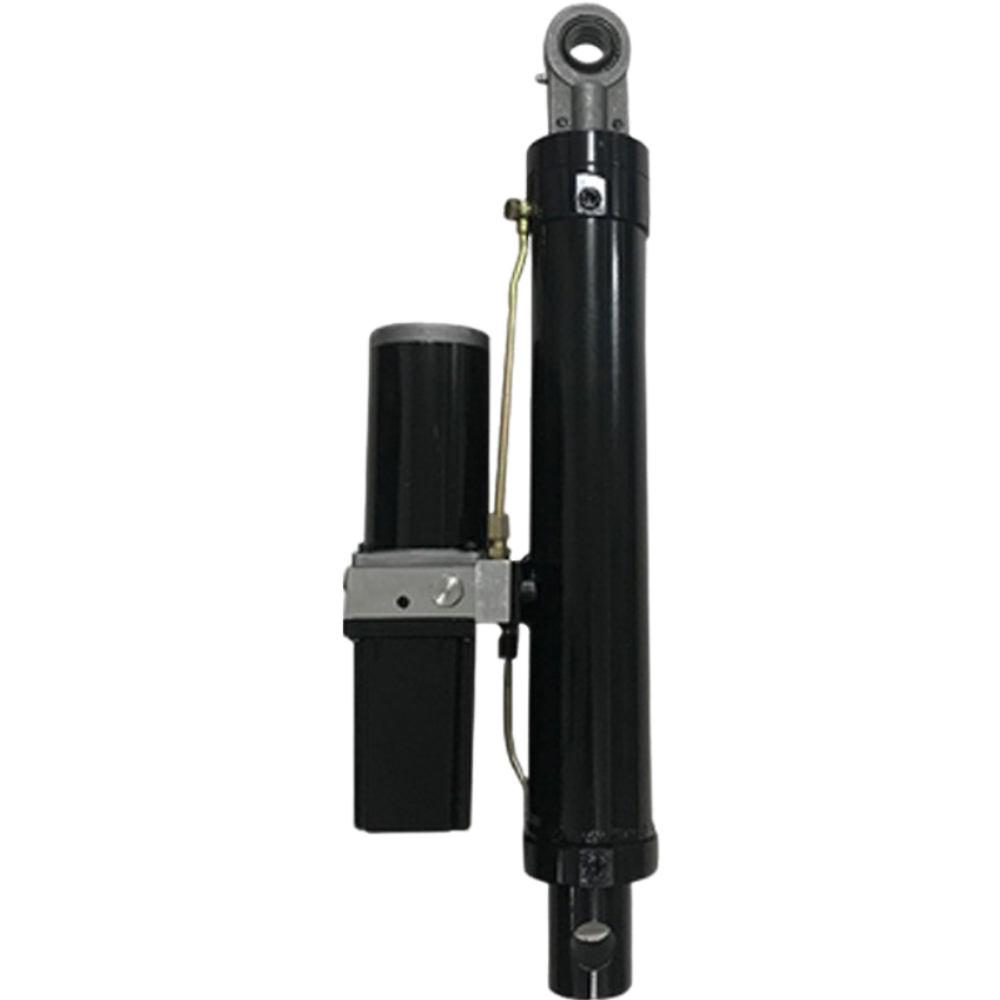

SLA-TG63S Electric Hydraulic Actuator
This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
Key specifications
- Maximum push force
- 45,000 N
- Maximum pull force
- 28,000 N
- Stroke
- 50 – 300 mm
- Speed
- 2 mm/s – 6 mm/s
- Voltage
- 24 V / 48 V DC (12 V
Product overview
SLA-TG63S 45000N load/push force electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
- Maximum push force
- 45,000 N
- Maximum pull force
- 28,000 N
- Stroke
- 50 – 300 mm
- Voltage
- 24 V / 48 V DC (12 V
- Speed
- 2 mm/s – 6 mm/s
Applications
- lifting platforms
- industrial automation equipment
- heavy machinery
- construction equipment
- agricultural machinery
- medical devices
Benefits
- 45,000 N push (4.5 t) and 28,000 N pull (2.8 t)
- Integrated motor, pump, valves and cylinder; ready to use once powered
- Over-current, overload and overheat protection
- Two-way pressure self-locking with self-locking, reversing and over-pressure valves
- 24V / 48V DC (12V option on 300W version) with 300W / 800W motor options
- Speed 2–3 or 6–7 mm/s depending on motor power
- Stroke 50 – 300 mm, customizable
- Custom pressure port and mounting dimensions
Technical specifications
| Maximum push force | 45,000 N |
|---|---|
| Maximum pull force | 28,000 N |
| Stroke | 50 – 300 mm |
| Voltage | 24 V / 48 V DC (12 V |
| Speed | 2 mm/s – 6 mm/s |

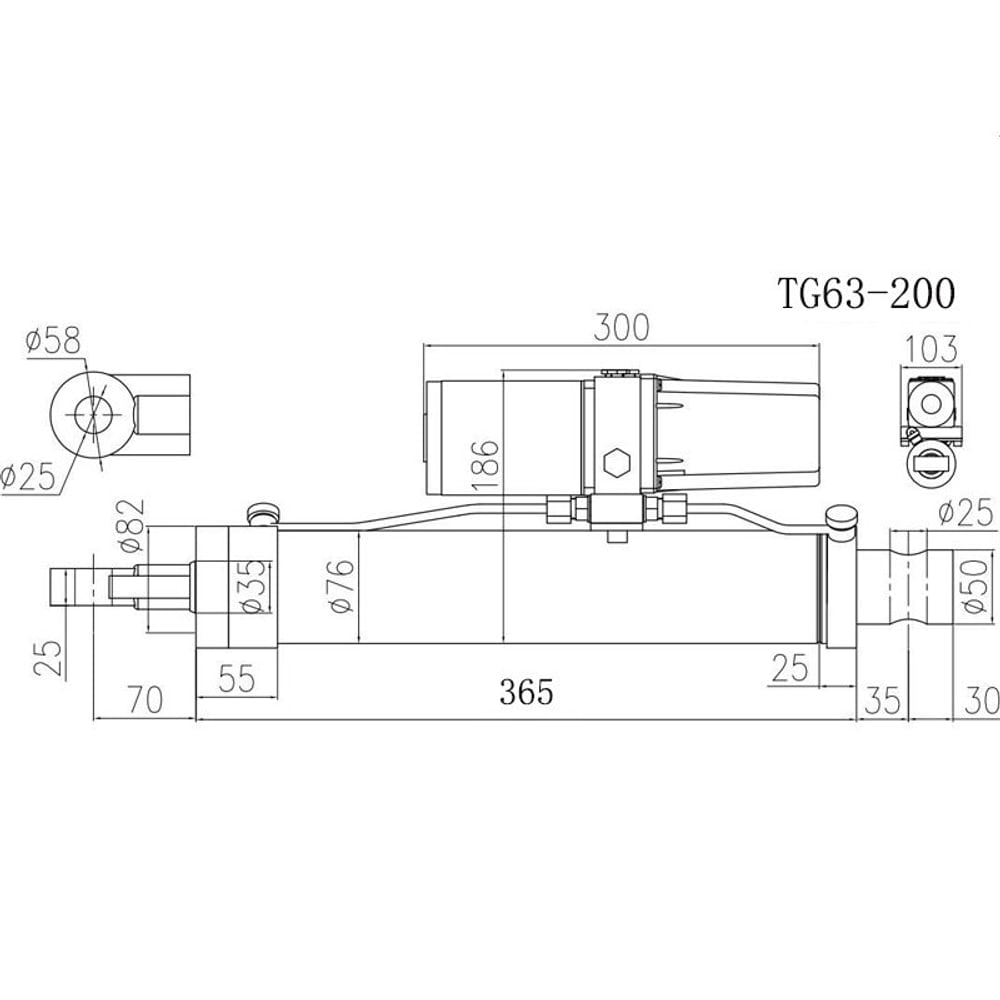

Dimensions & installation drawing
Performance matrix
| Speed | Thrust |
|---|---|
| 2 mm/s | 45000 N |
| 6 mm/s | 45000 N |
Configuration options
| Parameter | Motor Power | Speed | Max Push Force | Max Pull Force |
|---|---|---|---|---|
| 300W | 2–3 mm/s | 45,000 N | 28,000 N | |
| 800W | 6–7 mm/s | 45,000 N | 28,000 N |
Download center
FAQ
What is the SLA-TG63S?
The SLA-TG63S is an Elerover electric hydraulic actuator rated IPX6.
Does Elerover manufacture the SLA-TG63S?
Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-TG63S?
Key ratings from the product specifications include voltage 24 V / 48 V DC (12 V, load 45000 N, stroke 50 – 300 mm, protection IPX6. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-TG63S?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
