SLA-NH63S Electric Hydraulic Actuator
This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
Key specifications
- Maximum push force
- 50,000 N
- Maximum pull force
- 35,000 N
- Stroke
- 100–600 mm
- Speed
- 6–7 / 10–11 / 14–15 mm/s by motor power
- Voltage
- 24 / 48 V DC
Product overview

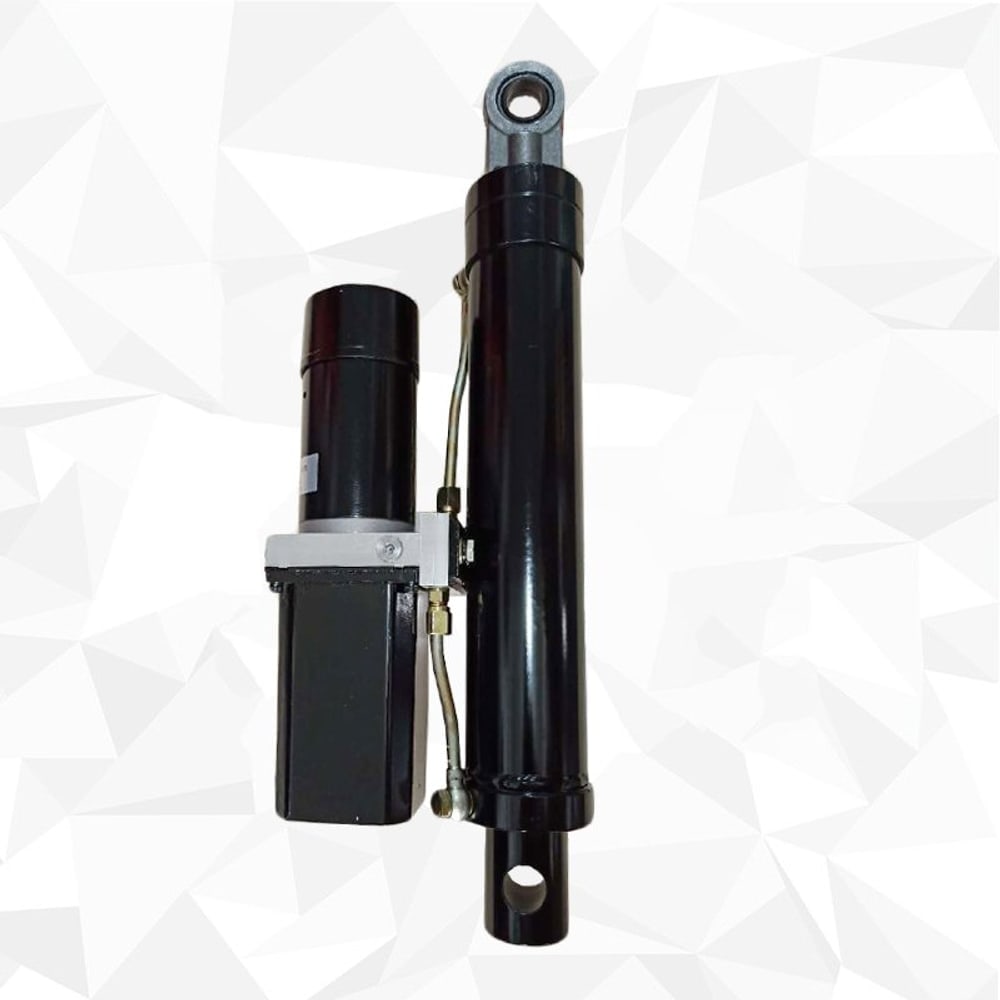

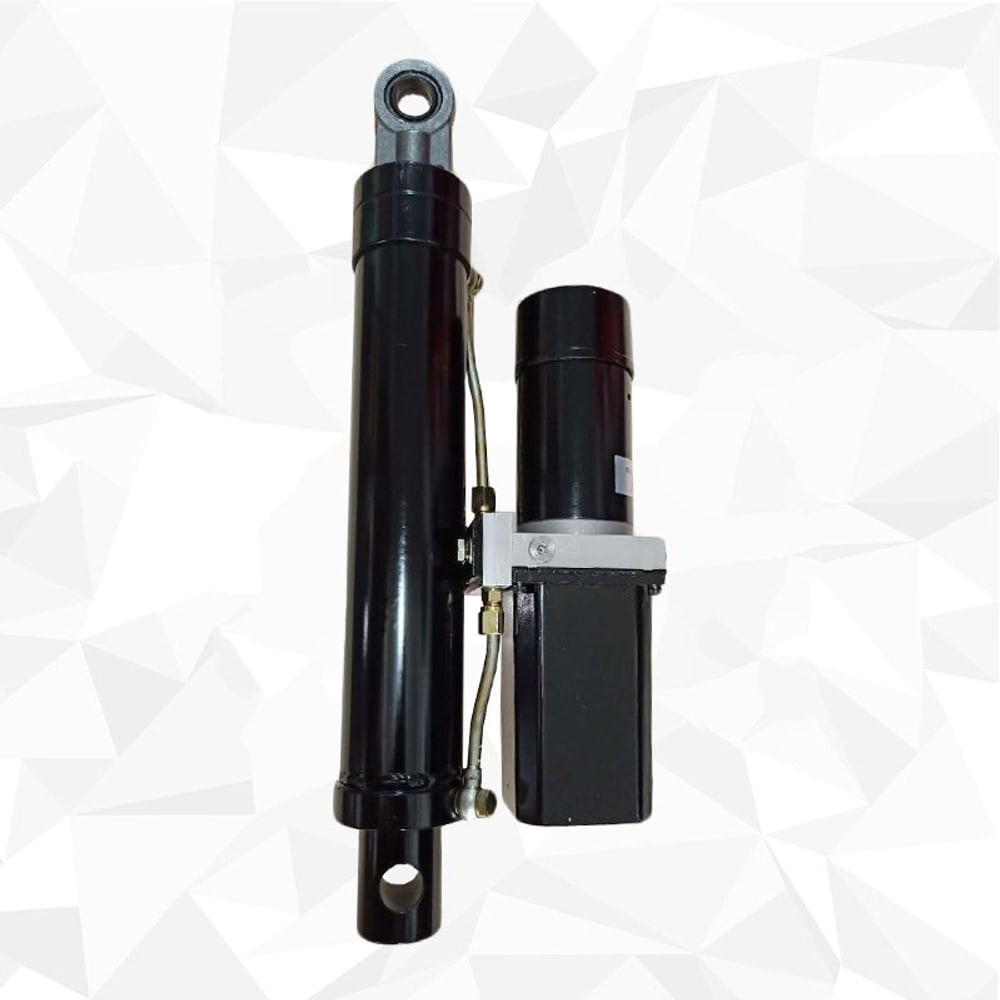

SLA-NH63S 50000N load electric hydraulic linear actuator from Elerover. This electric-hydraulic actuator combines electric drive with hydraulic force for high-load linear motion.
- Maximum push force
- 50,000 N
- Maximum pull force
- 35,000 N
- Stroke
- 100–600 mm
- Voltage
- 24 / 48 V DC
- Speed
- 6–7 / 10–11 / 14–15 mm/s by motor power
Applications
- lifting platforms
- industrial automation equipment
- heavy machinery
- construction equipment
- agricultural machinery
- medical devices
Benefits
- 50,000 N push and 35,000 N pull force
- Integrated motor, pump, valves and cylinder; ready to use once powered
- Over-current, overload and overheat protection
- Two-way pressure self-locking with self-locking, reversing and over-pressure valves
- 24V or 48V DC with 800W, 1000W or 1200W motor
- Speed 6–7, 10–11 or 14–15 mm/s depending on motor power
- Stroke 100 – 600 mm
- Custom pressure port and mounting dimensions
Technical specifications
| Maximum push force | 50,000 N |
|---|---|
| Maximum pull force | 35,000 N |
| Stroke | 100–600 mm |
| Voltage | 24 / 48 V DC |
| Speed | 6–7 / 10–11 / 14–15 mm/s by motor power |

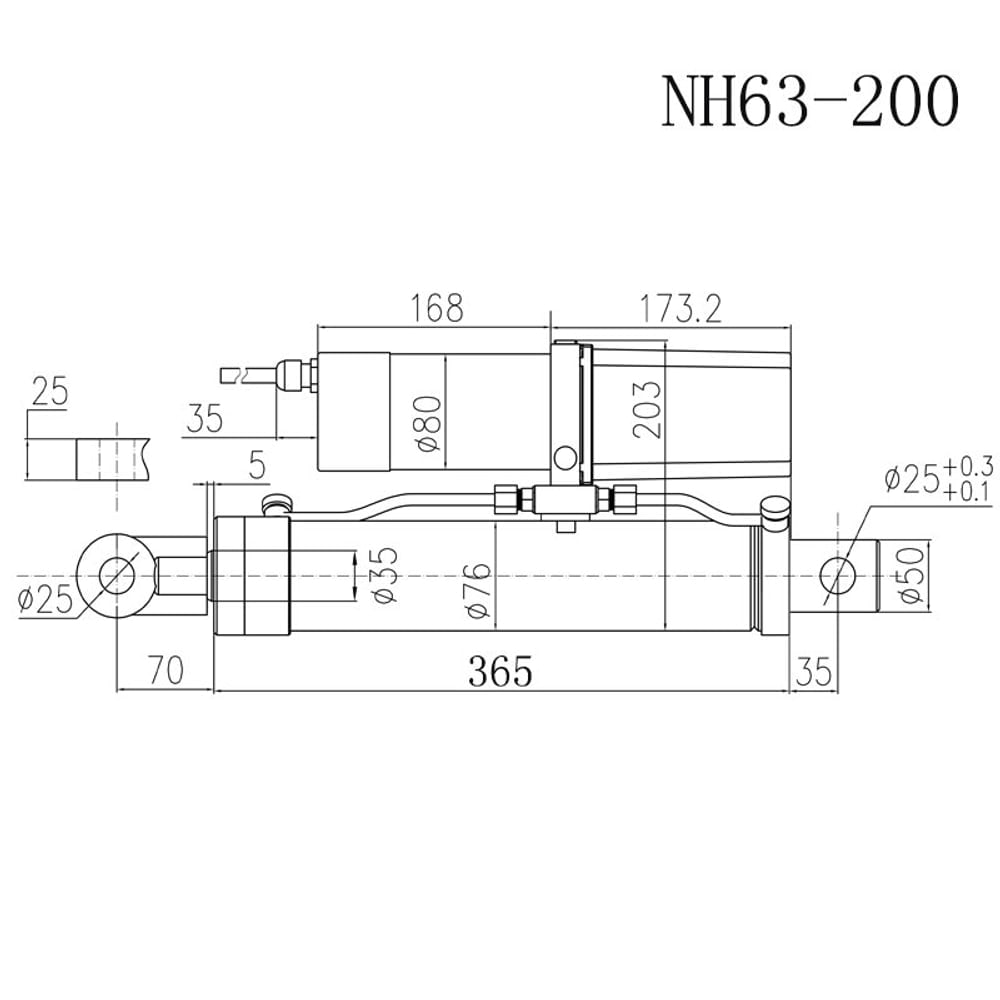

Dimensions & installation drawing
Performance matrix
| Speed | Thrust |
|---|---|
| 6 mm/s | 50000 N |
| 10 mm/s | 50000 N |
| 14 mm/s | 50000 N |
Configuration options
| Parameter | Motor Power | Pump Displacement | Speed | Max Push Force | Max Pull Force |
|---|---|---|---|---|---|
| 800W | 0.38 cc | 6–7 mm/s | 50,000 N | 35,000 N | |
| 1000W | 0.6 cc | 10–11 mm/s | 50,000 N | 35,000 N | |
| 1200W | 0.88 cc | 14–15 mm/s | 50,000 N | 35,000 N |
Download center
FAQ
What is the SLA-NH63S?
The SLA-NH63S is an Elerover electric hydraulic actuator for industrial and OEM motion projects.
Does Elerover manufacture the SLA-NH63S?
Yes. Elerover is a electric hydraulic actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA-NH63S?
Key ratings from the product specifications include voltage 24 / 48 V DC, load 50000 N, stroke 100–600 mm. See the Technical Specifications section on this page for the full table.
How do I request a quote for the SLA-NH63S?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
